A Conveyor Roller Designed to Support Belt Alignment and Stable Operation
A taper roller is a specially shaped conveyor roller with a gradually changing diameter. It is commonly used in belt conveyor systems to help guide the belt, improve alignment, reduce edge wear, and support smoother material handling in demanding working environments.
Helps guide the conveyor belt back to the correct running position
Reduces belt edge friction and abnormal wear
Improves conveying stability in mining and heavy-duty systems
How Taper Rollers Work in Conveyor Systems
Where It Is Used
Installed on belt conveyor systems where belt tracking, return support, or directional stability is required.
What It Helps Prevent
Helps reduce belt misalignment, uneven wear, material spillage, and unexpected downtime.
"For mining, quarry, cement, and power plant conveyor systems, the right taper roller can improve belt tracking performance and reduce maintenance pressure."
Improve your conveyor stability with professional taper roller solutions.
Common Conveyor Problems Caused by Poor Belt Tracking and Roller Performance
Ignoring conveyor misalignment leads to systemic inefficiencies, safety hazards, and significant operational costs. Our taper rollers are engineered to resolve these industrial bottlenecks.
Belt Misalignment
Poor tracking may cause the belt to move away from the centerline, leading to spills and damage to the structural framework.
Abnormal Belt Wear
When the belt runs against frames or uneven rollers, friction increases, drastically shortening the lifespan of expensive belt systems.
Unstable Heavy-Load Conveying
Heavy materials such as ore, coal, gravel, and cement require stable roller support to prevent sagging and structural fatigue.
Unexpected Downtime
Frequent belt deviation, roller failure, or material spillage can interrupt production, causing costly delays in the supply chain.
A well-matched taper roller helps improve belt tracking, reduce friction, and support long-term conveyor system reliability.
Check Taper Roller OptionsBetter Belt Tracking Starts with the Right Roller Geometry
The secret to precise conveyor tracking lies in the taper. Our rollers utilize specific geometric gradients that generate a self-correcting steering force. As the belt shifts off-center, the increasing diameter of the taper guides it back to the neutral path automatically.
- Self-Centering Geometric Advantage
- Reduced Operational Friction
- Extended Belt Service Life
How Taper Rollers Improve Belt Tracking
Belt Starts to Shift: External loads or mechanical imbalance pull the belt toward one edge.
Tapered Surface Guides Movement: The diameter change creates a natural speed differential that steers the belt back.
System Runs More Stably: Equilibrium is restored, ensuring smooth flow and consistent material discharge.
Alignment performance directly affects wear control and total maintenance cost across the entire lifecycle of your equipment.
Optimize your conveyor performance with precise alignment solutions.
Built for Heavy-Duty Conveyor Buyers Who Care About Quality, Fit, and Supply Stability
We maintain rigorous production standards to ensure that every taper roller meets the precise technical requirements of modern industrial and mining operations.
Stable Product Quality
Controlled production and inspection help keep roller dimensions consistent across large batches.
Heavy-Duty Working Fit
Designed for demanding conveyor systems handling ore, coal, gravel, and cement in harsh environments.
Custom Specification Support
Roller diameter, length, shaft size, and sealing structures can be adjusted to your specific technical drawings.
Direct China Factory Supply
As a China-based manufacturer, we support factory-direct communication to ensure transparency and cost efficiency.
Bulk Order Capability
Equipped for large-scale production suitable for regular replacement orders and major project infrastructure supply.
Responsive Technical Support
Clear communication on engineering drawings and technical parameters helps reduce procurement risk and downtime.
For strict mining and industrial buyers, a reliable taper roller supplier must provide consistent quality, accurate specifications, and stable delivery — not just a low price.
Contact Our Engineering TeamTaper Roller Options for Different Conveyor Systems and Working Conditions
Explore our range of precision-engineered taper rollers designed for optimal belt alignment and reliable material handling.

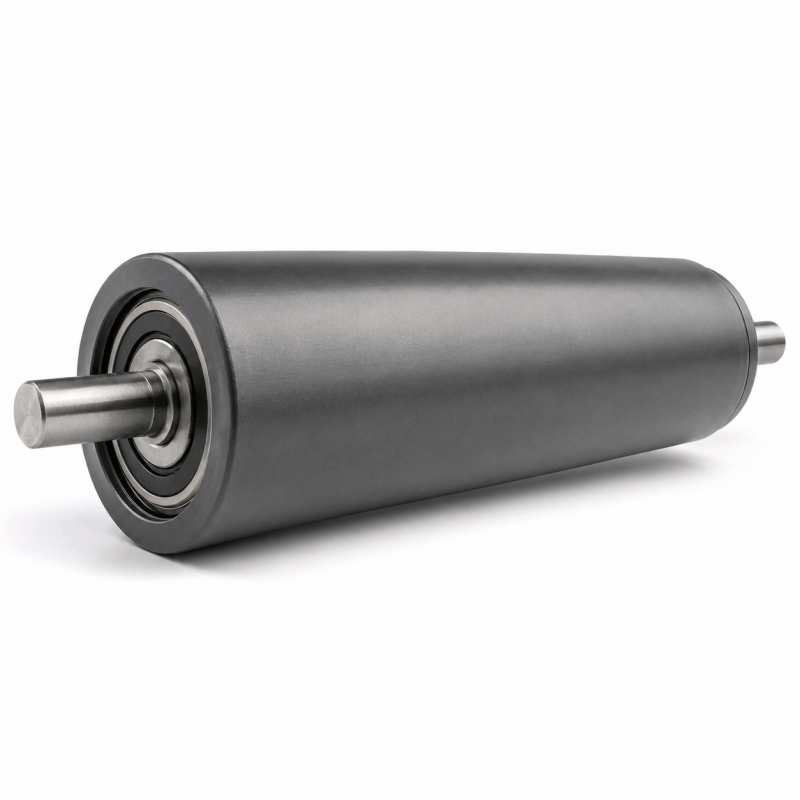

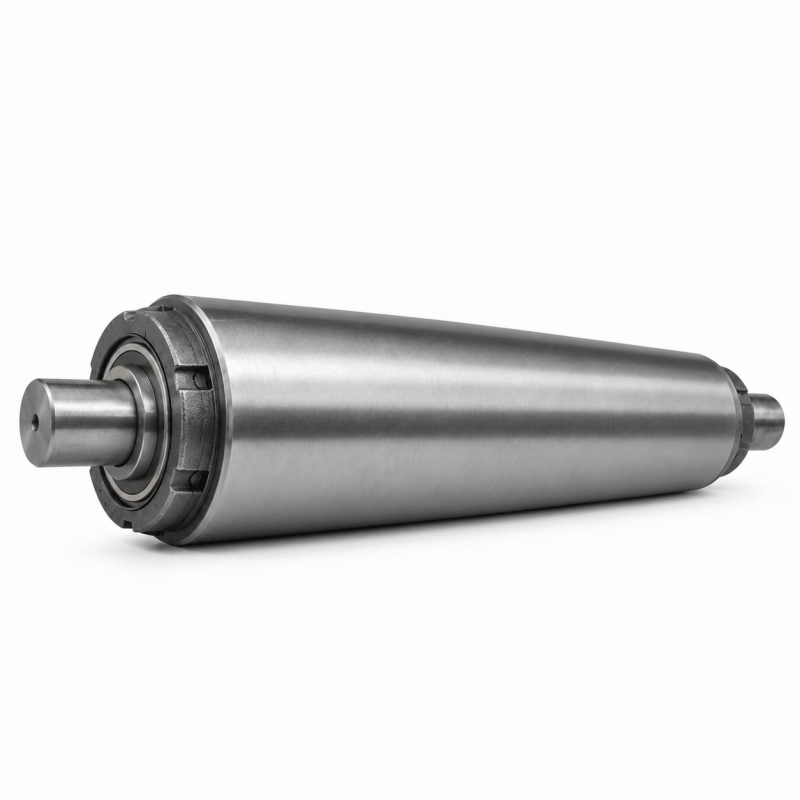

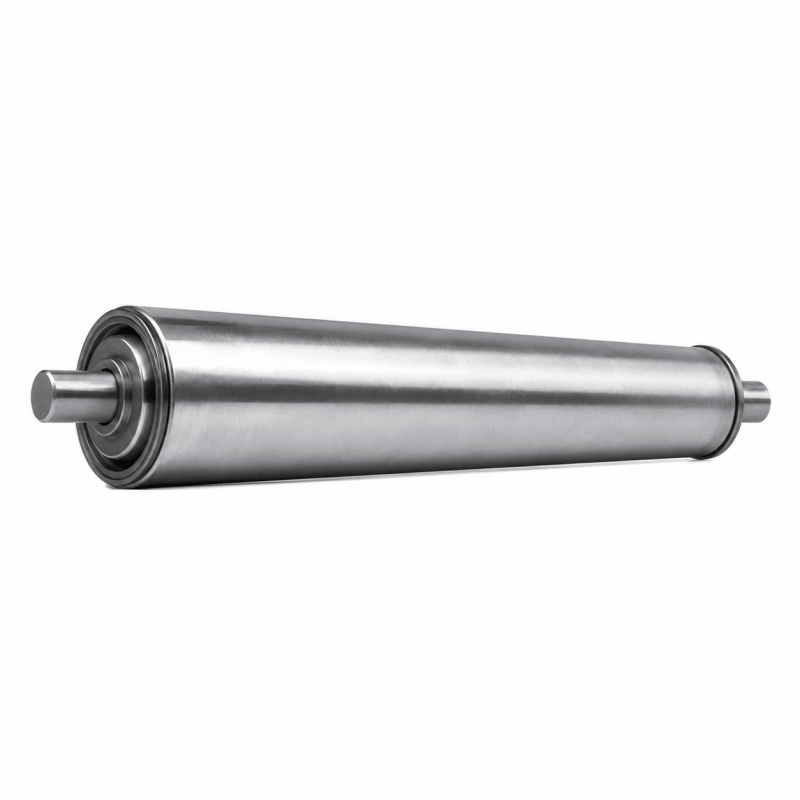

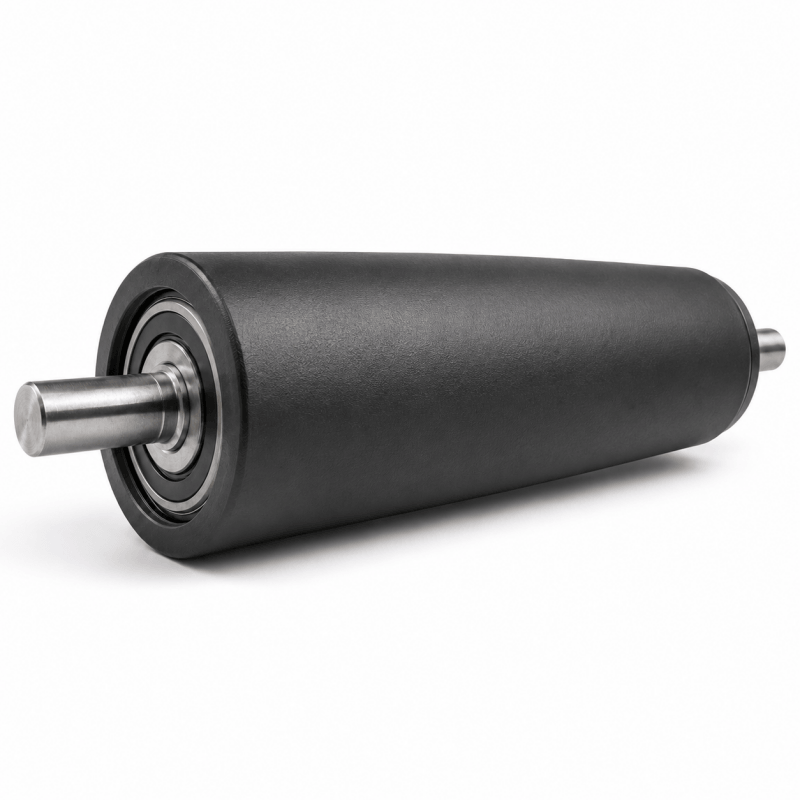

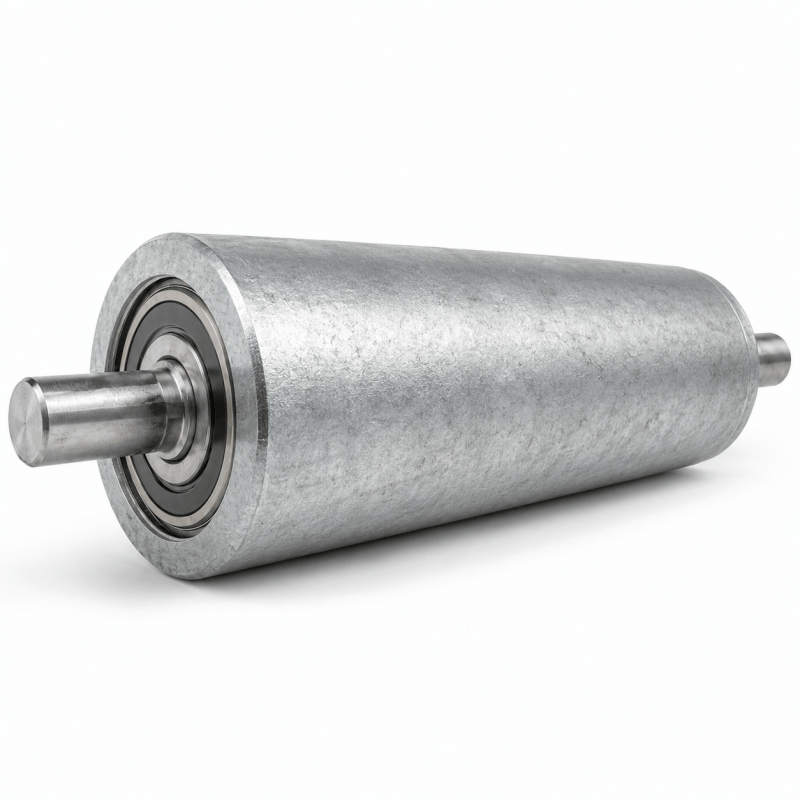

Standard Taper Roller
Universal fit for most industrial conveyor systems requiring standard alignment correction.
Heavy-Duty Taper Roller
Reinforced design for high-load capacity in mining and heavy industrial transport.
Return Taper Roller
Specifically balanced for return-side belt tracking and reduced vibration.
Rubber Coated Taper Roller
High-friction surface treatment for maximum grip and belt protection.
Galvanized Taper Roller
Corrosion-resistant coating for humid environments and chemical processing.
Custom Taper Roller
Bespoke dimensions and materials tailored to specific project requirements.
Need a different roller size, bearing type, sealing structure, or surface treatment? Send us your conveyor drawing or working condition details for custom production.

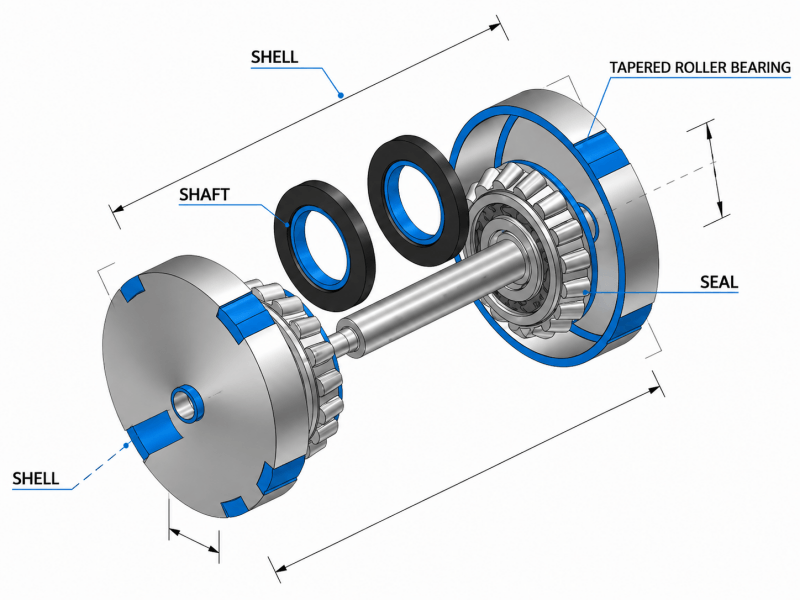

Send Your RequirementsTaper Roller Key Structure & Components
Long-term reliability and load capacity of an industrial roller are determined by the precision of its assembly and the quality of individual components. Each element is engineered to minimize friction and maximize lifespan.
Shell
High-precision ERW steel tube with minimum eccentricity and balanced rotation.
Shaft
Cold-drawn round steel or stainless steel, precision machined for exact bearing fit.
Bearing System
Deep groove ball bearings with C3 clearance for optimal industrial load handling.
Sealing Structure
Multi-stage labyrinth seals preventing dust and water ingress into bearing area.
End Cap Protection
Reinforced steel or polymer end caps designed for high impact resistance.
Surface Treatment
Galvanized, rubber lagged, or powder coated for corrosion and wear resistance.
Roller structure can be adjusted according to belt width, load capacity, conveyor speed, bearing type, sealing requirement, and working environment.
Send Roller DrawingKey Taper Roller Specifications for Accurate Conveyor Matching
We provide comprehensive customization for industrial taper rollers. Use the table below as a reference for standard parameters or request a bespoke design for specific heavy-duty applications.
| Parameter | Common Options | Customization | Why It Matters |
|---|---|---|---|
| Diameter | Ø50, Ø60, Ø76, Ø89, Ø102 mm | Available | Determines speed and torque handling. |
| Length | 150mm - 2200mm | Available | Must match conveyor frame width exactly. |
| Shaft | Ø20, Ø25, Ø30, Ø40 (Threaded/Flat) | Available | Structural backbone of the roller load. |
| Bearing | 6204, 6205, 6306, 6308 ZZ/2RS | Available | Influences noise and rotation lifespan. |
| Sealing | Labyrinth, Dust-proof, Waterproof | Available | Protects bearing in harsh environments. |
| Material | Carbon Steel, Stainless, Polymer | Available | Corrosion resistance and weight ratio. |
| Surface | Zinc Plating, Rubber, PU Coating | Available | Friction control and tube protection. |
| Load | Up to 15,000 N per roller | Available | Safety factor for heavy materials. |
Information Needed for Quotation
- Belt width or Frame width
- Desired Roller Diameter
- Shaft diameter & End type
- Estimated Load per roller
- Conveyor Operating Speed
- Working Environment (Wet/Dry)
- Technical Drawing or Photo
Factory Customization Support: Our engineering team provides full CAD drawing support. If your specifications fall outside the standard range, we can manufacture custom molds and components to meet your precise industrial conveyor requirements.
Request QuoteChoose the Right Configuration for Longer Roller Service Life
The longevity of a conveyor system depends heavily on selecting materials and sealing structures that match your specific operational environment. We offer technical configurations designed to withstand abrasive dust, moisture, and extreme load cycles.
Shell Material
- Carbon Steel (Q235/Q345)
- Stainless Steel (304/316)
- High-Density PE (HDPE)
- Nylon & Composites
Bearing Options
- Deep Groove Ball (C3/C4)
- HRB, SKF, FAG, NSK
- Nylon Cage for Vibration
- High-Precision Steel Cage
Sealing Structure
- Triple Labyrinth Seal
- Multi-Stage Dust Proof
- Waterproof Rubber Lip
- Contact-less Mechanical
Surface Treatment
- Electrostatic Powder Coating
- Galvanized Coating
- Rubber Lagging (Hot/Cold)
- Ceramic Lagging
Match Configuration to Working Conditions
Standard components often fail in harsh industrial settings. We analyze your specific site conditions to determine if specialized sealing or corrosion-resistant treatments are necessary for optimal ROI.
Dusty
Wet
Heavy-Load
To recommend the right roller configuration, please tell us your conveyed material, belt speed, load condition, working environment, and expected service life.
Consult EngineeringManufactured to Match Your Conveyor Drawing, Load Requirement, and Working Site
Our facility is equipped to handle custom orders from individual prototype rollers to large-scale infrastructure replacements. Send us your technical drawings for a precise fabrication match.

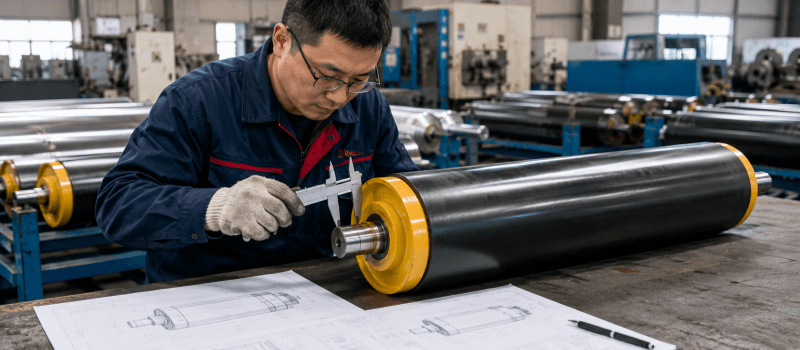

What We Can Customize
Drawing-based
Production exactly matching your blueprints and CAD files.
Size & Installation
Custom shaft ends, diameters, and slot dimensions.
Load & Material
Adjusted thickness and material grades for specialized loads.
Environment-based
Configured for chemical, mining, or food-grade sites.
Custom Order Process
Send Drawing
Provide your technical specifications or sample requirements.
Technical Confirmation
Our engineers review compatibility and load tolerances.
Quotation
Receive a detailed cost and lead-time breakdown.
Sample/Batch
Initial sample validation followed by full-scale production.
Inspection & Delivery
Comprehensive testing and secure logistics to your site.
Customizable Items
We support thorough technical communication and guarantee stable delivery for both OEM and aftermarket replacements.
Contact Us for Custom OrdersTaper Roller Solutions for Mining, Quarry, Cement, Power Plant, and Bulk Material Conveying
Our industrial-grade taper rollers are specifically engineered to provide exceptional load distribution and alignment correction across a diverse range of heavy-duty material handling environments.

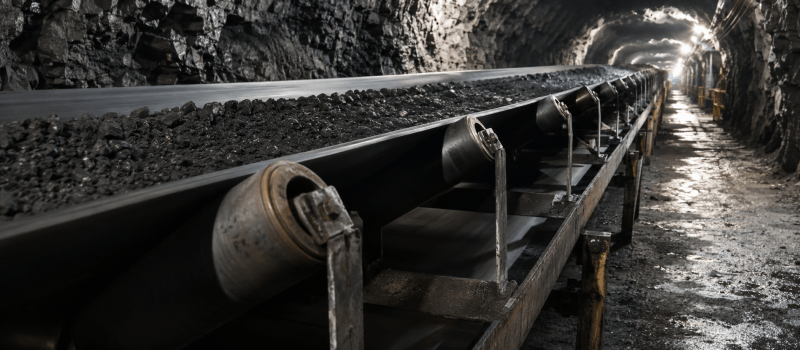

Mining
Designed for deep excavation and harsh underground conditions where rollers must withstand extreme pressure.

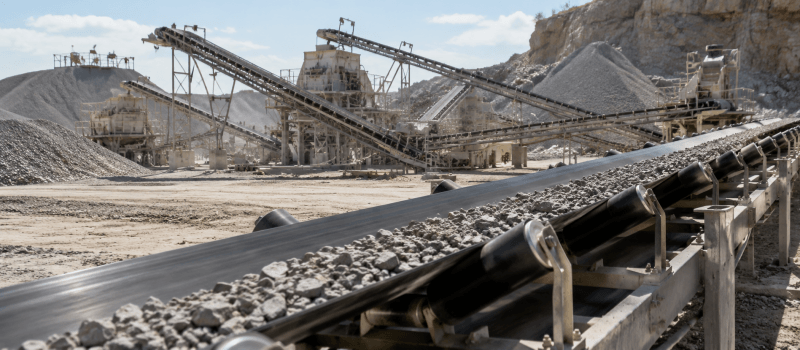

Quarry
Optimized for aggregate processing and crushing environments with superior abrasive resistance.

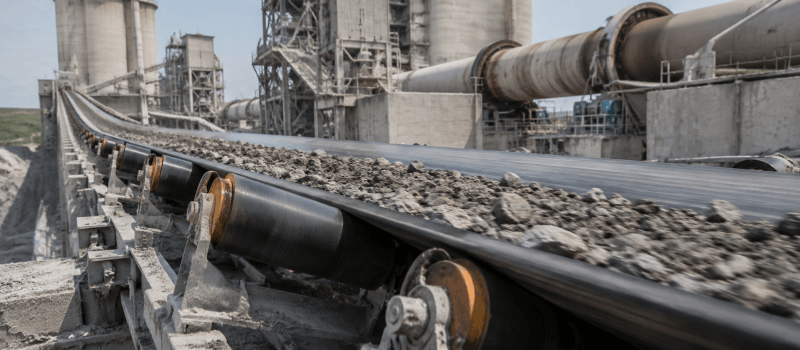

Cement
High-temperature tolerance and dust-sealed bearing housings for continuous clinker transport.

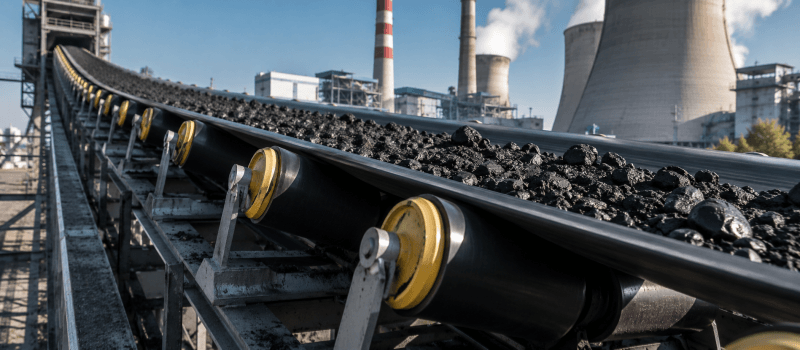

Power Plant
Low-friction rollers designed for stable coal fuel delivery with minimal downtime for maintenance.

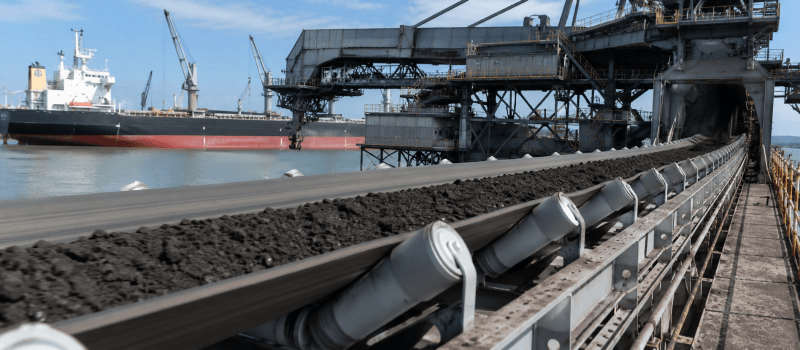

Port
Corrosion-resistant finishes and high-speed bearing options for rapid bulk loading and unloading.

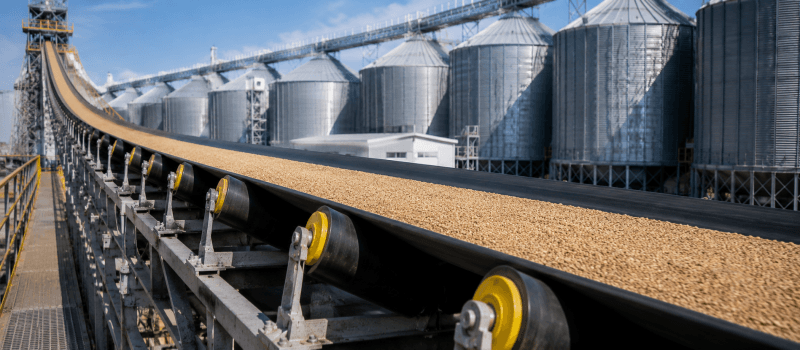

Bulk Material
Universal taper rollers designed for grain, chemicals, and diverse loose materials in global distribution.
Not Sure Which Roller Fits Your Site?
Our engineering team provides custom load analysis and environment assessments for your specific industry needs.

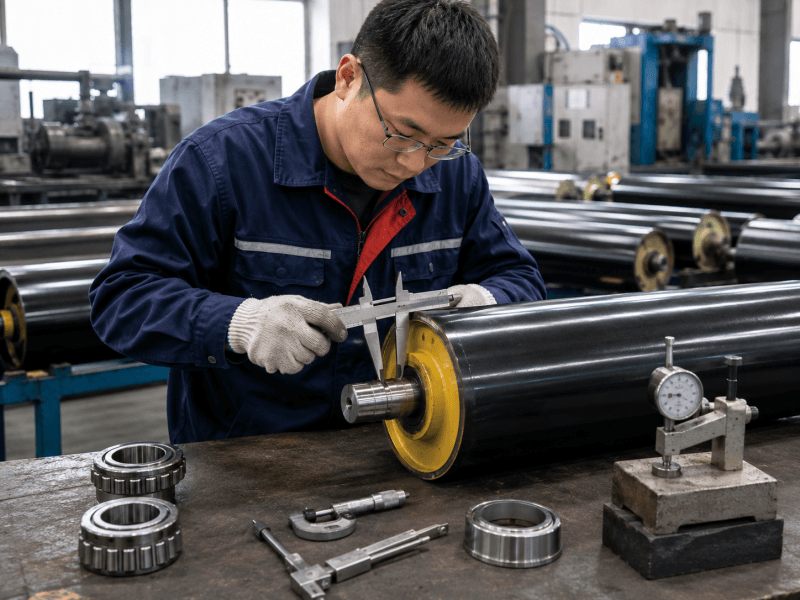

Inspection Steps That Help Keep Taper Roller Quality Stable
To guarantee the longevity and reliability of your conveyor system, every single roller must pass our rigorous 6-step quality control protocol before it leaves the factory floor.
Material Check
Raw steel chemical and hardening analysis.
Casting Quality
Ultrasonic testing for internal structural flaws.
Dimension Control
Digital calipers verify precise taper angles.
Assembly Tightness
Checking bearing seating and seal integrity.
Rotation Test
High-speed run testing for balance.
Final Inspection
Visual surface check and packaging certification.
Material & Dimension Check
Detailed physical and chemical assessment of all components.
Functional Performance Testing
Rotation, balance, and load-bearing endurance verification.
Final Certification & Logistics
Export-grade packaging and document validation.
Accuracy
Strict tolerance control within ±0.05mm for perfect alignment.
Stability
Dynamic balance testing prevents belt mistracking and wear.
Protection
Multi-stage sealing prevents ingress of dust and moisture.
Consistency
Every batch follows the same 6-step testing protocol.
For strict mining and industrial buyers...
We provide full transparency in our manufacturing chain, ensuring your procurement meets all safety and performance standards.

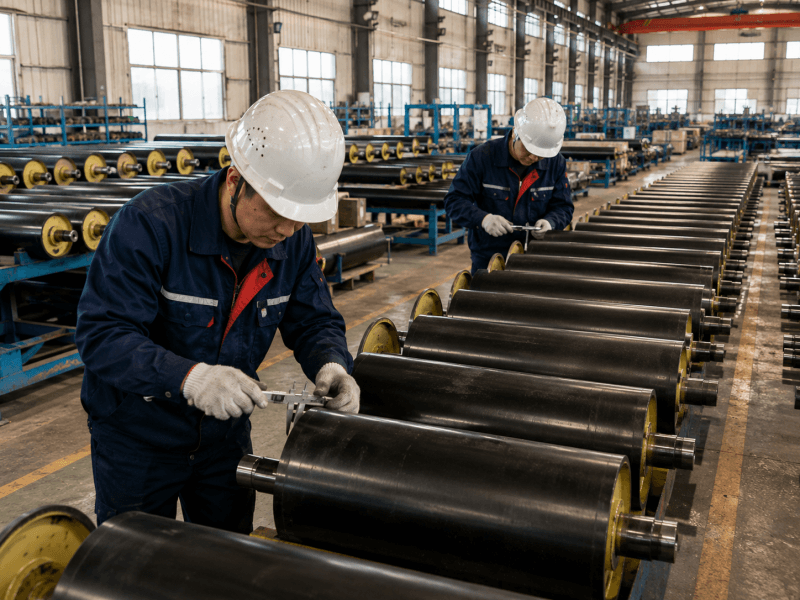

Stable Supply from China Factory
Engineered precision for high-load industrial environments, direct from the source.
Direct Industrial Capacity
Our factory specializes in high-volume production of taper rollers. We handle both standard and custom production requirements with a focus on bulk order efficiency. Every component undergoes rigorous pre-shipment inspection to ensure mechanical integrity before leaving our facility.
- check_circle Standard Production
- check_circle Custom Specs
- check_circle Bulk Delivery
Factory-Based
Direct sourcing, zero middleman costs.
Bulk Supply
Optimized logistics for high-volume orders.
QC Before Shipment
100% inspection for every batch.
Long-Term
Consistent partnership and reliability.
For strict mining and heavy-duty conveyor buyers, a reliable supplier should support not only the first order, but also repeat orders, spare replacement, technical updates, and long-term supply planning.
How to Select the Right Taper Roller
Technical precision selection guide for conveyor system optimization.
view_sidebar Confirm Belt Width/Frame
Define the base dimensions based on your existing conveyor structure.
straighten Check Roller/Shaft Size
Critical diameter and shaft length measurements for bearing fit.
weight Match Load/Material
Calculating static and dynamic loads for roller wall thickness.
settings_input_component Select Bearing/Sealing/Surface
Environmental protection against dust, water, and corrosion.
draw Confirm Drawing
Final technical approval before manufacturing begins.
Selection Checklist
The right taper roller should match both conveyor structure and working environment. A low-price roller with the wrong size, weak sealing, or unsuitable bearing may increase maintenance cost and downtime risk.
Ready to Optimize Your Conveyor System?
Get expert technical analysis for your specific load requirements. Our engineers provide precision-matched taper roller solutions with verified performance ratings and competitive factory-direct bulk pricing.
