What Is a Steel Bar Mining Cable Bolt?
Designed for the most demanding underground conditions, our steel bar mining cable bolts feature a high-tensile solid steel body that provides superior structural integrity compared to traditional stranded cables. This system is specifically architected for deep mining operations where dynamic pressure and seismic events require maximum anchorage reliability and shear resistance.
- Solid Steel Bar Body
- High Load & Shear Resistance
- Built for Deep Mining Support
Problems in Rock Burst, Dynamic Pressure & Shear Deformation Roadways
In deep underground mining projects, traditional support systems often struggle to maintain structural integrity against the immense geological forces of high-stress environments. These failure points lead to significant safety risks and operational downtime.
Insufficient Shear Resistance
Transverse loading in shifting rock strata leads to immediate snapping of lower-grade bolt systems, causing catastrophic roof failure.
Wire Breakage Under Rock Burst
Sudden energy releases in rock burst zones exceed the elastic limits of standard strands, resulting in instantaneous wire unraveling.
Support Failure in Dynamic Pressure
Ongoing vibrations from blasting or tectonic shifts loosen traditional anchorage, rendering the support system ineffective over time.
Large Deformation of Surrounding Rock
Slow-moving geological creep pushes standard bolts past their displacement capacity, leading to visible and dangerous roadway narrowing.
Unstable Anchorage in Broken Ground
Fractured rock masses provide poor friction for expansion shells, causing bolts to slip or pull out completely under load.
High Maintenance and Project Risk
Frequent re-supporting requirements increase operational costs and expose personnel to hazardous environments more often than necessary.
Solid Steel Bar Structure vs Traditional Strand Cable Bolt
Not all cable bolts perform the same. While traditional strands offer flexibility, the solid steel bar mining cable bolt provides the structural rigidity and high-shear capacity required for the most demanding underground conditions.
Steel Bar Mining Cable Bolt
Structure
Solid high-strength steel bar core
Shear Resistance
Exceptional; designed for high-shear zones
Impact Performance
High energy absorption for rock burst zones
Load Capacity
Ultra-high tensile and yield strength
Anchorage Stability
Rigid profile ensures permanent grip
Suitable Conditions
Deep mining, dynamic pressure, high stress
Traditional Strand Cable Bolt
Structure
Multiple twisted small-diameter wires
Shear Resistance
Moderate; prone to wire-by-wire snapping
Impact Performance
Limited; wires unravel under sudden force
Load Capacity
Standard commercial grade
Anchorage Stability
May slip in soft or highly broken rock
Suitable Conditions
Standard development, low-stress zones
Higher Shear Resistance
More Stable Support
Better Fit for Demanding Underground Conditions
This is why steel bar mining cable bolts are increasingly used for deep, high-pressure mining environments worldwide.

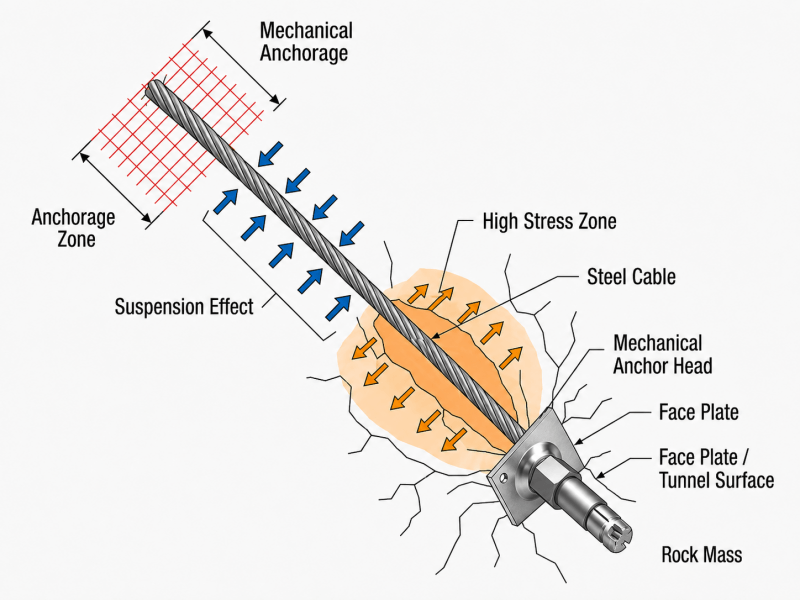

Compare SpecificationsHow Steel Bar Mining Cable Bolt Reinforces Surrounding Rock
Steel bar mining cable bolts strengthen underground rock mass by combining passive confinement with active reinforcement, effectively transforming unstable rock into a self-supporting structural beam.
High-Strength Suspension Effect
Suspends weak, shallow rock strata to deeper, stable rock layers, preventing delamination and gravity-induced collapse.
Compressive Stress Zone Superposition
Creates a continuous compression arch across multiple bolts to significantly increase the overall bearing capacity of the rock.
Shear-Resistant Load-Bearing Effect
Provides high lateral resistance against sliding between rock layers, locking structural joints and fissures in place.
Composite Load-Bearing Effect
Combines steel tensile strength with grout adhesion to form a reinforced composite body capable of handling dynamic shifts.
Better Rock Stability
More Reliable Support
Improved Control of Deformation
These support mechanisms are the technical foundation of our high-performance mining products.
Learn MoreFeatured Steel Bar Mining Cable Bolt Products
We provide steel bar mining cable bolt solutions for different underground support conditions, ensuring maximum safety and operational efficiency in complex geological environments.

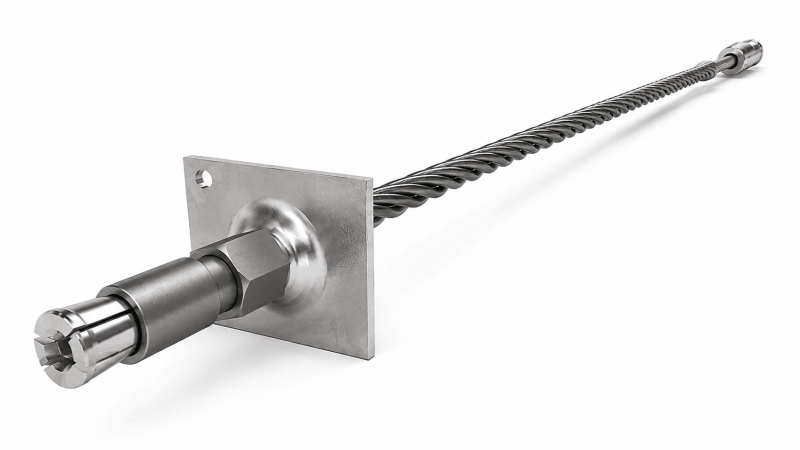

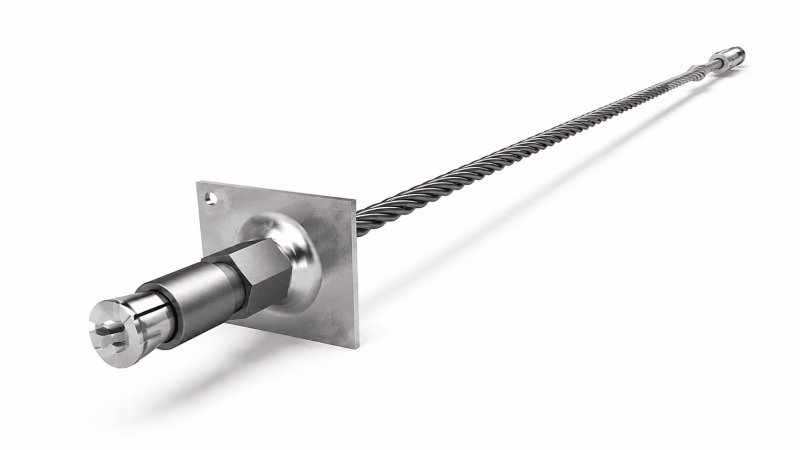

Standard Steel Bar Mining Cable Bolt
Reliable support solution for general roadway and tunnel reinforcement in stable to moderate rock conditions.
View Details

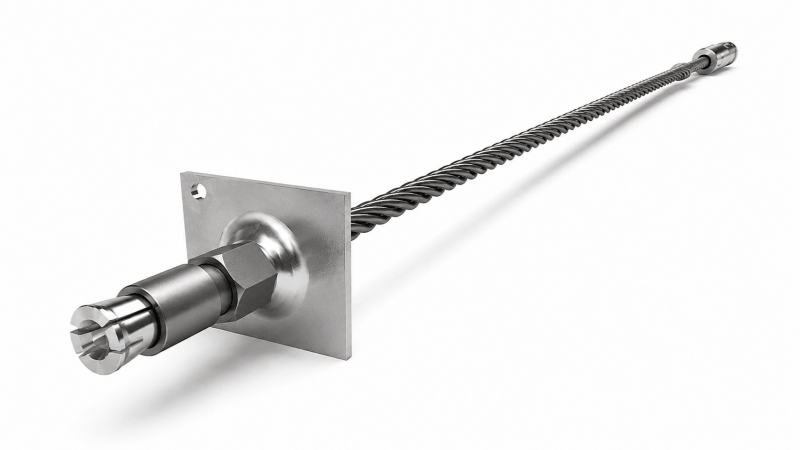

High-Strength Steel Bar Cable Bolt
Designed for high-load applications where massive tensile strength is required to support heavy strata.
View Details

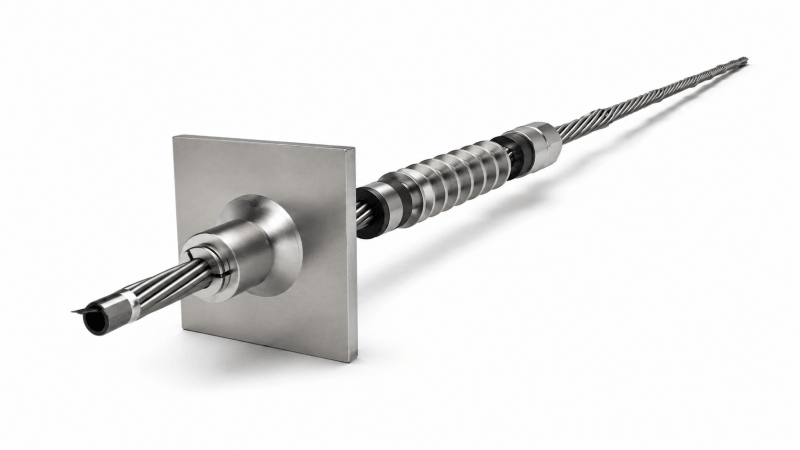

Anti-Shear Steel Bar Cable Bolt
Specifically engineered with reinforced cross-sections to withstand significant lateral shear forces at fault zones.
View Details

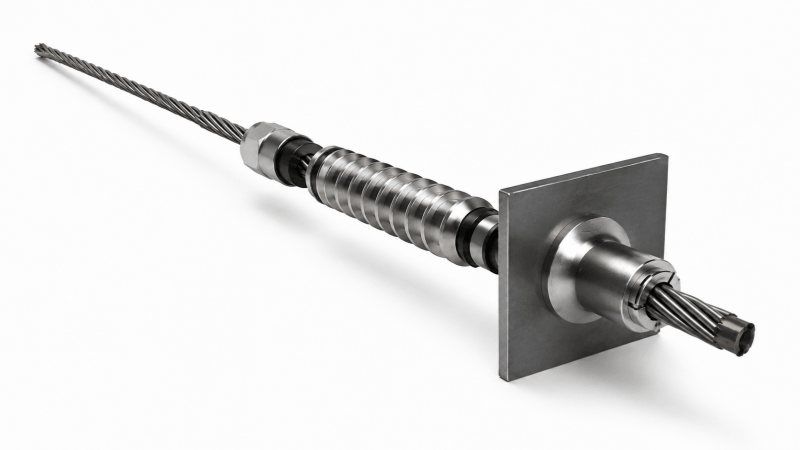

Rock Burst Resistant Steel Bar Cable Bolt
Equipped with energy-absorbing components to handle sudden rock stress releases and dynamic loading.
View Details

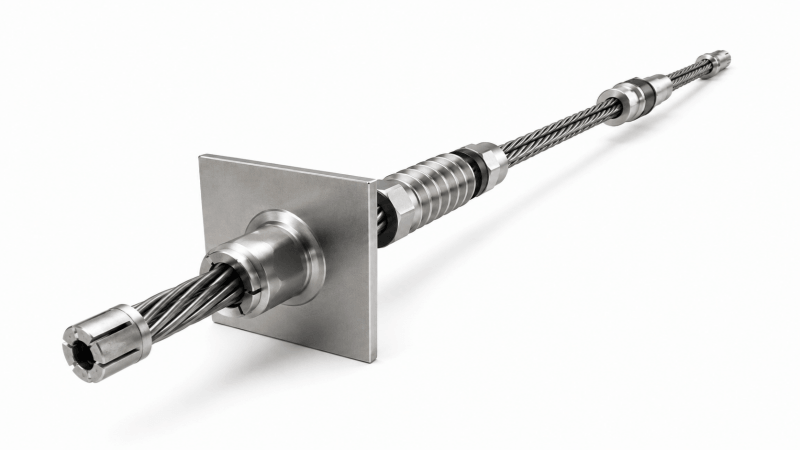

Dynamic Pressure Roadway Steel Bar Cable Bolt
Optimized for roadway support under active mining pressure, offering flexible yet firm reinforcement.
View Details
Customized Steel Bar Mining Cable Bolt
Bespoke manufacturing options tailored to your specific mine geometry and geological challenges.
View DetailsNot sure which steel bar cable bolt is suitable for your mine?
Get Product RecommendationCore Technical Parameters of Steel Bar Mining Cable Bolt
Steel bar mining cable bolts can be supplied with different diameters, strength grades, and technical configurations to meet diverse geological and mechanical requirements for underground safety support.
| Parameter | Specification Range | Unit | Application Meaning |
|---|---|---|---|
| Nominal Bar Diameter | 16 / 18 / 20 / 22 | mm | Primary dimension for borehole compatibility |
| Strength Grade | 1080 / 1230 / 1420 | MPa | Material tensile strength capability |
| Ultimate Breaking Load | 217 - 520 | kN | Maximum force before structural failure |
| Yield Load | 180 - 430 | kN | Elastic limit before permanent deformation |
| Elongation | ≥ 7.0 | % | Material ductility and deformation capacity |
| Impact Toughness | ≥ 47 | J/cm² | Resistance to sudden dynamic loading |
| Standard Cable Length | 3 - 12 | m | Reach for anchoring in stable strata |
| Matching Borehole Diameter | 42 - 56 | mm | Required drilling size for installation |
Diameter Selection
Selection depends on the specific loading environment and available drilling equipment on site.
Strength Grade Matching
High-grade 1420 MPa bolts are ideal for deep mining conditions with significant roof pressure.
Breaking Load & Yield Load
Defines the safety margin of the support system under extreme geological displacement.
Length & Borehole Fit
Ensures optimal resin mixing and mechanical interlock within the borehole environment.
Need project-based parameter selection?

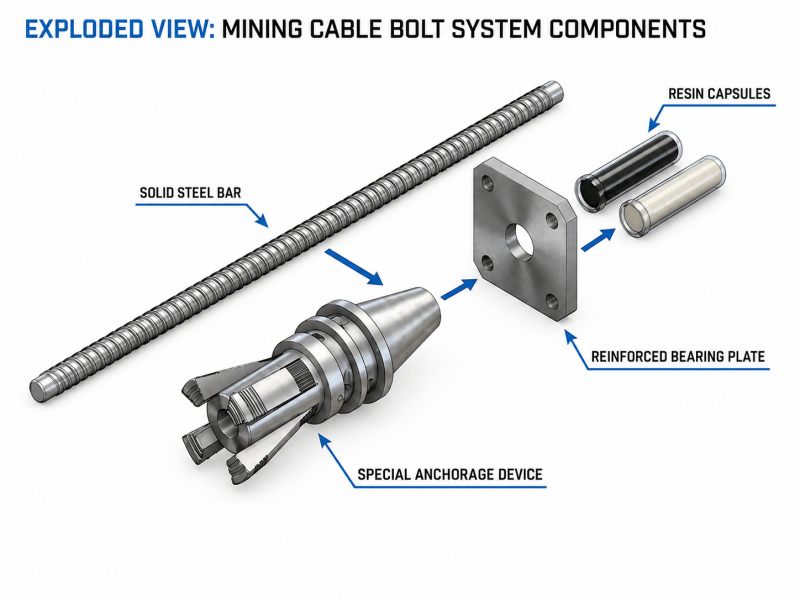

Send Technical RequirementsComplete Steel Bar Cable Bolt Support System

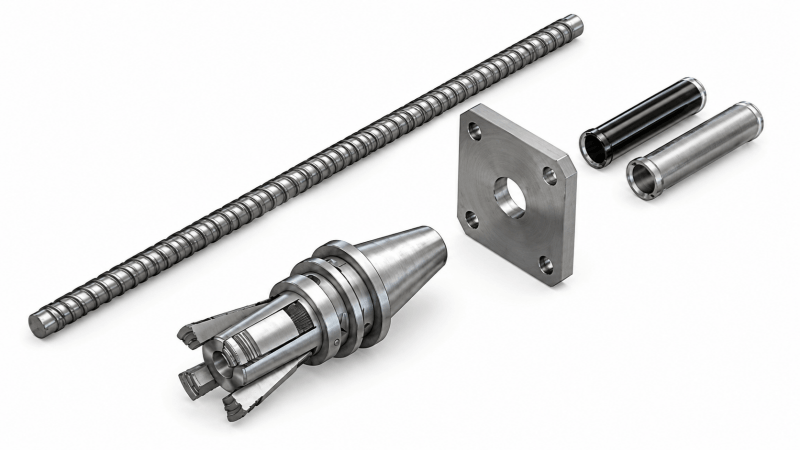

A reliable steel bar mining cable bolt system requires more than the steel bar itself; it is a meticulously engineered assembly where every part contributes to structural stability.
Steel Bar Cable Body
The core structural element made of high-strength steel, designed for maximum load transfer.
Special Anchorage Device
Secures the cable end to maintain tension and prevents slippage under high-stress conditions.
Reinforced Bearing Plate
Distributes the load evenly across the rock surface to prevent localized failure or punching.
Resin Anchor Capsule
The bonding agent that creates the mechanical link between the bolt and the borehole wall.
Each component plays a different role in rock reinforcement.
Ask for System Matching SupportCore Technical Advantages of Steel Bar Mining Cable Bolt
With a single solid high-strength steel bar structure, steel bar mining cable bolts provide superior geological stability and reinforcement efficiency compared to traditional multi-wire systems, ensuring the structural integrity of deep-earth excavations.
Structural Excellence
Engineered for extreme environments, our solid bar design eliminates the internal friction and corrosion vulnerabilities typical of strand-based bolts, providing a more predictable and uniform support profile.
Ultra-High Shear Resistance
The solid cross-section provides exceptional lateral strength to resist rock strata movement and shearing forces.
High Load-Bearing Capacity
Optimized material properties allow for maximum tensile strength, supporting larger spans of hanging wall rock.
Excellent Impact Resistance
Specifically treated steel maintains ductility under sudden seismic events or rock burst conditions.
Stable Anchorage Quality
Enhanced rib profiles ensure a superior bond between the bolt, resin, and rock mass for permanent stability.
Convenient Installation
Compatible with standard drilling equipment, the rigid bar design prevents curling and simplifies hole insertion.
Precision Manufacturing
Each bolt is manufactured with strict dimensional tolerances to ensure perfect compatibility with installation hardware.
Where Steel Bar Mining Cable Bolt Is Used
Steel bar mining cable bolts are widely used in underground support projects where ordinary support systems may not provide enough structural security, particularly in challenging geological formations and high-stress environments.
Rock Burst Roadway Support
Used in deep underground roadways affected by rock burst risk, where support systems must resist sudden impact and maintain stability.
Built for impact-prone mining environmentsDynamic Pressure Roadway Support
Suitable for roadways under repeated stress changes, helping maintain support performance in dynamic pressure conditions.
Stable support under changing ground pressureLarge-Span Chamber Support
Applied in large underground chambers and roadway intersections where higher load-bearing support is required.
Higher load capacity for large underground openingsBroken Surrounding Rock Support
Recommended for fractured, weak, or unstable surrounding rock, helping improve anchorage reliability and rock mass stability.
Better control in broken and weak groundRoadway Reinforcement and Strengthening
Used to reinforce deformed or weakened roadways and improve long-term underground stability in rehabilitation projects.
Ideal for roadway reinforcement and recoveryHigh-Stress Tunnel Support
Engineered for deep mining tunnels with extreme geological pressure, providing superior structural rigidity and safety.
Engineered for extreme depth and pressureStandard Installation Process for Steel Bar Mining Cable Bolt
The installation process of steel bar mining cable bolts is similar to conventional cable bolt installation, but optimized for the superior structural rigidity of our high-tensile steel bars to ensure maximum support performance.
STEP 01
Drilling
Drill a borehole to the design depth using standard mining rigs.
STEP 02
Hole Cleaning
Remove drill cuttings and water using compressed air for better resin bond.
STEP 03
Resin Installation
Insert the specified number of resin capsules into the borehole.
STEP 04
Bolt Insertion
Insert the steel bar bolt and rotate to mix the resin thoroughly.
STEP 05
Curing Time
Allow resin to cure based on the manufacturer's speed rating.
STEP 06
Anchor Head
Install the external anchor plate and barrel assembly on the bar.
STEP 07
Tensioning
Apply design pretension using a hydraulic tensioning jack.
STEP 08
Anchor Sealing
Apply corrosion protection or final sealing to the exposed head.
Borehole depth...
Ensure depth matches bar length minus specified protrusion for anchoring hardware.
Hole cleaning...
Dust and moisture significantly reduce the anchorage force of resin systems.
Tensioning force...
Strictly follow site engineering specs to avoid over-tensioning beyond yield load.
Anchor sealing...
Final sealing prevents long-term oxidation in high-humidity mining environments.
Ensure safe and efficient installation for your specific project environment.
Request Installation GuidanceQuality Control & Testing Support for Steel Bar Mining Cable Bolt
For underground mining support projects, cable bolt quality directly affects roadway safety. We implement rigorous testing protocols to ensure every steel bar meets or exceeds global industrial standards.
Material Quality Inspection
Spectrometric analysis of steel chemistry to verify carbon and manganese content for optimal toughness.
Diameter & Length Accuracy
Precision measurement checks to ensure compatibility with standard boreholes and anchor hardware.
Load Verification
Destructive testing to confirm actual breaking and yield loads match technical specifications.
Impact Toughness Testing
Charpy V-notch testing ensures the material can absorb energy during sudden seismic events.
Anchorage Reliability Check
Pull-out tests to verify the performance of the thread and anchor head interface.
Chemical Composition Analysis
Verifying raw material purity to ensure consistent performance in high-stress environments.
For project orders, we can support specification confirmation and provide full testing reports.
Request QC & Testing DocumentsCustom Steel Bar Mining Cable Bolt for Project-Based Support Design
Different underground mining projects require different cable bolt specifications. We support custom manufacturing based on roadway conditions, support depth, load requirements, borehole design, anchorage length, and complete support system matching.
Custom Bar Diameter
Match nominal bar diameters to roadway load and borehole size.
Custom Cable Length
Select based on support depth and reinforcement design.
Custom Strength Grade
Supply for general to high-load and rock burst conditions.
Custom Load Requirement
Match breaking and yield load to safety design.
Custom Surface Processing
Thread or rib structures for better bonding.
Complete System Matching
Match plate, anchorage, and resin as a full system.
01
Project Condition Review
02
Specification Matching
03
System Component Selection
04
Production & QC Confirmation
Get factory-direct customized support solutions for your high-stress mining projects.

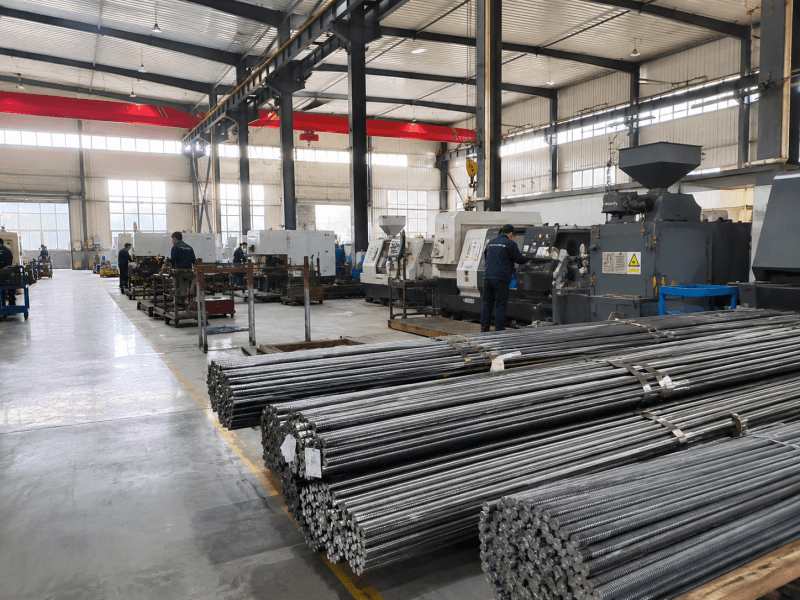

send Send Custom SpecificationsChina Factory Support for Mining Cable Bolt Projects
XINYONGDUO supports overseas mining projects with factory-direct supply, project-based customization, quality control, system matching, and responsive technical communication.
Factory-Direct Supply
Reduce layers and improve control over lead times and material quality.
Mining Support Focus
Deep engineering expertise in cable bolts, mesh, and structural plates.
Project-Based Customization
Tailored technical specifications designed specifically for your mine's geology.
Quality Control Support
Rigorous ISO-certified material testing and dynamic load verification.
System Matching Capability
Ensuring full kit compatibility between bolt, plate, and resin cartridges.
Export Service Experience
Professional B2B logistics, customs clearance, and global delivery support.
Start your mining cable bolt project with a reliable manufacturing partner.
support_agent Talk to Our Technical TeamGet Custom Steel Bar Mining Cable Bolt Solutions from China Factory
Send us your roadway condition, required load level, and strength grade. XINYONGDUO supports specification matching and custom manufacturing for your mining support projects.
- Factory-direct supply from China manufacturer
- Custom diameter, length and strength grade
- Support for rock burst and dynamic pressure
- Complete system matching with plate & resin
"Built for high-stress mine support, bulk project orders, and long-term B2B cooperation."
Request Cable Bolt Solution
Share your project requirements and our team will match suitable specifications.
