What Are Resin Capsules for Rock Bolting?
Resin capsules are specialized dual-component anchoring systems designed to provide immediate, permanent structural reinforcement in heavy civil and mining engineering environments.
A Critical Anchoring Material for Mine Support
At the core of modern tunnel safety, resin capsules contain two separate components—mastic and catalyst—that are mixed during the insertion of the rock bolt. This chemical reaction creates a high-strength bond between the steel bolt and the surrounding rock strata.
By providing a mechanical link along the entire encapsulated length, our resin capsules prevent roof falls and structural deformation, even in complex geological conditions with significant seismic activity or variable rock pressure.
Our formulations are optimized for rapid development speeds, allowing crews to advance quickly while maintaining maximum site safety standards.
How It Works in the Drill Hole
Fast Curing
Reaches structural load-bearing capacity within minutes of installation.
Strong Bonding
Superior adhesion to both steel substrates and varied rock formations.
Wide Application
Ideal for coal mining, hard rock tunneling, and civil slope stabilization.

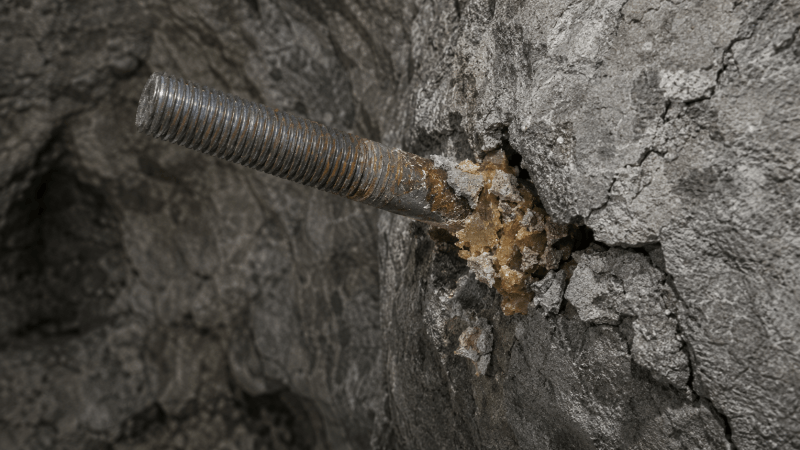

Why Resin Anchoring Fails in Real Mine Installation
Compromised safety and spiraling costs are often the result of poor resin quality or improper application matching in deep mining environments.
Anchoring Failure Is a Safety and Cost Problem
When the resin bond fails, the entire structural integrity of the roof is at risk. Traditional capsules often fail due to chemical inconsistencies or physical dimensions that don't match site conditions.
Capsule Off-Center
Uneven resin distribution leads to localized weak spots in the bond, causing premature bolt shifting.
Poor Mixing
Inconsistent viscosity prevents the two-component resin from reaching its maximum rated compressive strength.
Wrong Size Matching
Gap discrepancies between the bolt and borehole wall result in insufficient encapsulation and load transfer.
Unsuitable Gel Time
Resin that cures too fast or too slow for the installation temperature creates brittle or soft bonds.
Unclean Borehole
Dust and debris interference prevents the resin from physically bonding with the host rock surface.
Unstable Batch Quality
Variations in chemical composition across batches lead to unpredictable performance during mass installation.
Critical Warning: Anchoring failure can lead to re-drilling, site downtime, and severe safety hazards. Stable capsule quality is the first step in guaranteeing mine longevity.
Fast Curing, Reliable Bonding & High Anchor Capacity
Engineered to exceed international safety standards, our resin capsules provide the foundational stability required for rapid roadway development.
Fast Curing
Rapid Set Speed
Designed for environments requiring immediate support, our fast-cure resins reach 80% strength within minutes of mixing, allowing for accelerated drilling cycles.
Reliable Bonding
Interfacial Integrity
Advanced chemical formulations ensure high-affinity bonding to both steel and rock surfaces, creating a monolithic structure that resists shear and tension.
High Anchor Capacity
Maximum Strength
Each capsule is calibrated to deliver consistent load transfer across the full length of the bolt, even in stratified or fractured rock conditions.
What This Means for Your Project
Learn how our resin capsules add value to your mine project.
Request Performance Data6 Types of Resin Capsules for Different Anchoring Requirements
Explore our comprehensive range of high-strength resin capsules, precisely engineered to fit varied borehole dimensions and rock bolt targets across diverse mining environments.

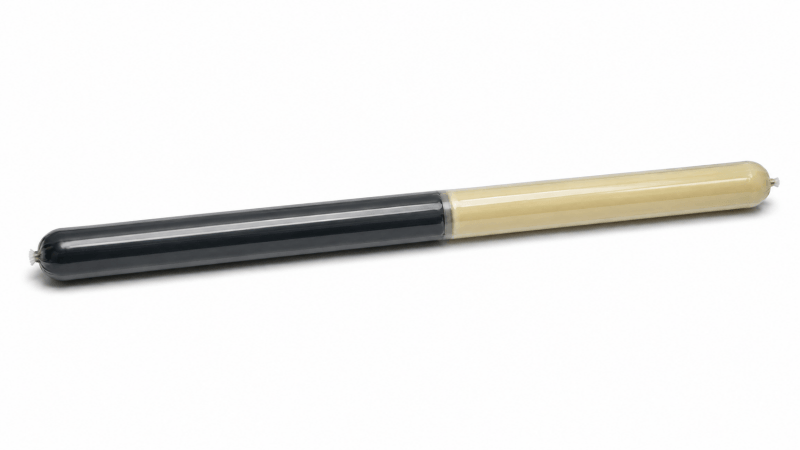

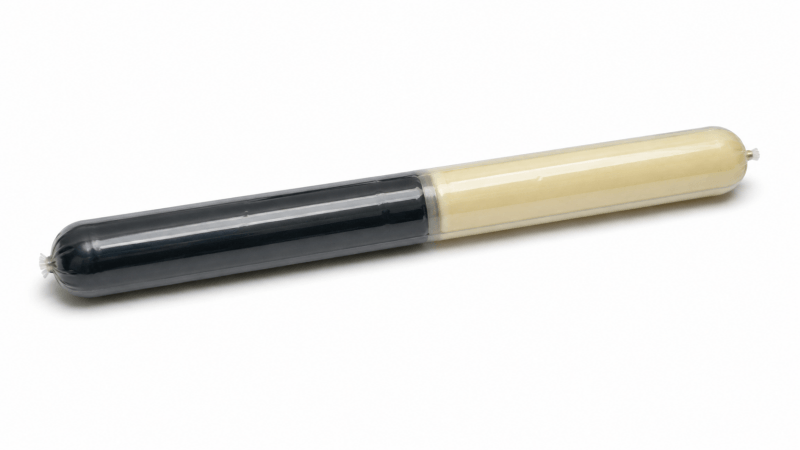

Z2335 High-Strength
- Specs: Φ23 x 350mm
- Borehole: Φ28 ± 2mm
- Target: Φ16-Φ20 Rock Bolts
Optimized for rapid installation in standard mining strata with high viscosity retention.
Z2360 Deep Anchor
- Specs: Φ23 x 600mm
- Borehole: Φ28 ± 2mm
- Target: Φ18-Φ22 Rock Bolts
Extended length for deep-hole anchoring requirements in unstable roof conditions.
Z2835 Heavy Duty
- Specs: Φ28 x 350mm
- Borehole: Φ32 ± 2mm
- Target: Φ22-Φ25 Rock Bolts
Designed for larger diameter boreholes providing superior axial load transfer.

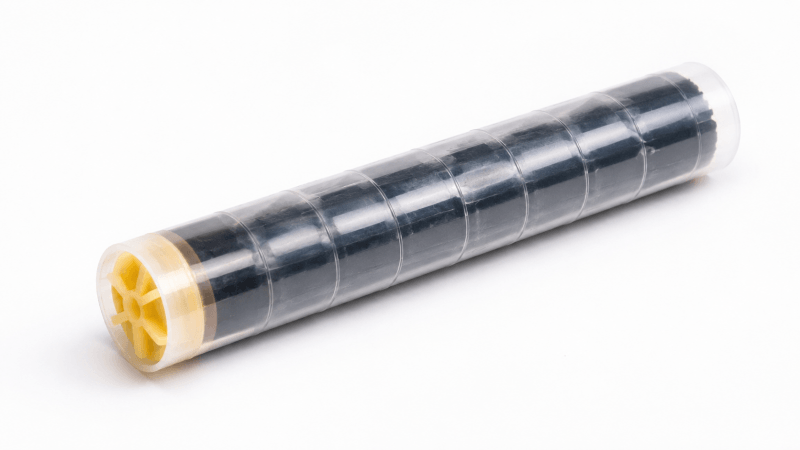

Z2850 Reinforced
- Specs: Φ28 x 500mm
- Borehole: Φ32 ± 2mm
- Target: Φ22-Φ25 Rock Bolts
Ideal for structural reinforcement in high-stress geological environments.

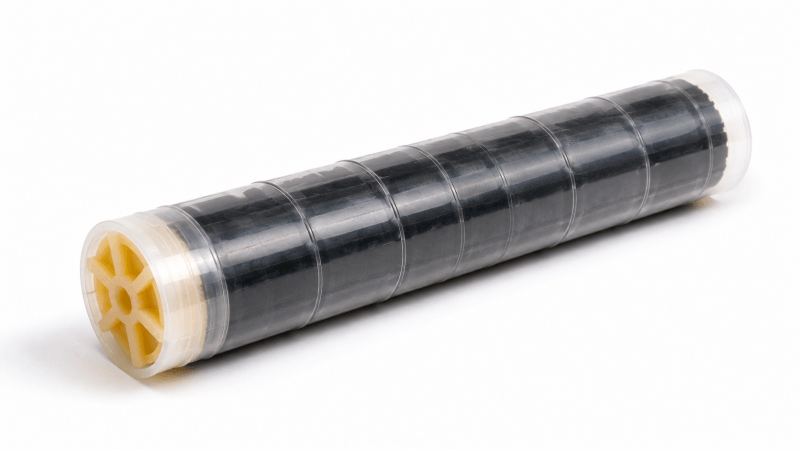

Z3537 Large Bore
- Specs: Φ35 x 370mm
- Borehole: Φ42 ± 3mm
- Target: Φ28-Φ32 Rock Bolts
Specialized for heavy-duty infrastructure and large scale civil engineering.

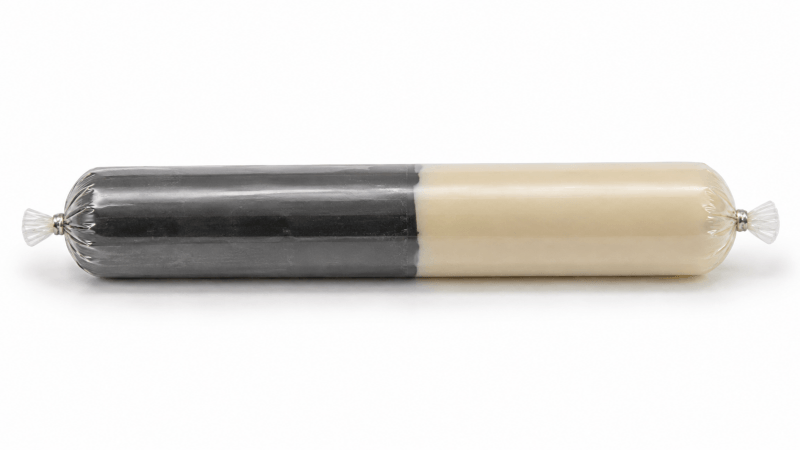

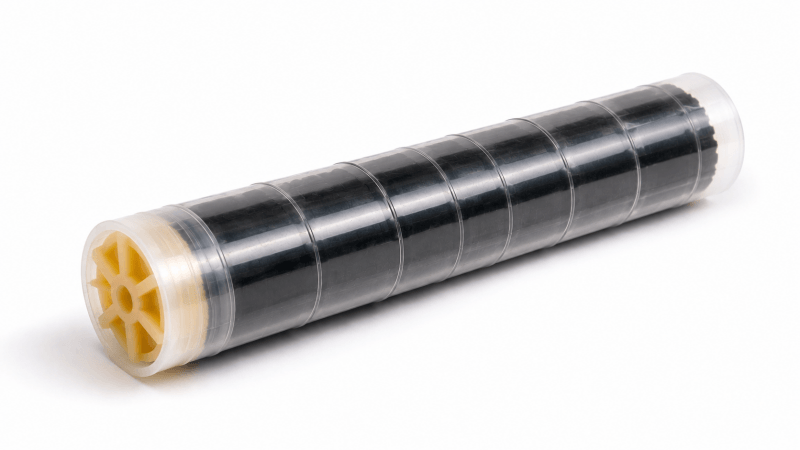

Z3530 Custom Flow
- Specs: Φ35 x 300mm
- Borehole: Φ42 ± 3mm
- Target: Φ25-Φ28 Rock Bolts
High-flow resin formulation for complete encapsulation in fractured rock.
Get pricing and bulk availability for our featured resin capsules.
Request a QuoteCK Ultra-Fast, K Fast, Z Medium & M Slow Resin Capsules
Choose from four standardized gel times to match your specific installation equipment, ambient rock temperatures, and required setting speeds.
CK Ultra-Fast
Best for overhead roof bolting where immediate support is critical to safety.
K Fast
Recommended for routine production bolting in stable ground conditions.
Z Medium
Ideal for long bolts or when site temperatures are high, slowing reaction time.
M Slow
Used for secondary support or complex installations requiring manual adjustment.
How to Select the Right Curing Speed
speed Installation Speed
Mechanical bolting rigs typically require CK or K speeds to maintain cycle times, while hand-held bolters may prefer Z speeds for easier handling.
straighten Hole Depth
Longer bolts require more time for insertion and spinning. Choose slower M or Z types to prevent the resin from "gelling" before the bolt is fully seated.
thermostat Site Conditions
Ambient rock temperature significantly affects gel time. In hot mines, use a slower grade to compensate for the accelerated chemical reaction.
If you are not sure which type to choose, send us your project conditions.
Request Technical MatchingCompressive Strength, Shear Strength, Bonding Strength, Fatigue & Storage Life
We provide full transparency on all mechanical properties, ensuring site engineers and procurement officers can verify structural integrity before installation.
| Parameter | Technical Value | Why It Matters |
|---|---|---|
| Compressive Strength | ≥60 MPa | Ensures the capsule can withstand high vertical load-bearing pressure in deep mining. |
| Shear Strength | ≥35 MPa | Crucial for resisting lateral rock movement and preventing bolt failure. |
| Bonding Strength (Rebar) | ≥16 MPa | Defines the interface grip between the resin, the borehole, and the steel bolt. |
| Vibration Fatigue | >8 million cycles | Guarantees long-term stability under continuous seismic or machinery vibration. |
| Storage Life | 6-9 Months (at 25°C) | Specifies shelf stability for large-scale procurement and inventory management. |
Mechanical Strength
High-performance resin matrix exceeds standard safety factors for heavy-duty reinforcement.
Optimized Bonding
Chemical formulation ensures maximum adhesion to both rebar and varying rock strata types.
Long-Term Stability
Proven performance in seismic zones and areas with heavy machinery vibration.
Verified Confidence
Rigorous batch testing ensures consistency across large volume deployments.
Need Parameter Matching for Your Project? Our engineers can provide custom test reports based on your specific rock strata requirements.
Request Technical SupportCommon Specifications: Z2335, Z2360, Z2835, Z2850, Z3537 & Z3530 Resin Capsules
A comprehensive guide to our standard manufacturing dimensions and their primary applications in modern rock bolting.
| Model | Capsule Size (mm) | Weight (g) | Suitable Borehole | Packing Qty | Typical Application |
|---|---|---|---|---|---|
| Z2335 | Φ23 x 350 | ~280g | Φ28 - 30mm | 50 pcs/box | Light support, temporary bolting |
| Z2360 | Φ23 x 600 | ~480g | Φ28 - 30mm | 30 pcs/box | Standard tunnel support, secondary lining |
| Z2835 | Φ28 x 350 | ~410g | Φ32 - 35mm | 40 pcs/box | Heavy-duty underground mining |
| Z2850 | Φ28 x 500 | ~590g | Φ32 - 35mm | 25 pcs/box | Deep excavation, unstable strata |
| Z3537 | Φ35 x 370 | ~680g | Φ40 - 45mm | 20 pcs/box | Large diameter structural anchoring |
| Z3530 | Φ35 x 300 | ~550g | Φ40 - 45mm | 20 pcs/box | Slope stabilization & civil engineering |
How to Read the Specification Code
Match Borehole
The first two digits (e.g., 23) represent the capsule diameter in mm. Choose a diameter 4-6mm smaller than your borehole.
Match Bolt Type
Select capsule volume based on rebar diameter to ensure full encapsulation along the designed anchor length.
Match Anchoring Depth
The last two digits (e.g., 35) represent the length in cm. Multiple capsules can be combined for full-column grouting.
Need Custom Diameter, Length or Packing? We manufacture bespoke dimensions to meet unique geological challenges or automated installation machinery.
Send Your SpecificationSystem Sizing & Optimization Guide
Correct matching helps resin capsules fill the borehole properly, mix evenly with the bolt and deliver reliable anchoring performance after curing.
Engineering precision in mining support begins with the mathematical relationship between the borehole diameter and the resin capsule volume. An optimal annular gap (the space between the bolt and the borehole wall) ensures that the resin is sufficiently compressed during installation to rupture the capsule film and achieve a homogenous mix of resin and catalyst.
A gap that is too wide leads to insufficient mixing and air pockets, while a gap that is too narrow creates excessive insertion resistance and may damage the resin components before they reach the designated anchoring depth.
Technical Schematic: Recommended annular gap 3mm - 6mm for standard resin systems.
| Capsule Size (mm) | Suitable Borehole (mm) | Typical Bolt / Cable Use | Suggested Application |
|---|---|---|---|
| 23mm × 500mm | 27mm - 30mm | 20mm Rebar Bolt | Standard Roof Bolting |
| 28mm × 600mm | 32mm - 35mm | 25mm High Strength Bolt | Heavy Ground Support |
| 35mm × 1000mm | 42mm - 45mm | 38mm Cable Bolt | Deep Level Reinforcement |
| Custom Dual-Speed | Site Dependent | Combination Support | Tensioned Anchoring |
01. Measure Borehole
Confirm the exact diameter of the drilling bit used. Bit wear can reduce hole diameter over time.
02. Identify Bolt Type
Select rebar, threadbar, or cable bolt. Note the rib profile for mixing efficiency calculations.
03. Calculate Volume
Ensure the resin volume fills the intended encapsulation length plus a 10% safety margin.
04. Select Resin Speed
Choose gel times based on ambient rock temperature and installation machinery cycle times.
Not Sure About the Right Match?
Ask for Matching SupportChemical Bonding & Load Transfer Principles
A resin capsule works by being broken, mixed and cured inside the borehole, forming a strong bonding layer between the bolt and the surrounding rock mass.
Insertion
Capsule is pushed to the back of the borehole using the bolt tip.
Spinning
The bolt is rotated rapidly to shred the film and mix the resin and catalyst.
Gelling
The chemical reaction reaches the gel point where flow ceases.
Hardening
The polymer matrix solidifies, creating a structural bond with the rock.
Load Bearing
The cured resin transfers stresses from the rock to the steel bolt.
Gel Time
The duration between mixing and the resin losing its fluidity. Essential for timing the tensioning process in multi-speed resin systems.
Setting Time
The period required for the resin to achieve approximately 80% of its final compressive strength, allowing for safe site advancement.
Load Transfer
The mechanical interlocking of the cured resin with both the borehole wall's micro-roughness and the bolt's steel deformations.
Mixing Quality
The homogeneity of the polymer. Poor mixing results in soft spots and significantly reduced pull-out strength in critical sections.
Final Result: From Capsule Material to Stable Mine Support
Get Installation GuidanceKeeping Capsules Centered for Better Anchorage Quality

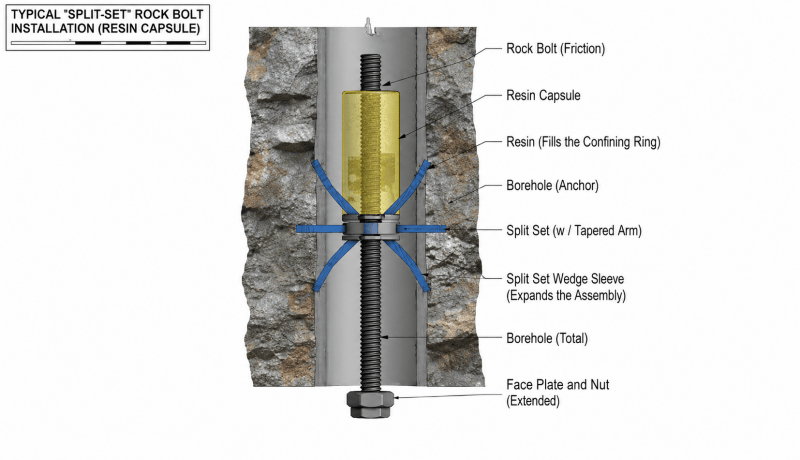

A resin capsule centralizer helps keep the capsule in the center of the borehole during insertion, reducing eccentric placement, poor mixing and unstable anchoring results.
center_focus_strong Why Capsule Centering Matters
In practice, capsules often move or shift due to gravity in inclined holes or presence of rock cracks, leading to significant risks.
How the Centralizer Supports Installation
Capsule Connector
Securely holds multiple resin units together during insertion.
Elastic Centering Structure
Flexible supporting wings that adapt to borehole diameter.
C-Type Injection Tube
Mechanical guide unit ensuring smooth passage into the hole.
Centered Placement
Achieves mathematically precise alignment within the void.
Better Centering
Lower Failure
More Even Mixing
Better Quality
Not Sure About the Right Match?
Ask for Matching SupportDrilling, Hole Cleaning, Capsule Insertion, Mixing, Setting & Loading
Proper installation helps resin capsules achieve stable mixing, complete curing and reliable anchoring performance in mining and tunnel support projects.
Drilling
Hole Cleaning
Capsule Insertion
Mixing & Pushing
Setting
Loading
Key Installation Points That Affect Anchorage Quality
Correct Borehole Size
Maintain optimal annular gap between bolt and hole wall for maximum resin shear strength.
Clean Hole Condition
Remove all dust and slurry to ensure the resin bonds directly to the fresh rock surface.
Mixing Time Control
Strictly follow the specified rotation time to achieve a homogeneous resin-catalyst blend.
Wait Before Loading
Allow the chemical set time to complete fully before applying hydraulic tension to the bolt.
Need Installation Guidance for Your Mine Project?
Get Installation SupportQuality Standards & Testing: Appearance, Size, Gel Time, Pull-Out Force, Anchor Capacity & Heat Stability
Rigorous quality control protocols ensure every resin capsule performs reliably under extreme conditions, providing guaranteed safety and structural stability for your mining or civil engineering projects.
Comprehensive Testing Framework
Appearance
Uniform color and consistency inspection.
Size
Precision diameter and length verification.
Putty Consistency
Viscosity and texture stability checks.
Resin-to-Hardener Ratio
Optimal stoichiometric balance testing.
Gel Time
Reaction speed control per temperature.
Compressive Strength
Structural load-bearing capacity analysis.
Pull-Out Force
Ultimate axial resistance validation.
Anchor Capacity
Long-term ground stability verification.
Heat Stability
Performance retention in high-temp zones.
Quality Control Process
Raw Material Check
Strict vetting of chemical precursors and packaging materials.
Production Control
Real-time monitoring of automated mixing and filling lines.
Sample Testing
Rigorous laboratory analysis of every production run.
Factory Inspection
Final visual and dimensional check before storage.
Batch Traceability
Digital logging of batch IDs for comprehensive field reporting.
Need Testing Documents for Your Procurement Review?
Request Quality InformationApplication Scenarios: Mine Roadways, Roof Bolting, Cable Bolting, Tunnels, Broken Ground & Deep Holes
XINYONGDUO resin capsules are engineered to provide superior anchorage in diverse and challenging geological environments.

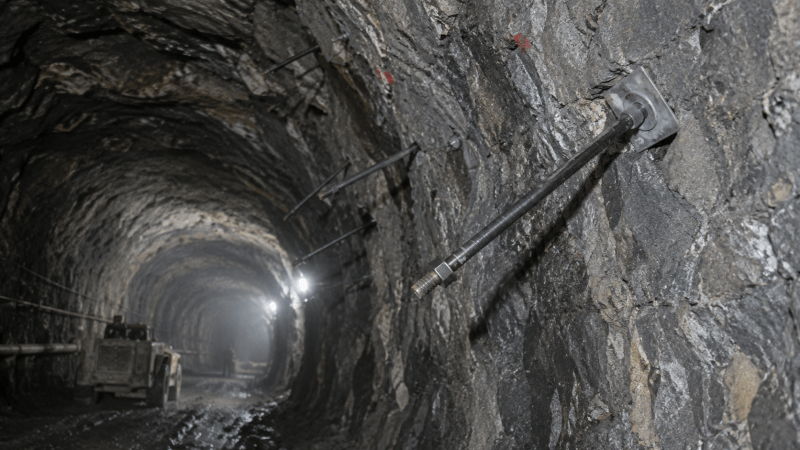

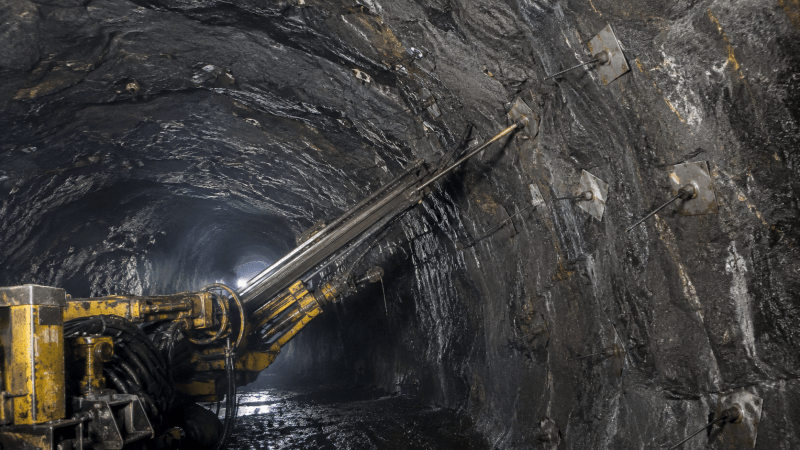

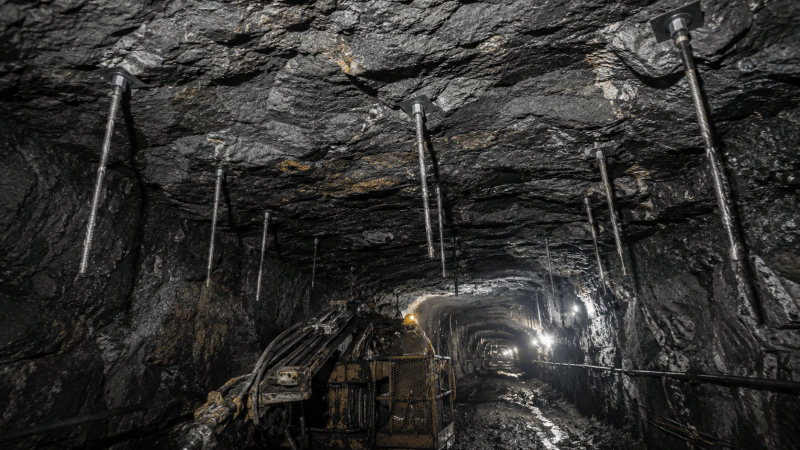

Mine Roadways
High-speed installation for long-distance transport corridors requiring consistent lateral support.
Efficiency and uniform curing across varying rock strata.

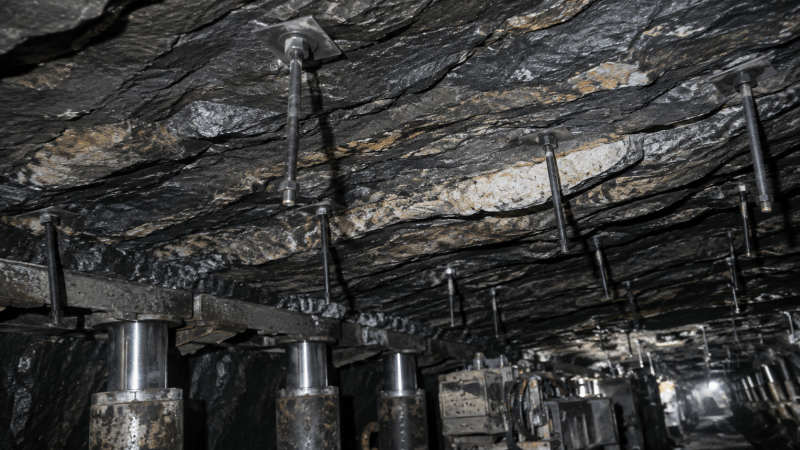

Roof Bolting
Crucial vertical support for immediate overhead safety in coal and metal mine faces.
High initial pull-out force to prevent delamination of strata.

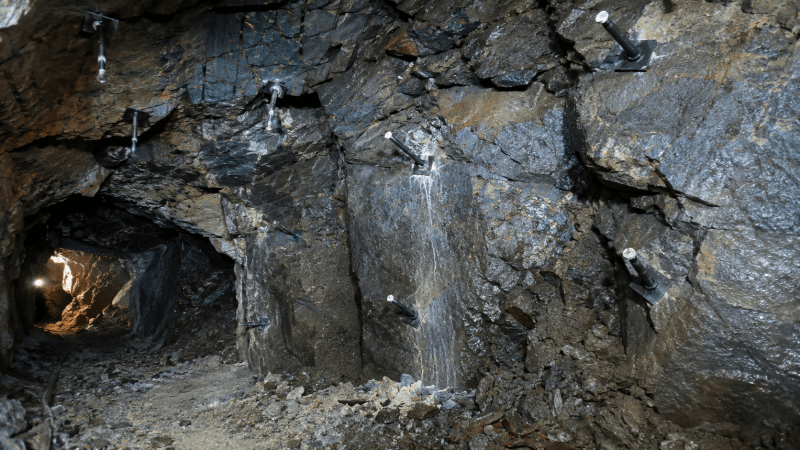

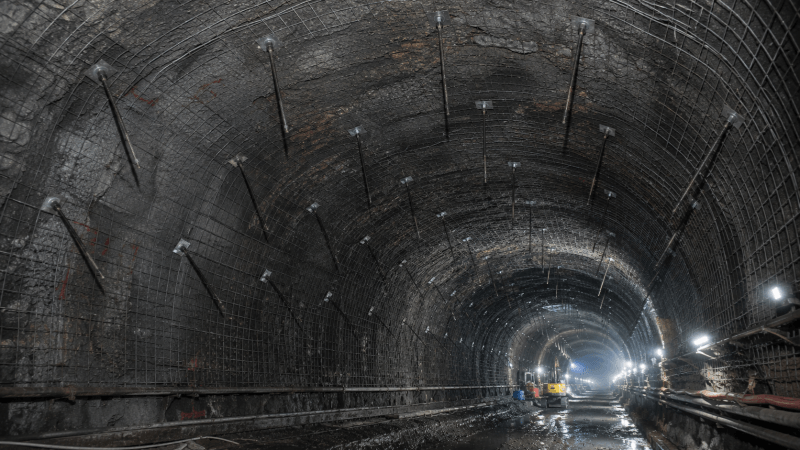

Cable Bolting
Support for deep-seated strata where standard rock bolts cannot reach stable ground.
Compatibility with large-volume holes and extended anchor lengths.
Tunnel Support
Civil engineering applications for subway, rail, and road tunnels in urban and mountain settings.
Long-term chemical stability and corrosion resistance for permanent structures.
Broken Ground
Critical stabilization for fractured rock zones and fault lines prone to shifting.
Fast-gelling resin for immediate grip in loose or voids-filled strata.
Deep Holes
Anchoring in high-depth holes where temperature and pressure challenges are extreme.
Viscosity control and heat resistance to ensure full-length encapsulation.
Different Mine Conditions Require Different Resin Capsule Matching Our engineering team provides custom consultations for specific geology.
Get Scenario-Based RecommendationGet Custom Mining Support & Conveyor Solutions
Certified Mining Support
Full compliance with international safety and structural strength standards.
On-Site Technical Advice
Engineering consultations available for complex project site conditions.
Rapid Custom Production
Tailored engineering drawings and bespoke specifications delivered on schedule.
B2B Direct Pricing
Cut middlemen costs with factory-direct pricing for enterprise procurement.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
