Steel Bar Welded Mesh Factory

China Steel Bar Welded Mesh Manufacturer for Mine Support & Shotcrete Reinforcement

High-strength rigid welded mesh panels for underground mine roadways, high-stress ground support, bolt-mesh-shotcrete systems, and reinforced shotcrete layers.

construction Rigid Mine Support
layers Bolt-Mesh-Shotcrete
compress High-Stress Roadways
shield Shotcrete Reinforcement

Get custom steel bar welded mesh panels for mine support, tunnel reinforcement, shotcrete layers, and high-stress roadway projects.

Module 2: Product Overview

What Is Steel Bar Welded Mesh for Underground Support?

A High-Strength Rigid Welded Mesh Panel for Mine Roadways, Tunnel Support and Shotcrete Reinforcement

More Than Wire Mesh — A Rigid Steel Bar Support Panel

Our steel bar welded mesh is engineered specifically for the extreme conditions of underground mining. Unlike lightweight wire mesh, these panels are manufactured from ribbed steel reinforcement bars (8mm to 12mm diameter), providing superior load-bearing capacity and rigidity for primary ground support.

Integrated within bolt-mesh-shotcrete systems, it acts as the skeletal reinforcement that prevents skin failure in mine roadways while providing a stable substrate for shotcrete application. Its resistance-welded joints ensure consistent structural integrity at every fusion point.

construction

Steel Bar Material

High-tensile ribbed steel bars provide exceptional mechanical bond with concrete.

grid_view

Welded Grid Structure

Automated resistance welding ensures uniform strength across all panel intersections.

layers

Rigid Support Panel

Designed for high-stress underground environments requiring structural rigidity.

compare_arrows

Different from Wire Mesh

Thicker diameters and industrial-grade steel distinguish it from light civil mesh.

Designed for Mine Support, Not General Light Mesh Use

Module 3: Engineering Problems We Solve Module 3: Engineering Problems We Solve

Rock Fall, Broken Ground & High-Stress Roadway Deformation

Why Underground Support Projects Need Rigid Steel Bar Welded Mesh Instead of Ordinary Light Mesh

warning

Rock Fall Risk

Unsecured strata in high-risk zones can lead to immediate localized failures. Our rigid mesh provides the passive support necessary to contain loose material before it enters the workspace.

broken_image

Broken Ground Instability

In highly fractured rock masses, ordinary mesh lacks the stiffness to resist ground movement. Steel bar mesh creates a unified structural barrier to stabilize fractured zones.

compress

High-Stress Roadway Deformation

Deep-level mining creates intense vertical and lateral loads. Rigid welded panels maintain their shape under extreme pressure, preventing airway and roadway closure.

ads_click

Local Stress Concentration

Bolt and plate systems can create dangerous stress points in the rock. Mesh panels distribute these loads evenly across the surface area to mitigate puncture risks.

grid_guides

Ordinary Mesh Lacks Rigidity

Light-gauge chain link or thin wire mesh sags under load. Our heavy-duty bars provide structural integrity that remains flush against the excavation profile.

texture

Shotcrete Cracking & Peeling Risk

Poor reinforcement leads to shotcrete delamination. The grid geometry of our mesh ensures superior concrete bonding and prevents hazardous peeling.

Common Underground Support Problems Need a Stronger Mesh Solution

Module 4: Featured Products

Steel Bar Welded Mesh Solutions for Mining, Tunnel & Slope Support

High-strength rigid welded mesh panels for varied project applications.

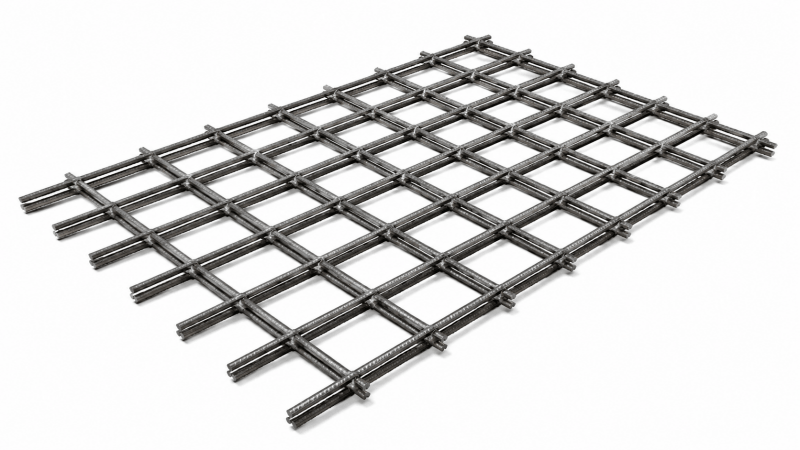

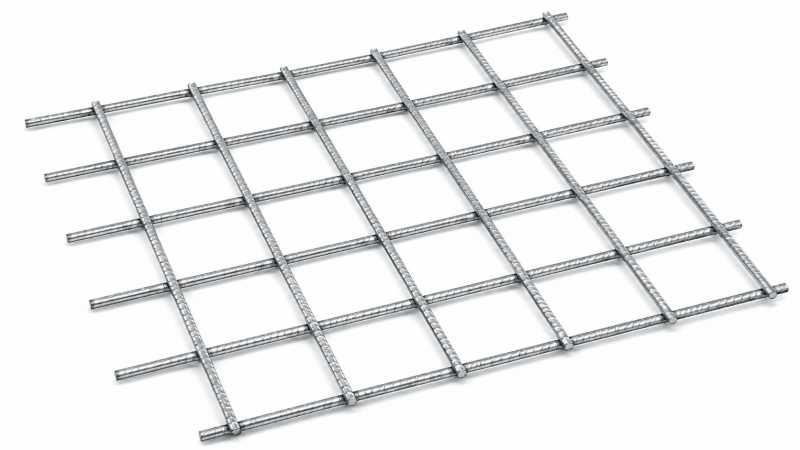

Standard Steel Bar Welded Mesh

High-quality panels for standard rock reinforcement and civil infrastructure.

ASTM COMPLIANT REBAR GRADE IN STOCK

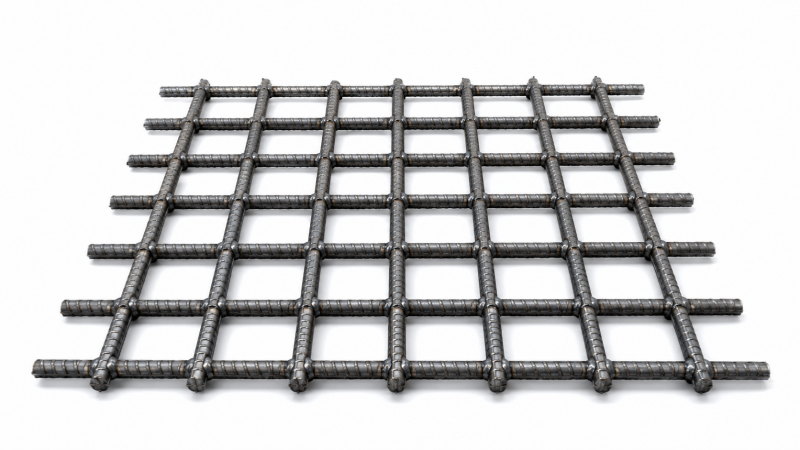

Heavy-Duty Mine Support Welded Mesh

Reinforced bars specifically engineered for extreme depth mining conditions.

MAX RIGIDITY 6MM-12MM LOAD-TESTED

Galvanized Steel Bar Welded Mesh

Corrosion-resistant coating for high-humidity or saline environments.

ANTI-CORROSION ISO CERTIFIED LONG-LIFE

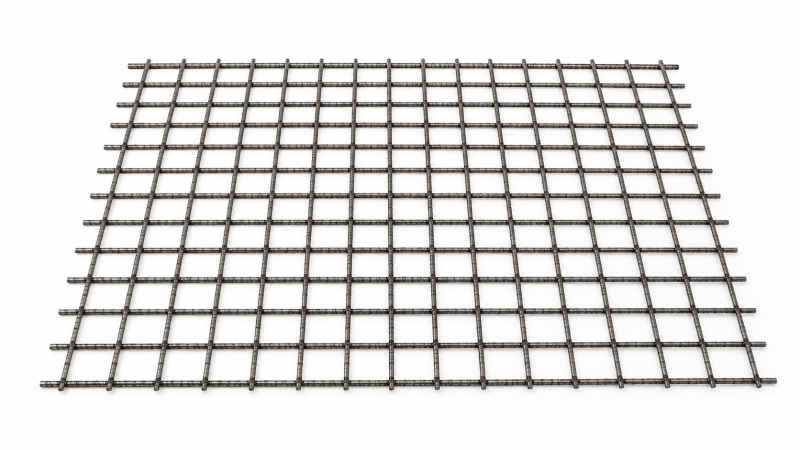

Shotcrete Reinforcement Welded Mesh

Optimized grid spacing for maximum shotcrete adherence and strength.

CONCRETE BOND GRID-LOCK PROJECT-READY

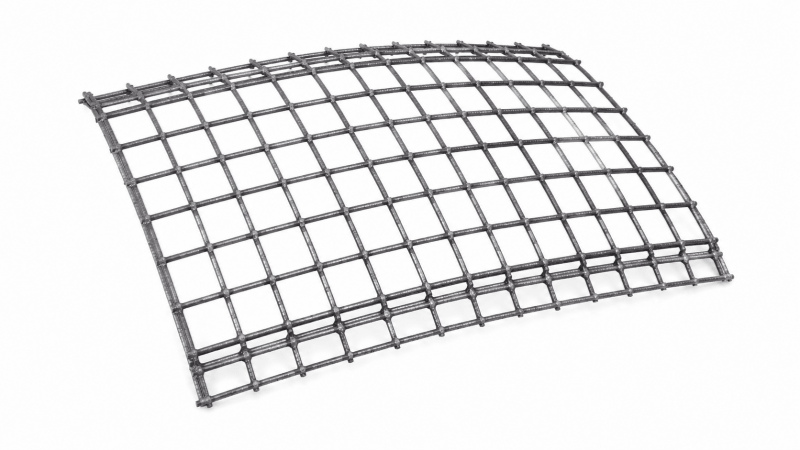

Tunnel Support Steel Bar Welded Mesh

Curved or flat panels designed for subway, road, and utility tunnels.

NATM COMPATIBLE PRECISION WELD BULK SUPPLY

Custom Steel Bar Welded Mesh Panels

Bespoke dimensions and wire diameters for non-standard project requirements.

CUSTOM SPEC RAPID PROTO OEM READY

Need a Steel Bar Welded Mesh Type Matched to Your Support Project?

Module 5: Structure & System Components

Welded Mesh Panel, Connection Clips & Fixing Accessories

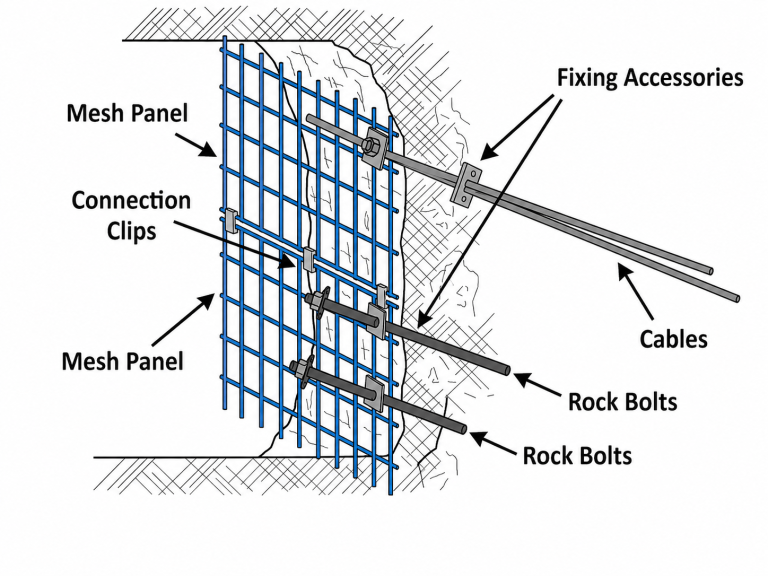

How Steel Bar Welded Mesh Works with Bolts and Cables to Form a Continuous Surface Support System

System Integration

Our welded mesh panels are engineered to integrate seamlessly with standard rock bolts and cable anchors, ensuring unified load distribution across the entire excavated surface.

Mechanical Continuity

High-strength connection clips eliminate weak points at panel overlaps, transforming individual mesh sheets into a monolithic reinforcement layer.

grid_view

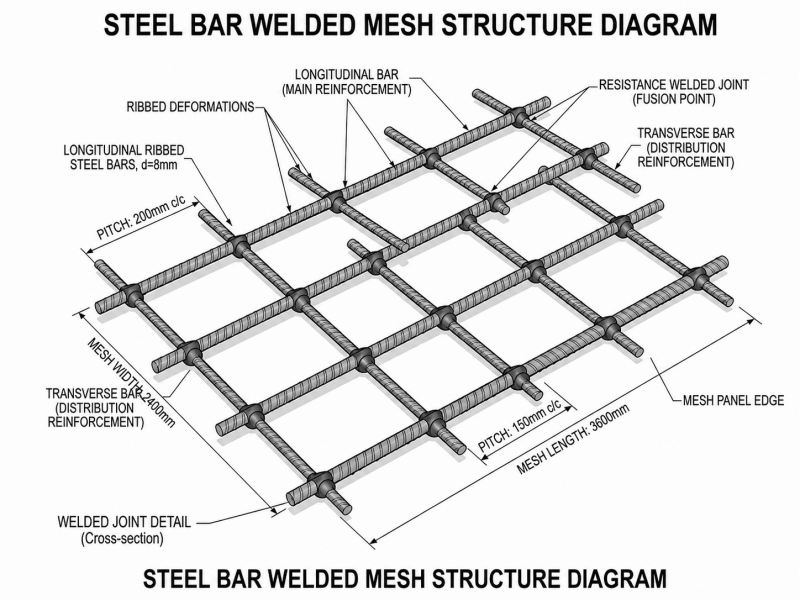

Steel Bar Welded Mesh Panel

High-tensile longitudinal and transverse steel bars resistance-welded at every intersection for maximum shear strength and rigidity.

link

Mesh Connection Clips

Heavy-duty industrial clips designed for rapid installation, ensuring the overlap between panels maintains the structural integrity of the mesh surface.

construction

Fixing Accessories

Specially designed plates and washers that secure the mesh tightly against uneven rock faces, optimizing the tension transfer to the primary bolt system.

A Continuous Mesh Surface for Stronger Bolt-Mesh Support

Module 6: Working Principle

Surface Protection, Stress Transfer & Rigid Deformation Control

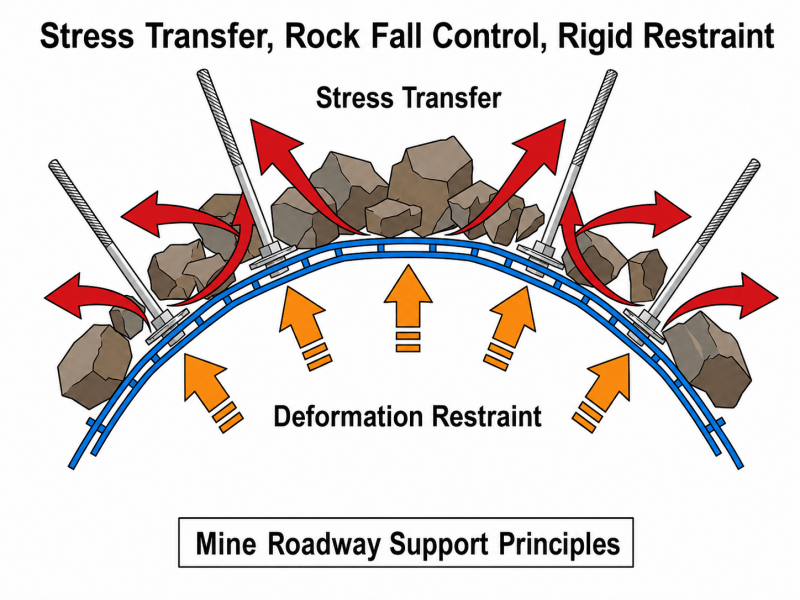

How Steel Bar Welded Mesh Helps Control Rock Fall, Local Stress and Roadway Deformation

shield

Surface Protection

Prevents small and medium-sized rock falls between primary bolt support patterns.

moving

Stress Transfer

Effectively transfers local loading pressures from the rock face to the structural bolts and cables.

compress

Deformation Restraint

High rigidity limits the initial loosening and expansion of the fractured rock mass.

architecture

Ground Loosening Control

Restrains broken ground by providing immediate passive resistance upon contact.

settings_input_component

System Stability

Enhances the overall safety factor of the mine roadway through multi-point mechanical interaction.

A Rigid Mesh Layer That Turns Local Rock Problems into System Support

Module 7: Composite Support Performance

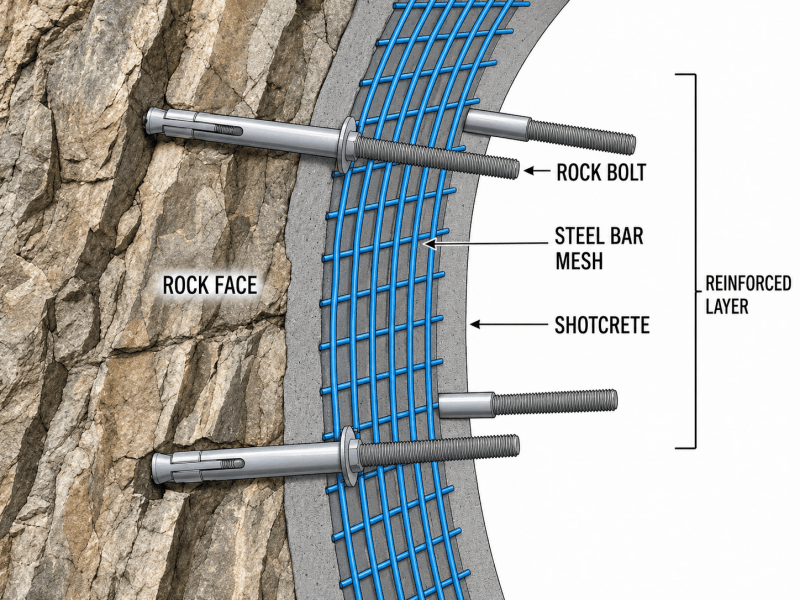

Steel Mesh + Rock Bolt + Shotcrete Reinforcement Layer

How Steel Bar Welded Mesh Improves Bolt-Mesh-Shotcrete Support Performance in underground engineering and tunneling environments.

layers

Bolt-Mesh-Shotcrete System

Forms a unified support structure that actively distributes geological stress across the entire surface.

architecture

Reinforced Shotcrete Layer

Embedded mesh transforms shotcrete from a brittle shell into a high-strength ductile composite.

shutter_speed

Tensile & Crack Resistance

High tensile strength intercepts micro-cracks before they propagate, preventing catastrophic failure.

fitness_center

Composite Load-Bearing

Increases the overall load-bearing capacity of the tunnel lining significantly under dynamic pressure.

security

Stronger Layer Integrity

Ensures the shotcrete remains adhered to the rock face even during minor seismic shifts or settling.

From Surface Mesh to Reinforced Composite Support Layer

Module 8: Technical Parameters

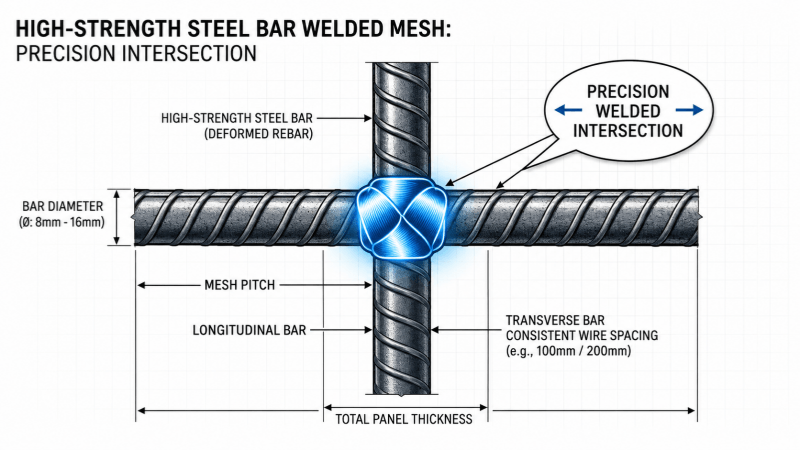

Diameter, Mesh Size, Tensile Strength & Panel Dimensions

Key Specifications for Steel Bar Welded Mesh Used in Mine Support, Shotcrete Reinforcement and Tunnel Support.

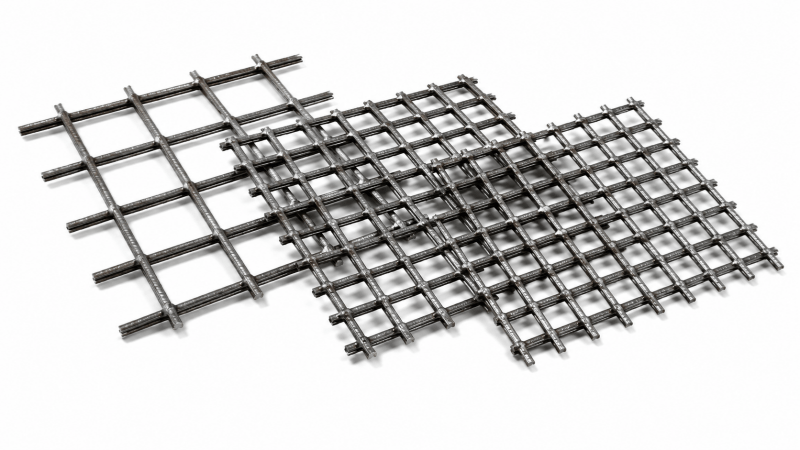

Standard Specification Range

4.0–10.0 mm Bar Diameter
50x50–200x200 mm Mesh Opening
Up to 600 MPa Tensile Strength
Parameter Standard Value What It Affects
Wire Diameter 4mm, 5mm, 6mm, 8mm, 10mm Shear strength & total reinforcement weight
Spacing (Pitch) 100mm, 150mm, 200mm Shotcrete penetration & stress distribution
Material Grade HRB400 / HRB500 / ASTM A615 Yield point & structural safety factor
Panel Size 2.4m x 4.8m / 2.0m x 4.0m Installation speed & overlap waste
Welding Strength > 75% of parent metal strength Joint integrity under ground movement
Diameter Choice
Thicker bars (8-10mm) are used for heavy rock pressure zones; 4-6mm for secondary linings.
Opening Size
Smaller openings (50-100mm) offer better crack control but may impede coarse aggregate shotcrete.
Yield Strength
Specifies the limit before permanent deformation; critical for seismic-resistant support.
Surface Finish
Ribbed bars provide superior bonding with concrete compared to smooth plain wire.
Panel Trimming
Custom flush-cut edges prevent protruding wires from snagging during manual handling.

Need Custom Sizes for Your Mine or Tunnel Project?

Module 9: Installation Process

Mesh Preparation, Laying, Connection, Bolting & Shotcrete

A Clear Installation Workflow for Steel Bar Welded Mesh in Bolt-Mesh-Shotcrete Support Systems

fact_check
Step 01

Mesh Preparation

Verification of dimensions and material integrity.

layers
Step 02

Mesh Laying

Positioning panels along the rock surface contours.

link
Step 03

Panel Connection

Overlap >= 200mm to ensure structural continuity.

construction
Step 04

Bolting & Fixing

Securing panels with anchor bolts and plates.

tune
Step 05

Mesh Adjustment

Final tensioning and gap check before shotcrete.

texture
Step 06

Shotcrete Covering

Full encapsulation for maximum reinforcement.

straighten Correct Overlap

Ensuring the minimum 200mm overlap between adjacent mesh panels to prevent shear failure.

link Tight Connection

Using high-strength binding wire or clips to eliminate movement between intersecting panels.

rebase_edit Bolt Plate Pressing

The anchor plate must press firmly against at least two bars of the mesh for load distribution.

layers Full Shotcrete Covering

Achieving zero-void encapsulation to protect steel from corrosion and optimize tensile strength.

Good Installation Makes the Mesh Support System Work Better

Module 10: Quality & Reliability

Locked Welded Joints, No Loosening & Stable Rigid Panels

Automated Resistance Welding for Stronger Joint Reliability and Consistent Quality

precision_manufacturing

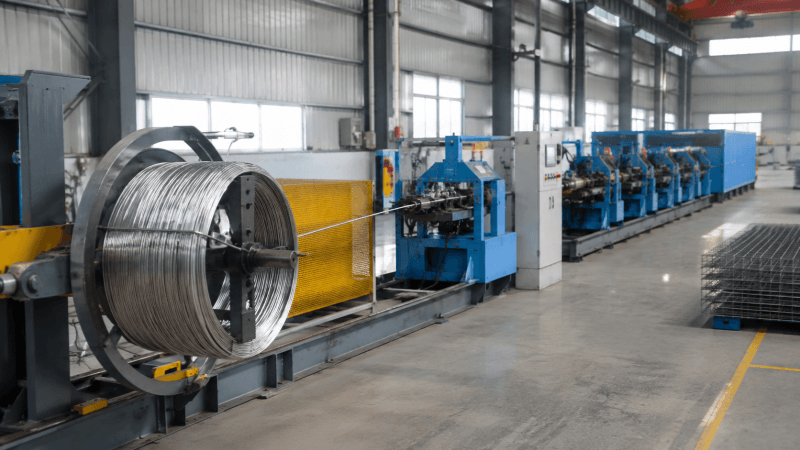

Automated Resistance Welding

Computer-controlled parameters ensure every weld point reaches the optimal fusion temperature without burning the steel.

lock

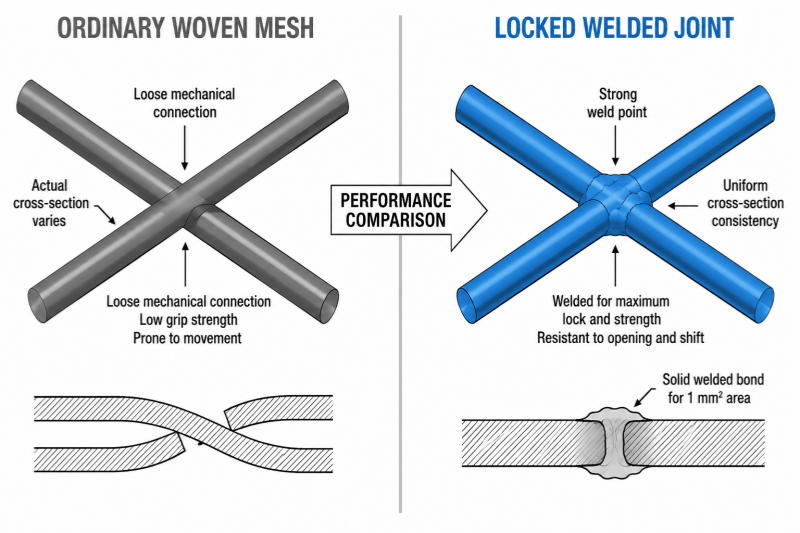

Locked Crossing Points

Unlike woven mesh, our welded intersections create a monolithic structure that refuses to shift or lose shape under pressure.

shield

No Weld Detachment Risk

High shear strength at joints ensures that the mesh remains intact even during significant rock mass deformation.

grid_view

Stable Mesh Opening

Precise geometric stability facilitates easier installation and uniform shotcrete distribution across the entire panel.

architecture

Dimensional Accuracy

Rigid production standards guarantee panels meet site-specific CAD requirements with minimal tolerance variance.

verified

Consistent Panel Quality

ISO-compliant manufacturing processes eliminate human error common in manual welding or weaving techniques.

Reliable Support Starts from Stable Welded Joints

Module 11: Core Advantages

High Strength, Rigid Restraint, Impact Resistance & Easy Installation

Why Steel Bar Welded Mesh Is Preferred for Demanding Mine, Tunnel and Shotcrete Support Conditions

fitness_center High Strength & Rigidity
settings_input_component Rigid Deformation Control
warning Impact & Tear Resistance
grid_view Uniform Load Distribution
expand High Load-Bearing Capacity
build Standardized & Easy Installation

High Strength & Rigidity

Manufactured with high-grade steel bars, the mesh offers exceptional structural integrity, resisting tensile forces in extreme underground environments.

Rigid Deformation Control

The welded intersections provide a rigid framework that effectively limits rock mass movement and prevents early-stage roadway deformation.

Impact & Tear Resistance

Designed to withstand dynamic loads and sudden rock bursts, the mesh maintains its form without tearing under high-velocity impact.

Uniform Load Distribution

Precise grid spacing ensures that surface pressure is evenly distributed across the entire support structure, eliminating localized stress points.

High Load-Bearing Capacity

Engineered for heavy-duty applications, it provides reliable secondary support when combined with primary bolting systems in weak ground.

Standardized & Easy Installation

Pre-fabricated panels allow for rapid deployment by mine crews, significantly reducing labor time and improving on-site safety metrics.

A Stronger Mesh Solution for High-Stress and Broken Ground Support

Module 12: Application Scenarios Module 12: Application Scenarios

Mining Roadways, Shotcrete Support, Tunnels & Slope Protection

Proven Performance in the Toughest Environments

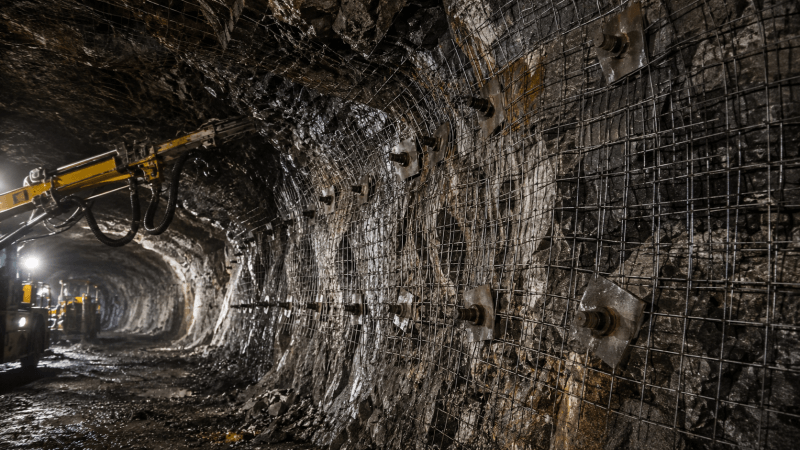

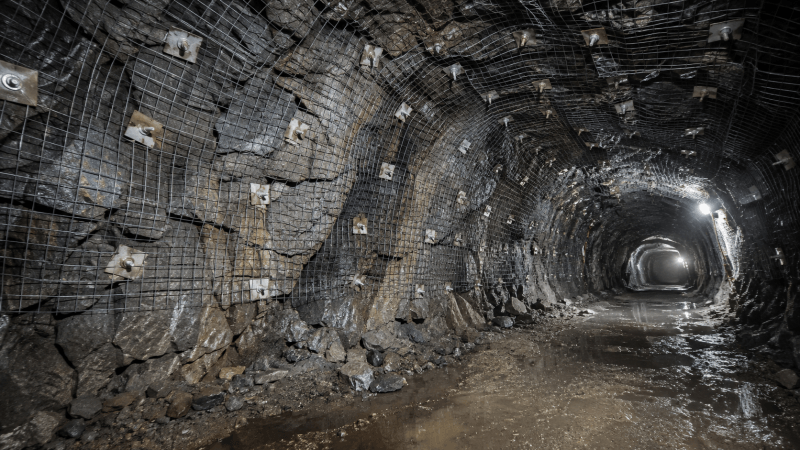

Mining Roadways

Providing critical reinforcement for high-stress deep-level mining excavations where traditional mesh fails.

#DeepMine #HighStress #RigidRestraint

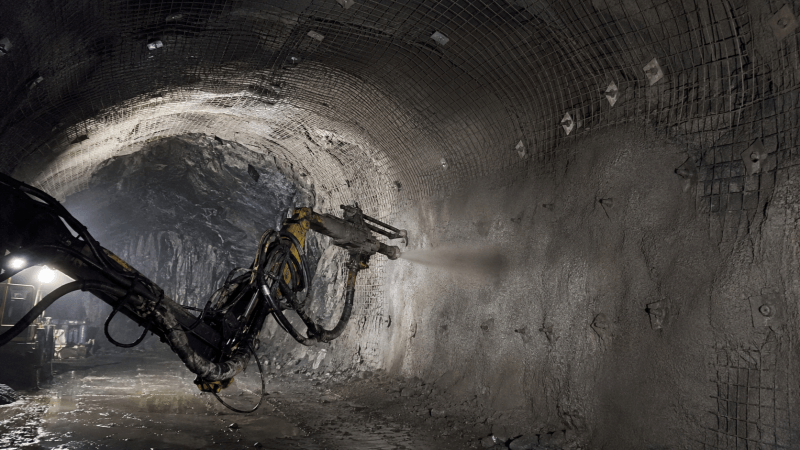

Shotcrete Systems

Perfect bonding surface for shotcrete applications, creating a monolithic reinforced concrete shell for long-term stability.

#Reinforcement #Shotcrete #Bonding

Broken Ground

Securing unstable rock fragments and preventing roof falls in highly fractured geological zones.

#FracturedRock #Safety #SurfaceControl

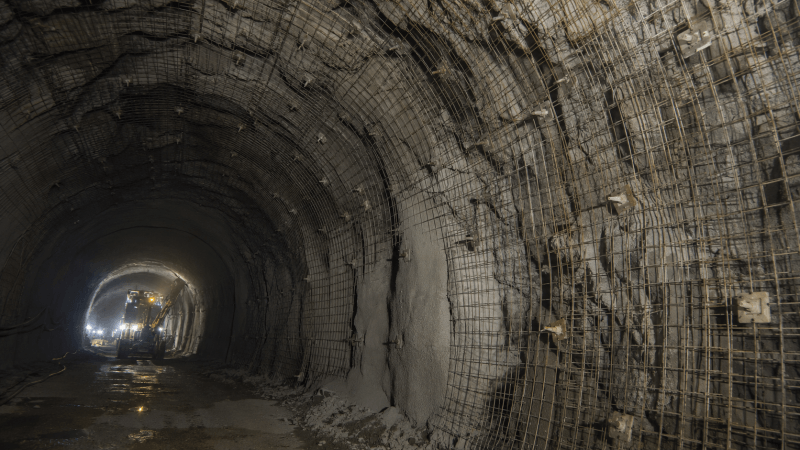

Tunneling

Initial lining support for civil engineering tunnels, subways, and hydraulic water diversion projects.

#CivilEng #InitialLining #Infrastructure

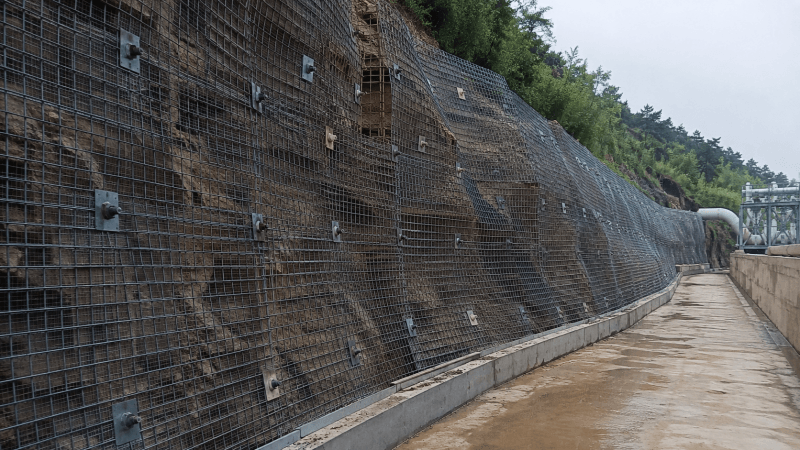

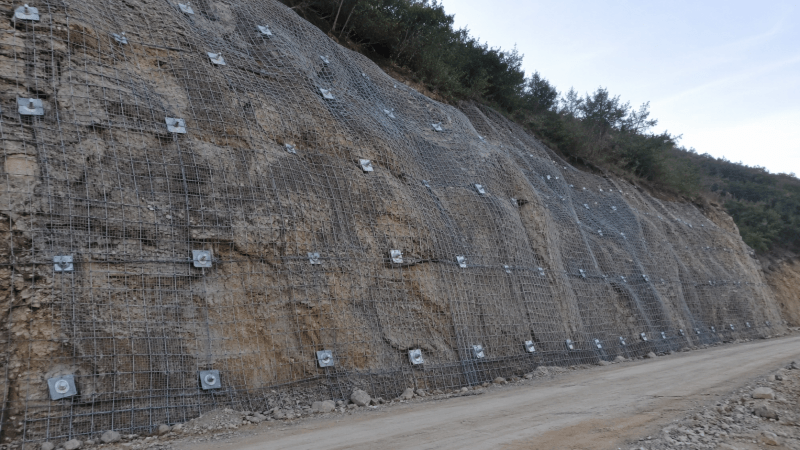

Slope Protection

External surface stabilization for open-pit highwalls and civil highway embankments against erosion.

#ErosionControl #Galvanized #Stability

Custom Projects

Tailored mesh specifications for unique industrial reinforcement and architectural containment systems.

#CustomSpec #FactoryDirect #ProjectSupply

Different Ground Conditions Need Different Mesh Specifications

Module 13: Product Selection Guidance

Precision Selection for Structural Mesh

Selecting the correct steel mesh involves balancing wire diameter, aperture size, and tensile strength against the specific geological or structural demands of your project.

engineering 01

DIAMETER ANALYSIS

Assess load requirements to determine wire gauge (4mm-12mm range).

grid_4x4 02

APERTURE SPACING

Standardized 100x100mm to 200x200mm patterns for optimal concrete bonding.

verified 03

COATING SPECS

Choose Galvanized, Black Steel, or Epoxy based on corrosion risk factors.

box 04

DIMENSIONAL FIT

Custom panel sizes to minimize onsite cutting and waste reduction.

Project-Specific Application Matrix

Environment Type Material Recommendation Tensile Strength Standard Compliance
Hard Rock Mining High-Tensile Black Steel 500-600 MPa ASTM A1064
Coastal Infrastructure Hot-Dip Galvanized (HDG) 450-550 MPa ISO 1461
Chemical Processing 316L Stainless Steel 520+ MPa ASTM A478

Custom Fabrication

We provide specialized mesh configurations for architectural facades, reinforcing pads, and specialized containment systems.

square_foot

Aperture Variety

From 25mm fine screening to 200mm structural grids.

science

Alloy Purity

Verified metallurgical certificates provided with every batch.

timer

Logistics Speed

Global shipping network for JIT (Just-In-Time) construction.

architecture

Design Support

CAD/BIM files available for architectural integration.

Ready to secure your project with the right mesh?

Module 14: Manufacturing Capacity

Industrial Scale Production. Local Reliability.

MiningCore Solutions operates automated wire drawing and resistance welding facilities capable of 50,000+ tons annual output. Our vertical integration ensures price stability and consistent quality.

  • check_circle Automated Multi-Point Welding Lines
  • check_circle In-House Galvanizing Kettles
  • check_circle Batch-Level Traceability Systems
LIVE VIEW: FACILITY A-19 | HIGH-SPEED WELDING LINE
99.8%
Quality Yield Rate
01
Raw Material
02
Wire Drawing
03
Welding
04
Coating
05
QC Testing
06
Shipment

Partner with a Reliable Mesh Manufacturer

Module 15: Inquiry Form Section Module 15: Inquiry Form Section Module 15: Inquiry Form Section

Get Custom Steel Bar Welded Mesh Directly from China Factory

Rigid welded mesh panels for mine support, bolt-mesh-shotcrete systems, and project-based underground support applications. Contact our engineering team for technical support and direct factory pricing.

ENGINEERING ADVANTAGES
  • factory

    China Factory Direct Supply

    Direct supply for steel bar welded mesh production, customization and project-based bulk supply.

  • grid_4x4

    Custom Mesh Specifications

    Custom bar diameter, mesh opening, panel width/length, surface treatment and support strength.

  • foundation

    Mine Support Applications

    Suitable for underground roadways, high-stress ground, broken rock and rigid surface support systems.

  • layers

    Bolt-Mesh-Shotcrete Support

    Works with rock bolts, cables and shotcrete to form a reinforced composite support layer.

Request Direct Factory Quotation

Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.

Complete the security verification to enable submission.
Complete the security verification to enable submission.
China-based steel bar welded mesh manufacturer supporting global underground mining & tunneling projects.
bolt Fast Response
precision_manufacturing Factory Support
architecture Custom Design
public Global Supply
