Self-Drilling Anchor Bolt for Collapsible and Weak Ground Support
A high-efficiency integrated system combining drilling, grouting, and anchoring into a single operation, specifically engineered for the most challenging geological conditions.
Simplify your ground reinforcement with our integrated SDA technology.
Ground Support Challenges in Collapsible and Weak Formations
Identify and resolve the critical vulnerabilities of standard drilling systems in loose or unstable geotechnical conditions.
Loose soil and fractured rock often cause hole walls to collapse before traditional anchors can be inserted.
Low-strength formations provide insufficient friction, making standard reinforcement methods ineffective.
Cuttings often settle in the bottom of deep holes, preventing proper seating of the anchor system.
Air pockets and incomplete grout coverage lead to corrosion and significantly reduced structural integrity.
Separating drilling, insertion, and grouting triples the time and labor required for each anchor point.
In unstable zones, every minute of delay increases the risk of catastrophic cave-ins or site failures.
The Hidden Risks of Traditional Anchoring
Relying on standard drilling and sleeve systems in weak ground leads to frequent re-drilling, high material waste, and compromised safety margins for construction personnel.

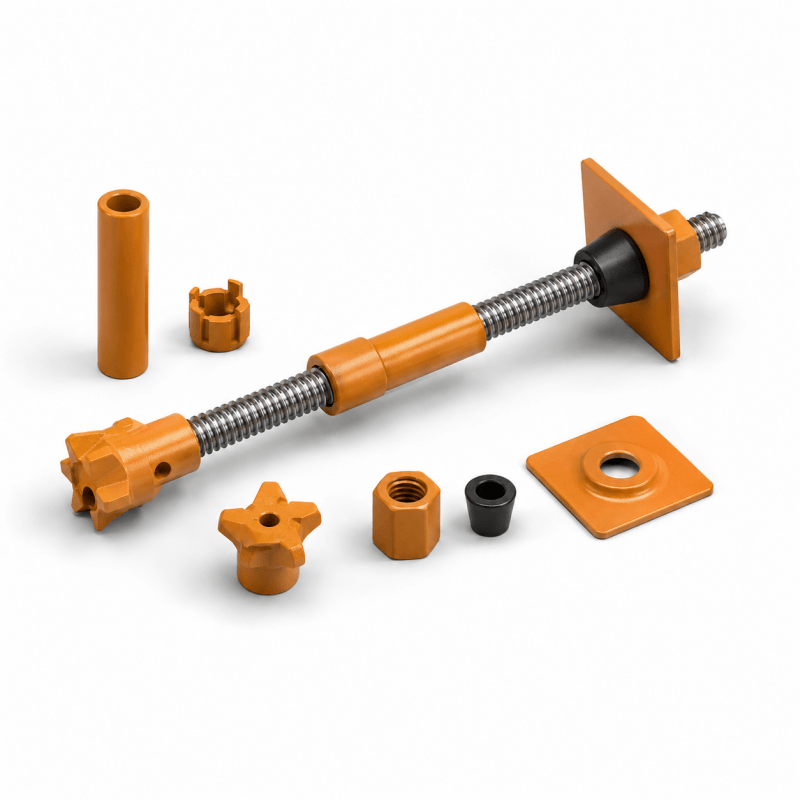

What Is a Self-Drilling Anchor Bolt?
A revolutionary ground reinforcement technology acting as both a drilling rod and structural support.
Drill, Anchor, and Grouting Pipe in One
The Self-Drilling Anchor (SDA) system consists of a hollow, externally threaded steel bar that acts as both the drill rod and the final reinforcement. By using a disposable bit, the bar stays in the hole, serving as a permanent anchor rod.
Hollow Spiral Bar
Continuous thread for maximum bond and easy coupler extension.
Disposable Drill Bit
Tungsten carbide or hardened steel bits for various geological conditions.
Coupler
High-strength sleeve allowing for infinite anchor length extension.
Anchor Plate & Nut
Uniformly transfers load to the ground surface or structural face.
Grouting Adapter
Connects the hollow bar directly to high-pressure grout pumps.
Self-Drilling Anchor Bolt System Components
premium-grade components engineered as a unified structural unit for heavy-duty ground reinforcement.
Integrated System Integrity
The ANCHOR-TECH Self-Drilling Anchor Bolt system is engineered as a unified structural unit. Each component is manufactured from premium-grade steel to ensure seamless compatibility, providing a complete solution for drilling, grouting, and anchoring in one fluid operation. This modularity allows for precision adaptation to varying geological conditions without compromising safety or speed.
- High-strength seamless steel construction
- ISO-certified thread manufacturing standards
Hollow Spiral Anchor Bar
All-thread bar serving as the drill rod, injection pipe, and tensioning member simultaneously.
Specify thread type (R/T) and length requirements for project yield.
Disposable Drill Bit
Lost drill bit customized for soil, clay, gravel, or hard rock ground conditions.
Select based on Mohs hardness and particle size of strata.
Steel Coupler
High-strength internal/external threading to extend anchor bars to required depths.
Ensure coupler strength meets 100% of bar's breaking load.
Anchor Plate
Spreads the load from the bar onto the face of the rock or retaining structure.
Specify flat vs domed and anti-corrosion coating (Galvanized/Epoxy).
Hexagonal Nut
Heavy-duty nut for tensioning and securing the anchor assembly under high loads.
Heat-treated specifications for maximum torque reliability.
Grouting Adapter
Bridge component connecting the drilling machine and grout pump to the anchor system.
Check compatibility with existing drill rig chuck systems.
Self-Drilling Anchor Bolt vs Hollow Grouting Anchor Bolt
Compare traditional hollow anchoring solutions with highly integrated self-drilling anchor technology.
Hollow Grouting
Standard Performance
Self-Drilling
High Efficiency
| Performance Criteria | Hollow Grouting Bolt | Self-Drilling Anchor Bolt |
|---|---|---|
| Construction Mode | Sequential (Drill then Bolt) | Simultaneous (Drill & Bolt) |
| Pre-drilling Need | Mandatory | Not Required |
| Ground Adaptability | Stable Rock Only | All Ground (including loose/soft) |
| Construction Efficiency | Standard | Double Efficiency |
| Labor Intensity | High (multi-stage handling) | Low (automated integration) |
| Overall Project Cost | Medium | Lower (reduced time/machinery) |
Ground Condition Suitability
Weathered Rock
Sand & Gravel
Loose Soil
Silty Strata
Clay Formations
Fault Zones
Self-Drilling Anchor Bolt Accessories
High-quality components manufactured from industry-standard steel to ensure system reliability under extreme loads.

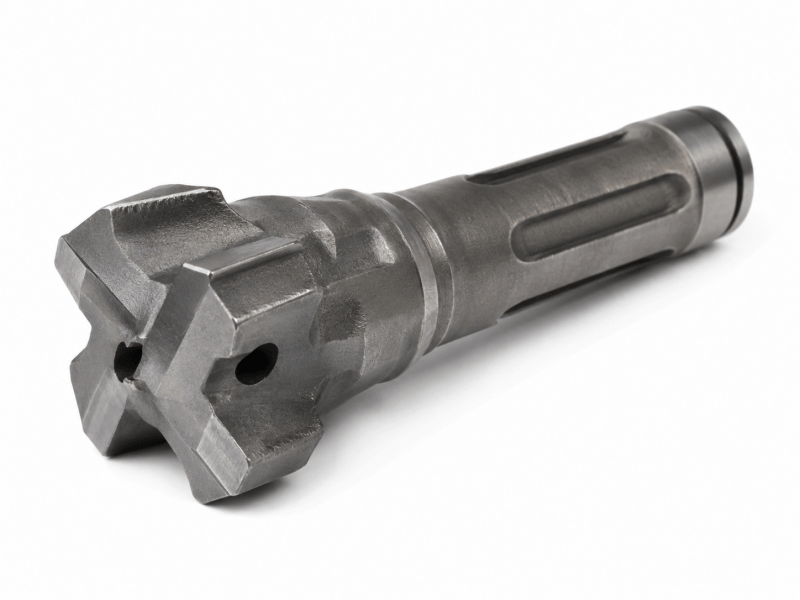

Cross Drill Bit
Hardened steel bit for medium to hard rock formations with excellent directional stability.

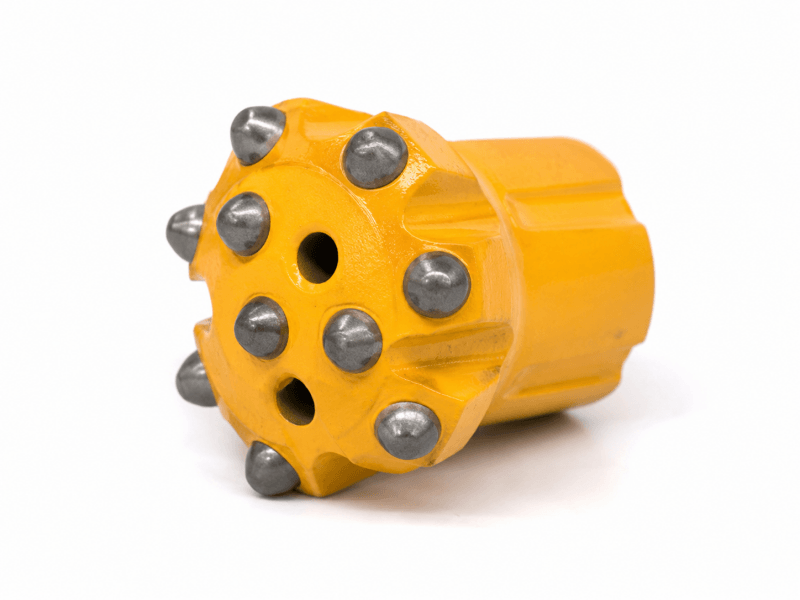

Carbide Button Bit
Premium tungsten carbide inserts for high-speed drilling in extremely hard rock strata.

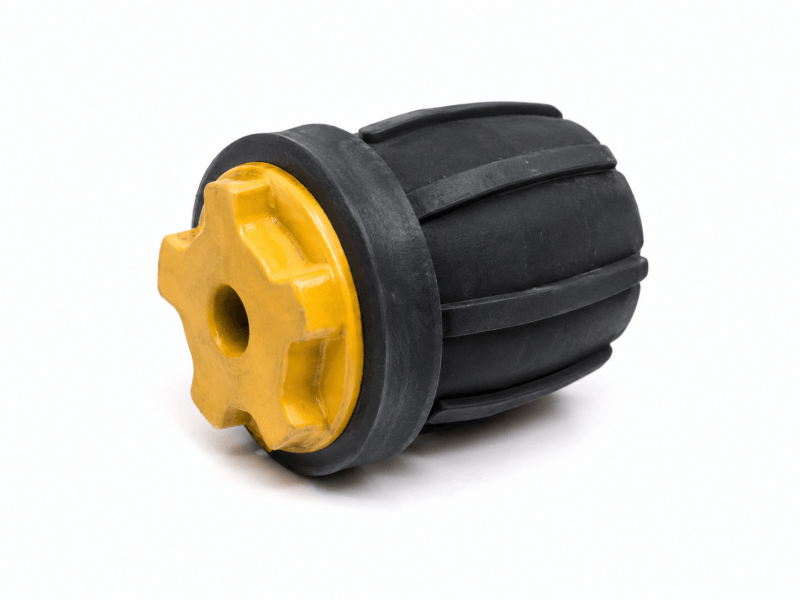

Standard Grout Stopper
High-density sealing component to prevent grout backflow and ensure full column encasement.

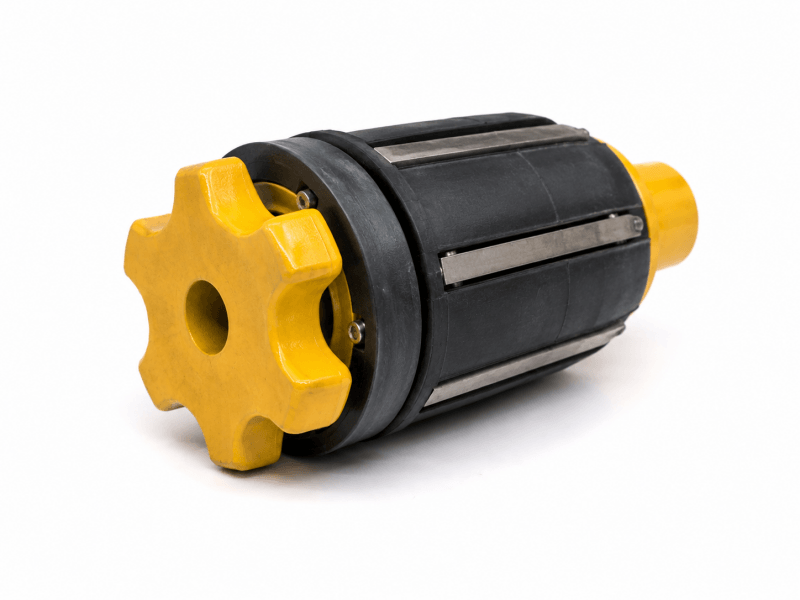

Expandable Stopper
Mechanical expandable design for varying borehole diameters and high-pressure injection.
Flat Anchor Plate
Heavy-duty structural steel plate for distributing axial load on flat rock faces.

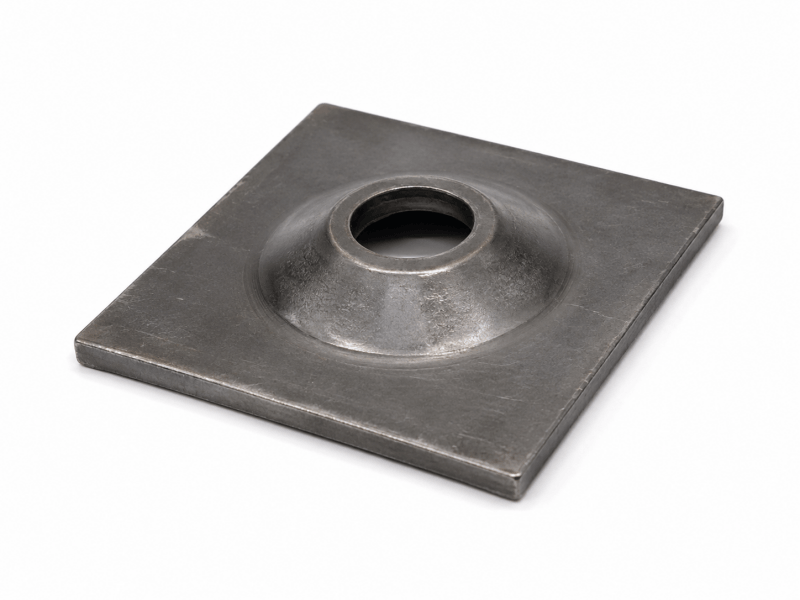

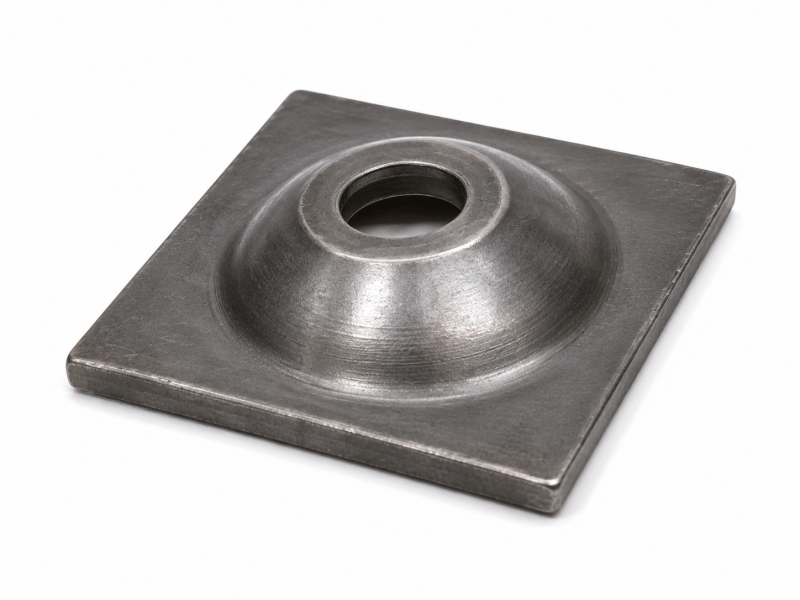

Domed Anchor Plate
Spherical design allowing for angular deviation (up to 20°) of the anchor bar.

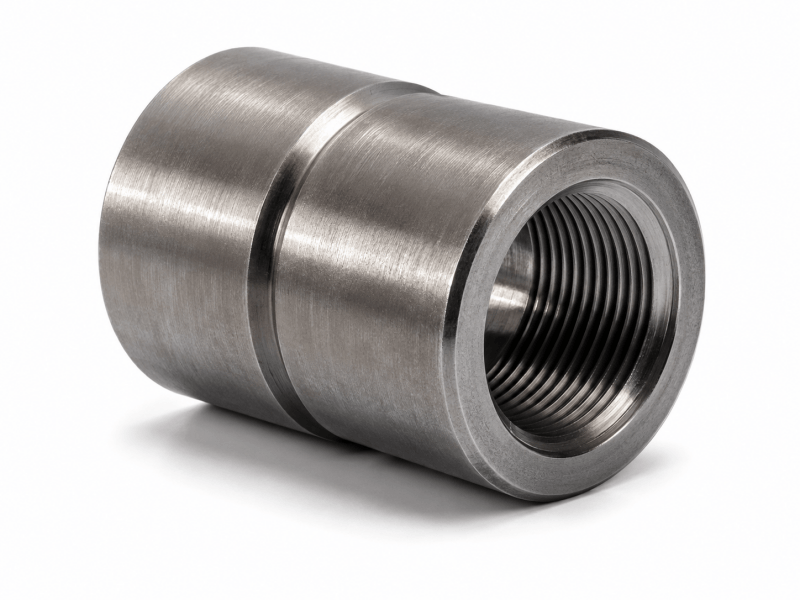

Standard Coupler
Precision machined coupler for connecting standard length R/T thread anchor bars.

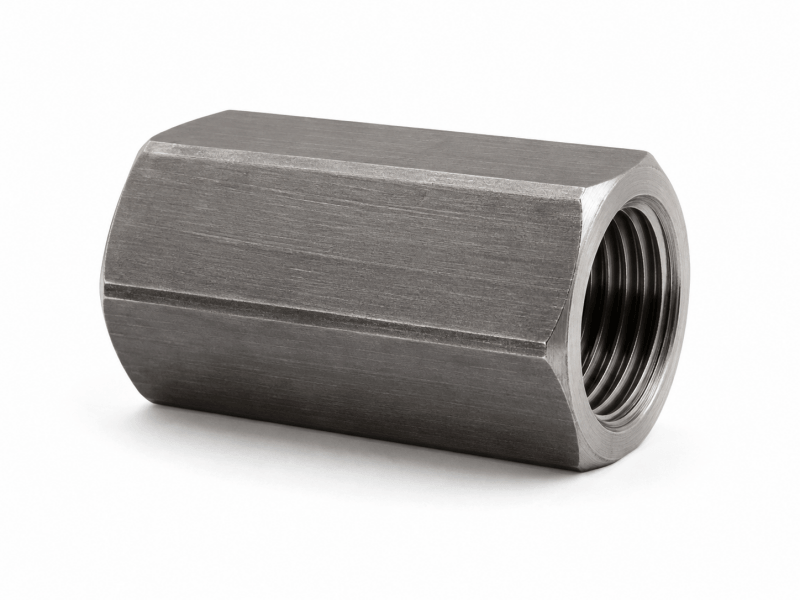

Heavy-Duty Coupler
Reinforced design for high-tension applications and large diameter anchor systems.
Technical Parameters of BQD Self-Drilling Anchor Bolts
Engineered for extreme geological conditions, the BQD series offers precise mechanical properties for heavy-duty reinforcement projects.
| Model No. | Outside Dia. (mm) | Yield Load (kN) | Breaking Load (kN) | Drill Bit Dia. (mm) | Standard Length (m) |
|---|---|---|---|---|---|
| BQD25 | 25 | 150 | 200 | 42 / 51 | 1.0 - 6.0 |
| BQD28 | 28 | 190 | 250 | 51 / 76 | 1.0 - 6.0 |
| BQD32 | 32 | 230 | 280 | 76 / 90 | 1.0 - 6.0 |
| BQD38 | 38 | 400 | 500 | 90 / 110 | 1.0 - 6.0 |
| BQD42 | 42 | 510 | 630 | 110 / 130 | 1.0 - 6.0 |
Outside Diameter (OD)
The precise outer dimension of the hollow bar, critical for bit matching and grout volume calculation.
Yield Load
The maximum stress level at which the anchor bolt begins to deform plastically without breaking.
Breaking Load
Ultimate tensile strength capacity where structural failure occurs, ensuring safety margins.
Bit Diameter
Selected based on ground conditions (clay, rock, or gravel) to ensure optimal grout coverage.
BQD25
Standard slope stabilization and light tunnel spiling.
BQD28
Moderate rock reinforcement and underground mining support.
BQD32
Heavy-duty micro-piling and foundational tie-backs.
BQD38
Extreme geological faults and high-pressure grouting needs.
BQD42
Maximum load-bearing applications and marine engineering.
Integrated Drilling, Anchoring and Grouting Principle
The revolutionary "All-in-One" method that eliminates hole collapse and maximizes ground bonding efficiency.

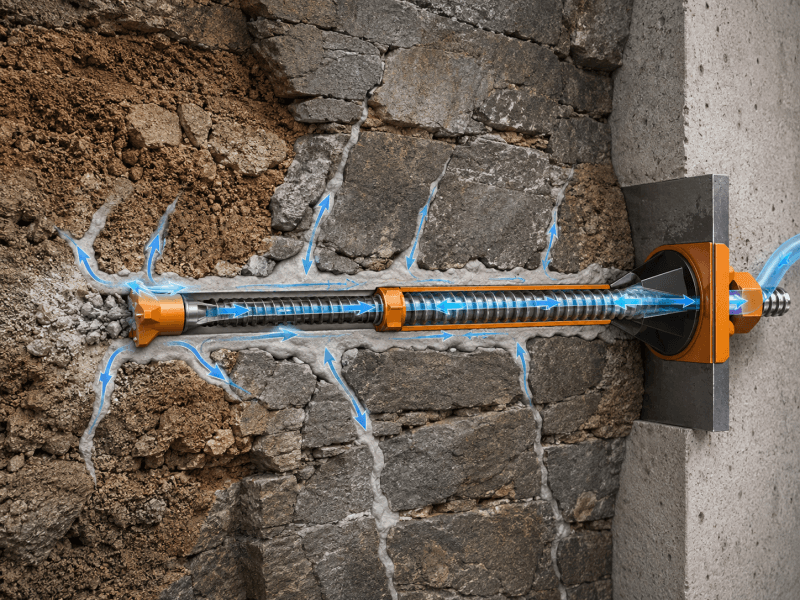

Sectional diagram showing simultaneous drilling and grout flow dynamics.
"One Bar, Three Functions"
Drill Rod
Acts as a sacrificial drill rod that drives the bit into any terrain without pre-drilling requirements.
Anchor Bolt
Remains in the hole after drilling to serve as the permanent reinforcing element for the structure.
Grouting Pipe
The hollow center allows for high-pressure cement slurry injection from the bit upwards, ensuring 100% fill.
Drilling
Bit breaks ground using standard rotary hammer equipment.
Grouting
Cement slurry injected through the hollow core during drilling.
Filling
Slurry fills fissures and anchors the rod to the surrounding rock.
Anchoring
Slurry hardens to form a high-strength composite reinforcement.
Efficiency Boost
Reduces construction time by 40% compared to traditional casing methods.
Safety Enhanced
No risk of hole collapse in loose soil or fractured rock zones.
Optimal Bonding
Pressure grouting ensures superior mechanical interlocking with soil.
Versatile Terrain
Effective in everything from soft clay to high-hardness granite.
Simple Equipment
Compatible with standard site hydraulic or pneumatic drill rigs.
Cost Effective
Eliminates the need for separate casing pipes and temporary supports.
Standard Installation Process for Self-Drilling Anchor Bolt
A systematic 6-step approach to ensure maximum structural integrity and adherence to international safety standards.
System Assembly
Connect bit to anchor bar and verify grout channel clearance.
Positioning
Align drill rig with specified angle and entry point coordinate.
Drill & Grout
Execute drilling while simultaneously pumping cement slurry.
Design Depth
Drill to pre-calculated depth using extension couplings if needed.
Pressure Holding
Maintain grout pressure for 2-3 mins to ensure void filling.
Nut Installation
Install plate and nut after slurry reaches initial set strength.
Quality Control Checklist
Key Site Metrics
Key Technical Advantages of Self-Drilling Anchor Bolt
Engineered for high-performance geotechnical stability in challenging environments.
Prevent Borehole Collapse
Drilling and anchoring integrated into one step, eliminating the risk of hole collapse in loose soils.
Higher Efficiency
Reduces construction time by up to 50% compared to traditional casing-based methods.
Full Grouting
Pressure grouting from bottom to top ensures complete filling of cracks and high bond strength.
Fast Active Support
Allows for immediate pre-stressing to control ground deformation effectively.
Reliable Quality
Continuous thread design allows for cutting and coupling at any point with high dimensional accuracy.
Technical Precision
Customized drill bits for specific geological profiles ensure optimal penetration rates.
Operational Safety
Minimized manual handling and automated drilling cycles improve worksite safety metrics.
Environmental Low Impact
Reduced waste soil and noise pollution compared to large-diameter piling systems.
Adaptability to Difficult Ground Conditions
Continuous high-strength system design that performs exceptionally across complex and unpredictable geological boundaries.
Stabilizes jointed rock masses where traditional bolts fail due to hole collapse or loss of grout.
Provides continuous reinforcement across varying strata stiffness without structural gaps.
Penetrates non-cohesive soils easily while consolidating the surrounding area through pressure grouting.
Essential for high-pressure zones where immediate borehole support is mandatory for safety.
| Ground Type | Challenge | Self-Drilling Solution | Benefit |
|---|---|---|---|
| Loose Sands | Hole Collapse | One-step Drill & Anchor | No casing required |
| Fractured Limestone | Grout Leakage | Integrated Drill-Grout Process | Consolidated fissures |
| Expansive Clay | Deformation | High-Bond Thread Profile | Immediate tension control |
Typical Applications of Self-Drilling Anchor Bolt
Versatile solutions for civil engineering, tunneling, mining, and landslide disaster prevention.
Hollow Grouting Anchor Bolt for Stable Ground
Engineered for rock stability projects, delivering unparalleled economic value without compromising safety standards.
While self-drilling bolts excel in fractured ground, our standard hollow grouting anchors offer a superior economic choice for medium-to-stable rock conditions.
Process Overview:
- Pre-drill borehole to designed stabilization depth.
- Insert standard hollow anchor bolt with hardware.
- Install heavy-duty sealing plug and flat anchor washer.
- Perform pressure-backed bottom-up cement slurry injection.
Anchor Selection Guide for Different Ground Conditions
Quickly cross-reference site dynamics with structural configurations to evaluate the ideal reinforcement specification.
Unstable/Fractured Ground
- ✓ High risk of borehole collapse
- ✓ Loose sand or gravel layers
- ✓ High-pressure water ingress
Stable/Solid Rock
- ✓ Low risk of hole collapse
- ✓ Consistent geological strata
- ✓ Budget-conscious projects
5-Step Selection Logic
Partitioning Suggestion
For large-scale projects, we often recommend a hybrid approach: use Self-Drilling Anchors for the fault zones and Hollow Grouting Anchors for stable sections to balance safety and budget.
