China Rock Bolt Plates Manufacturer for Mining, Tunnel & Ground Support Projects
Factory-direct rock bolt plates for load distribution, bolt support, mesh protection, and stable ground reinforcement.
Load Distribution
Stronger Support
Mesh Protection
Custom Plate Types
Ready to upgrade your ground support stability?

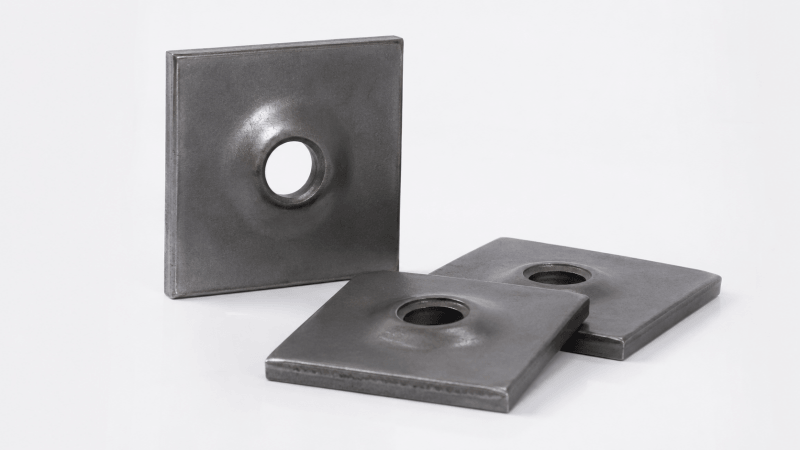

Bearing Plates for Rock Bolt Ground Support Systems
Discover how our premium bearing plates provide maximum load distribution and secure your ground support systems in complex geological conditions.
Rock bolt plates, also widely known as anchor plates or bearing plates, are critical accessories in modern rock bolt support systems. Their primary engineering function is to transfer bolt pre-tension and support force directly to the rock surface, ensuring high-integrity ground stability.
By providing a robust contact interface, these plates prevent local rock crushing and ensure the bolt works as a unified reinforcement element within the strata.
Need high-quality technical specifications for your project?
Download Technical SpecsCommon Ground Support Problems Caused by Wrong or Weak Bolt Plates
In mining roadways, tunnels and slope support projects, rock bolt plates must handle uneven rock surfaces, load distribution, weak ground, mesh protection and installation angle deviation. Choosing the wrong plate may reduce support stability.
Uneven Load Distribution
Point-loading occurs when force is concentrated on a small area, leading to plate deformation and bolt failure.
Uneven Rock Surface
Jagged rock faces prevent standard flat plates from making full contact, reducing effective support.
Weak Rock Crushing
Soft or fractured strata can crumble under high tension, causing the plate to "dig" into the wall.
Loose Rock & Mesh Failure
Small debris can fall through mesh if the plate doesn't provide adequate clamping force against the net.
High-Stress Deformation
Deep-level mining creates extreme squeeze. Rigid plates may snap or yield under massive tectonic pressure.
Cable / Pipe Hanging Needs
Standard plates lack the infrastructure to support necessary underground utilities like air/water lines.
Stop Compromising On Mine Safety
Don't let inadequate ground support become a liability. Consult our engineers for the exact plate for your rock density.
Get Engineering AdviceThe Right Plate Improves Load Transfer, Surface Holding and Support Stability
Different ground conditions require different rock bolt plate designs. Domed plates, round plates, butterfly plates, W plates and mesh-friendly plates are designed to solve different load distribution, angle adaptation, deformation control and surface protection problems.
Better Load Distribution
Feature: Increased surface area and engineered doming.
Advantage: Disperses force evenly across fractured rock.
Benefit: Prevents plate punch-through and strata failure.
Higher Bearing Capacity
Feature: High-grade carbon steel with precision thickness.
Advantage: Certified to withstand extreme tensile loads.
Benefit: Reliable support in high-stress seismic zones.
Angle Deviation Adaptation
Feature: Spherical washer and domed center socket.
Advantage: Self-aligns up to 15° for non-perpendicular drilling.
Benefit: No bending stress on the bolt neck; longer lifespan.
360° Symmetric Force
Feature: Geometric symmetry in round and star plates.
Advantage: Balances stress across the full perimeter of the plate.
Benefit: Stable roadway walls with minimal radial cracking.
Mesh Protection
Feature: Wide-flange butterfly or star-shaped designs.
Advantage: Securely locks mesh panels against the rock wall.
Benefit: Eliminates loose falling rocks and improves safety.
System Support Stability
Feature: Integration with all standard rock bolt threads.
Advantage: Creates a unified structural system with the bolt.
Benefit: Complete peace of mind for site safety supervisors.
Ground Support System Integration Logic
Rock Bolt
Strata Anchoring
Nut
Tension Fastening
Rock Bolt Plate
Force Distribution
Mesh & Rock
Surface Protection
| Strata Condition | Primary Need | Recommended Plate |
|---|---|---|
| Uneven / Angled Faces | Angle Adjustment | Domed / Spherical |
| High-Stress / Squeezing | Deformation Control | Butterfly / W-Plate |
| Fractured Rock + Mesh | Surface Clamping | Star / Large Square |
| Hard Rock / Standard | Tension Retention | Flat / Circular |
Build a Safer Underground Environment
Choose the support components engineered for high-bearing efficiency and long-term durability. Quality plates save lives and reduce maintenance costs.
Featured Rock Bolt Plate Types for Mining and Ground Support
We offer multiple rock bolt plate types for different support conditions, including regular roadway support, uneven rock surfaces, weak ground, high-stress deformation zones, mesh holding and corrosion-resistant applications.

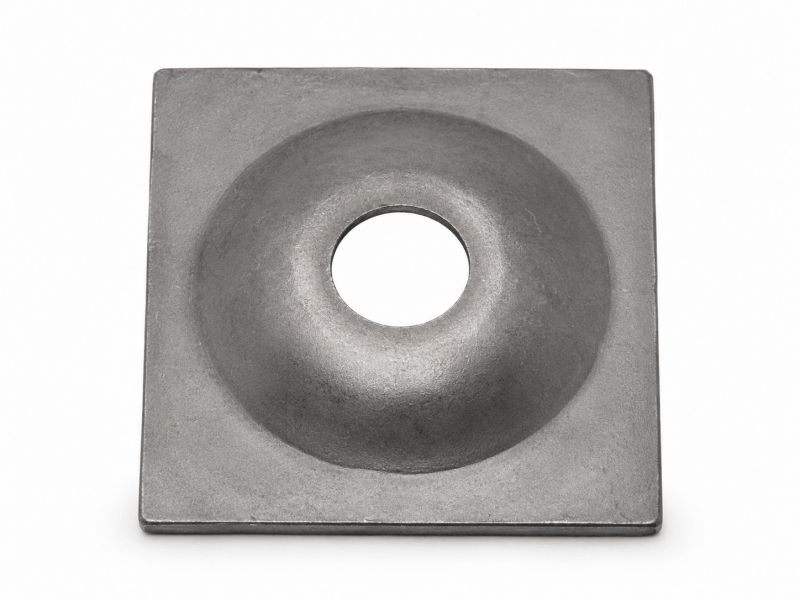

Dome Square Plate
Standard choice for common mining and tunnel roadway support with built-in angle adaptation.
View Details

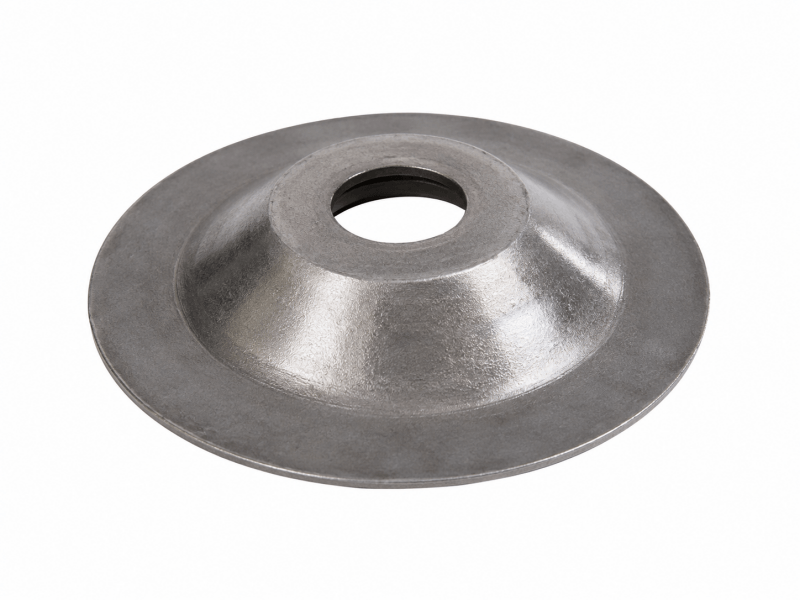

Round Domed Plate
Symmetric design ensuring 360° load distribution and balanced force across the rock surface.
View Details

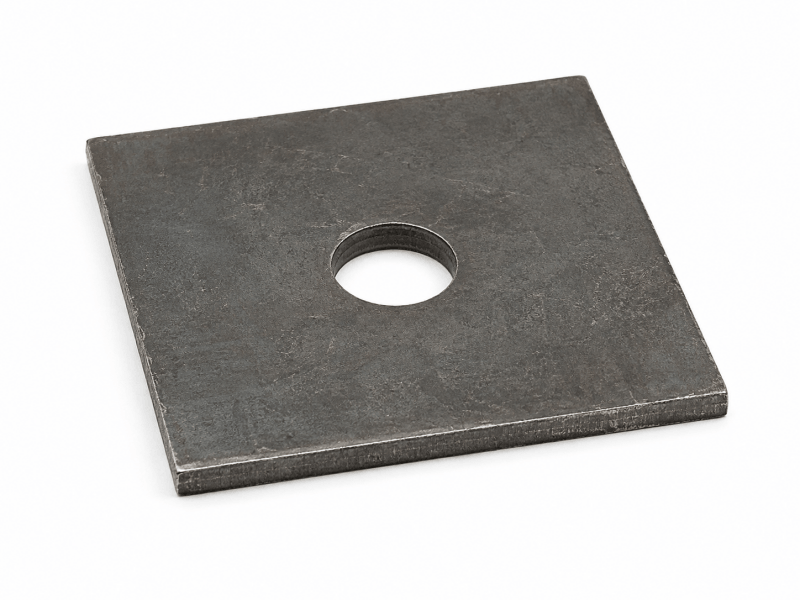

Flat Plate
An economical and simple solution designed specifically for smooth and flat rock surfaces.
View Details
Butterfly Plate
Reinforced geometry providing a larger contact area for weak rock and high-stress zones.
View Details
W Plate
Heavy-duty structural profile engineered for effective deformation control in high-stress ground.
View Details

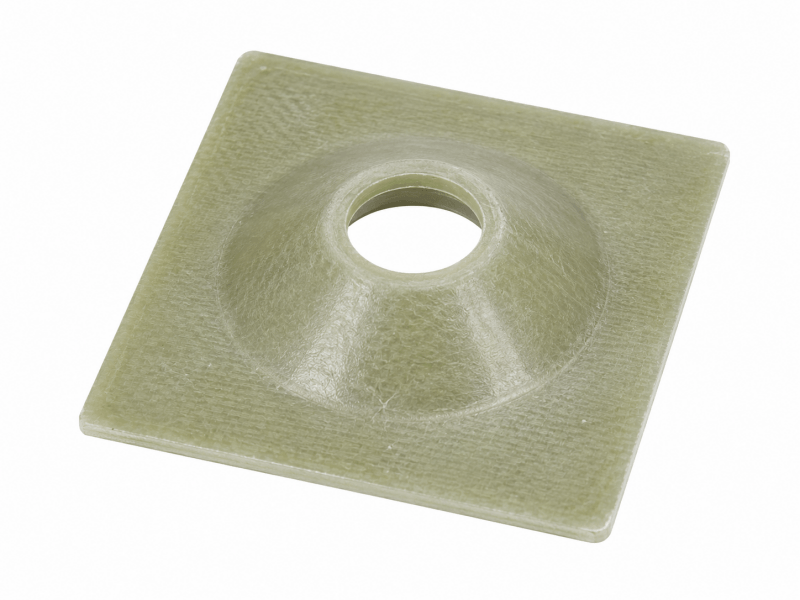

Fiberglass Plate
Non-metallic, lightweight solution designed for easy cutting and high corrosion resistance.
View DetailsChoose Plate Type Based on Ground Condition and Support Design
Request a Quote9 Rock Bolt Plate Types for Different Ground Support Conditions
From regular roadway support to high-stress deformation zones, mesh protection, TBM cutting and corrosion-resistant projects, we provide multiple plate types for different support systems.
Regular Support
Dome Square, Round Domed, Flat
High-Stress / Large Deformation
Butterfly, Combi, W Plate
Special Anchor Direction
Rhombus, Round Domed
Special Material / Mesh Support
Fiberglass, Star, Dog Ear
Dome Square Plate
Structural Feature:
Integrated central dome for 15°–20° angle deviation.
Typical Application:
Standard mining drifts and civil tunnels.
Round Domed Plate
Structural Feature:
Circular symmetry eliminates orientation bias in stress.
Typical Application:
Uniform stress distribution in variable rock masses.
Flat Plate
Structural Feature:
Zero-profile flat surface for direct contact stability.
Typical Application:
Smooth concrete surfaces or shotcreted rock faces.
Butterfly Plate
Structural Feature:
Folded 'wing' geometry increases lateral surface area.
Typical Application:
Coal mine roof support and high-convergence areas.
Combi Plate
Structural Feature:
Dual-layer interaction for enhanced mesh retention.
Typical Application:
Combined support systems with steel mesh linings.
Rhombus Plate
Structural Feature:
Elongated shape for directional anchoring requirements.
Typical Application:
Specific joint or fracture intersection support.
W Plate
Structural Feature:
High moment of inertia through deep rib profiling.
Typical Application:
High-stress zones requiring extreme deformation control.
Fiberglass Plate
Structural Feature:
Lightweight GRP/FRP composite, 100% rustproof.
Typical Application:
TBM temporary support and chemical environments.
Star Plate
Structural Feature:
Multi-point contact designed for maximum mesh grip.
Typical Application:
Surface containment and mesh holding in mining.
One Plate Type Cannot Fit All Ground Conditions
Contact EngineeringSelf-Drilling Anchor Bolt System Components
premium-grade components engineered as a unified structural unit for heavy-duty ground reinforcement.
Integrated System Integrity
The ANCHOR-TECH Self-Drilling Anchor Bolt system is engineered as a unified structural unit. Each component is manufactured from premium-grade steel to ensure seamless compatibility, providing a complete solution for drilling, grouting, and anchoring in one fluid operation. This modularity allows for precision adaptation to varying geological conditions without compromising safety or speed.
- High-strength seamless steel construction
- ISO-certified thread manufacturing standards
Hollow Spiral Anchor Bar
All-thread bar serving as the drill rod, injection pipe, and tensioning member simultaneously.
Specify thread type (R/T) and length requirements for project yield.
Disposable Drill Bit
Lost drill bit customized for soil, clay, gravel, or hard rock ground conditions.
Select based on Mohs hardness and particle size of strata.
Steel Coupler
High-strength internal/external threading to extend anchor bars to required depths.
Ensure coupler strength meets 100% of bar's breaking load.
Anchor Plate
Spreads the load from the bar onto the face of the rock or retaining structure.
Specify flat vs domed and anti-corrosion coating (Galvanized/Epoxy).
Hexagonal Nut
Heavy-duty nut for tensioning and securing the anchor assembly under high loads.
Heat-treated specifications for maximum torque reliability.
Grouting Adapter
Bridge component connecting the drilling machine and grout pump to the anchor system.
Check compatibility with existing drill rig chuck systems.
Round Domed Plate and Flat Plate for Different Support Needs
Compare the features, load distribution capabilities, and ideal use cases to select the perfect plate for your specific project.

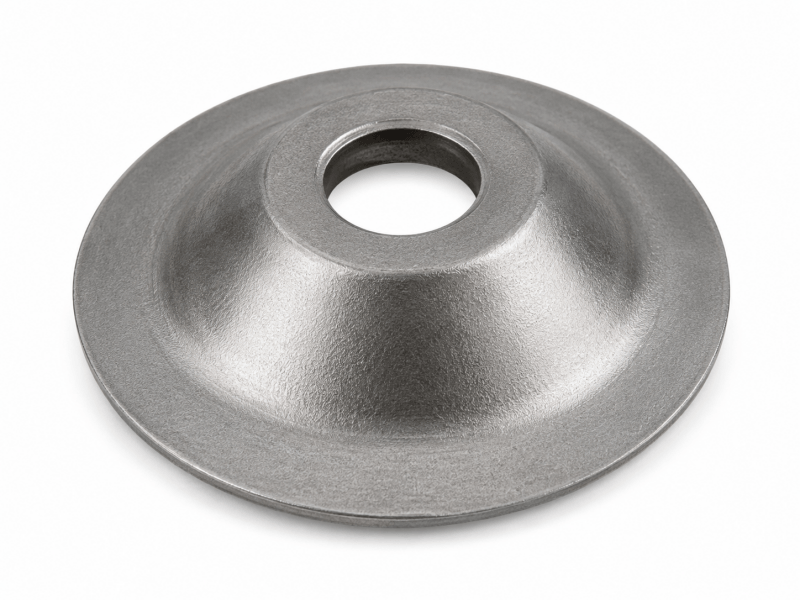

Round Domed Plate
- 360° Load Distribution
- Symmetric Force Transfer
- Compact Structure for Tight Spaces
Flat Plate
- Low Cost Option
- Low Profile Design for Clearances
- Custom Multi-Hole Option
Which Plate Fits Your Project?
| Feature | Round Domed | Flat Plate |
|---|---|---|
| Load Distribution | Omnidirectional (Uniform) | Linear (Stress at corners) |
| Ground Condition | Highly Fractured / Uneven | Stable / Flat Face |
| Space Limitation | Requires dome clearance | Minimum profile height |
| Relative Cost | Mid-Range | Economical |

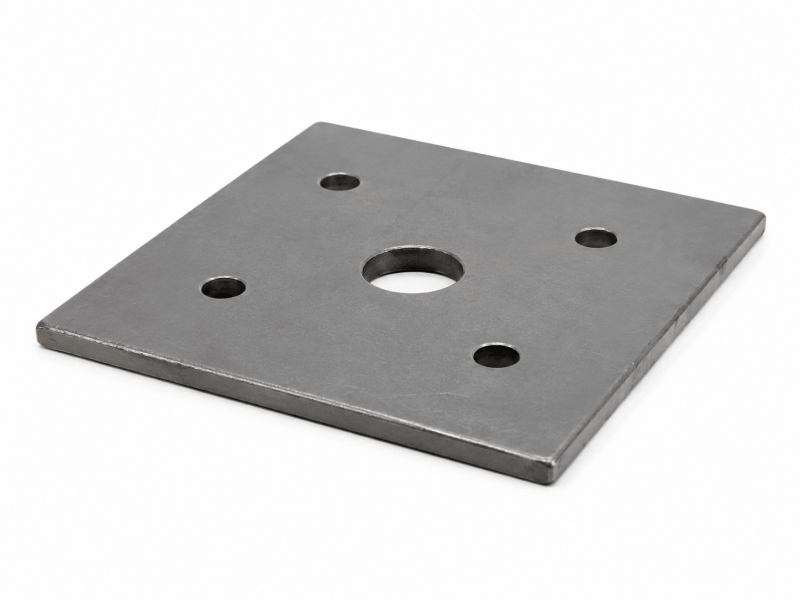

Custom Multi-Hole Flat Plate Option
We provide specialized flat plates with secondary holes designed for grout injection pipes or exhaust ventilation systems. Available in custom dimensions to fit your specific bolt diameter and auxiliary piping.
Optimize your support strategy with the right plate geometry.
Request Comparison GuideHigh-Stress Structural Support for Deep Mining
Reinforced solutions engineered for deep mining environments and large structural deformations, providing maximum surface contact and resistance against high-stress rock bursts.

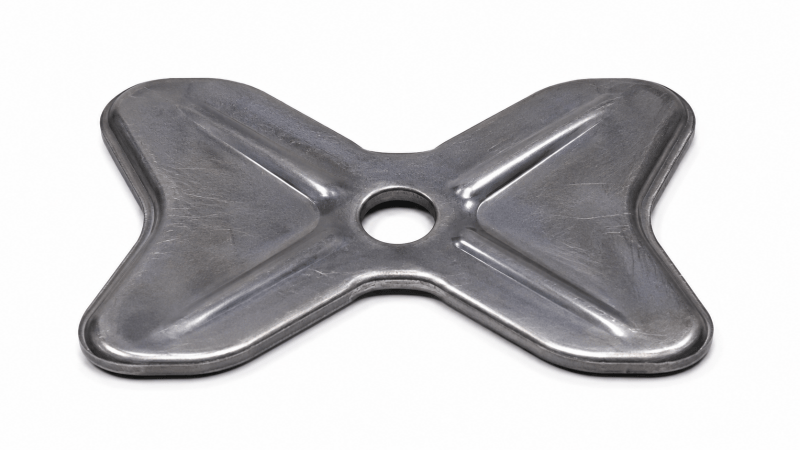

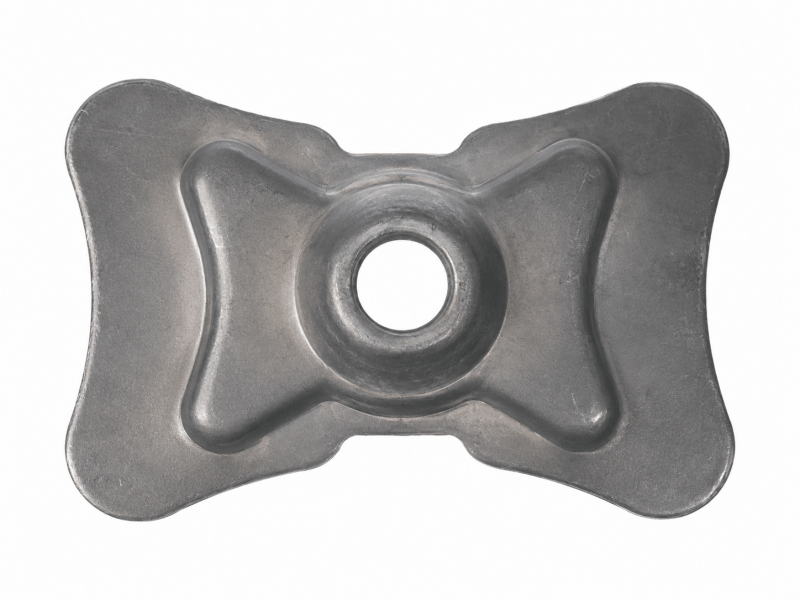

Butterfly Plate
Engineered with specialized V-type ribs to provide maximum surface contact and resistance against high-stress rock bursts.
- Optimized V-type rib geometry for load distribution.
- Superior anti-deformation properties in soft rock.
- Enhanced surface friction for structural stability.

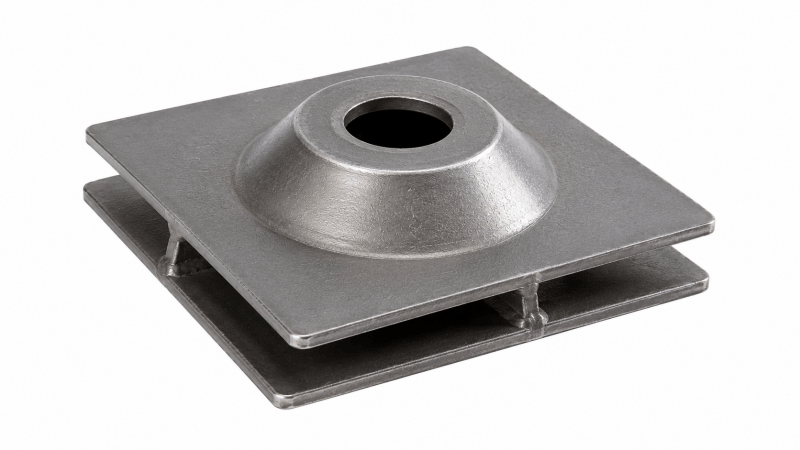

Combi Plate
Utilizes a stacked bearing structure for multi-level reinforcement, ideal for massive cable bolt installations and extreme depths.
- Dual-layer plate synergy for maximum tensile strength.
- Compatible with high-capacity cable bolt systems.
- Modular design for customized thickness requirements.
Primary Applications
Deep Mining
Effective support for depths exceeding 800m where lithostatic pressure is extreme.
Broken Rock Zone
Secures loose strata in high-fracture areas to prevent localized rock falls.
Cable Bolt Support
Direct integration with cable bolting for secondary reinforcement of main galleries.
Require High-Stress Reinforcement?
Our engineering team can assist with custom Butterfly or Combi Plate specifications.
Request Module 9 PricingDirectional & Extreme Deformation Control
High-strength plates specifically designed for fault fracture zones and multi-angle pivot adjustments in demanding engineering projects.

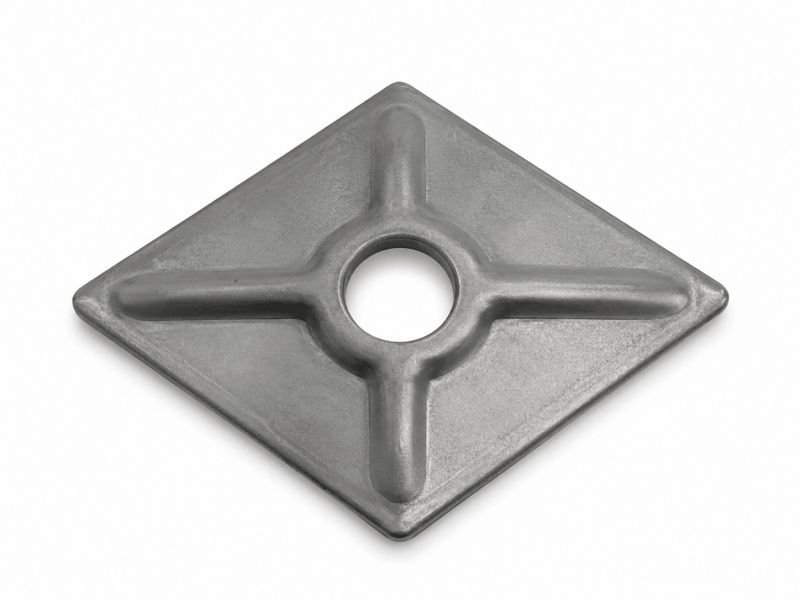

Rhombus Plate
Designed for pivot adjustment and changing load directions in irregular strata. Ideal for non-orthogonal bolt installations.
- Multi-angle pivot capability for irregular faces.
- Efficient load transfer across non-standard angles.
- Compact geometry for tight workspace installation.

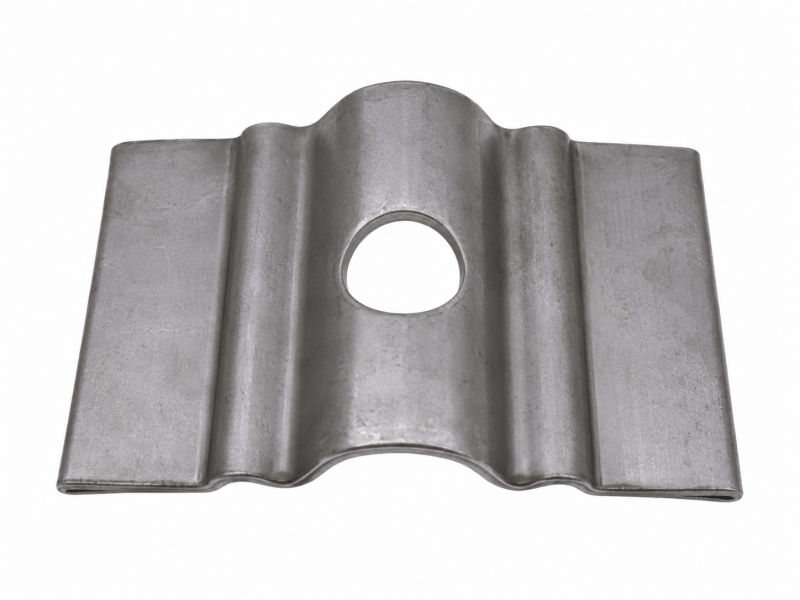

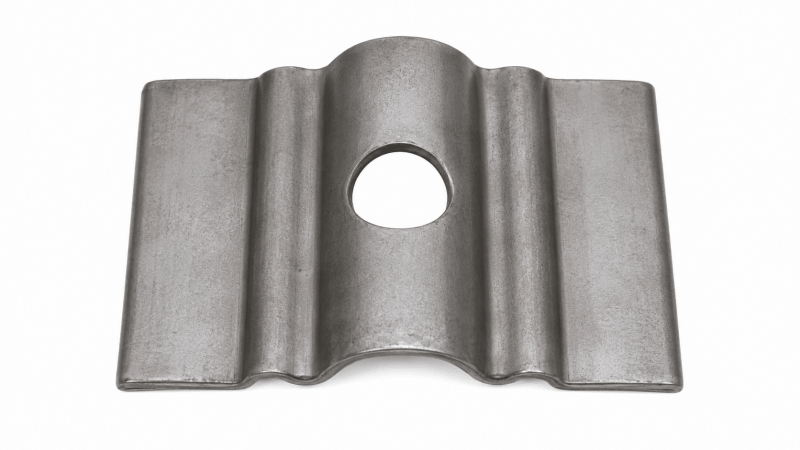

W Plate
High-strength reinforced plate for fault fracture zones. Engineered specifically for managing extreme roadway deformation.
- Maximum bending resistance via W-profile geometry.
- Exceptional performance in tectonic fracture zones.
- High load-bearing capacity for long-term stability.
Choose by Support Challenge
| Support Problem | Recommended Solution | Key Advantage |
|---|---|---|
| Non-orthogonal rock faces | Rhombus Plate | Pivot Adjustment |
| Fault & Fracture zones | W Plate | High Bending Stiffness |
| Excessive convergence | W Plate | Deformation Control |
| Changing load directions | Rhombus Plate | Angular Load Transfer |
Expert Solutions for Complex Strata
Download our engineering guide for advanced installation methods.
Get Module 10 QuoteSpecialized Ground Support Geometry
Engineered solutions for challenging geological conditions, focusing on non-metallic durability and advanced mesh protection.

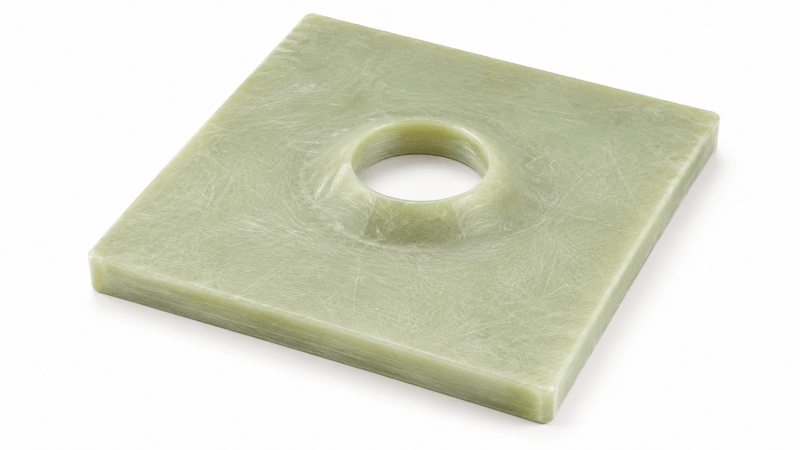

Fiberglass (GFRP) Plate
- TBM Cuttable: Designed for temporary support in tunnel headings where TBM excavation follows.
- Corrosion Proof: 100% resistance to acid and alkaline environments, ideal for marine or chemical mining.
- Electrical Insulation: Eliminates stray current issues in electrified railway tunnels.

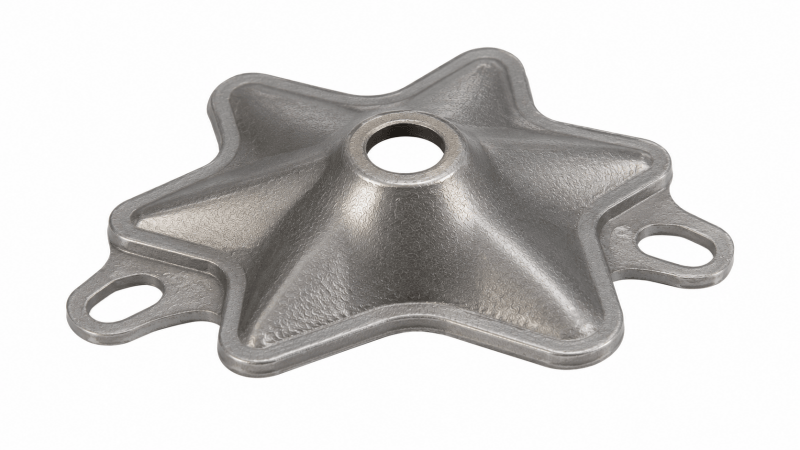

Star Plate System
- Mesh Protection: Specialized rounded edges prevent the plate from cutting through wire mesh during tensioning.
- Angle Adaptation: Domed star structure allows for up to 18 degrees of bolt misalignment.
- Hanging Ear Opt: Integrated hook function for secondary utility cables or lighting support.
TBM headings & soft ground excavation
High salinity & humid ventilation shafts
Mesh-heavy support systems
Fiberglass Plate Solves Special Material Needs, Star Plate Solves Mesh Protection
Consult with our engineering team for technical drawings and load capacity data.
Request Technical SpecsMaterial Selection & Surface Protection
Matching metallurgical properties to geotechnical lifespan requirements for optimal project ROI.
Black Steel
Uncoated structural carbon steel. Best for temporary support and dry interior mining environments.
Hot Dip Galvanized
Zinc-coated finish according to ASTM A123. Superior protection for wet, corrosive, or long-term projects.
Fiberglass (GFRP)
Advanced polymer matrix reinforcement. Non-conductive, non-sparking, and completely rust-proof.
Material Selection by Working Environment
| Environment Type | Corrosion Risk | Recommended Material | Lifespan Rating |
|---|---|---|---|
| Arid / Low Humidity Mine | Minimal | Black Steel | 2-5 Years |
| Humid Underground Tunnel | Moderate | Hot Dip Galvanized | 15-30 Years |
| Chemical / Saline Leaching | Extreme | GFRP Fiberglass | 50+ Years |
| Electrified Rail Tunnel | High (Stray Current) | GFRP Fiberglass | Permanent |
3-Step Choice Logic
Assess Service Life
Determine if the support is temporary (months) or permanent (decades).
Evaluate Chemistry
Analyze groundwater acidity, salinity, and mineral conductivity.
Optimize Metallurgy
Select the lowest-cost material that exceeds the life safety threshold.
Choose Plate Material Based on Environment, Not Only Price
Incorrect material selection leads to premature failure and costly re-installation.
Download Material GuideRock Bolt Plates in Action: Critical Application Scenarios
Engineered for safety across diverse geological conditions and project scales, ensuring stability where it matters most.
Mining
Coal Mining & Roadway Support
Specifically designed for high-stress convergence zones. Our plates integrate seamlessly with surface mesh systems.
Civil Engineering
Civil Tunneling & Subways
Optimal for temporary support and soft ground tunneling. Features TBM-cuttable fiberglass solutions for future excavation.
Infrastructure
Hydro-Power & Slope Stability
High-durability Hot Dip Galvanized (HDG) finishes for long-term permanent ground control in corrosive environments.
Hard Rock Mining
Hard Rock Mining
Engineered for high-stress environments in gold, copper, and iron ore extraction. Our plates provide critical load distribution in deep-level seismic zones.
Infrastructure
Infrastructure Reinforcement
Ideal for retaining walls, bridge abutments, and highway cut-and-fill projects. Ensures long-term stability for critical public assets.
Marine
Marine & Corrosive Environments
Specialized Hot Dip Galvanized and Epoxy coatings designed for salt-spray exposure and acidic ground conditions. Proven durability in harbor and coastal works.
Ready to secure your next project?
Get in touch to find the perfect plate system for your specific application scenario.
Contact Our ExpertsThe Engineer's Guide to Plate Selection
4 Critical factors to ensure ground support integrity and project ROI.
1. Assess Ground Conditions
Analyze rock mass rating (RMR) and seismic potential. Soft rock requires larger surface area plates to prevent punching, while hard rock focus is on tensile capacity.
2. Match Bolt Type & Load
Ensure the dome size and hole diameter match your specific anchor (Threaded bolts, split sets, or cable bolts) to maintain optimal load distribution.
3. Environmental Factors
High salinity or humidity requires specialized coatings. Choose between Black Steel, Epoxy, or HDG based on the project's expected life cycle and soil chemistry.
4. Installation Angles
Verify spherical seat clearances. Our premium domed plates accommodate angle deviations up to 18 degrees while maintaining full surface contact.
Standard Plate Specifications
Detailed dimensions and load capacities for our complete range of rock bolt plates.
| Plate Type | Standard Dimensions (mm) | Thickness (mm) | Hole Size (mm) | Typical Load (kN) |
|---|---|---|---|---|
| Standard Domed | 150 x 150 | 4.0 / 5.0 | 24 - 42 | 150 - 250 |
| Heavy Duty Domed | 200 x 200 | 6.0 / 8.0 | 36 - 54 | 300 - 450 |
| Butterfly Plate | 305 x 150 | 3.0 / 4.0 | 24 - 36 | Mesh Clamp Only |
| Fiberglass (FRP) | 150 x 150 | 8.0 / 10.0 | 28 - 32 | Up to 120 |
Need a Custom Support Solution?
Our engineering team can assist with site-specific plate design and load calculations.
Talk to a Support EngineerGet Custom Rock Bolt Plates Directly from China Factory
Send us your plate type (Dome Square, Round, Flat, Butterfly, W-Plate), thickness, dimensions, hole size, coating (Galvanized / Black / Epoxy), and project quantity. Our engineering team will recommend suitable Rock Bolt Plate solutions.
-
Factory Direct Supply
Direct supply from China source manufacturer for cost-effective ground support.
-
Custom Plate Specifications
Tailored thickness, dimensions, hole diameter, and dome profile geometry.
-
Technical & Engineering Support
Specialized guidance for mining roadways, tunneling, slope stabilization, and heavy-duty load distribution.
-
Certified Quality & Testing
Full QA support for steel tensile strength, plate bending rigidity, and galvanization coating thickness.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
