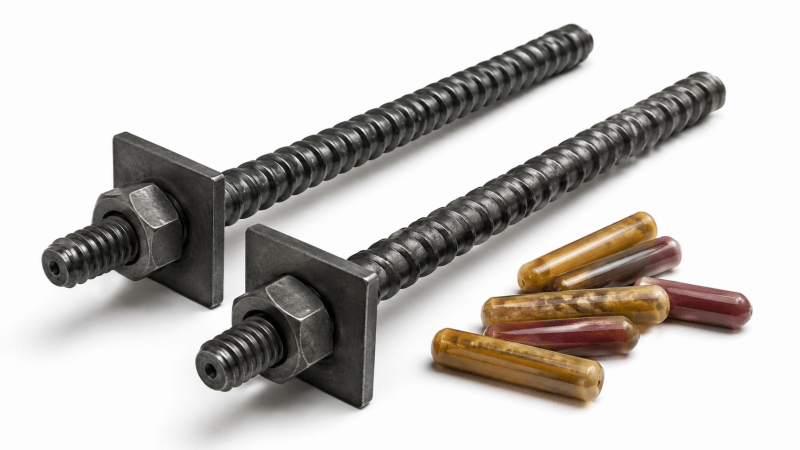

What are MSGLW & MSGLD Anchor Bolts?
The MSGLW (Left-Hand) and MSGLD (Right-Hand) series represent the pinnacle of modern mining ground support. Utilizing a unique continuous thread geometry, these high-strength rebar bolts provide superior mechanical interlocking with resin capsules to ensure ultimate stability under intense tectonic pressure.
MSGLW Series (Left-Hand)
Features a left-hand continuous thread profile. Optimized for specific drilling rigs requiring counter-clockwise agitation. Preferred for increased torque resistance.
MSGLD Series (Right-Hand)
Features a right-hand continuous thread profile. Compatible with standard clockwise drilling equipment. The global industry standard for mining operations.
Integrated Performance
Thread ribs prevent resin "running" during vertical installation, ensuring 100% encapsulation quality and guaranteeing long-term durability.
Discover how our anchor systems can secure your next project.
View Technical CatalogCritical Roadway Challenges We Solve
High-stress underground environments demand more than standard support. We address the specific failure points of deep-level mining.
Large Deformation Control
Standard bolts snap under extreme convergence. Our system manages displacement to prevent Sudden Roof Collapse.
High Dynamic Loads
Seismic activity in deep mines creates impact energy that shatters rigid supports, leading to Rockburst Damage.
Corrosive Environments
Acidic mine water eats away at structural integrity, causing Premature Support Failure within months.
Installation Inconsistency
Manual resin mixing leads to uneven anchorage. Poor bonding creates Weak Strata Reinforcement zones.
Frequent Re-bolting
Low-grade materials necessitate constant maintenance, resulting in High Operational Downtime and labor costs.
Fractured Roof Strata
Loose, broken rock layers require immediate skin support to prevent Scalping and localized falls.
Stop compromising on roadway safety. Secure your mine today.
Consult a Support EngineerWhy Integrated Support Matters
Beyond the steel, our MSGLW & MSGLD series provide the reliability required for uninterrupted production cycles.
Structural Integrity
Engineered to meet the highest safety standards in seismic-prone zones.
Faster Installation
Optimized thread design and resin compatibility reduces cycle times.
Longer Lifespan
Superior metallurgy ensures the support outlasts the mine's operational life.
Total Project Cost
Reduced maintenance and re-bolting lead to significant long-term savings.
Choosing the Right Series
-
Designed for automated drilling rigs that utilize left-hand rotation.
-
High torque resistance for hard-rock pre-stressing applications.
-
Optimized for large-scale tunnel engineering.
-
Universal compatibility with standard right-hand hydraulic bolters.
-
Superior bonding performance with dual-speed resin capsules.
-
Ideal for coal mine roadway reinforcement.
Need technical specifications for your specific geological conditions?
Download Engineering CatalogUnderstand MSGLW & MSGLD Model Codes Before Selection
Gain clarity on our model naming standards to easily identify and specify the precise high-strength resin anchor bolts tailored for your unique geological and engineering requirements.
Anchoring Type
Resin-anchored bolt for coal mine support systems.
Material
High-strength rebar (ribbed steel bar) construction.
Strength
Left-hand thread without longitudinal reinforcement.
End Type
Un-headed (W) for standard washers and nuts.
Thread Type
Full-length thread (D) for adjustable installation depth.
Standard Encoding Formula
MSGL(W/D) - Yield Strength / Diameter × Length
Example Code
MSGLW-400/22x2500
400MPa, 22mm Diameter, 2500mm Length
Standard Compliance: MT/T 146-2025
All products strictly adhere to the latest coal industry standards for safety and structural integrity.
Need assistance configuring the right model for your project?
Request Technical Quote arrow_forwardFeatured MSGLW & MSGLD Products: 6 Series Options
Explore our comprehensive range of high-strength resin anchor bolts, engineered for various strata conditions, ground pressures, and demanding support lifespans.

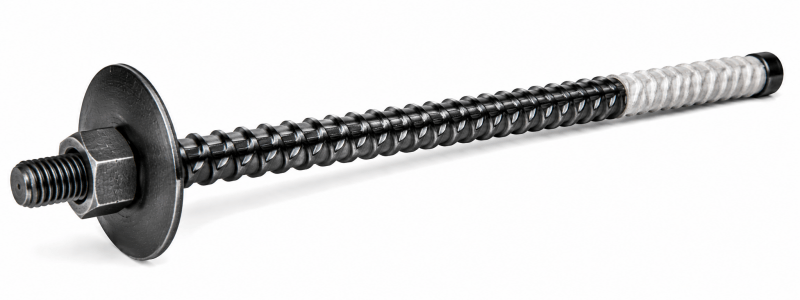

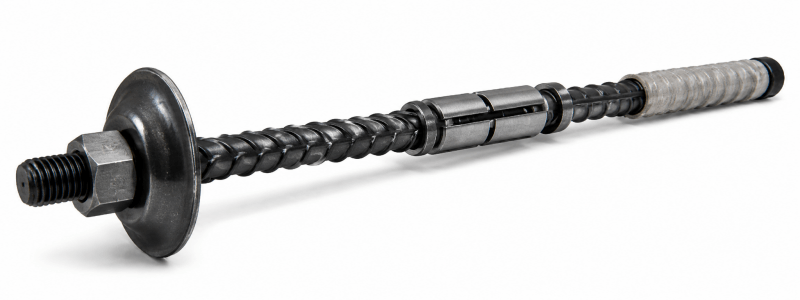

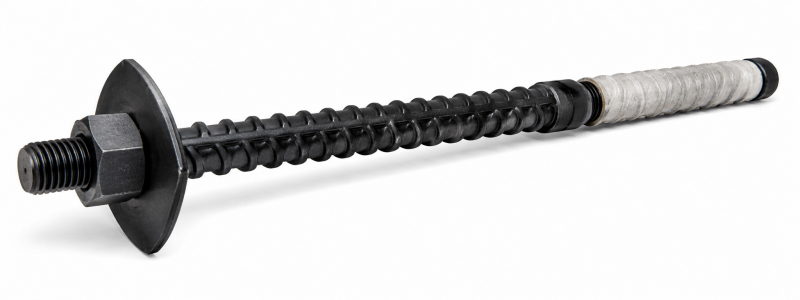

MSGLW SERIES
High-Stress Pro
Positioning: Ultra-Stability
Engineered for deep-level mining where lithostatic pressure is extreme. Maximum yield resistance.

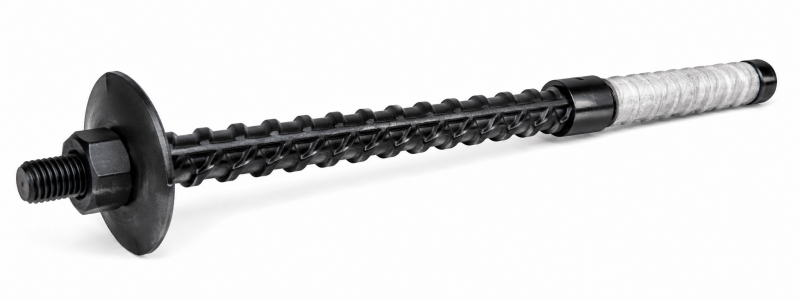

MSGLW SERIES
Dynamic Pressure Elite
Positioning: Dynamic Load
Optimized for roadways subject to frequent heavy machinery movement and vibration.

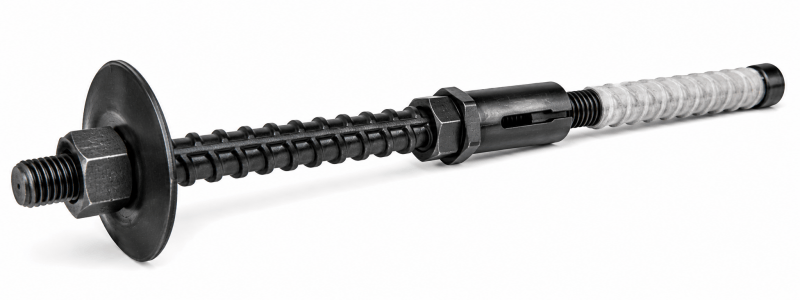

MSGLW SERIES
Fast-Insta Core
Positioning: Rapid Deployment
Reduced installation cycle times with specialized thread engagement for quick resin mixing.

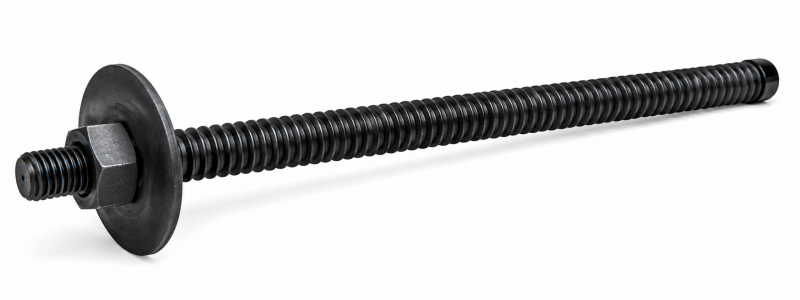

MSGLD SERIES
Flex-Thread Alpha
Positioning: Full-Threaded
Continuous threading allows for any cut length and flexible nut positioning in variable strata.
MSGLD SERIES
Adjust-Bolt Omni
Positioning: Adjustable Install
Ideal for uneven rock faces where depth adjustment is critical for achieving optimal tension.
MSGLD SERIES
Perm-Guard Shield
Positioning: Permanent Support
High-durability coating and heavy-gauge steel for long-term main corridor infrastructure.
Need a custom specification for your specific site conditions?
Request Technical Quote arrow_forwardMSGLW vs. MSGLD Process Differences
Understand the key structural and manufacturing differences between the non-ribbed left-hand threaded MSGLW series and the continuous full-threaded MSGLD series to ensure optimal application for your mining project.

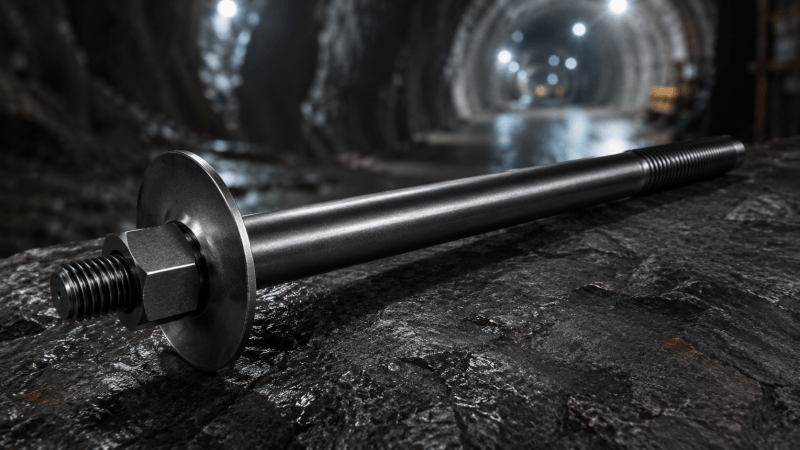

MSGLW Series
Non-Ribbed Threaded Steel
-
Tail-End Rolled Thread
Thread length optimized between 80mm-150mm for precise nut engagement without compromising shaft integrity.
-
Left-Hand Thread Geometry
Engineered specifically for counter-clockwise installation environments common in specialized mining sectors.
-
Smooth Body Architecture
Hot-rolled raw material processing creates a uniform diameter across the main shaft for consistent resin displacement.

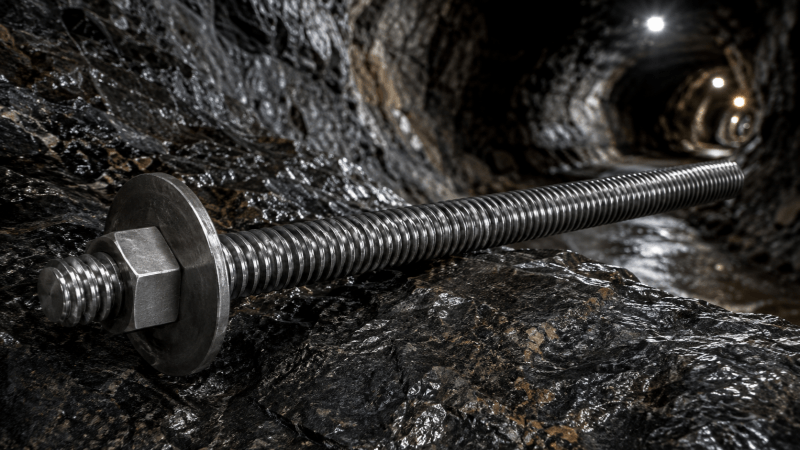

MSGLD Series
Equal-Strength Full-Threaded
-
Continuous Threading
Threads run from end-to-end, allowing the bolt to be cut or joined at any point while maintaining full load capacity.
-
Equal Diameter & Strength
Precision-rolled processing ensures the thread root diameter equals the shaft strength, eliminating weak points.
-
Universal Adaptability
Ideal for varied strata conditions where installation depth may need on-site adjustment without re-threading.
Not sure which processing standard fits your geological requirements?
Consult Our EngineersPerformance & Specification Cards
Detailed mechanical properties, dimensional profiles, and essential borehole matching guidelines to ensure safety compliance and maximum performance of our high-strength resin anchor bolts.
Diameter Profile
Diameter Profile
Diameter Profile
Diameter Profile
Diameter Profile
Mechanical Performance Comparison
| Grade (MPa) | Yield (ReH) | Tensile (Rm) | Elongation (A%) | Torque (N·m) |
|---|---|---|---|---|
| MG335 | ≥ 335 MPa | ≥ 490 MPa | ≥ 16% | 40 - 60 |
| MG400 | ≥ 400 MPa | ≥ 570 MPa | ≥ 14% | 60 - 80 |
| MG500 | ≥ 500 MPa | ≥ 670 MPa | ≥ 12% | 80 - 110 |
| MG600 | ≥ 600 MPa | ≥ 800 MPa | ≥ 10% | 110 - 150 |
Borehole Matching Matters
Maintain a 6-10mm difference between the borehole diameter and bolt diameter to ensure optimal resin mixing and encapsulation thickness.
In fractured strata, increase borehole depth by 50mm to account for debris fall-off, preventing incomplete bolt insertion.
Verify drill bit wear regularly; a 2mm diameter loss can compromise the mechanical interlock between the resin and the borehole wall.
Ready to order or need a comprehensive technical guide?

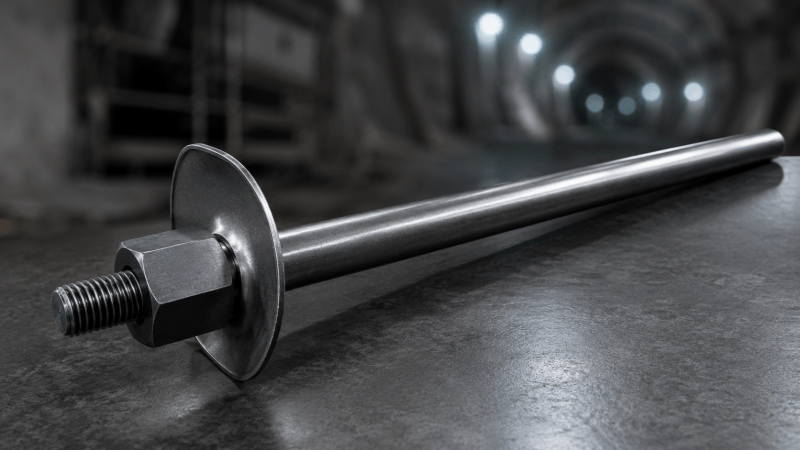

Download Full Tech SpecsMSGW Support System
A high-strength smooth round steel bolt system tailored for high-stress mining environments requiring rapid ground reinforcement and superior tensile integrity.
High Tension Module
High-Strength Smooth Round Steel Bolt
ACTIVEDesigned specifically for high-stress mining environments where rapid ground reinforcement is non-negotiable. The smooth profile optimizes resin distribution during mechanical rotation.
Provides superior tensile strength compared to standard rebar, essential for seismic-active zones.
Facilitates rapid mechanical mixing with specialized resin capsules.
Full-column or point anchoring compatibility based on site audit.
Specify MSGW for High-Seismic Sites and secure your engineering datasheet.

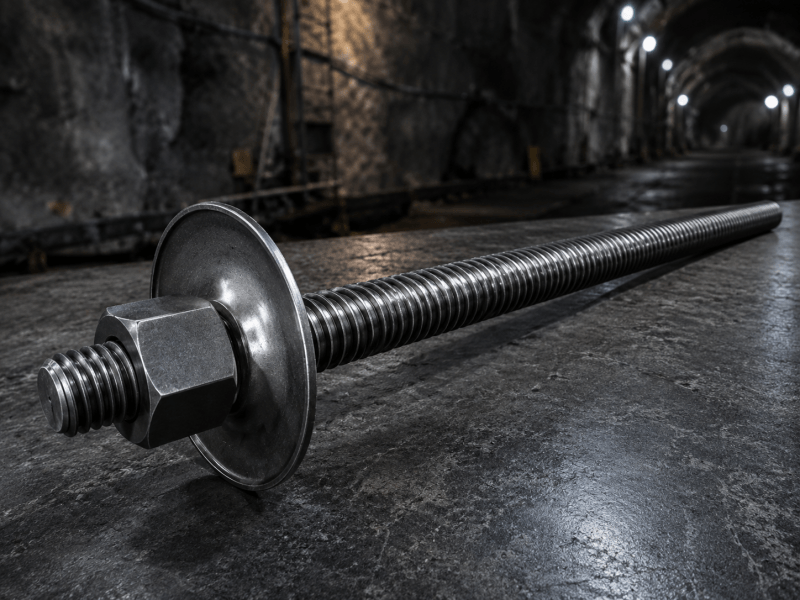

Request Quote & Tech SpecsMSGD Support System
A robust full-thread reinforcement solution offering exceptional bond performance and universal accessory compatibility for permanent deep-tunneling rock stability.
Full-Thread Reinforcement
A robust, cost-effective solution for permanent and temporary support. The continuous thread profile ensures maximum bond strength with grout or resin media.
- High bond performance
- Easy on-site length adjustment
- Universal accessory compatibility
Tested against international ASTM standards for deep-tunneling rock stability.
20mm - 32mm
HRB 500 / 600
15% - 18%
Hot-Dip Galv.
Need a custom configuration for specific site geology?
Request Custom ConfigurationPerformance Comparison: Anchorage Force, Mixing Resistance, and Stress Distribution
Engineered for high-stress underground environments, our MSGL series resin anchor bolts provide distinct mechanical advantages. Use this side-by-side technical analysis to determine the optimal support system for your site's geological conditions.
Anchorage Force
Distribution of mechanical load across the resin-to-rock interface.
Concentrated force at the anchorage end for high-stress resistance.
Even distribution throughout the bolt length for consistent stability.
Mixing Resistance
Torque required during the initial resin-capsule agitation phase.
Reduced friction design for faster, more reliable installation in tough rock.
Controlled resistance for traditional borehole diameters and conditions.
Stress Distribution
How the bolt reacts to seismic shifts or rock bursts.
Superior performance in impact-prone roadways and deep mine galleries.
Excellent for standard roadways requiring steady, long-term support.
Installation Flexibility
Adaptability to borehole variations and machine types.
Tight mechanical lock for high-precision engineering requirements.
Forgiving profile for variable rock conditions and uneven strata.
Corrosion Protection
Resistance to water ingress and oxidative damage over time.
Spiral ribs ensure complete resin coverage for maximum barrier protection.
Engineered coating options for permanent tunnels with low humidity.
Compare Performance Metrics in Full Detail

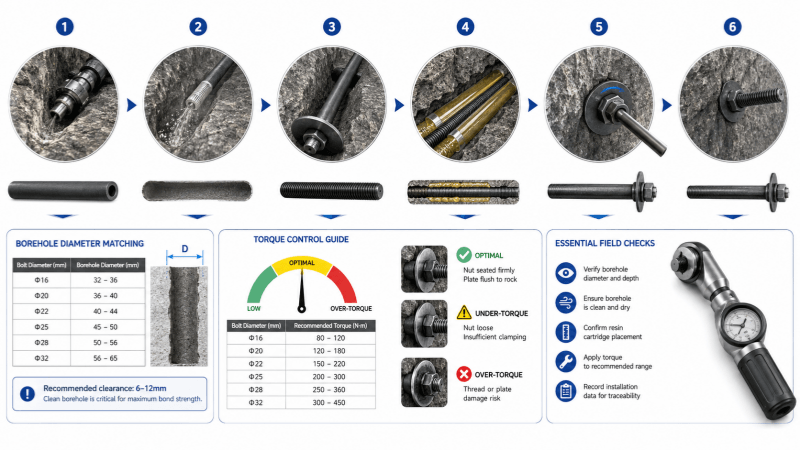

View Technical Report arrow_forwardInstallation & Selection Guide: Borehole Matching and Torque Control
Precision on the site floor translates to safety in the shaft. Our field guide provides engineers and operators with critical thresholds for a fail-safe anchorage cycle.
"Deep and impact-prone roadways choose W. Conventional and adjustable support choose D."
Borehole Matching
Maintaining strict diameter specs is non-negotiable for anchor integrity.
- 20mm Bolt 28-30mm Hole
- 22mm Bolt 30-32mm Hole
- 25mm Bolt 34-36mm Hole
Resin Mixing
Optimal chemical activation through precise mechanical rotation.
Standard Spec
300-500 RPM for 15-25 seconds depending on capsule speed.
Torque Control
Targeted pre-stress values to secure the strata effectively.
Model Checklist
Quick reference for procurement and logistics planning.
Optimize Your Installation Process with our complete technical PDF.
Download Installation GuideMSGLW & MSGLD Resin Anchor Bolt Solutions for Mining and Underground Support
Explore our comprehensive range of application scenarios, specifically engineered to provide maximum structural integrity and adaptability across varying geological conditions and deep mining environments.

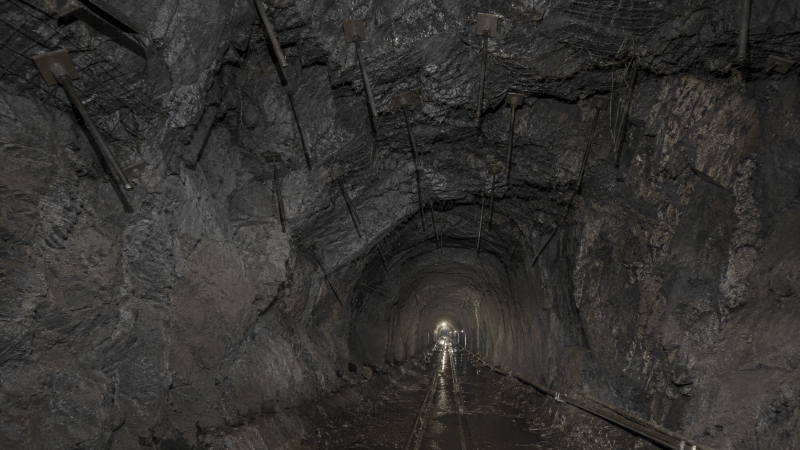

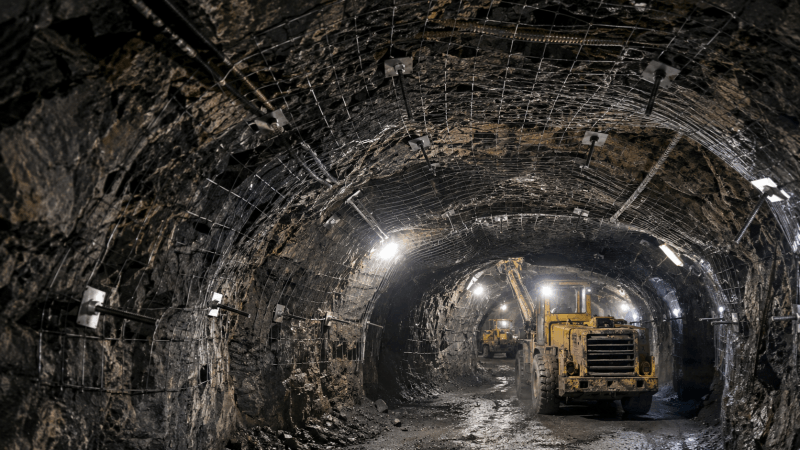

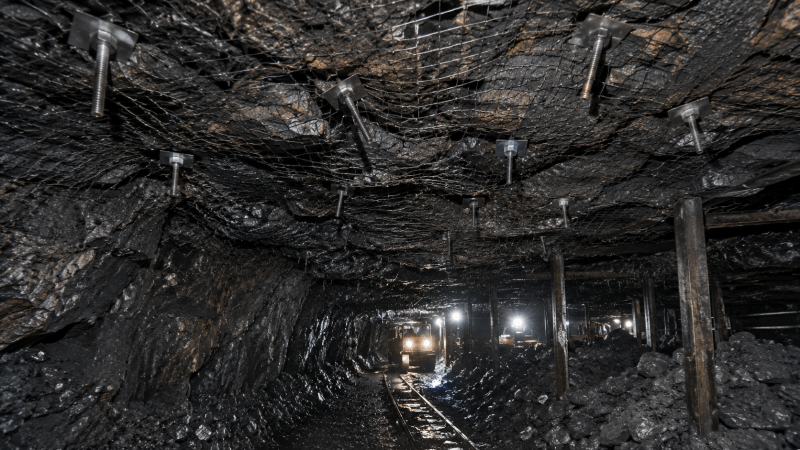

Deep Mining Roadway
Engineered for extreme depth environments where vertical pressure and lateral displacement are significant risks to structural stability.

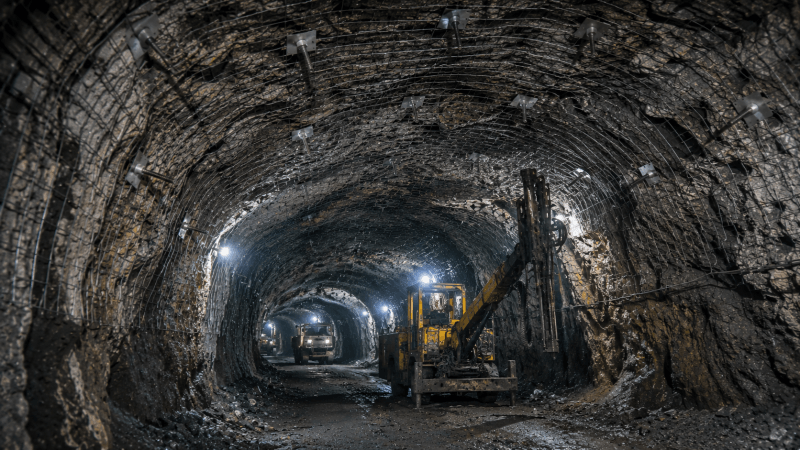

High-Stress Roadway
Designed to withstand dynamic pressure fluctuations in active mining zones, providing superior pre-stress force retention.
Fractured Roof Support
Provides immediate anchorage and consolidation of loose strata to prevent roof falls in geologically unstable coal seams.

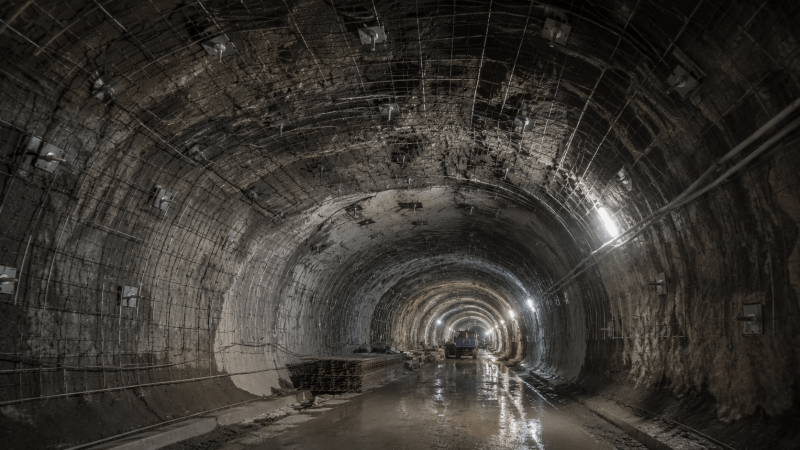

Tunnel Support
Optimized for civil engineering and transportation tunnels requiring long-life service and high corrosion resistance.
Non-Coal Mining Support
Specialized hardware for metal and non-metal mines, adapted for various rock hardness levels and drilling conditions.

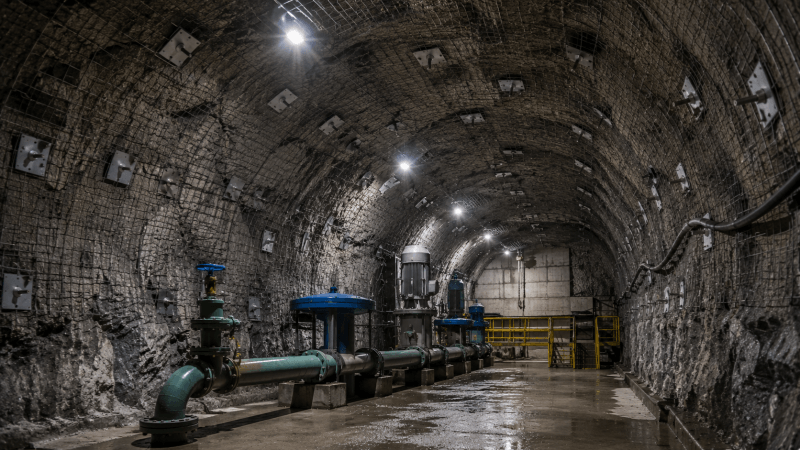

Permanent Support
Permanent underground chambers, pump houses, and ventilation shafts requiring zero-maintenance support systems.
Ready to secure your mining infrastructure with our advanced solutions?
Consult Our SpecialistsClear English Model Expression for Faster Quotation and Export Communication
Understand our standardized model naming conventions and provide the essential technical parameters to receive an accurate, rapid quotation directly from our manufacturing facility.
Left-hand Non-ribbed Threaded Steel Resin Anchor Bolt
M: Mining Support Component
S: Bolt / Rod Product
GL: Resin Anchorage Type
W: Non-ribbed / Smooth Threaded Surface
Left-hand Ribbed Threaded Steel Resin Anchor Bolt
M: Mining Support Component
S: Bolt / Rod Product
GL: Resin Anchorage Type
D: Ribbed / Deformed High-Bond Surface
Technical Parameters Required for Accurate Quotation
China Factory Direct Support - Receive your proposal within 2 working hours.
