What Is Polyester Mining Mesh?
A non-metallic, high-strength flexible mesh designed for wet, corrosive, and cuttable underground mine support. It drastically improves safety while cutting maintenance costs.
High-Strength Polyester Mesh for Underground Mine Support
Polyester Mining Mesh is a flexible non-metallic support mesh made from high-strength polyester industrial yarns. It is designed to replace traditional steel mesh in wet roadways, corrosive mine environments, false roof support, and retreat mining applications.
Compared with metal mesh, polyester mining mesh is lightweight, corrosion-resistant, flame retardant, anti-static, and cuttable by mining machines. It can work together with rock bolts and anchor cables to form a complete support system for underground mine safety.
Non-Metallic Mesh
Made from high-strength polyester yarns, reducing rust and corrosion problems in wet mine roadways.
Flexible Support
Adapts to uneven rock surfaces and helps control small rock falling between anchor points.
Cuttable Design
Can be cut by mining equipment during retreat operations, reducing manual mesh recovery work.
Anchor System Compatible
Works with rock bolts, anchor cables, plates, and fixing parts to form a complete support system.
Ready to upgrade your mine safety with corrosion-resistant solutions?
Get a Custom SolutionWhy Metal Mesh Fails in Wet, Corrosive & Retreat Mining Conditions
Traditional steel mesh is not always the best choice for wet roadways, corrosive underground environments, false roof support, and retreat mining operations. In many projects, it struggles to resist corrosion, adapt to deformation, support fast installation, and reduce manual recovery work.
Metal Mesh Rusts in Wet Roadways
Continuous water exposure can cause steel mesh to rust, weaken, and lose support performance over time.
Shorter Service Life in Corrosive Areas
In acidic, alkaline, or high-humidity underground environments, traditional steel mesh may require more frequent replacement.
Heavy Weight Slows Down Installation
Steel mesh is heavier to carry, position, and fix, increasing labor intensity and reducing installation efficiency.
Manual Recovery Increases Labor Cost
During retreat mining, steel mesh often needs to be manually recovered, which adds extra labor, time, and safety pressure.
Rigid Mesh May Not Fit Large Deformation
When surrounding rock deforms, rigid metal mesh may lose close contact with the rock surface or become damaged.
Hidden Cost Beyond Unit Price
Lower initial price does not always mean lower total cost. Rust, replacement, recovery, and labor can increase long-term project cost.
When corrosion resistance, cuttable performance, lightweight handling, and recovery-free support are required, polyester mining mesh becomes a more suitable solution.
View Support SolutionsLightweight, Corrosion-Resistant & Cuttable Mine Mesh Solution
Designed for underground mining projects where rust resistance, fast installation, machine cutting, and long-term support reliability are critical.
A Better Mesh Choice for Wet, Corrosive, and Retreat Mining Support
Polyester Mining Mesh provides a practical non-metallic support solution for underground mines where traditional steel mesh may rust, become difficult to handle, or increase recovery work during retreat mining.
With high-strength polyester yarns, flexible structure, corrosion resistance, flame retardant and anti-static performance, it helps improve installation efficiency, reduce manual recovery work, and maintain reliable surface support in demanding mine conditions.
Lightweight Handling
Faster carrying, laying, and fixing underground
Compared with traditional steel mesh, polyester mining mesh is much lighter, helping workers handle, position, and install mesh panels more efficiently in underground roadways.
Corrosion Resistance
Reliable support in wet and corrosive mine areas
The non-metallic polyester material will not rust like steel mesh, making it suitable for wet roadways, high-humidity mines, and corrosive underground environments.
Cuttable & Recovery-Free
Less manual recovery work during retreat mining
During retreat mining operations, polyester mining mesh can be cut by mining equipment, reducing the need for manual mesh recovery and improving retreat efficiency.
Upgrade your mine support system today.
Request Expert Advice6 Types of Polyester Mining Mesh for Different Mine Support Projects
Factory-direct polyester mining mesh options for wet roadways, false roof support, retreat channels, corrosive environments, and large-deformation ground support. We provide standard and customized solutions based on your specific requirements.

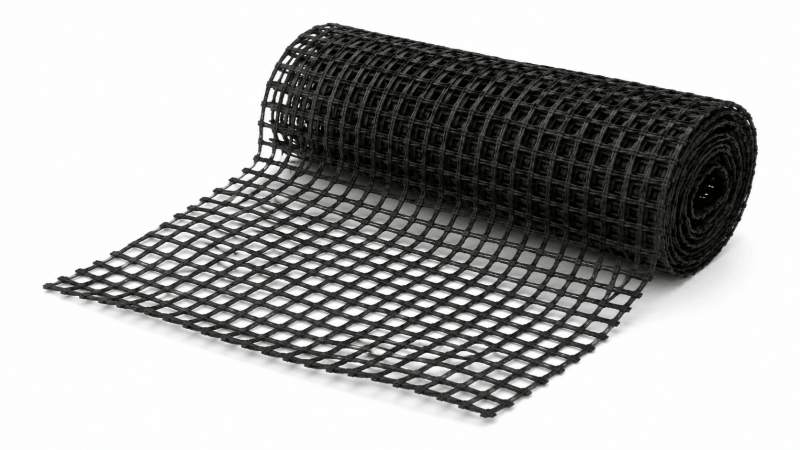

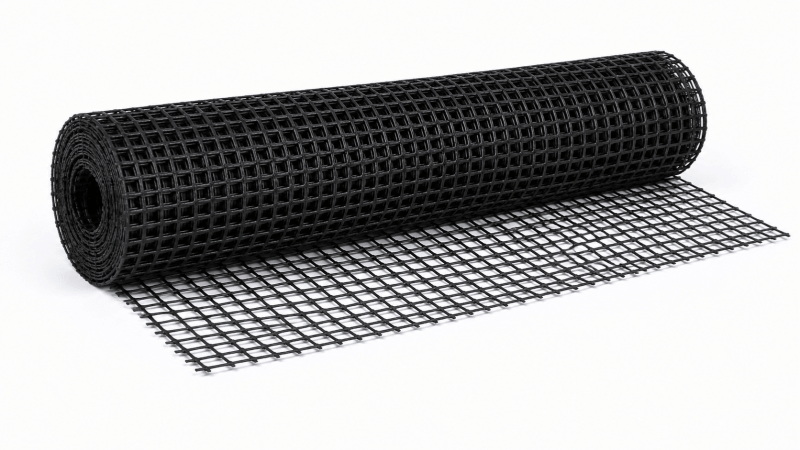

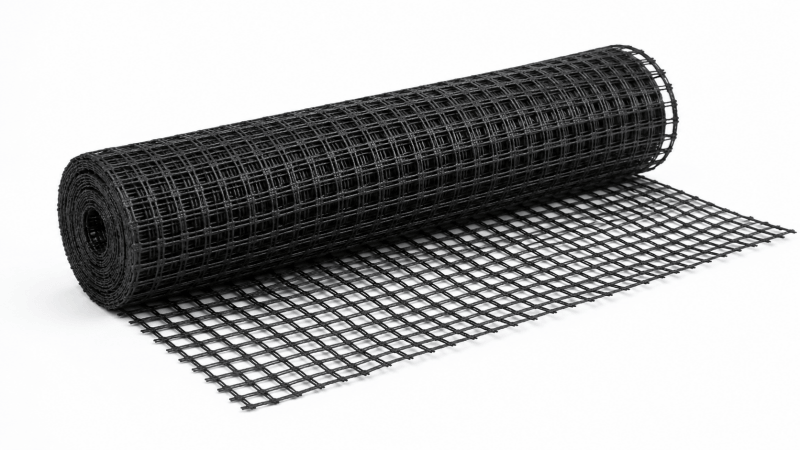

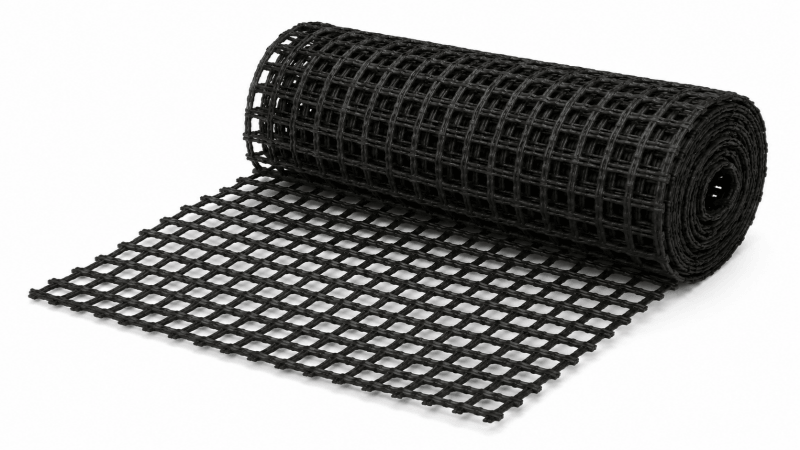

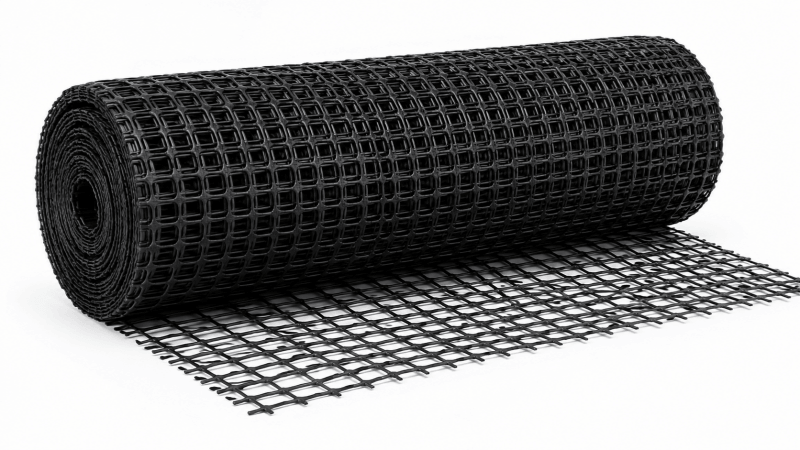

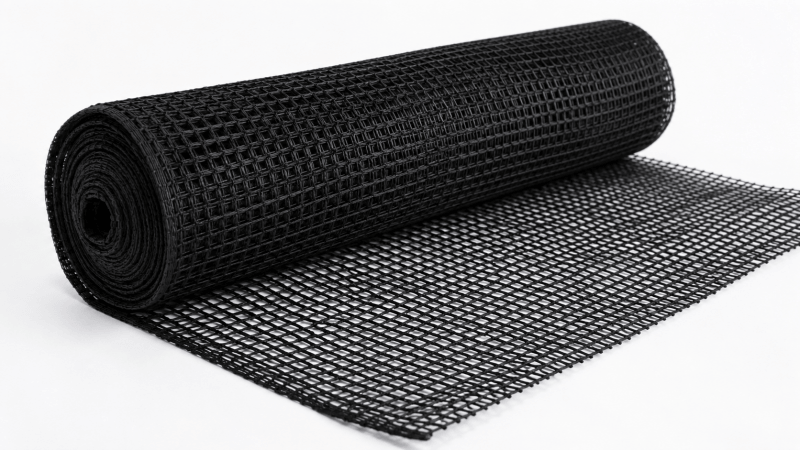

Standard Polyester Mining Mesh
For routine surface protection and rockfall control between anchor points.
High-Strength Polyester Support Mesh
Designed for higher tensile strength requirements in unstable surrounding rock conditions.
Flame-Retardant Anti-Static Mining Mesh
Engineered for underground environments requiring flame-retardant and anti-static performance.
Cuttable Polyester Mesh for Retreat Mining
Can be cut by mining equipment during retreat operations, reducing manual mesh recovery work.
Corrosion-Resistant Polyester Mine Mesh
Non-metallic material helps avoid rust problems in wet, humid, or corrosive mine conditions.
Custom Polyester Mining Mesh
Available with customized mesh size, width, length, tensile strength, and connection method.
Not sure which mesh type fits your roadway condition? Share your ground condition and support system details, and our team will recommend a suitable solution.
Get Technical RecommendationsSurface Protection, Stress Transfer, Flexible Deformation & Anchor System Support
Polyester Mining Mesh works together with rock bolts and anchor cables to control loose rock, distribute stress, adapt to ground movement, and improve the stability of the support system.
Surface Protection Against Loose Rock
Polyester mining mesh covers the roadway surface and holds small broken rock between anchor points, reducing the risk of falling debris.
Load Transfer Across the Mesh Area
When the surrounding rock is locally stressed, the mesh helps distribute the load across a wider area and transfer it to the anchor support system.
Adaptable to Uneven & Deforming Rock Surfaces
The flexible polyester structure can better fit uneven rock surfaces and adapt to certain ground deformation without easy breakage.
Works with Bolts, Cables & Plates
The mesh is fixed by anchor bolts, anchor cables, plates, and fixing parts, allowing the entire system to work together for stronger roadway support.
Understand how our mesh integrates with your existing rock bolts and anchor cables to form a stable support system.
Learn More About Support MechanicsTensile Strength, Mesh Size, Elongation, Weight, Flame Retardant & Anti-Static Performance
Clear technical data helps engineers and procurement teams evaluate mesh suitability for specific deep-mining and civil engineering environments.
| Parameter Specification | Standard Range |
|---|---|
| Tensile Strength (MD/CD) | 80 - 1200 kN/m |
| Mesh Opening Size | 20x20 - 100x100 mm |
| Breaking Elongation | ≤ 10% |
| Unit Weight | 0.8 - 1.5 kg/m² |
| Flame Retardant Period | ≤ 10 s |
| Surface Resistance | ≤ 3×10⁸ Ω |
| Coating Material | Flame Retardant PVC/SBR |
| Operating Temperature | -20°C to +80°C |
| UV Resistance | ASTM D4355 Compliant |
Structural Integrity
High tensile strength ensures the mesh maintains face stability under extreme lithostatic pressure, critical for deep-shaft mining safety.
Geometric Precision
Variable mesh sizes allow for optimized rock-fall containment based on specific geological survey data and fragmentation size.
Safety Compliance
Flame retardant and anti-static properties are mandatory for underground coal mining to prevent ignition hazards and secondary explosions.
Handling Efficiency
Optimized unit weight significantly reduces installation time and labor fatigue compared to heavy steel wire mesh alternatives.
Need specific technical data sheets for your project compliance audit?
Request Full Technical DataPolyester Mesh Panel, Connection Rope, Fixing Parts & Anchor Bolt Cooperation
A complete polyester mining mesh support system works through integrated component synergy, distributing loads effectively across the rock face.
Polyester Mesh Panel
The core structural component, providing high-tenacity support and surface protection for mining entries.
Connection Rope
Specifically engineered high-strength lacing cords that unify individual panels into a continuous support shield.
Fixing Parts & Plate
Corrosion-resistant metal or plastic plates that distribute bolt tension across multiple mesh junctions.
Rock Bolt/Anchor
Deep-set anchorage that secures the entire mesh system to the stable rock mass behind the surface face.
System performance depends heavily on the correct lacing of connection ropes and proper bolt tensioning. Ensure all components meet ASTM and MSHA safety standards.
Download Installation GuideEngineered Superiority: Material Advantages
Our high-tensile polyester mesh systems are designed to replace traditional steel in mining and industrial environments, offering unmatched safety and operational efficiency.
Non-Rusting
Corrosion-proof construction ideal for acidic or humid underground environments where steel fails.
Easy Installation
Up to 80% lighter than steel equivalents, reducing worker fatigue and speeding up deployment cycles.
Cuttable Recovery-Free
Shearer-friendly material allows for seamless mining without the need for manual mesh removal.
Flame Retardant & Anti-Static
Fully compliant with international safety standards for explosive and fire-prone environments.
Large Deformation Adaptability
High flexibility prevents sudden brittle failure, maintaining integrity under high pressure.
Upgrade your safety standards today.

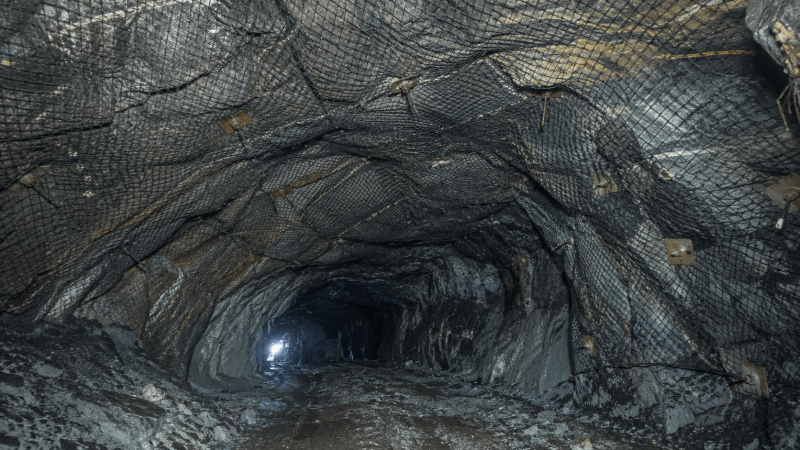

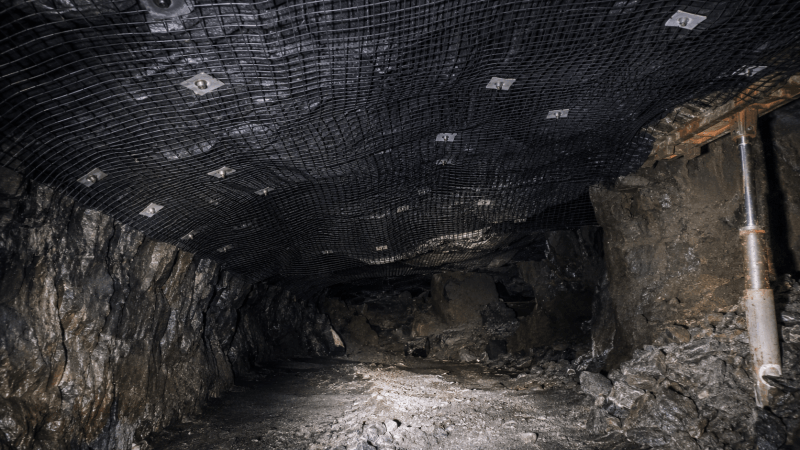

View Technical DataApplication Scenarios

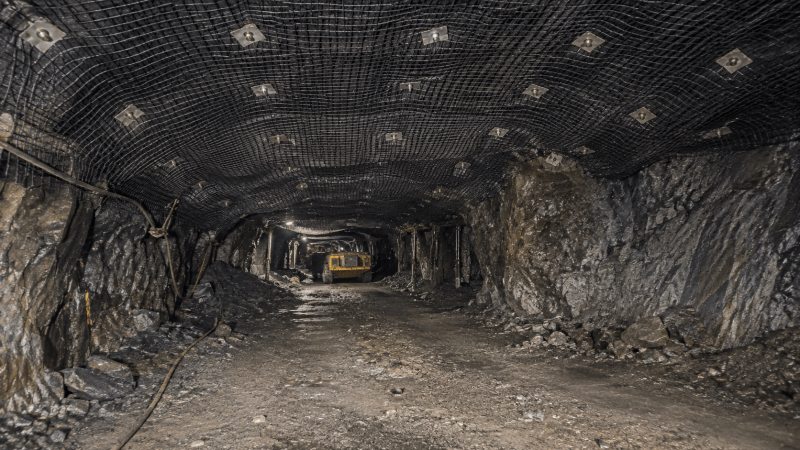

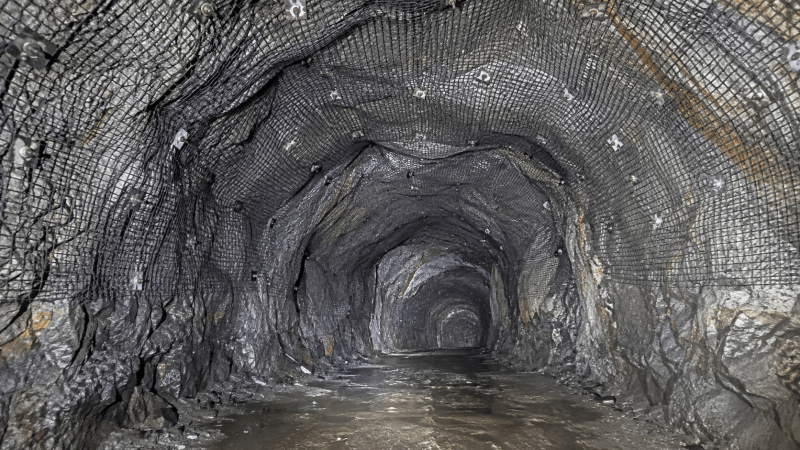

Optimized support solutions tailored for diverse mining geological conditions and industrial engineering challenges.

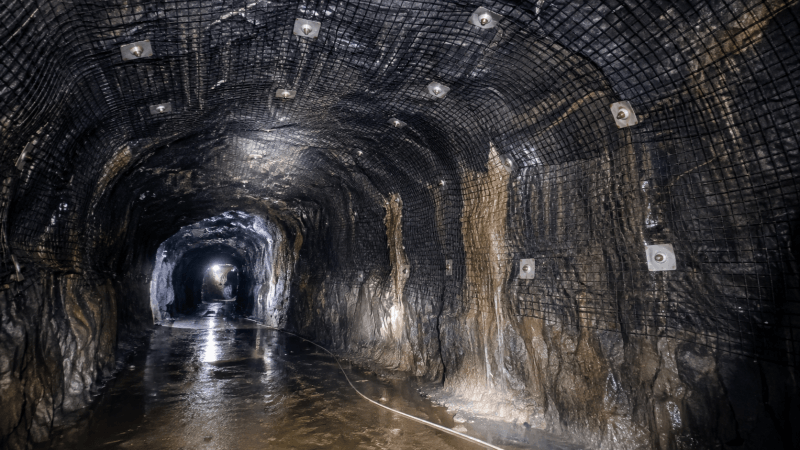

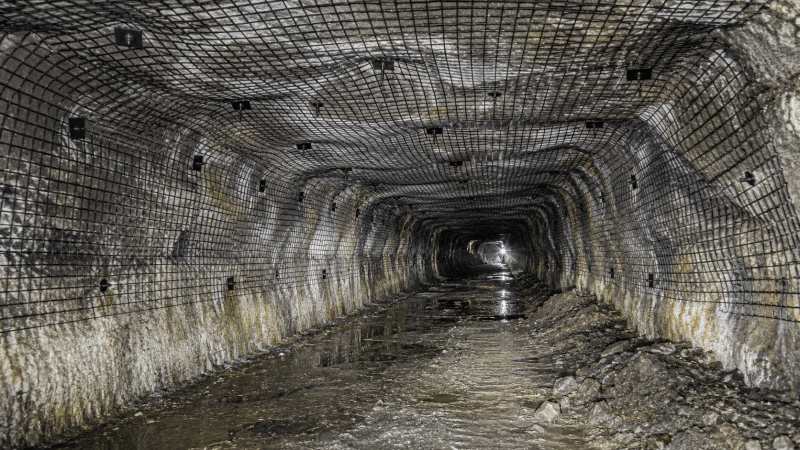

Wet Roadway Support
Superior moisture resistance for tunnels with high water ingress, preventing systemic rust and structural decay.
Goaf False Roof Support
Critical safety barrier for goaf areas, providing reliable overhead protection during recovery phases.
Retreat Channel Support
Ensures safe passage for machinery and personnel during final extraction and equipment retrieval.
Weak & Broken Ground
Reinforces unstable geological formations with high-flexibility mesh that absorbs surface shifting.
Large-Deformation Roadway
Designed to yield slightly under extreme pressure to maintain overall structural containment.
High-Corrosion Underground
The definitive solution for salt mines and chemical processing tunnels where steel dissolves in weeks.
Not sure if your project is a fit? Contact our engineering team for customized solutions.
Get Expert RecommendationInstallation Standards
Precision deployment protocols for high-tensile polyester mining mesh, ensuring maximum safety and structural integrity in underground environments.
Mesh Preparation
Verify roll dimensions and prepare surface face for immediate deployment.
Quality Check
On-site visual inspection for weaving consistency and static properties.
Mesh Laying
Systematic unrolling against the roof or ribs using certified lifting gear.
Overlap & Connection
Ensure 200mm minimum overlap with adjacent panels for load transfer.
Anchor Fixing
Torque-controlled installation of rock bolts through plate assemblies.
Final Adjustment
Tensioning check to eliminate sagging and ensure 100% surface contact.
Correct Overlap
Maintain at least 2 grid squares of overlap for mechanical seam strength.
Connection Spacing
Lacing or clips must be spaced every 150mm along the seam boundaries.
Plate Pressure
Domed plates must sit flush against mesh nodes without shearing the fiber.
Site Inspection
Conduct a secondary tension test 24 hours post-installation in active areas.
Need a detailed installation guide for your deep mining or civil tunneling project?
Download Installation GuideLaboratory Testing & QC
Every production batch undergoes rigorous ASTM-standard testing to guarantee fail-safe performance in critical environments.

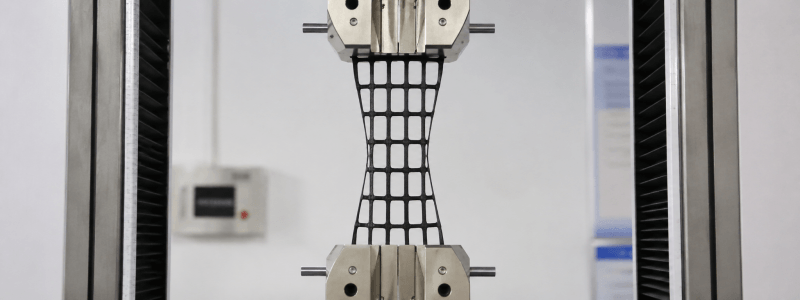

Material Strength
Tensile testing to break-point (ISO 10319) ensuring peak load capacity for deep structural support.
VIEW METRICS

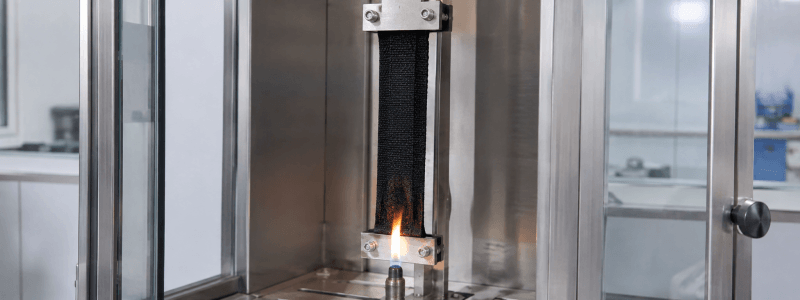

Flame Retardant
Vertical burn testing according to MSHA and coal-mining safety codes to prevent fire hazards.
VIEW METRICS

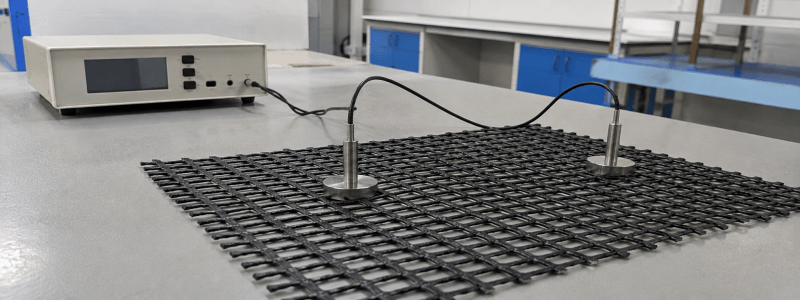

Anti-Static Performance
Verification of surface resistance to prevent static discharge in explosive mine atmospheres.
VIEW METRICS

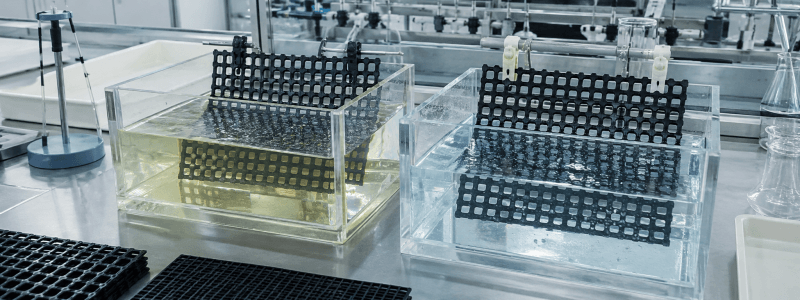

Corrosion Resistance
Accelerated aging tests in acidic and alkaline environments to ensure long-term structural integrity.
VIEW METRICSRaw Material
Virgin PES fiber validation
Weaving Control
Automated tension monitoring
Heat Setting
Dimensional stabilization
Performance Testing
Lab verification phase
Batch Inspection
Final 100% visual check
Packing & Delivery
Secure logistics tracking
Request a comprehensive batch test report for your specific order compliance.
Request QC DataFactory Strength, Technical Communication, Stable Delivery & Long-Term Mining Support Cooperation
Partnering with XINYONGDUO guarantees direct-from-factory pricing, rigorous quality control, and reliable delivery for your global mining operations.
Factory-Direct Pricing
Direct source from China manufacturing hub ensuring the most competitive B2B rates for large-scale mining operations.
Tech Spec Communication
Our engineers speak your technical language, analyzing soil reports to recommend precise polyester mesh grades.
QC Verified Batching
Batch Order QC
Rigorous quality control processes from raw material testing to final product tensile strength verification before shipping.
Stable Delivery
Multiple production lines running 24/7 to guarantee on-time delivery for critical mining project milestones.
Long-Term Cooperation
We prioritize recurring supply contracts, offering consistent pricing and priority scheduling for our long-term support partners.
Request a factory-direct partnership proposal.
Become a PartnerMesh Size, Width, Length, Strength Grade & Project-Based Supply
We provide full technical customization for underground reinforcement solutions. Our manufacturing lines are equipped to handle high-tensile polyester weaving tailored to your specific geological and engineering requirements.
Mesh Opening
Available from 20mm to 100mm square or rectangular configurations.
Tensile Strength
Customized grades from 50kN/m up to 1200kN/m based on depth.
Panel Width
Roll widths up to 6 meters for continuous, safe roadway support.
Connection
Specific mesh-to-mesh bonding or mechanical clip compatibility.
Packaging
Custom roll lengths or pre-cut panels for fast underground install.
Data Support
Third-party lab testing reports provided for every project batch.
Share Project Conditions
Confirm Spec
Sample/Review
Batch Production
Export Delivery
Send us your project specifications for a custom recommendation.
Request Custom SolutionGet Custom Polyester Mining Mesh Solutions from China Factory
Connect with our engineering team for project-specific mesh specifications, direct factory pricing, and global logistics support.
-
Certified Mining Support
Full compliance with international safety and tensile standards.
-
On-Site Technical Advice
Video consultations available for complex project site conditions.
-
Rapid Prototyping
Custom samples delivered within 14 days of specification confirmation.
-
B2B Volume Discounts
Tiered pricing structures for large enterprise projects and distributors.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
