Plain Woven Mesh for Mine Roadway and Surface Support
A cost-effective woven mesh solution for routine mine roadway support, rock surface protection, and bolt-mesh support systems in underground mining and tunneling projects.
Get the right Plain Woven Mesh specification for your mine support project.
What Is Plain Woven Mesh for Underground Support?
A Cost-Effective Woven Mesh Panel for Routine Mine Roadway Support, Surface Protection and Bolt-Mesh Support Systems.

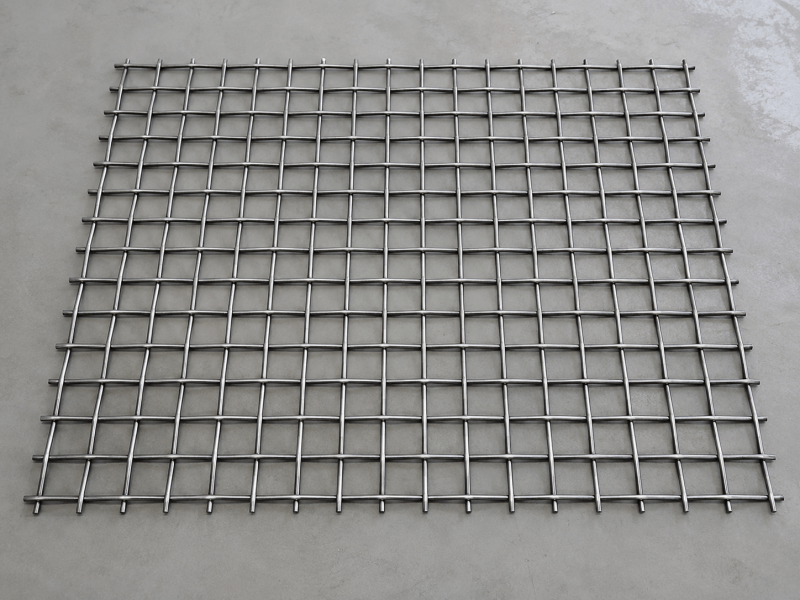

Plain woven mesh is a fundamental reinforcement solution manufactured by weaving straight high-strength steel wires into a consistent grid pattern. Unlike crimped mesh, it maintains a flat profile while providing essential surface containment in stable or routine underground environments.
- Standardized grid spacing for uniform rock surface coverage
- Optimized for installation with rock bolts and washers
- Cost-effective alternative for non-high-stress roadway segments
- Easy to handle and adapt to irregular rock faces
- Provides immediate surface containment after excavation
Straight Wire Material
High-tensile steel wires ensure consistent strength across the entire mesh panel.
Woven Grid Structure
Longitudinal and transverse wires woven to provide structural integrity and flexibility.
Basic Surface Protection
Efficiently prevents minor rock falls and spalling in routine mining operations.
Differentiation
Specifically designed for standard support needs, distinct from heavy-duty crimped or welded options.
Designed for Routine Stable Ground, Not Heavy High-Stress Support
Get Product RecommendationRock Fall, Loose Surface Rock & Routine Roadway Support
A Practical Surface Protection Solution for Routine Mine Roadways, Small Loose Rock Interception and Temporary Support Needs. Plain woven mesh is mainly used to solve routine underground surface support problems, including small rock fall between bolts, loose surface rock, routine roadway protection, local stress concentration, slight surrounding rock deformation and temporary protection needs.
Surface Rock Fall Control
Plain woven mesh helps cover the rock surface and reduce the risk of small loose rock falling from the surface.
Interception Between Bolts
The mesh helps intercept loose rock fragments in the unsupported gaps between bolts and cables.
Routine Roadway Support
For routine and relatively stable mine roadways, plain woven mesh provides an economical surface support layer.
Local Stress Dispersion
The mesh helps distribute local surface pressure and reduce the risk of small isolated rock failure.
Slight Ground Adaptation
The woven mesh structure can adapt to slight irregularity and minor deformation on rock surfaces.
Temporary Protection
Suitable for temporary support and short-term surface protection where fast and economical coverage is needed.
If your project mainly needs routine surface support instead of heavy rigid restraint, plain woven mesh is the practical choice.
Consult Engineering SolutionsPlain Woven Mesh Solutions for Mining, Temporary Support & Protection
6 Practical Woven Mesh Options for Routine Mine Roadways, Temporary Support, Slope Protection and Custom Supply.

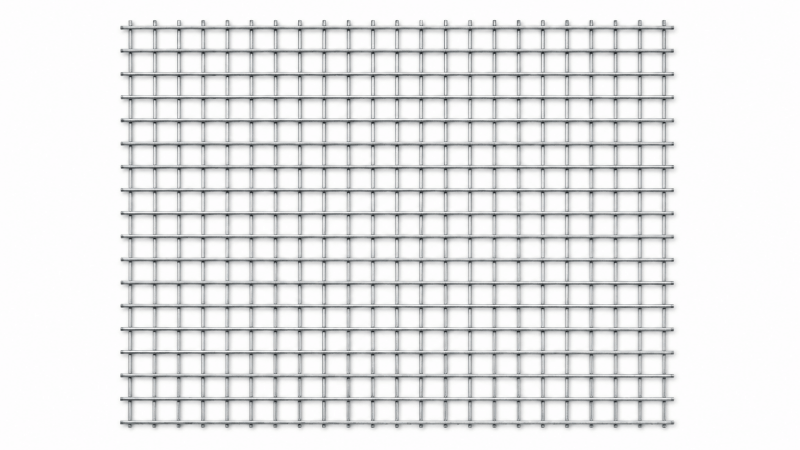

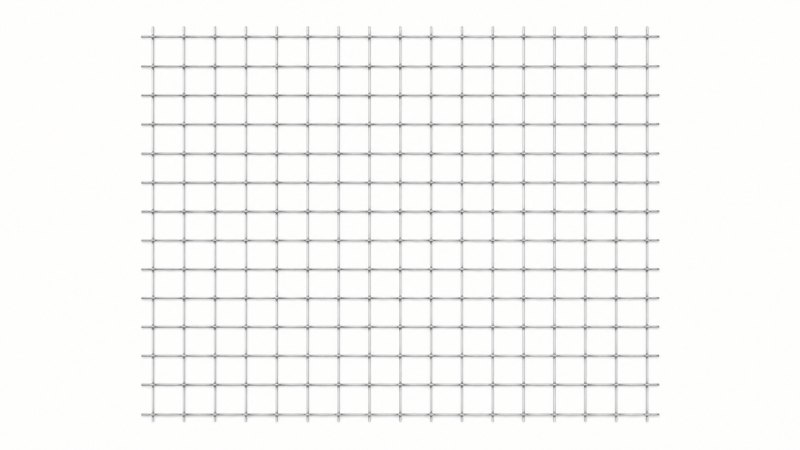

Standard Plain Woven Mesh
A basic woven mesh option for routine underground roadway surface support and economical bolt-mesh applications.
View Details →

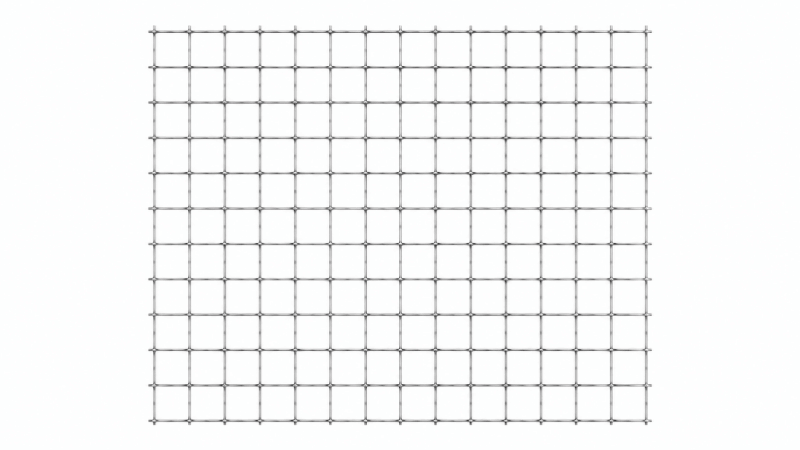

Galvanized Plain Woven Mesh
Designed for humid, corrosive or longer-service underground and outdoor support conditions.
View Details →
Lightweight Mine Support
A lighter woven mesh option for routine mine support where easier handling and installation are preferred.
View Details →
Temporary Support Mesh
Suitable for short-term or temporary surface protection where quick and economical mesh coverage is needed.
View Details →
Slope Protection Mesh
Used for slope surface protection to help contain loose rock and support basic stabilization systems.
View Details →
Custom Woven Panels
Custom mesh panels can be supplied based on wire diameter, mesh opening, panel size and project requirements.
View Details →Not sure which Plain Woven Mesh type fits your project? Our experts can assist you.
Get Product RecommendationStructure & System Components: Woven Mesh Panel, Connection Clips & Fixing Accessories

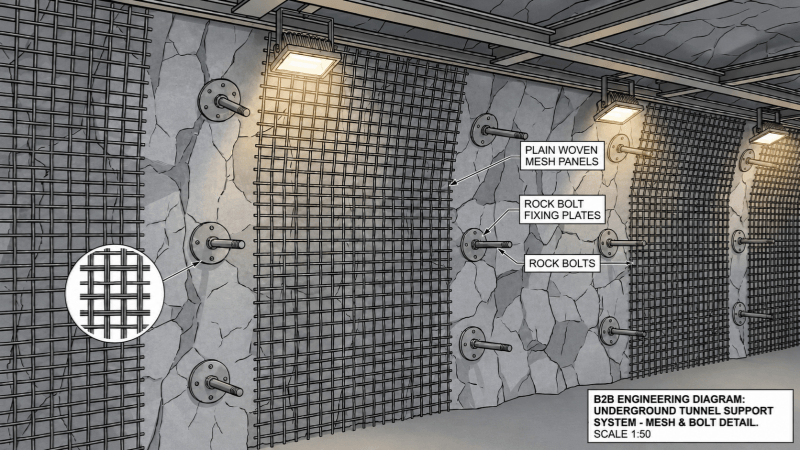

How Plain Woven Mesh Works with Rock Bolts and Cables to Form a Continuous Surface Support System.

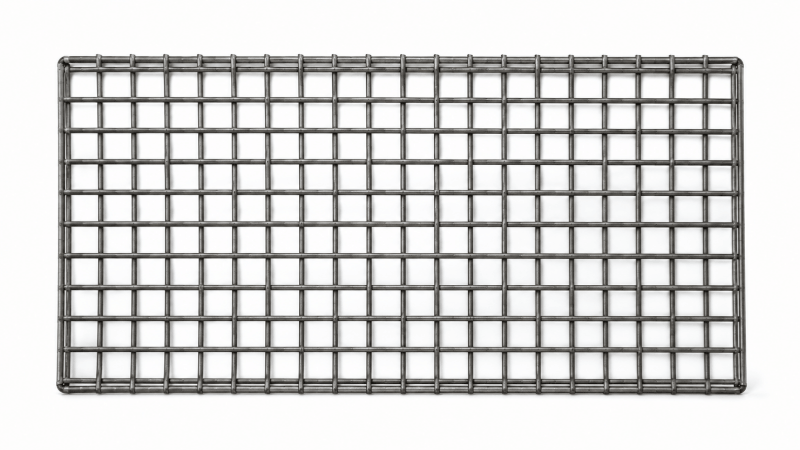

Plain Woven Mesh Panel
Engineered with high-tensile steel wires woven into a robust diamond pattern, providing maximum surface coverage and structural integrity for primary ground control.
Mesh Connection Clips
Specialized interlocking hardware designed to join adjacent mesh panels, ensuring zero-gap continuity and uniform strength across the entire roadway surface.
Fixing Accessories
High-performance plates and specialized washers that anchor the mesh to rock bolts, facilitating efficient load transfer from the surface to the internal strata.

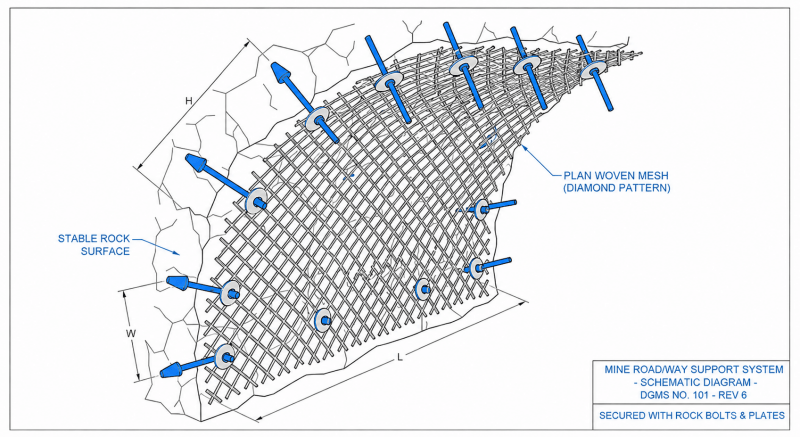

A Continuous Mesh Surface for Basic Bolt-Mesh Support
Consult System SpecificationsWorking Principle: Surface Protection, Stress Distribution & Flexible Ground Adaptation

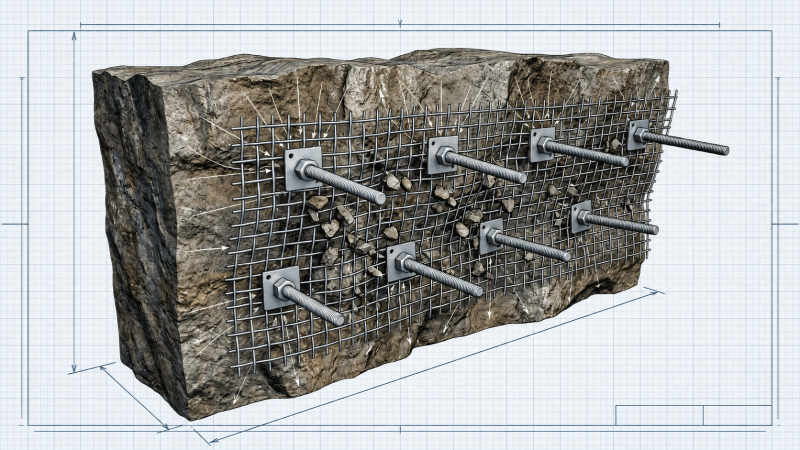

How Plain Woven Mesh Supports Routine Roadways Through Surface Coverage, Rock Fall Control and Bolt-Mesh Cooperation.
Surface Protection
Actively intercepts and contains loose rock fragments, preventing localized rock falls and enhancing safety for personnel and equipment in the roadway.
Stress Distribution
Redistributes concentrated point loads from rock bolts across the wider mesh surface, optimizing the overall efficiency of the ground support system.
Flexible Fit
The woven structure allows the mesh to adapt seamlessly to uneven rock profiles, maintaining constant contact and support pressure on irregular surfaces.
Minor Deformation
Accommodates minor ground movements and routine strata settling without failure, ensuring long-term stability for standard engineering environments.
A Flexible Surface Mesh for Routine Bolt-Mesh Support
Learn More About MechanicsPlain Woven Mesh + Rock Bolt + Cable Support

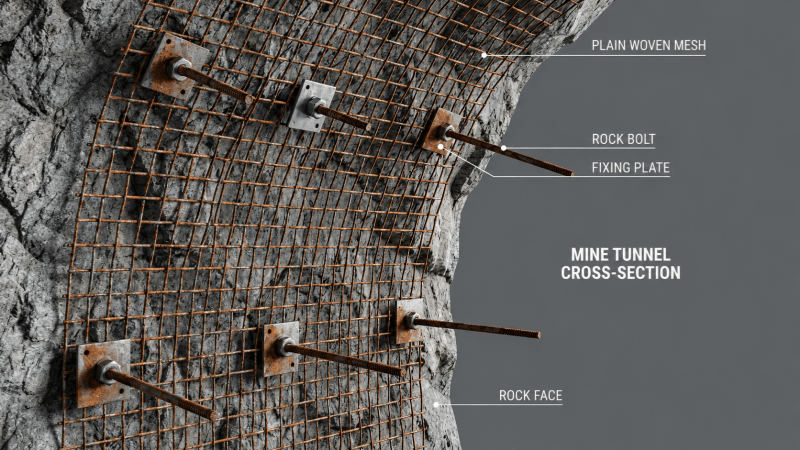

How Woven Mesh, Rock Bolts and Cables Work Together in a Basic Bolt-Mesh Support System.
The synergy between components creates a unified stabilization field. The Plain Woven Mesh provides immediate surface restraint, preventing small-scale spalling and rock falls.
Rock Bolts anchor the surface mesh deep into the stable rock mass, transferring surface loads into the interior where the rock's own compressive strength can be leveraged.
Deep Cables provide the final layer of stability, tying together larger blocks of the rock mass to prevent massive structural failure in high-stress engineering environments.
Surface Restraint Between Bolts
Mesh-to-Bolt Load Transfer
Deep Rock Mass Anchoring
Coordinated Bolt-Mesh Support
Improved Routine Support Stability
Optimize your support system with coordinated mesh-bolt solutions.
Consult Engineering SolutionsWire Diameter, Mesh Opening, Tensile Strength & Panel Size
Key Specifications for Plain Woven Mesh Used in Mine Roadway Support, Temporary Protection, Slope Protection and Routine Bolt-Mesh Support.
| Parameter | Typical Range | What It Affects |
|---|---|---|
| Wire Diameter | 2.0mm - 5.0mm | Load-bearing capacity and flexibility |
| Mesh Opening | 50mm x 50mm - 100mm x 100mm | Debris retention and installation weight |
| Tensile Strength | 300MPa - 450MPa | Resistance to dynamic rock bursts |
| Width Range | 1.0m - 2.0m | Coverage per bolt row installation |
| Length Range | 2.0m - 3.0m | Handling efficiency and overlap zones |
Wire Diameter
Mesh Opening
Tensile Strength
Panel Size
Galvanized Treatment
Need custom specifications for your project?
Request Custom SpecificationsPreparation, Laying, Connection, Bolting & Adjustment
A Clear Installation Workflow for Plain Woven Mesh in Routine Roadway and Basic Bolt-Mesh Support Systems
Mesh Preparation
Check technical specifications, unfold the mesh panels on a level surface, and inspect for any broken wires or structural defects.
Mesh Laying
Systematically lay panels over the rock surface. Ensure the gap between the mesh and the rock profile is maintained at ≤50mm.
Panel Connection
Overlap adjacent panels by ≥100mm. Secure with high-tensile binding wire at intervals no greater than 200mm.
Bolting & Fixing
Install rock bolts through identified nodes. Torque until the press plate is tightly secured against the mesh and rock face.
Mesh Adjustment
Perform final tensioning to ensure close contact across the entire area. Eliminate loose spots and secure all safety edges.
Gap Control
Rock surface gap maintained strictly at ≤50mm to prevent structural sagging and localized failure.
Panel Overlap
Standard ≥100mm overlap ensures continuous load distribution between neighboring mesh panels.
Binding Spacing
Precise binding at ≤200mm intervals guarantees the integrity of the connection zone under pressure.
Plate Pressing
Uniform bolt plate pressure is critical for engaging the mesh's active support properties immediately.
Good Installation Makes the Mesh Support System Work Better
Request Installation SupportStable Woven Structure, Connected Panels & Corrosion Protection
Reliable Plain Woven Mesh Starts from Fixed Crossings, Regular Openings, Continuous Panels and Galvanized Surface Protection
Stable Woven Crossings
Mechanical weaving ensures each wire crossing is tightly fixed, preventing panel deformation under high stress environments.
Regular Square Mesh Opening
Consistent aperture sizing ensures uniform weight distribution and predictable load-bearing performance across the panel.
Continuous Connected Panels
Systematic interlocking designs allow for large-scale coverage with no weak points in the global support network.
Pre-Installation Mesh Check
Rigorous QC protocols are applied before deployment to verify wire tensile strength and weaving accuracy.
Galvanized Corrosion Protection
Hot-dip galvanizing provides a robust zinc coating that shields the steel core from oxidation in humid underground conditions.
Long-Term Routine Stability
Engineered for a high service life, maintaining structural properties throughout the intended lifecycle of the roadway.
Reliability Comes from Structure, Connection and Surface Protection
Get Quality Assurance DetailsCore Advantages: Low Cost, Easy Installation, Ground Adaptation & Corrosion Resistance
Why Plain Woven Mesh Is a Practical and Economical Choice for Routine Roadway Surface Support. Plain woven mesh is a practical support mesh for routine and relatively stable ground conditions. It offers economical cost, easy handling, fast installation, flexible ground adaptation, uniform stress distribution and galvanized corrosion resistance.
Engineered Simplicity
Designed for high-efficiency deployment where structural reliability meets budget-conscious engineering. Our plain woven mesh provides a reliable interface for rock bolt systems in standard geotechnical conditions.
Cost-Effective Support Mesh
The simple woven structure significantly reduces production costs while maintaining surface integrity.
Easy Handling & Fast Installation
Lightweight panels allow for rapid manual handling and accelerated laying cycles in mine roadways.
Suitable for Routine Ground
Optimized geometry fits flat or slightly uneven rock surfaces without the need for complex pre-forming.
Uniform Stress Distribution
Effectively distributes local surface stress across the woven grid to prevent localized rock failure.
Galvanized Resistance
Hot-dip or electro-galvanized finishes ensure long service life even in humid or aggressive environments.
A Practical Mesh Solution for Routine Surface Support
Reliable protection for stable underground environments and general civil engineering.
Request Quote arrow_forwardRoutine Mine Roadways, Temporary Support, Slopes & Tunnels

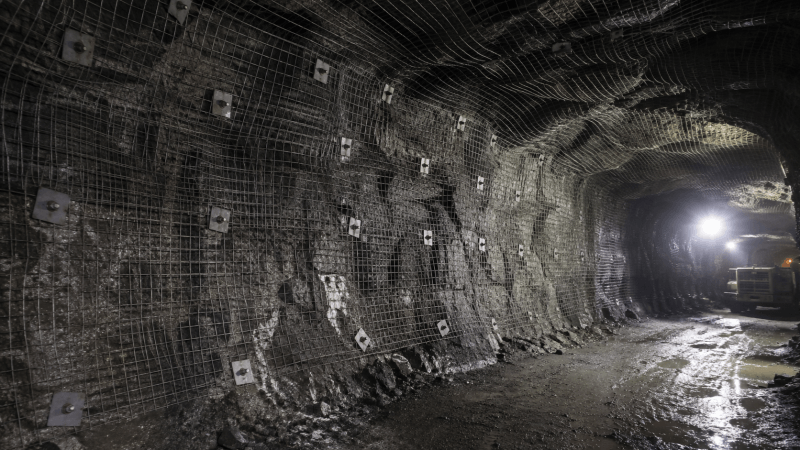

Plain Woven Mesh for Routine Surface Protection, Temporary Support, Slope Safety and Basic Bolt-Mesh Support Applications. Plain woven mesh is mainly used in routine and relatively stable support conditions. It provides an economical solution for surface restraint where high-impact energy or extreme rock deformation is not expected.

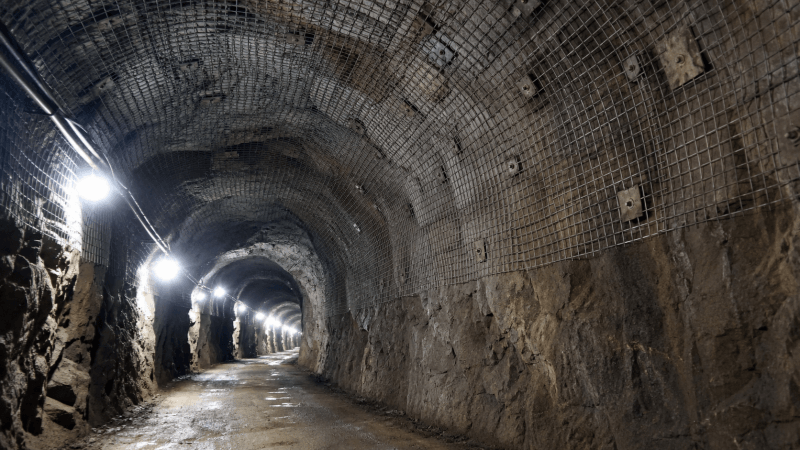

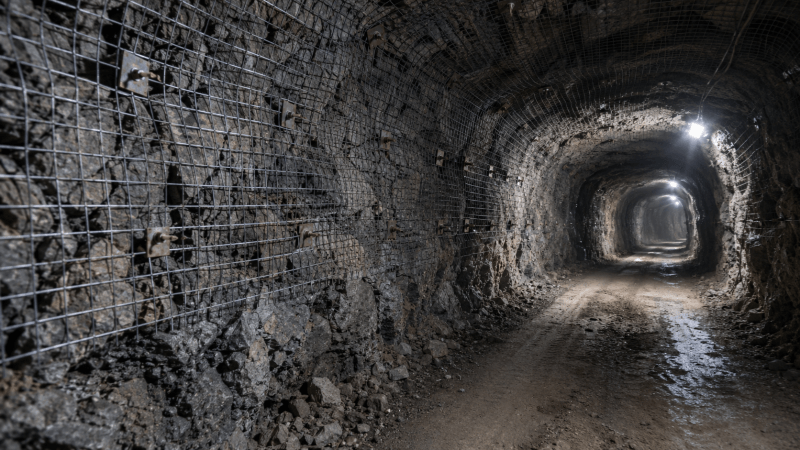

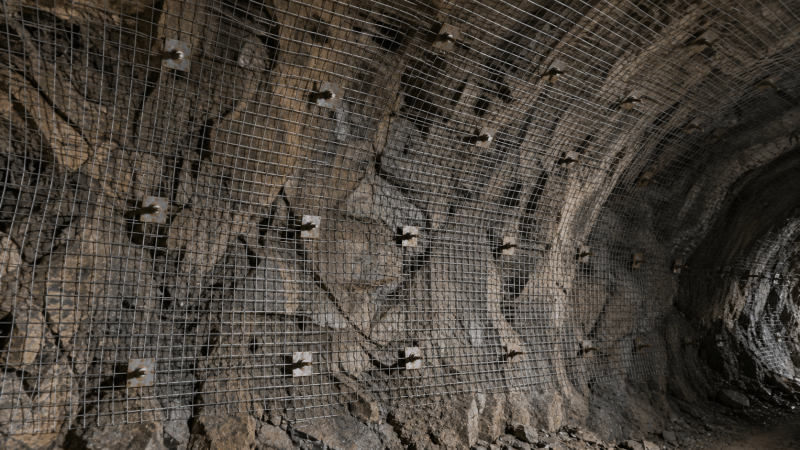

Routine Mine Roadway Support
Effective for maintaining surface integrity in non-critical transport roadways. Prevents minor rock falls and spalling.
Temporary Support
Rapidly deployable solution for face area stabilization during excavation or short-term maintenance projects.

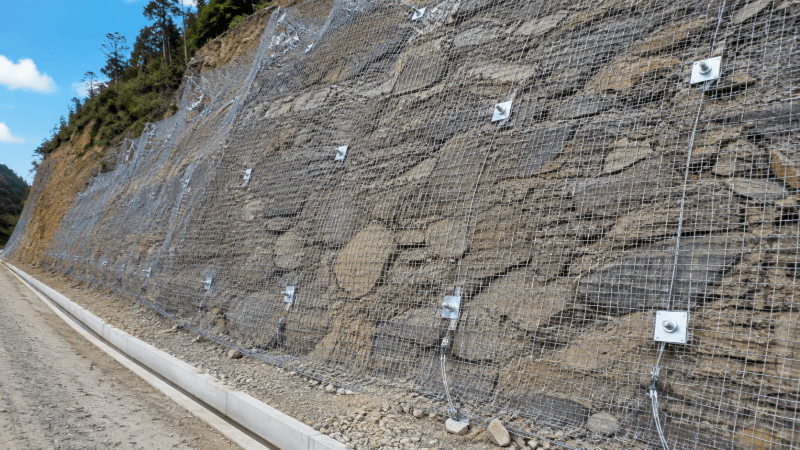

Slope Protection Support
Cost-effective containment of loose rock on stabilized embankments and civil engineering slopes.

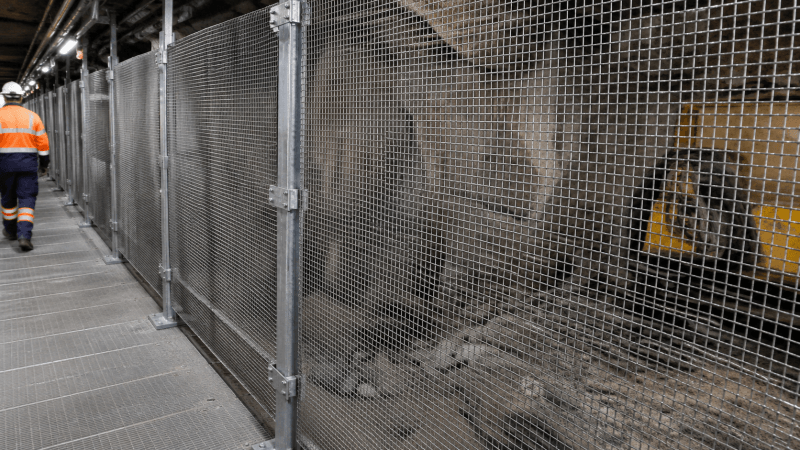

Isolation Protection
Creating safe physical barriers for work crews or restricting access to hazardous zones in industrial environments.
Tunnel Routine Support
Routine ground control for small-scale tunnels or utility conduits where geotechnical pressure is minimal.
Basic Bolt-Mesh Support System
Integrates with standard rock bolts to provide continuous surface support between anchor points.
Choose Plain Woven Mesh for Routine and Economical Surface Support
Plain woven mesh is best matched to projects that need basic surface protection. Share your application scenario to get a suitable mesh recommendation.
How to Select the Right Plain Woven Mesh for Your Project
Optimizing structural integrity starts with precise technical specifications. Our engineering guide helps you navigate wire diameter, mesh opening, and coating requirements based on your specific load-bearing and environmental needs.
Ground Conditions
- check_circle Routine Ground
- check_circle Medium-Stable Ground
Protection Purpose
- shield Rock Fall Control
- timer Temporary Protection

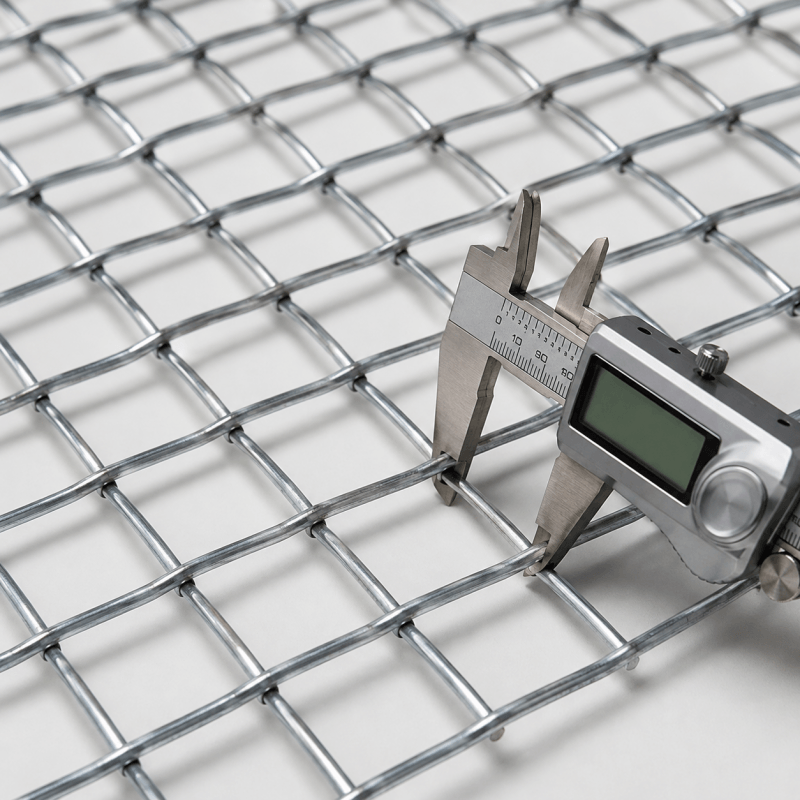

Mesh Specification
- straighten Wire Diameter
- grid_on Mesh Opening
- aspect_ratio Panel Size
Surface Treatment
- layers Electro-Galvanized
- waves Hot-Dip Galvanized
Wire Diameter
Determines tensile strength and impact resistance.
Mesh Opening
Balances material retention with air/light visibility.
Surface Treatment
Crucial for corrosion resistance in acidic environments.
Ground Matching
Aligning mesh flexibility with soil or rock stability.
Application Matching
Optimizing spec for specific industrial use-cases.
| Scenario | Main Concern | Recommended Focus | Why It Matters |
|---|---|---|---|
| Routine Mine Roadway | Long-term durability | Thick Wire (4mm+) | Ensures longevity against constant seismic shifts. |
| Temporary Support | Ease of installation | Lightweight Mesh | Reduces labor costs for short-term projects. |
| Slope Protection | Weathering & Erosion | Hot-Dip Galv | Resists oxidation in exposed outdoor climates. |
| Isolation Protection | Debris Containment | Small Opening | Prevents small fragment passage in safety zones. |
| Tunnel Support | Bursting Stress | High Tensile Wire | Provides critical structural reinforcement. |
Not Sure Which Plain Woven Mesh Specification Fits Your Project? Our engineering consultants provide free specification verification.
Get Mesh Selection SupportStraight Wire Weaving, Galvanized Options & Batch Panels

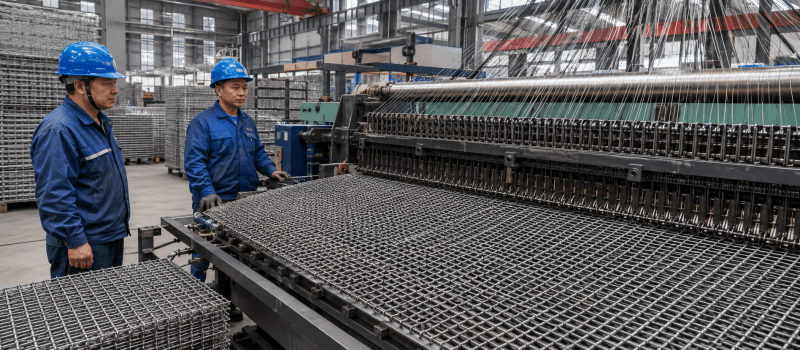

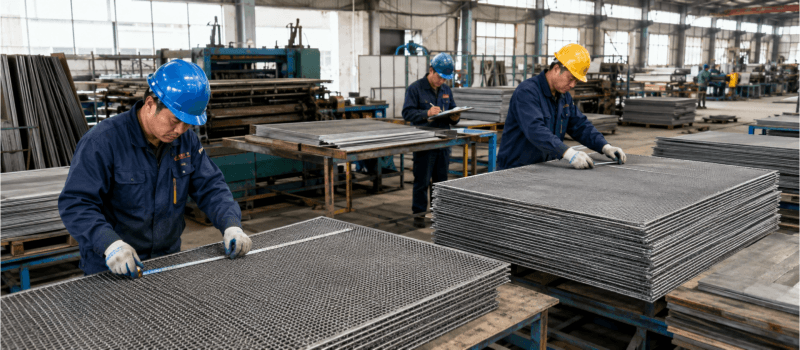

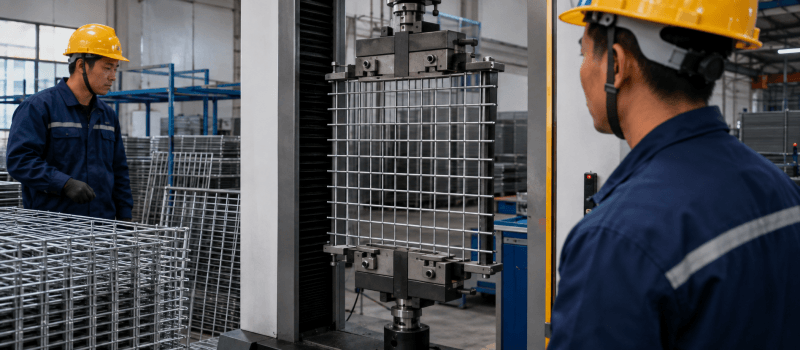

Reliable B2B plain woven mesh supply directly from our specialized China manufacturing facility. Engineered for precision and architectural durability without welding.
High-Strength Straight Wire
Wire Straightening
Transverse Arrangement
Plain Weaving Process
Surface Treatment
Inspection & Supply
• Certified No-Welding Cold Processing •
Straight Wire Weaving from China Factory
Our specialized manufacturing process uses high-tensile straight wires that are mechanically woven into stable, permanent structures. Unlike welded mesh, our plain woven technique maintains structural integrity and corrosion resistance across every intersection.
- check_circle Superior surface flatness
- check_circle Enhanced galvanized coating adhesion
Custom Specifications & Project-Based Supply
We offer tailored solutions for large-scale engineering projects. From custom aperture sizes to specific panel dimensions, our factory-direct model ensures technical compliance and cost efficiency for international procurement.
- check_circle Flexible mesh density options
- check_circle Pre-cut batch panels for site installation
China Factory Supply
- Direct factory-to-port logistics
- ISO 9001 quality controls
- Competitive B2B bulk pricing
High-Strength Straight Wire
- Premium cold-drawn carbon steel
- High tensile strength index
- Precision diameter uniformity
Stable Woven Structure
- Over-and-under locking weave
- No heat-affected zones (no welding)
- Maintains shape under stress
Custom Mesh Specs
- Variable aperture: 5mm to 100mm
- Custom wire gauge options
- Specific sheet/roll dimensions
Galvanized Options
- Hot-dip or Electro-galvanized
- Excellent corrosion resistance
- Clean, silver-grey finish
Batch Panels for Projects
- Mass production efficiency
- Strict batch consistency
- Project-ready packaging
Need Plain Woven Mesh Panels from China Factory?
Request QuoteGet Custom Plain Woven Mesh Directly from China Factory
Send us your wire diameter, mesh opening size, panel dimensions (width x length), surface treatment (Galvanized / Black), and project quantity. Our engineering team will recommend suitable Plain Woven Mesh specifications.
-
China Factory Direct Supply
Direct sourcing from high-capacity manufacturing facilities with strict quality control.
-
Custom Mesh Specifications
Tailored wire gauge, mesh opening size, sheet dimensions, and edge finishing.
-
Routine Mine Roadway Support
Reliable and cost-effective surface support for standard mining underground structures.
-
Temporary & Slope Protection
Fast-deployment mesh solutions for civil engineering and rockfall prevention.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
