What Is a Mechanical Cable Bolt?
A mechanical cable bolt, also known as an expansion shell cable bolt, is a high-performance mining support product equipped with a mechanical expansion shell anchor head at the front end. After installation, tightening the rear nut drives the cone core forward, forcing the expansion shells to expand outward and bite securely into the borehole wall. This creates immediate mechanical anchorage without waiting for resin or cement grout curing, making it ideal for immediate underground reinforcement.
Mechanical Anchorage
The expansion shell anchor head bites into the borehole wall to create immediate anchorage force.
No Curing Waiting
Unlike resin or cement-only anchoring, it can bear load immediately after mechanical activation.
Designed for Mining
Suitable for fast roadway support, water-bearing ground, broken surrounding rock, and emergency reinforcement.
Ready to upgrade your immediate mining support system with mechanical cable bolts?
Contact Us TodayWater-Bearing Ground, Slow Resin Curing & Urgent Support Risk
In underground mining projects, conventional support methods may face difficulties in wet boreholes, slow resin curing conditions, and unstable surrounding rock.

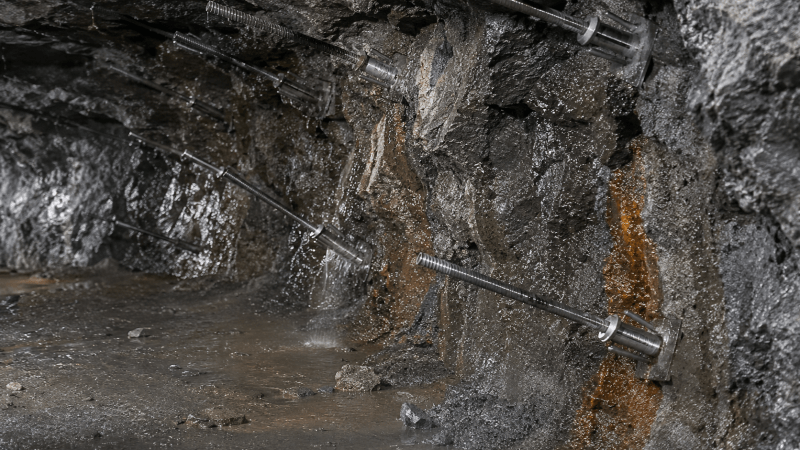

Water-Bearing Ground
In wet boreholes or water-bearing ground, resin anchoring performance can be affected, leading to reduced bonding reliability.
Slow Resin Curing
When resin curing is slow or incomplete, the support system cannot provide fast load-bearing capacity, delaying efficiency.
Urgent Support Demand
In emergency roadway support, waiting for curing time can increase operational risk and slow down project progress.
Early Rock Deformation
At the early stage of excavation, surrounding rock may deform quickly. Support must be activated in time to prevent instability.
Broken Surrounding Rock
In fractured or broken ground, support systems need faster activation and better control of unstable rock mass conditions.
Dynamic Pressure Roadways
Roadways under dynamic pressure often face repeated deformation, requiring more responsive initial anchorage performance.
Why Immediate Mechanical Anchorage Matters: Improve initial stability in wet conditions and unstable rock.
See How Mechanical Cable Bolt WorksHow Expansion Shell Cable Bolts Achieve Immediate Mechanical Anchorage
Mechanical Expansion, Borehole Wall Biting & Instant Load Bearing – A reliable working mechanism tailored for dynamic underground environments.

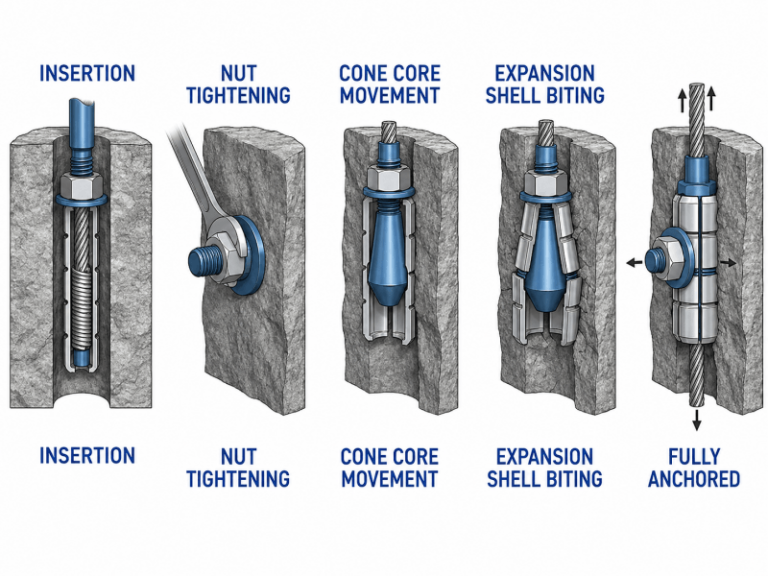

Insert into Borehole
Inserted into the drilled borehole until the anchor head reaches position.
Tighten Rear Nut
Rear nut is tightened to activate the mechanical anchorage system.
Cone Core Movement
Cone core moves forward and forces shells to open outward.
Toothed Shell Biting
Toothed expansion shells press tightly against the borehole wall.
Immediate Bearing
Gains immediate mechanical anchorage without waiting for curing.
Cone Core Activation
Converts tightening force into outward expansion force.
Expansion Shell Opening
Shells open outward and press against the borehole wall.
Toothed Mechanical Bite
Shell teeth grip the borehole wall to prevent slipping.
Immediate Performance
Mechanical anchorage is formed instantly for urgent support.
Why This Working Principle Matters in Mining Support
View Support AdvantagesMechanical Cable Bolt Solutions for Mining Support
We provide mechanical cable bolt solutions for fast underground roadway support, water-bearing ground, broken surrounding rock, emergency reinforcement, and long-term mining support projects.

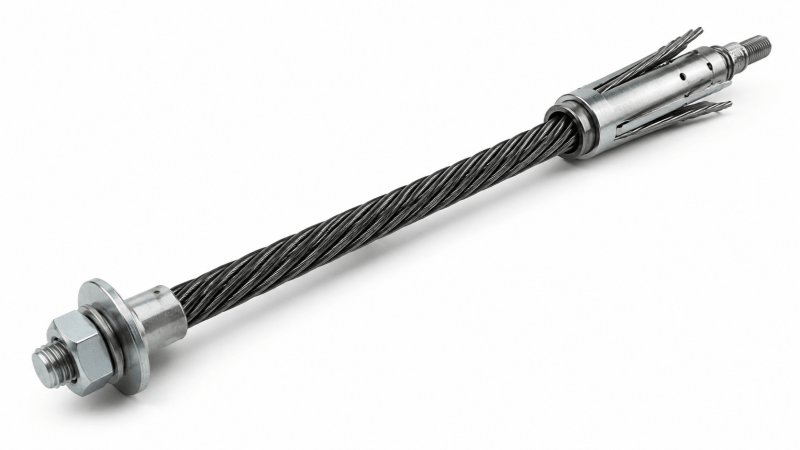

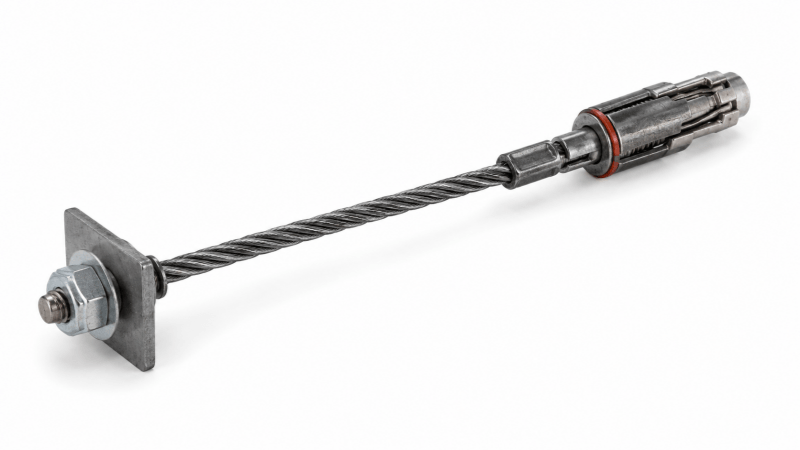

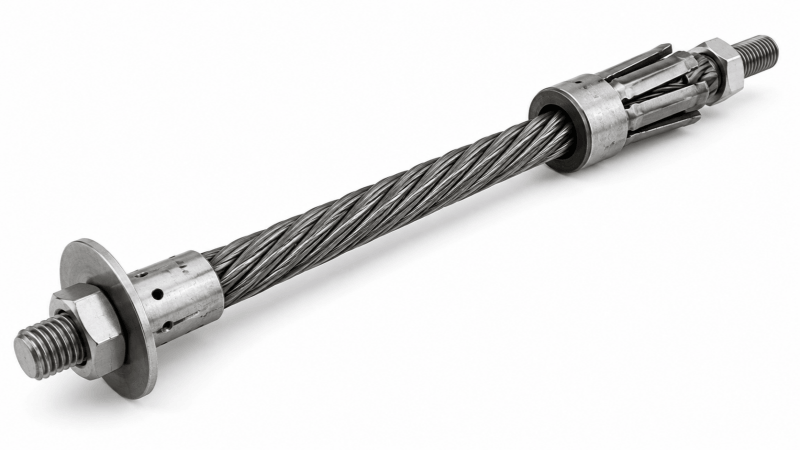

Standard Expansion Shell Cable Bolt
Standard mechanical anchorage for immediate support in stable rock conditions.

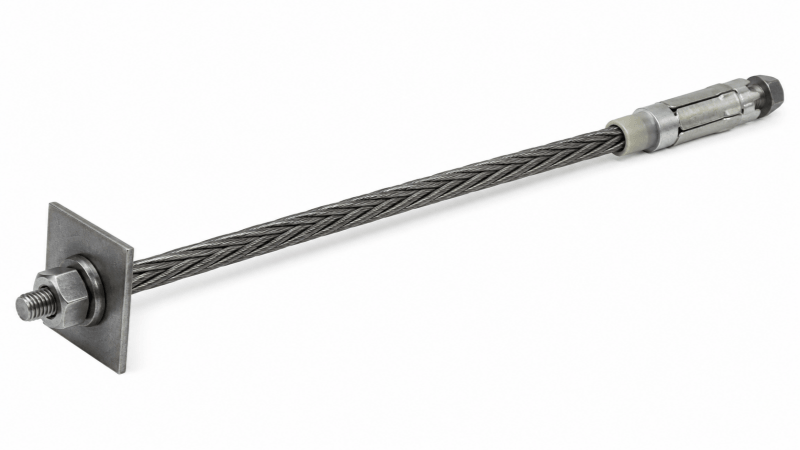

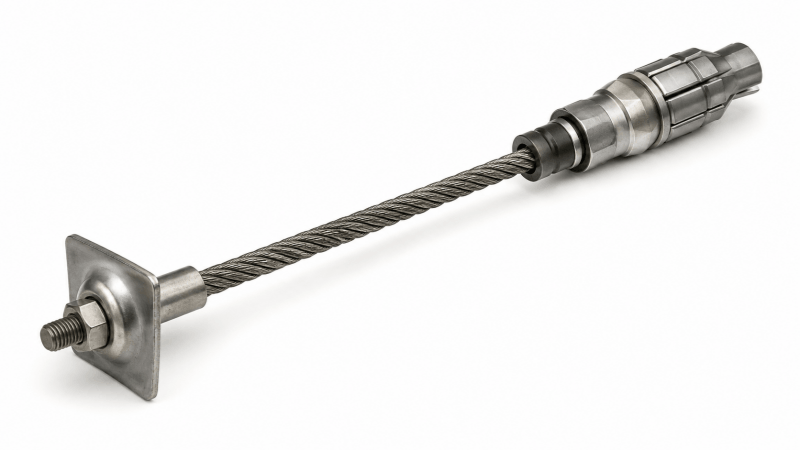

Groutable Mechanical Cable Bolt
Combines immediate mechanical grip with secondary grouting for long-term reinforcement.

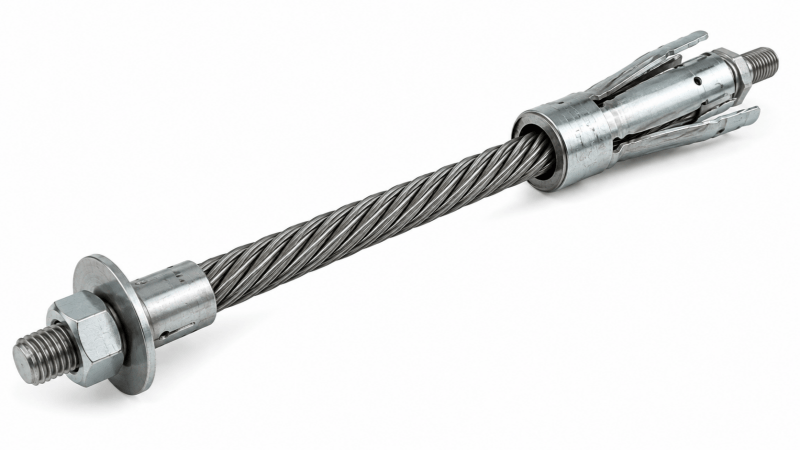

High-Strength Mechanical Cable Bolt
Designed for heavy-duty mining environments requiring maximum load capacity.
Water-Bearing Ground Cable Bolt
Optimized for wet boreholes where resin curing is unreliable.
Emergency Support Mechanical Cable Bolt
Rapid deployment solution for emergency roadway repair and stabilization.
Custom Mechanical Cable Bolt System
Tailored engineering solutions for unique geological challenges and project requirements.
Need Help Choosing the Right Mechanical Cable Bolt?

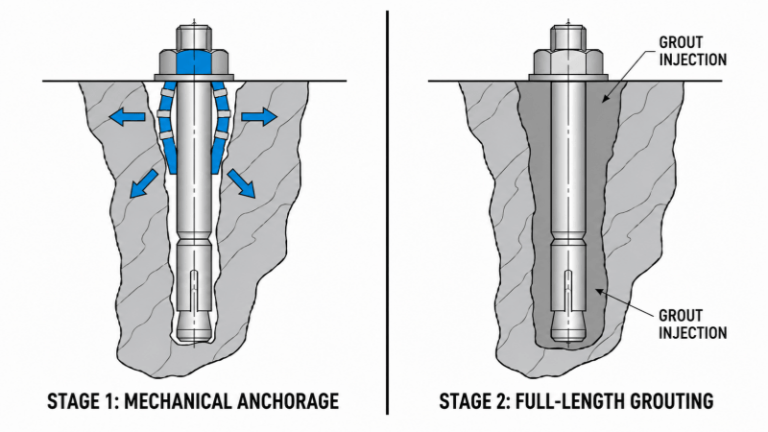

Get Product RecommendationMechanical Anchorage + Full-Length Grouting Reinforcement
Mechanical cable bolts provide immediate anchorage through the expansion shell anchor head, and can later be combined with grouting to form full-length bonded reinforcement.
Why Dual Anchorage Matters for Mining Roadway Support
Ask for Groutable Cable Bolt SolutionCore Technical Parameters of Mechanical Cable Bolt
Diameter, Strength Grade, Breaking Load & Expansion Range. A detailed look into the performance metrics required for reliable mining support.
| Parameter | Specification Range | Unit | Selection Meaning |
|---|---|---|---|
| Nominal Cable Diameter | 15.24 / 17.8 / 22 | mm | Determines borehole diameter and support intensity. |
| Strength Grade | 1770 / 1860 / 2060 | MPa | High tensile strength for deep mining high-stress environments. |
| Breaking Load | ≥ 265 / 353 / 520 | kN | Ultimate safety limit before structural failure. |
| Initial Anchorage Force | ≥ 120 | kN | Mechanical expansion provides immediate active support. |
| Borehole Diameter | 42 - 56 | mm | Must match shell expansion range for optimal grip. |
| Expansion Range | 50 - 65 | mm | Diameter achieved by shell when fully engaged. |
| Cable Length | 3 - 12 | m | Selected based on strata depth and rock stability. |
| Grouting Pressure | 0.2 - 1.0 | MPa | Ensures full encapsulation of the steel strand. |
Matching the steel strand diameter to the anticipated geological pressure and tensile requirements.
A critical safety metric ensuring the bolt can withstand peak dynamic loads in unstable strata.
Precision engineering ensures the expansion shell opens to the exact diameter of the drilled hole.
Mechanical anchoring provides instant tension, preventing early-stage roof sagging or shifting.
Custom lengths allow for anchoring into stable rock layers beyond the immediate fracture zone.
Controlled pressure ensures the cement slurry fills all voids, providing long-term corrosion resistance.
How to Read These Parameters for Mining Support Selection?

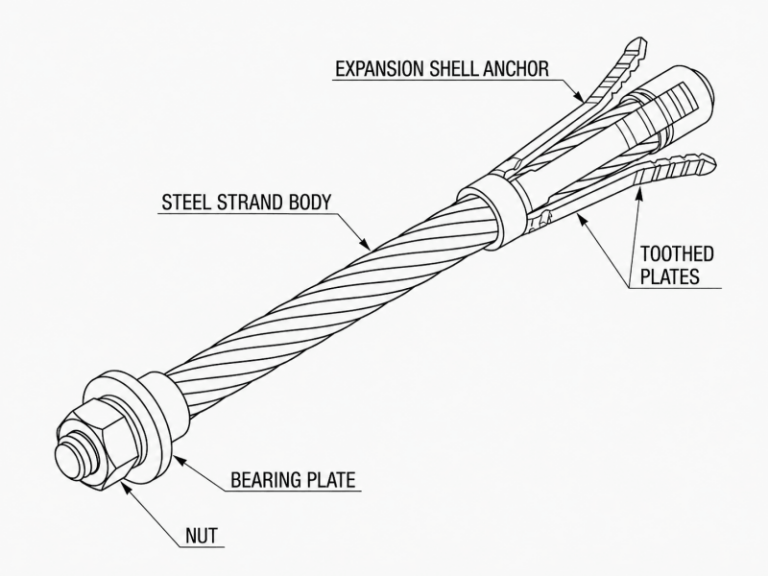

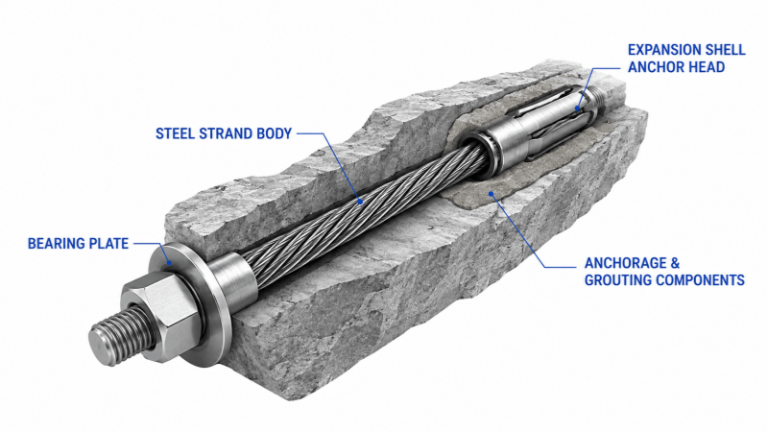

Complete Mechanical Cable Bolt Structure
Steel Strand Body, Expansion Shell Anchor Head, Bearing Plate, Anchorage & Grouting Components. Seamlessly integrated for maximum mining security.
Multi-wire high-tensile steel strand providing the primary structural support and flexibility.
The mechanical anchor that expands against the borehole wall when the strand is tensioned.
Central wedge component that forces the toothed shells outward during the anchoring process.
Precision-cast shells with jagged surfaces to grip rock surfaces with maximum friction.
Distributes the tensioning load across a wider surface area of the rock face to prevent crushing.
The wedge and barrel system that locks the tensioned strand against the bearing plate.
Inlet port designed for high-pressure injection of resin or cement grout into the borehole.
Internal conduit ensuring grout reaches the furthest end of the borehole for full encapsulation.
Why Complete Component Matching Matters

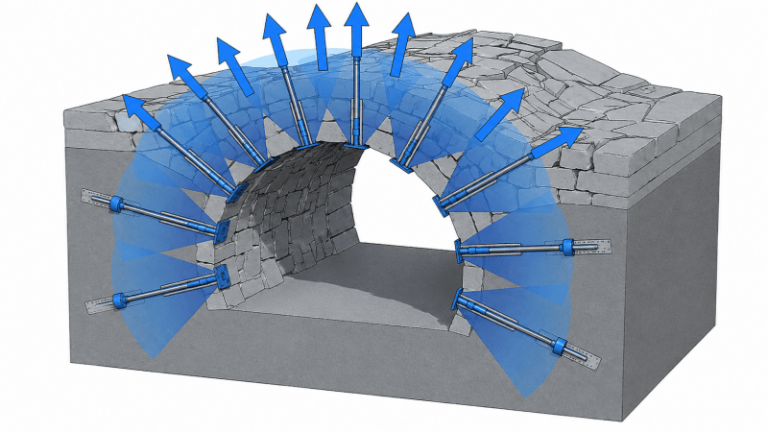

Suspension, Prestress & Compressive Stress Zone Overlap
How Mechanical Cable Bolts Improve Broken Rock Mass Stability through immediate active tension and long-term engineered support.
High-strength cable bolts suspend loose or unstable rock layers into deeper stable rock mass.
Prestress can be applied during installation to actively restrain rock deformation.
Adjacent cable bolts generate compressive stress zones that overlap to improve rock mass integrity.
Overlapped stress zones form an artificial load-bearing arch inside the rock mass.
Why This Support Mechanism Matters in Broken Rock Conditions

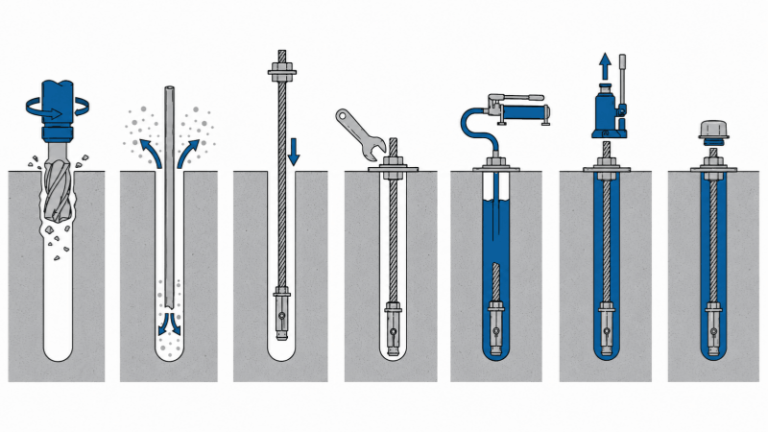

Standard Installation Process for Mechanical Cable Bolt
Drilling, Cleaning, Installation, Activation, Grouting & Locking. A standardized process guaranteeing optimal mechanical anchoring.
Need Installation Guidance for Your Mining Project?
Immediate Load Bearing, Water Resistance & Fast Installation
Why Mechanical Cable Bolts Are Suitable for Fast Mining Support. Discover the key engineering advantages designed for safety and efficiency.
Immediate Load Bearing
The expansion shell anchor head provides immediate mechanical anchorage after activation, allowing the cable to carry load instantly.
Fast Mining Support
Mechanical activation helps reduce waiting time during underground support work, significantly accelerating roadway development cycles.
Water-Bearing Ground
Mechanical anchorage is less dependent on resin curing conditions, making it ideal for environments with high water ingress or wet boreholes.
Dual Anchorage Protection
The system can provide early mechanical anchorage first, then form full-length bonded reinforcement through secondary grouting.
Active Prestress Support
Prestress can be applied during installation, helping the support system actively restrain rock deformation from the start.
Convenient Installation
The installation process is clear and practical, requiring standard mining equipment and reducing operator training complexity.
Built for Fast Response and Reliable Mining Support
Water-Bearing Roadways, Broken Rock, Dynamic Pressure & Large Chambers

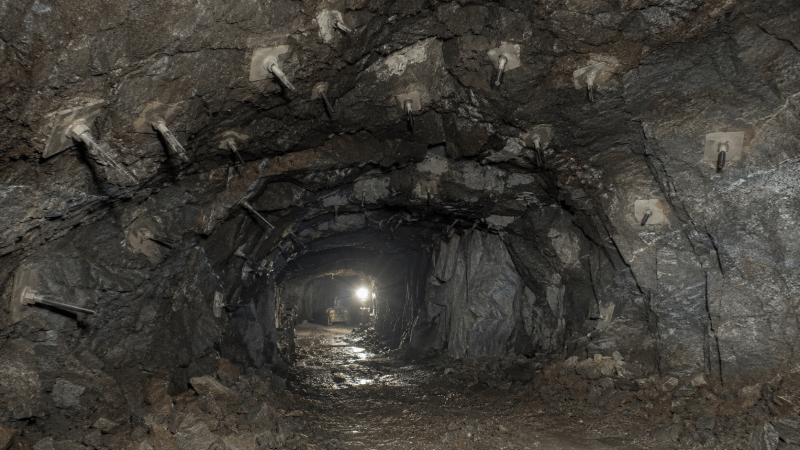

Mechanical Cable Bolt Solutions for Demanding Underground Support Conditions. Proven performance where traditional methods fall short.

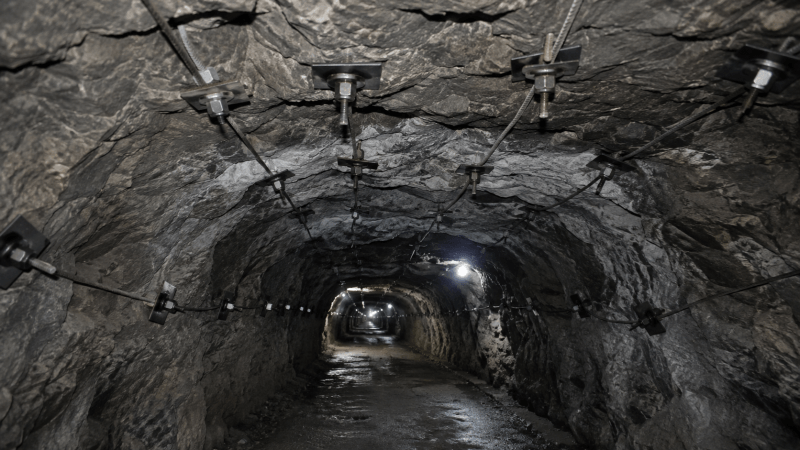

Water-Bearing Roadway Support
Specifically designed for wet boreholes where traditional resin anchors struggle to achieve optimal bond strength during initial installation.
Rapid Emergency Support
Critical for emergency roadway repair and reinforcement where every minute counts and immediate stability is mandatory for safety.

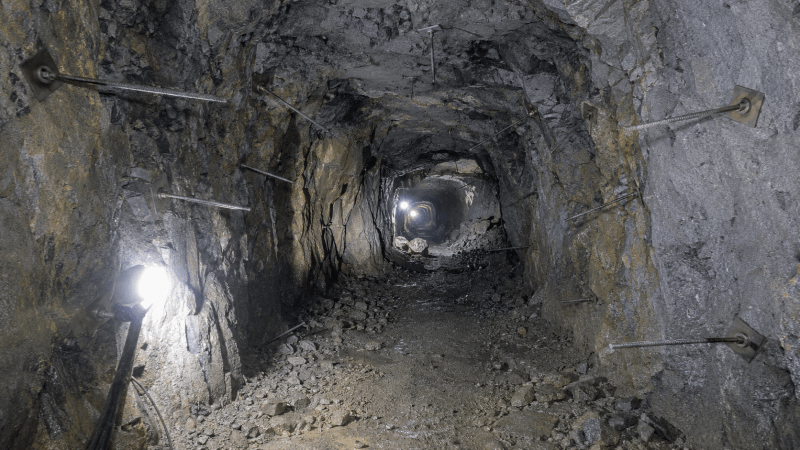

Broken Rock Support
Provides essential stabilization for highly fractured rock masses by combining immediate mechanical grip with later grouting reinforcement.
Dynamic Pressure Roadway
Engineered for roadways subject to abutment pressure or dynamic mining stress, where active prestressing helps maintain profile integrity.

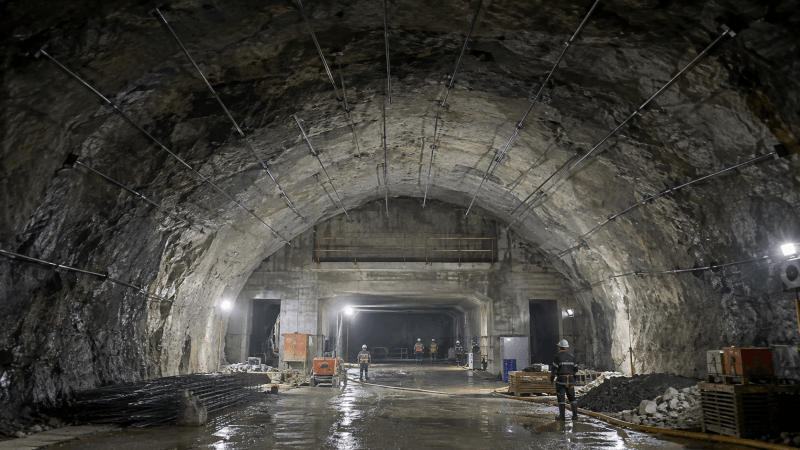

Large-Span Chamber Support
Utilized in large pump stations, substation chambers, and garages where long-reach support and high load capacity are required.

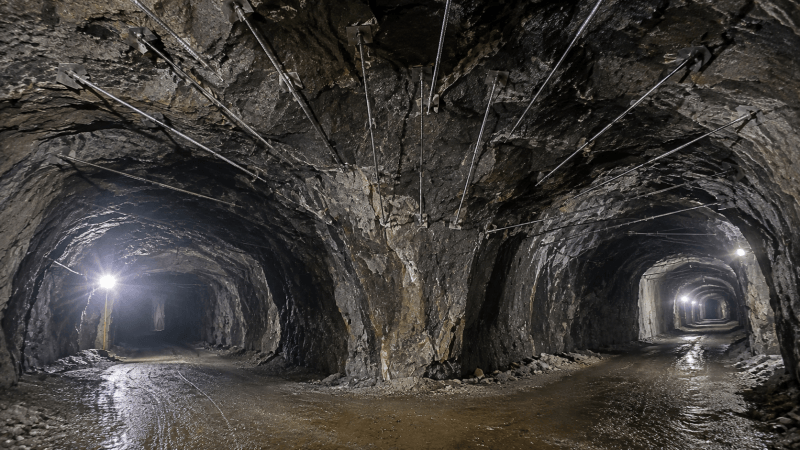

Roadway Intersections
Ideal for high-stress zones at intersections where rock stability is most vulnerable and multi-directional support is necessary.
Not Sure If Mechanical Cable Bolt Fits Your Mine Conditions?
How to Select the Right Mechanical Cable Bolt for Your Mine Project
Choosing the right mechanical cable bolt requires more than selecting a cable length. Ground condition, water presence, immediate load-bearing requirement, borehole diameter, cable diameter, design load, grouting need, service life, and installation efficiency should all be considered before specification confirmation.
Assessment of rock mass quality and stress levels.
Evaluation of corrosion risks and grouting efficacy.
Requirement for instant anchorage post-installation.
Precision matching with expansion shell expansion range.
15.2mm, 17.8mm, or 21.8mm high-tensile steel options.
Minimum breaking load vs. operational safety factors.
Permanent support requirements and full encapsulation.
Duration of support and installation speed per bolt.
Right specification = Ground condition + Borehole matching + Load capacity + Anchorage method + Service requirement
Custom Manufacturing & Quality Support from China Factory
As a China-based mechanical cable bolt factory, we support project-based customization for cable diameter, strength grade, expansion shell anchor head, bearing plate, anchorage components, grouting accessories, packaging, and bulk mining project supply.
Factory-Direct Custom Solutions
Different projects require specific technical parameters. Our engineering team works directly with procurement leads to ensure every component meets the localized safety and geology requirements of the site.
- Customizable Diameter & Strength Grades
- Precision Expansion Shell Matching
- Bearing Plate & Anchorage Supply
- Integrated Grouting Component Systems
- Bulk Packaging for International Transit

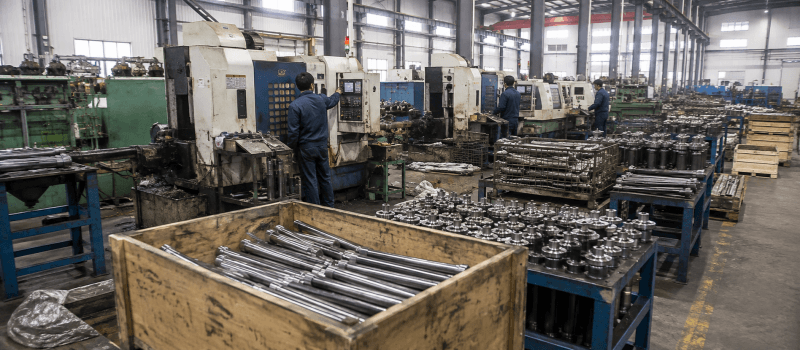

Quality Control for Reliable Mining Support
