China Impact Roller Manufacturer for Conveyor Loading Zones
XINYONGDUO supplies impact rollers and loading zone support solutions designed to absorb material impact, protect conveyor belts and improve system stability in mining, power plant, port and heavy-duty bulk handling projects.
Protect your conveyor loading zone with reliable impact roller solutions.

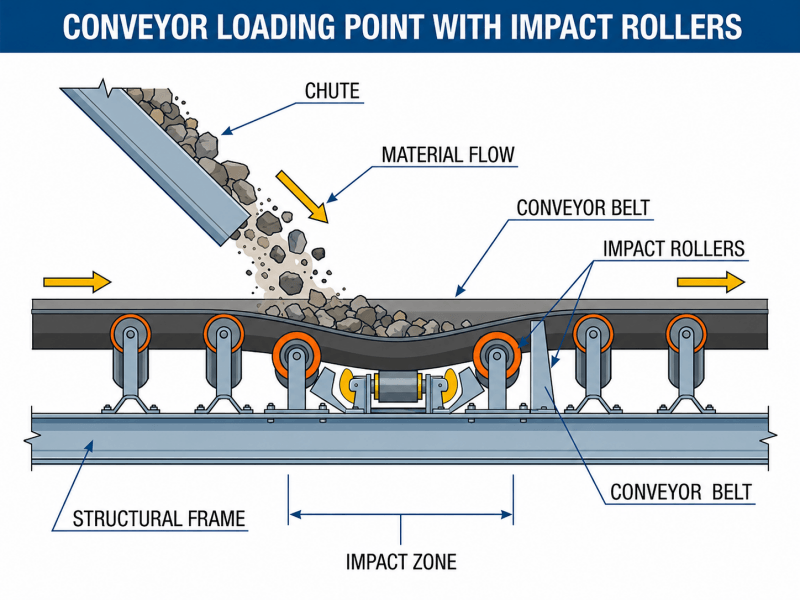

Request a QuoteWhat Is an Impact Roller?
An impact roller, also called a buffer roller or loading zone roller, is installed under the conveyor belt at the loading point to absorb material impact and protect the belt from damage.
In industrial bulk handling, the loading point is the most vulnerable section of a conveyor system. When heavy, abrasive materials like coal, iron ore, or large aggregate are dropped from chutes onto the belt, the resulting kinetic energy can cause significant structural damage.
Impact rollers are specialized components engineered with high-elasticity rubber rings. These rings provide a cushioning effect that absorbs the shock of falling material, preventing the belt from being pierced or torn against the rigid steel frame of standard rollers.
By installing a series of these "buffer" rollers in the impact zone, operators can significantly extend the life of their expensive conveyor belts and reduce unplanned maintenance costs caused by impact-related failures.
Absorbs Material Impact
Protects Conveyor Belt
Replaces Standard Carrying Rollers
Improves System Stability
Impact rollers are mainly used in loading zones. Choosing the right one reduces downtime and protects your investment.
Learn How Impact Rollers WorkWhy Impact Rollers Matter in Loading Zones
In conveyor loading zones, falling materials create high shock loads. Impact rollers help absorb the impact, protect the belt and reduce damage to the conveyor structure.
Explore the engineering behind our high-performance shock absorption technology.
See How Impact Rollers WorkFeatured Impact Roller Products
XINYONGDUO supplies different impact roller types for conveyor loading zones, designed to absorb kinetic energy and protect your belt from high-impact damage.
Rubber Ring Impact Roller
Heavy-duty rubber rings mounted on a steel tube to absorb impact.
View Details →
Comb / Spiral Impact Roller
Dual-function design that handles impact while actively cleaning.
View Details →
Polymer / PU Impact Roller
High-performance lightweight polyurethane rollers for corrosion.
View Details →
Flame-Retardant Mining Roller
Specialized safety-rated rollers for underground coal mining.
View Details →
Self-Aligning Roller Set
Integrated frames that prevent belt mistracking while managing load.
View Details →Looking for technical specifications and detailed performance data?

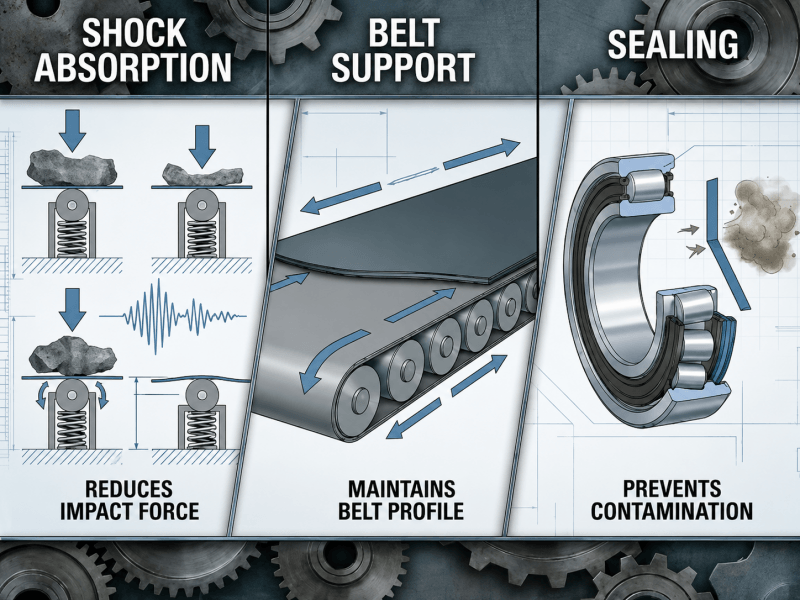

Request Impact Roller CatalogCore Functions of Impact Rollers
Impact rollers do more than absorb shock. They also help support the belt, limit belt movement, and reduce resistance.
Shock Absorption
Stable Belt Support
Belt Limiting Control
Lower Running Resistance
Anti-Sticking Support
Wear & Corrosion Resist
Flame-Retardant Safety
Longer Service Life
Ensure your operation uses the right technical specifications for maximum uptime.

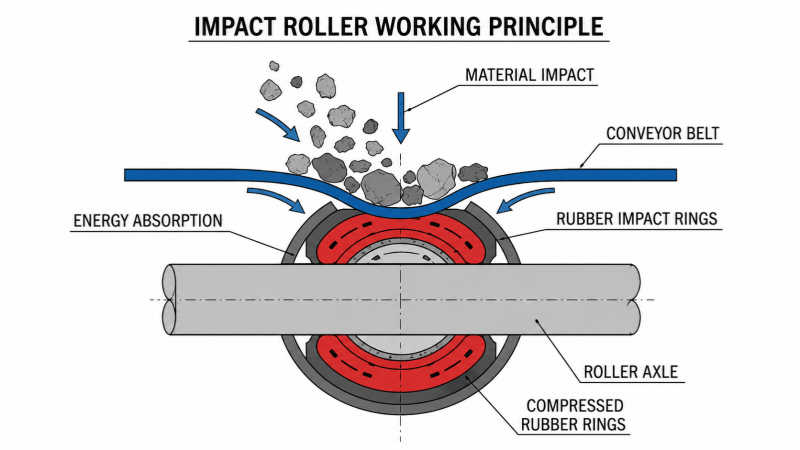

Match Functions to Working ConditionImpact Roller Working Principle
Impact rollers absorb shock through elastic deformation, reduce peak impact force and distribute remaining loads across the industrial conveyor infrastructure.
Our impact rollers are engineered specifically for high-stress zones where material transfer occurs. The core principle relies on a series of specialized high-density rubber rings that act as a mechanical buffer. When material strikes the belt, these rings undergo instantaneous elastic deformation.
This physical change is critical for absorbing the kinetic energy of falling bulk solids. By providing a momentary "give," the rollers effectively lengthen the time of the impact, which reduces the peak force exerted on the conveyor belt and the structural frame.
Once the initial shock is dampened, the reinforced roller body distributes the remaining load evenly across the heavy-duty bearings. This ensures stable rotation and protects the integrity of the entire conveyor system from fatigue and localized damage.
Elastic Deformation
Energy Is Converted
Peak Force Reduced
Load Distributed
Stable Rotation
Ready to see the internal engineering?
Explore Impact Roller StructuresImpact Roller Types & Application Scenarios
Different loading zones require different impact roller structures. Optimized engineering ensures energy absorption and belt longevity even under extreme mechanical stress.
Rubber Ring Impact Roller
StandardOptimized for standard loading conditions where belt protection is the primary goal.
General Logistics, Grains, Light Manufacturing.
Spring Impact Roller
ExtremeDesigned for high drop heights and heavy shock loads that standard rollers cannot dissipate.
Quarrying, Aggregate, Primary Crushing.
Comb / Spiral Impact Roller
SpecialtyFeatures a self-cleaning profile to prevent material build-up in wet or sticky environments.
Fertilizer, Clay Mining, Food Processing.
Polymer / PU Impact Roller
ResistantHigh resistance to corrosion and abrasion. Lightweight but extremely durable under chemical stress.
Chemical Processing, Salt Mining, Port Terminals.
Mining Safety Impact Roller
ATEX/MSHACertified for underground mining. Fire-resistant and anti-static properties for hazardous zones.
Underground Coal, Precious Metal Mining.
Impact Self-Aligning Roller Set
CorrectiveCombines energy absorption with automatic belt centering to prevent deviation at high speeds.
High-Speed Overlands, Power Generation.
Quick Match by Loading Zone Condition
Comparison matrix based on operational conditions and material properties.
| Condition | Material Type | Recommended Solution | Shock Absorption |
|---|---|---|---|
| Standard Impact | Dry, Non-Abrasive | Rubber Ring Roller | |
| High Shock Load | Large Boulders / Ore | Spring Impact Roller | |
| Sticky / Wet | Clay, Wet Slurry | Comb / Spiral Roller | |
| Corrosive Environment | Chemicals / Salt | Polymer / PU Roller |
Ready to Optimize Your Conveyor Performance?
Get Type RecommendationCore Structure of Impact Rollers
A reliable impact roller is built with cushioning components, reinforced roller body, and heavy-duty bearings for extreme industrial load management.
High-elasticity rubber rings designed to absorb peak kinetic energy during material loading, preventing belt damage.
Constructed from high-precision longitudinal welded steel pipes with optimized wall thickness for structural rigidity.
Cold-drawn round steel shaft with precision-machined ends to ensure absolute concentricity and high load tolerance.
Deep groove ball bearings with C3 clearance, specifically engineered for high-impact industrial applications.
Deep-pressed steel housing, automatically welded to the tube body to form a single, inseparable heavy-duty unit.
Triple labyrinth sealing design prevents dust, water, and debris from entering the bearing chamber in harsh environments.
Structural steel frame with high-resistance coating, designed to maintain alignment under extreme vertical impact forces from heavy bulk materials.
A reinforced structure ensures a service life of over 30,000 hours by minimizing vibration and heat buildup. Our engineering team optimizes every component to match your specific conveyor belt tension and material weight specifications.
Request Impact Roller Structure DetailsMaterials & Shock-Absorbing Components
The performance of an impact roller depends on the right cushioning material and safety configuration. Our components are engineered to withstand extreme industrial environments.
Material Selection Matrix
| Environmental Condition | Recommended Material | Core Benefit | Status |
|---|---|---|---|
| High Impact Primary Crushing | Ceramic Composite Rubber | Maximum Energy Dissipation | Standard |
| Wet or Acidic Processing | UHMWPE / Polyurethane | Corrosion Resistance | Available |
| Extreme Cold Environments | Natural High-Elastic Rubber | Brittleness Prevention | In Stock |
| Underground Mining (Methane) | Flame-Retardant Anti-Static | Safety Compliance (MSHA) | Certified |
Nitrile Rubber
High resistance to oils, fuel, and other chemicals. Ideal for sealed bearing protection.
Natural High-Elastic Rubber
Superior rebound properties for maximum kinetic energy absorption from falling ores.
Polyurethane
Tough, abrasion-resistant polymer with high load-bearing capacity and chemical stability.
Ceramic Composite Rubber
Hard-wearing alumina ceramic tiles embedded in a rubber matrix for extreme abrasion resistance.
UHMWPE
Ultra-high molecular weight polyethylene with near-zero friction and exceptional impact strength.
Polymer Roller Body
Lightweight, corrosion-proof alternative to traditional steel, reducing power consumption.
Stainless Steel Roller Body
304 or 316 grade steel for maximum structural rigidity in heavy-haul conveyor systems.
Flame-Retardant Anti-Static
Essential for hazardous zones, preventing sparks and suppressing combustion risks.
Our engineering team can perform a site analysis to determine the optimal material blend for your specific operating conditions and material tonnage.
Ask for Material Selection SupportKey Technical Parameters & Size Matching
Engineered precision starts with accurate specification. Correct impact roller selection is critical for mitigating conveyor belt shock, reducing structural stress, and extending the operational lifespan of your bulk handling system. Use the following technical data to align component performance with your plant's specific environmental demands.
Size Matching by Conveyor Belt Width
Aligning roller dimensions with troughing angles ensures optimal load support and centers the material flow effectively.
| Belt Width B (mm) | Standard Trough Angle (°) | Roller Layout Type |
|---|---|---|
| 500 - 650 | 35° / 45° | 3-Roller In-Line |
| 800 - 1000 | 35° / 45° | 3-Roller In-Line / Staggered |
| 1200 - 1400 | 35° / 45° | 3-Roller Heavy Duty |
| 1600 - 1800 | 35° / 45° | 5-Roller Transition |
| 2000+ | 45° | Reinforced 5-Roller |
Cushioning Rubber Layer Performance
High-quality materials guarantee long-term energy dissipation under extreme loads.
Finished Impact Roller Performance Indicators
| Parameter | Reference Requirement | Why It Matters |
|---|---|---|
| Radial Runout (T.I.R) | ≤ 0.5 mm | Minimizes vibration and high-speed belt whip, protecting bearing integrity. |
| Axial Movement | ≤ 0.2 mm | Ensures precise belt tracking and prevents internal component shifting. |
| Rotation Resistance | ≤ 2.5 N (Ø133mm) | Reduces conveyor motor power consumption and heat buildup. |
| Impact Resistance | No fracture / Deformation | Absorbs terminal velocity of bulk material at transfer points. |
| Sealing Performance | Labyrinth Seal (IP65) | Prevents dust/water ingress, the #1 cause of bearing failure. |
| Service Life | ≥ 30,000 Hours | Determines the ROI and maintenance cycle frequency. |
Buyer Pre-Quotation Checklist
Please confirm these parameters for a rapid, accurate technical proposal.
Belt Width
Specify the total belt width (mm) to ensure the roller assembly spans the required distance correctly.
Rubber Performance
Confirm if standard Shore 60A is sufficient or if high-heat/FRAS rubber is required.
Accuracy Requirements
Verify if your application requires precision T.I.R limits lower than standard 0.5mm.
Resistance Level
Confirm operating speed (m/s) to verify rotational resistance and bearing temperature rating.
Load Capacity
Peak material drop weight and height to calculate necessary axial load capacity.
Sealing Type
Environmental factors (Slurry, Fine Dust, or Salt Water) dictate the labyrinth seal complexity.
If some parameters are not confirmed, we can help review your requirements.
Send SpecificationsHow to Select the Right Impact Roller
Selecting the correct impact roller is critical to conveyor belt longevity and system uptime. This guide outlines the technical parameters required to match equipment to specific material handling environments and impact loads.
Selection Process Workflow
Standard Belt Widths
Drop Height & Weight
Density & Lump Size
ATEX / Underground
Rubber vs. Polyurethane
Sealing & Bearing Life
Key Selection Factors
Loading Height
Vertical distance from material discharge to the conveyor belt affects kinetic energy transfer.
Material Lump Size
Larger fragments require rollers with higher shore hardness and reinforced steel cores.
Impact Load Level
Calculation of Force (N) based on tonnage per hour and belt speed determines roller spacing.
Moisture / Sticky
Sticky materials require specialized disk shapes to prevent material buildup and belt wear.
Corrosive Environment
Chemical exposure requires stainless steel or high-density polymer shells for protection.
Explosion-Proof
Mining operations require anti-static and flame-retardant (FRAS) certified rubber components.
Belt Deviation
Self-aligning impact rollers may be necessary if impact force causes lateral belt movement.
Service Life
Balance initial procurement cost against L10 bearing life and expected maintenance cycles.
Quick Selection Matrix
| Working Condition | Primary Challenge | Recommended Roller Type | Key Feature |
|---|---|---|---|
| Standard Duty | Low drop (< 1m), uniform sizing | Type-A Rubber Disc | High elasticity |
| High Drop | Heavy lumps, drop height > 3m | Reinforced Heavy Duty | Double-sealed bearings |
| Sticky Materials | Slurry, wet coal, or clay | Self-Cleaning UHMPE | Low-friction surface |
| Corrosive Environment | Salt, chemical, or moisture | Ceramic Hybrid Roller | Non-oxidizing casing |
| Underground Mining | Dusty, high spark risk | FRAS Impact Roller | Fire-resistant antistatic |
| Off-center Loading | Asymmetric material flow | Adjustable Troughing | Lateral support discs |
If you are not sure which impact roller type to choose, send us your conveyor parameters.
GET SELECTION ADVICEWorking Conditions & Industries Served
ROLLER-TECH PRO impact solutions are engineered for the world's most demanding bulk material handling environments. From subterranean mines to high-volume coastal ports, our systems provide the mechanical integrity required to minimize downtime and protect vital conveyor infrastructure.
Power Plant
Focus: Continuous reliability.
Grain / Agriculture
Focus: Anti-static materials.
Aggregate & Cement
Focus: Impact bed protection.
Underground Mining
Focus: FRAS certified components.
Ore Port Logistics
Focus: Advanced sealing against humidity.
Metallurgy / Steel
Focus: High-temperature bearings.
Cement & Washing
Focus: Self-cleaning rollers.
Chemical / Fertilizer
Focus: Polymer-coated corrosion-proof rollers.
High-Impact Loading Zone Applications
Technical summaries of specialized environmental demands.
Heavy Impact
URGENT FOCUSLump sizes >200mm falling from heights over 3 meters. Requires spring-loaded impact frames and high-shore rubber rings to preserve belt carcass integrity.
Sticky / Wet
OPERATIONALMoisture content over 15% leading to material carryback and roller seizing. Requires comb-type spiral rollers or sacrificial polymer sleeves to minimize maintenance.
Corrosive / Coastal
PROTECTEDHigh salinity or chemical vapors that degrade standard steel. ROLLER-TECH provides hot-dip galvanized frames and triple-labyrinth sealing as standard.
Safety-Critical
MANDATORYUnderground or confined spaces where static discharge and heat are forbidden. All components tested to ISO 340 and ATEX underground explosion-proof standards.
Continuous Operation
HIGH AVAILABILITY24/7 duty cycles with zero scheduled downtime. Employs oversized bearings (L10 life >50,000 hrs) and reinforced shaft geometry for permanent installation.
Different industries may face different loading zone problems.
TELL US YOUR WORKING CONDITIONQuality Control & Standards Compliance
In heavy-duty industrial environments, equipment failure isn't just an inconvenience—it's a critical operational risk. Our rigorous Quality Control (QC) framework ensures that every impact roller meets the highest mechanical integrity standards, providing stability and "over-engineered" durability for the world's most demanding conveyor systems.

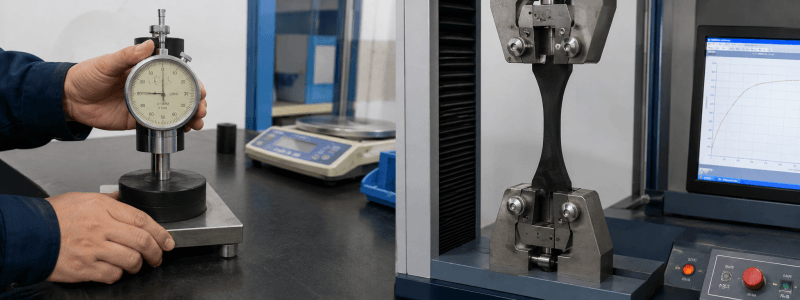

Rubber Performance Test
Verification of Shore A hardness, tensile strength, and elongation at break for impact-absorbing layers.

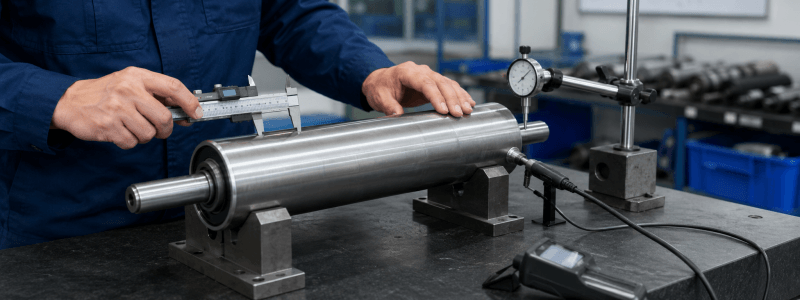

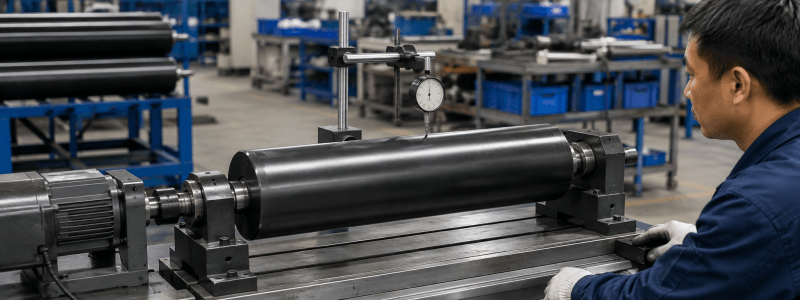

Dimensional Accuracy Check
Strict adherence to ±0.5mm tolerances on shell diameter, wall thickness, and shaft alignment.

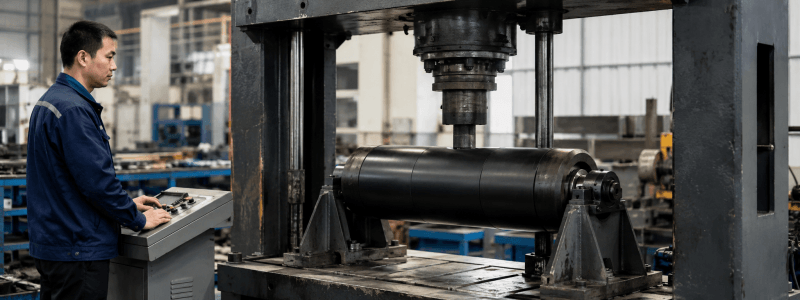

Impact Resistance Test
Simulated heavy loading cycles to ensure structural integrity under peak kinetic impact forces.

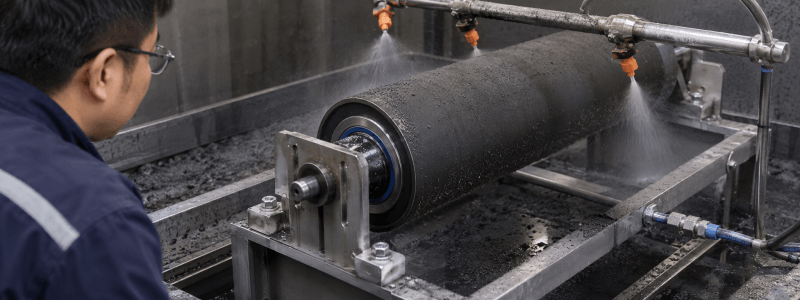

Sealing Performance Test
IP65/67 verification ensuring zero ingress of moisture and fine coal dust into the bearing chamber.

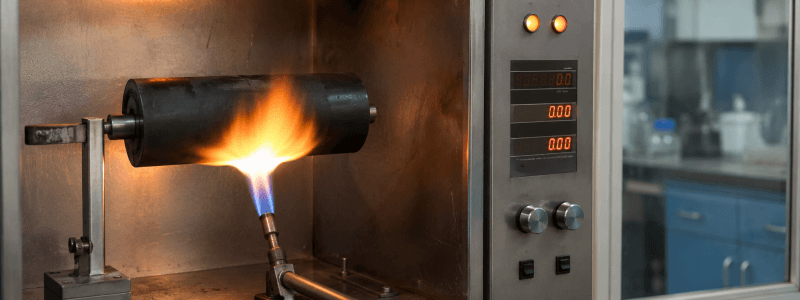

Flame-Retardant Requirements
Mandatory anti-static and flame-retardant testing for underground mining and hazardous zone applications.
Finished Roller Performance
Run-out measurement and rotational resistance testing to minimize energy consumption and belt wear.
Reference Standards & Certifications
Belt conveyors—Technical conditions for general purposes and high-capacity transport.
Safety requirements and testing methods for coal mine belt conveyor rollers.
Technical specification for conveyor idlers—Performance and dimensional parameters.
Rubber, vulcanized or thermoplastic—Determination of tensile stress-strain properties.
Mechanical engineering requirements for heavy-duty industrial impact cushioning.
Request Quality & Standard Documents
Download Technical CertificatesLong-Term Value Engineering
Quantifying the Total Cost of Ownership (TCO). Transition from reactive replacement to strategic asset optimization with ROLLER-TECH PRO precision-engineered impact solutions.
Low-Price Mismatched Roller
- ✕ Frequent unexpected belt punctures
- ✕ High vibration leading to frame fatigue
- ✕ Bearing failure due to poor sealing
- ✕ Monthly maintenance downtime
Proper Impact Roller Solution
- ✓ Integrated kinetic energy absorption
- ✓ Precision-balanced for zero-vibration
- ✓ Multi-labyrinth sealing (IP67)
- ✓ 3-5x longer service life cycles
Core Long-Term Values
Reduce Belt Damage
Absorbs 95% of peak impact forces to prevent costly conveyor belt tears.
Lower Downtime Risk
Eliminate emergency line stops with high-reliability internal components.
Extend System Life
Reduced vibration protects structural frames and adjacent motor systems.
Reduce Maintenance
Heavy-duty sealing means no re-greasing or adjustment for 24+ months.
Adapt to High-Impact
Modular designs that can be field-tuned for specific material weights.
Anti-Sticking Upgrade
Self-cleaning surface technologies prevent buildup in wet or sticky zones.
Wear/Corrosion Upgrade
Galvanized and polymer options for aggressive chemical environments.
Long-Term Bulk Supply
Inventory locking and scheduled releases for plant-wide refurbishments.
Strategic Upgrade Directions
Specialized technical configurations for hazardous or high-wear environments.
Long-Term Supply Value
ISO 9001:2015 Certified Quality Management
| Value Pillar | Engineering Scope | Operational Benefit |
|---|---|---|
| Stable Specs | Standardized component geometry and material density across all batches. | Seamless replacement without line modification. |
| Custom Support | Dedicated engineering consultation for bespoke impact challenges. | Optimized performance for unique material weights. |
| Batch Production | Scalable manufacturing for massive plant-wide deployments. | Volume-based cost efficiencies and supply security. |
Transition from commodity sourcing to value-driven engineering. Secure your plant's efficiency for the next decade.
Plan Your Long-Term Impact Roller SupplyGet Custom Impact Roller Solutions from China Factory
Engineered for extreme conveyor loading zones. Direct OEM & ODM manufacturer of high-durability impact rollers with ISO-certified quality control.
Factory Direct
Direct sourcing for optimized cost efficiency.
Custom Specs
Bespoke dimensions for any conveyor frame.
Condition Matching
Optimized for your specific moisture & load.
Material Options
Choice of NR, SBR, or Fire-Resistant rubber.
Quality Check
100% inspection before global dispatch.
Bulk Supply
Scalable production for major industrial sites.
