China Friction Roller Manufacturer for Mining and Heavy-Duty Conveyor Self-Aligning Systems
Engineered for active belt tracking correction, fast self-aligning response, and stable operation in heavy-load, high-dust, and demanding conveyor environments.
Conveyor System Problems That Reduce Efficiency and Increase Maintenance Cost
In mining and heavy-duty material handling systems, belt misalignment is more than a nuisance—it's a critical failure point that leads to operational paralysis.
Belt Misalignment (Running Off Track)
Uncontrolled belt drift causes edge wear and catastrophic belt tearing, leading to hours of unplanned downtime for expensive repairs.
Heavy Load Side Deviation
Off-center loading creates uneven pressure on rollers and structure, accelerating mechanical fatigue and increasing energy consumption.
Impact & Vibration Issues
Constant vibration from misaligned components weakens weldments and bearing housings, significantly shortening the lifespan of your conveyor frame.
High Maintenance & Downtime Cost
Manual adjustment of tracking is labor-intensive and dangerous. Frequent component replacement drains your operational budget month after month.
These problems are especially common in mining, quarry, cement, and bulk terminal logistics where environmental factors are extreme.

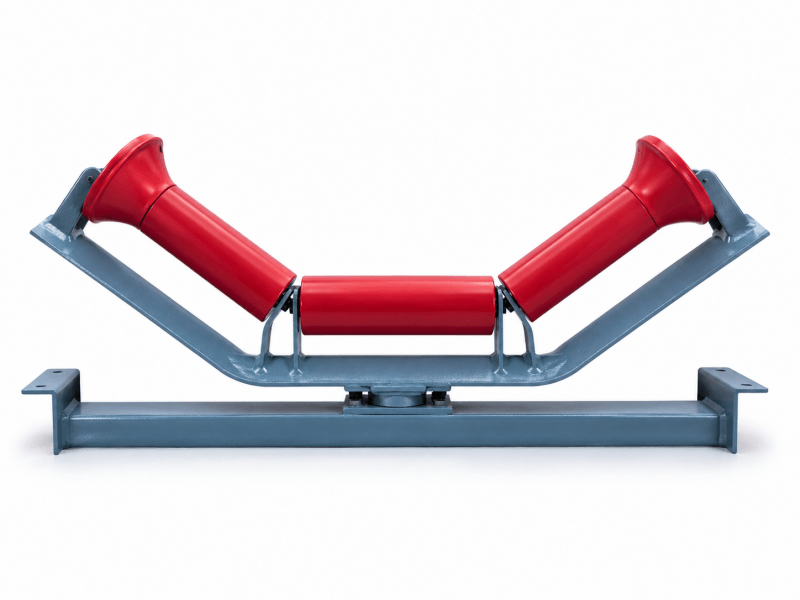

What Is a Friction Roller: Definition, Structure & Working Principle
Discover how friction rollers provide dynamic, self-aligning solutions for heavy-duty conveyor systems. By utilizing advanced friction mechanisms, these rollers instantly correct belt drift, prevent edge wear, and maintain optimal material flow without the need for manual intervention.
A Self-Aligning Conveyor Roller That Actively Helps Correct Belt Misalignment
Designed for heavy-duty industrial environments, the friction roller is a critical component in maintaining belt tracking. Unlike standard idlers, it utilizes peripheral friction to provide dynamic corrective forces the moment a belt begins to drift from its central path. By integrating specially engineered high-friction rubber rings with a highly responsive pivot frame, it creates a self-sustaining correction loop. This proactive alignment prevents severe edge damage, eliminates material spillage caused by tilting, and drastically reduces manual maintenance requirements, ensuring uninterrupted operations even under extreme load conditions.
- Auto correction of lateral deviation
- Operation-ready modular installation
- Heavy-duty structural stability for high loads
Belt Starts to Deviate
Uneven loading or structural shifts cause the conveyor belt to move off-center.
Friction Response Activates
The friction rings engage with the belt edge, creating a pivoting torque in the frame.
Belt Returns to Center
The angled roller guides the belt back to its intended neutral tracking position.
Friction rollers help conveyor systems achieve automatic alignment, reducing maintenance downtime and preventing edge damage to expensive belts.
Active Self-Aligning Mechanism: Closed-Loop Logic Explained
Understand the seamless, mechanical closed-loop system that powers our friction rollers. Without needing external power, it instantly detects and corrects belt drift to ensure continuous, perfectly aligned operation.
Friction-Driven Closed-Loop Self-Aligning System
Our friction rollers operate on a sophisticated closed-loop logic that requires no external power. By harnessing the kinetic energy of the moving belt, the system creates a proportional corrective response relative to the severity of the deviation.
Dynamic Detection
Sensory friction rings detect off-center movement instantly through contact resistance.
Torque Conversion
Friction is converted into mechanical rotation within the self-aligning swivel base.
Automatic Stabilization
The system returns to a neutral lock position once perfect alignment is achieved.
Unlike passive rollers, friction rollers actively respond to belt dynamics in real-time for zero-latency correction.

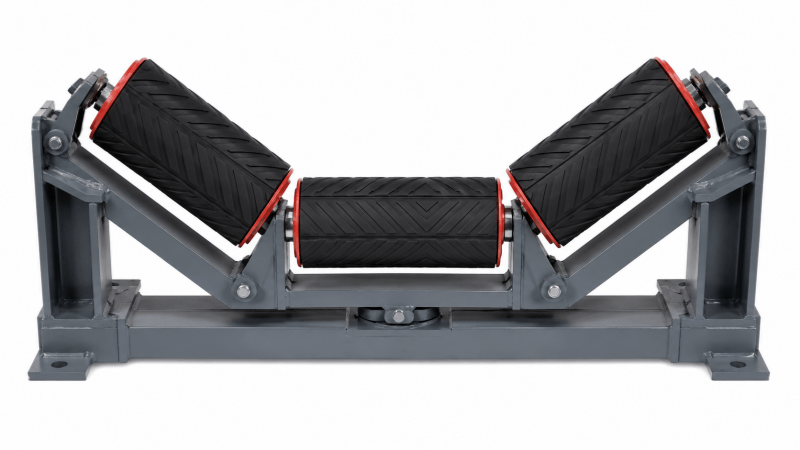

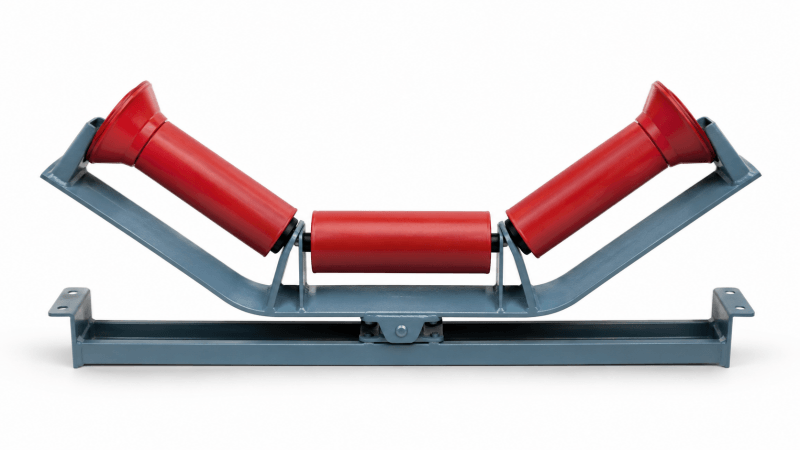

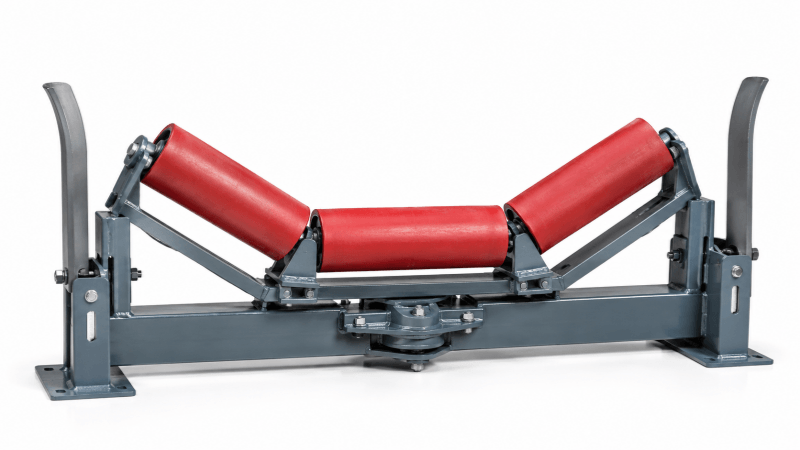

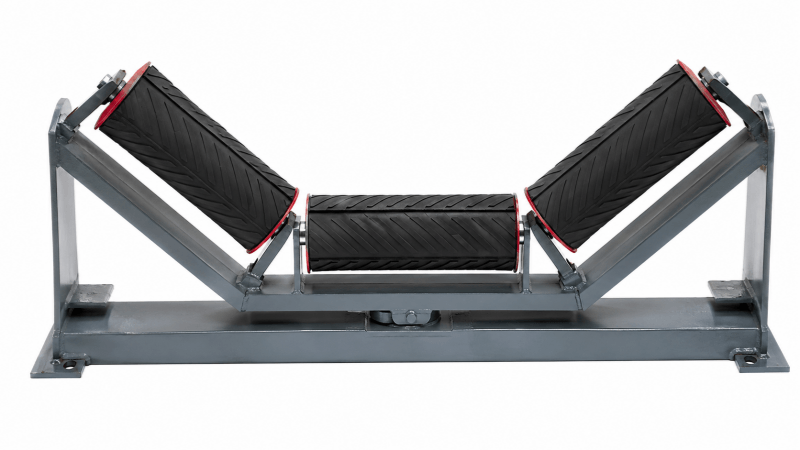

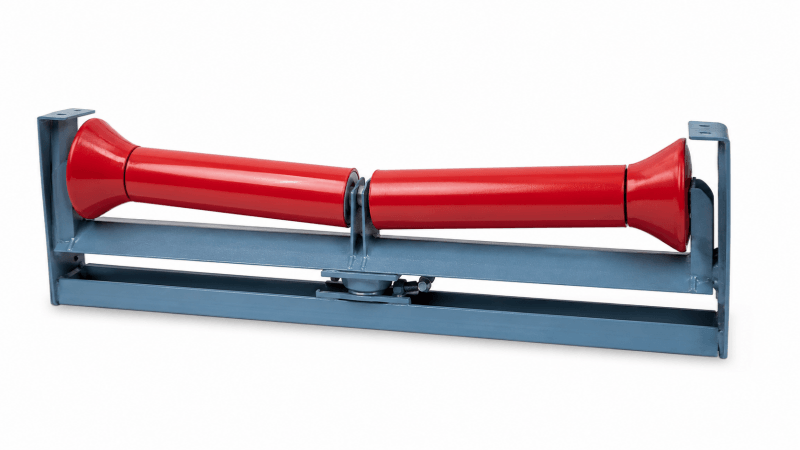

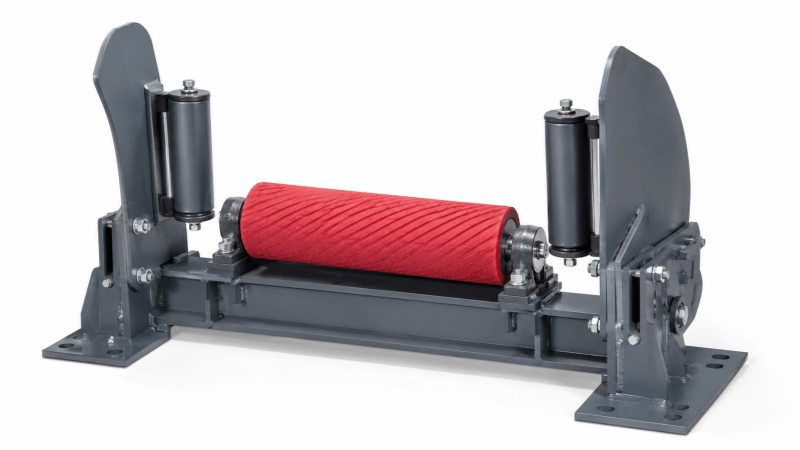

Featured Friction Roller Products: 6 Core Series
We provide friction roller solutions for carrying side, return side, and specialized heavy-duty conveyor systems, engineered for maximum belt protection and alignment precision.
Need a Different Friction Roller Configuration?

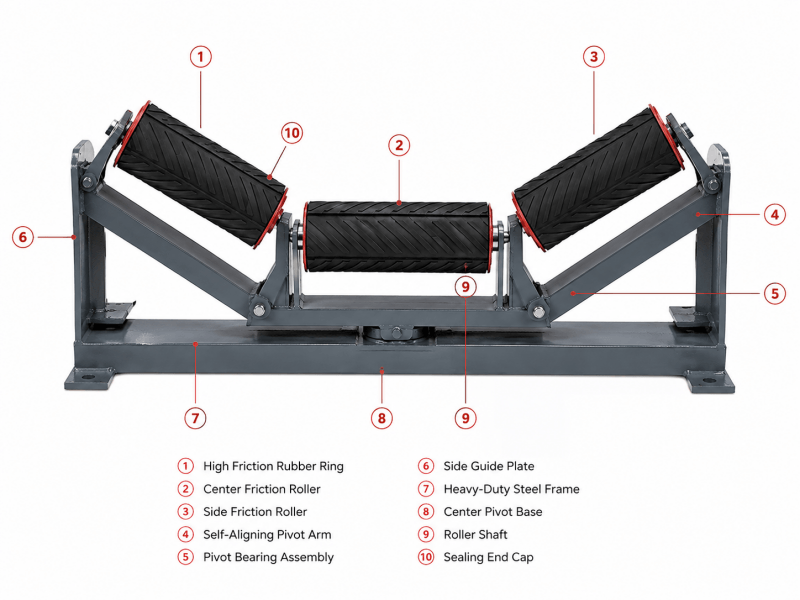

Complete Structure System: Key Components Explained
Explore the core components of our friction rollers, designed for high durability, smooth operation, and instant deviation correction in any industrial environment.
Deviation detected at friction point → Converted through wheel → Adjusted by frame → Stabilized by body
Classification System: Multi-Dimensional Friction Roller Categories
Select the ideal friction roller solution based on your conveyor's unique operational profile. Our classification system accounts for every critical engineering variable from placement to structural reinforcement.
- Carrying Side
- Return Side
- Transition Zone
- Standard
- Reinforced
- Dual-Side
- Carbon Steel
- Galvanized
- Rubber-Coated
- Standard Self-Aligning
- Heavy-Duty
- Anti-Deviation
Not Sure Which Type You Need?
Get Selection SupportTechnical Specifications & Standards: Matching Your Conveyor System
Precision engineering requires strict adherence to technical parameters. Ensure your friction rollers meet the load demands and environmental constraints of your logistics or mining operation.
Roller Length: 150mm - 2600mm
Shaft Size: 20mm - 50mm
Need Help Matching Specifications?
Request Technical ReviewCore Options for Durability: Materials, Bearings & Sealing
Performance is determined by component quality. We offer specialized configurations engineered to withstand abrasive environments, extreme loads, and moisture ingress.
Roller Shell Materials
- Carbon Steel (Standard Duty)
- High-Strength Alloy (Long Span)
- Mining Grade (Thick-walled)
Friction Surface Systems
- Rubber Ring Lagging
- Reinforced Polyurethane Surface
- Dual Contact Grip Pattern
Bearing Specifications
- Industrial Precision Ball Bearings
- Heavy-Duty Spherical Roller
- Low-Resistance High-Speed Series
Sealing Technology
- Triple Labyrinth Seal
- Multi-layer Contact Sealing
- IP67 Waterproof Submersible
Ensure your roller matches your specific environment.
Get Durability SpecsPrecision Manufacturing: Our Engineering & Production Flow
From material selection to dynamic testing, every FrictionPro roller undergoes a rigorous seven-stage manufacturing process to ensure structural integrity and zero-defect delivery.
Certified steel and polymer sourcing.
Precision CNC cutting and finishing.
Bearing seat grinding and hardening.
Automated CO2 welding for strength.
Integrated friction system fitting.
Dynamic balance and load verification.
Final QC and logistics packaging.
Experience our factory-standardized production.
View Factory TourQuality Control & Testing System: Ensuring Zero-Defect Delivery
Strict inspection for dimensional accuracy, dynamic balance, and correction performance. Our integrated testing environment ensures every friction roller exceeds international industrial benchmarks.
Absolute Consistency
Automated manufacturing tolerances kept within ±0.05mm for flawless system integration.
Operational Stability
Dynamic balancing G2.5 rating ensures minimal vibration and extended bearing longevity.
Material Integrity
Ultrasonic testing for all weld points and shell thickness to prevent structural fatigue.
Life-Cycle Reliability
Stress-testing protocols simulate 30,000 hours of continuous operation in harsh dust zones.
Quality is our top priority in every production batch.

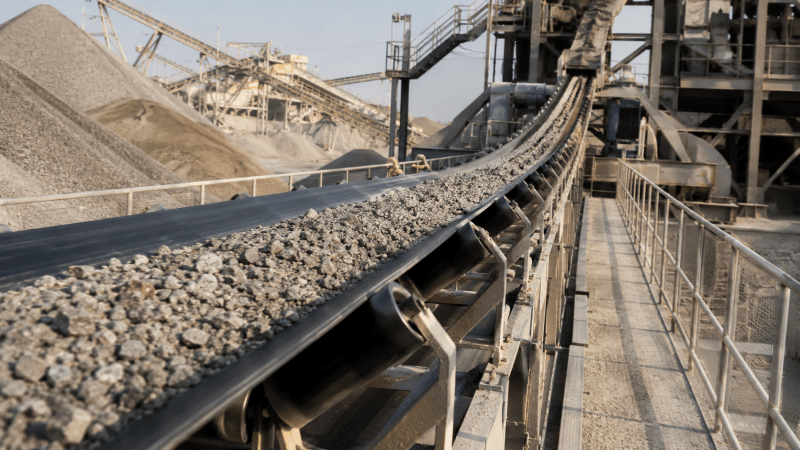

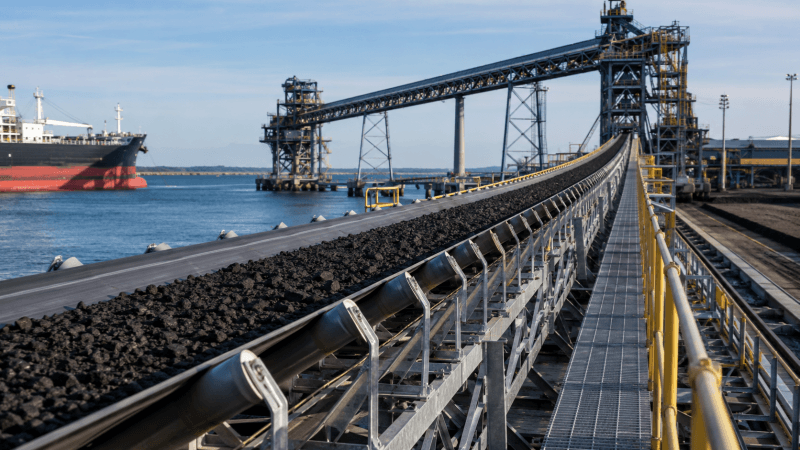

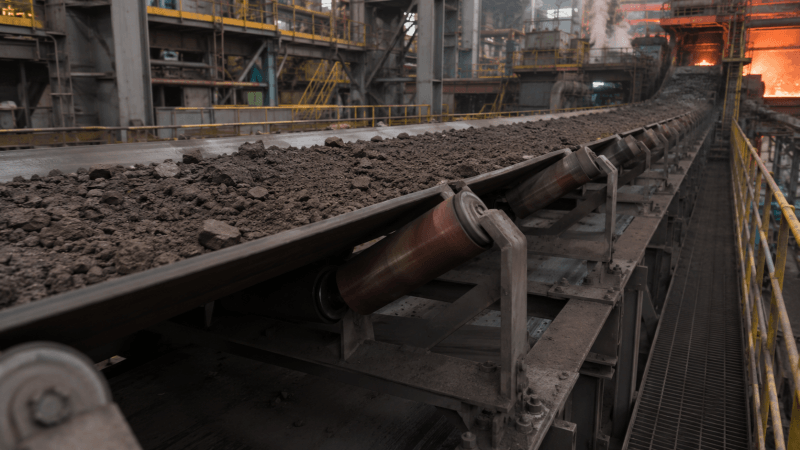

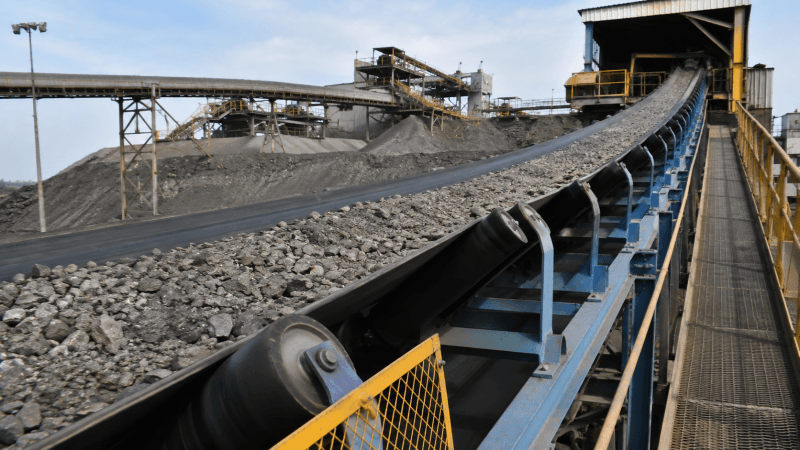

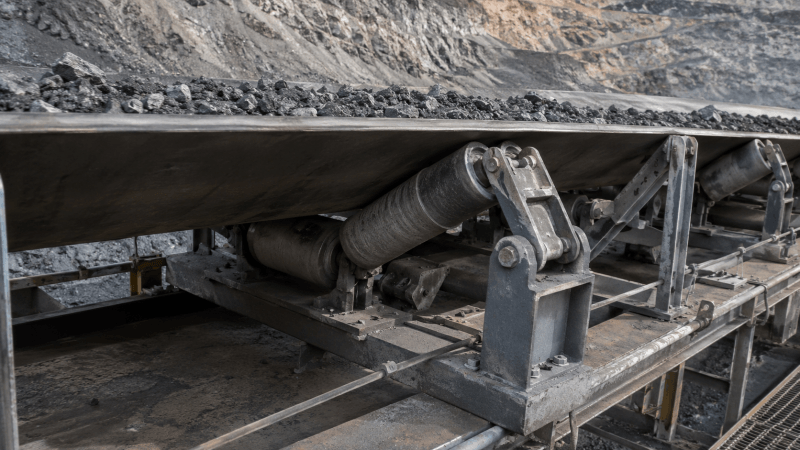

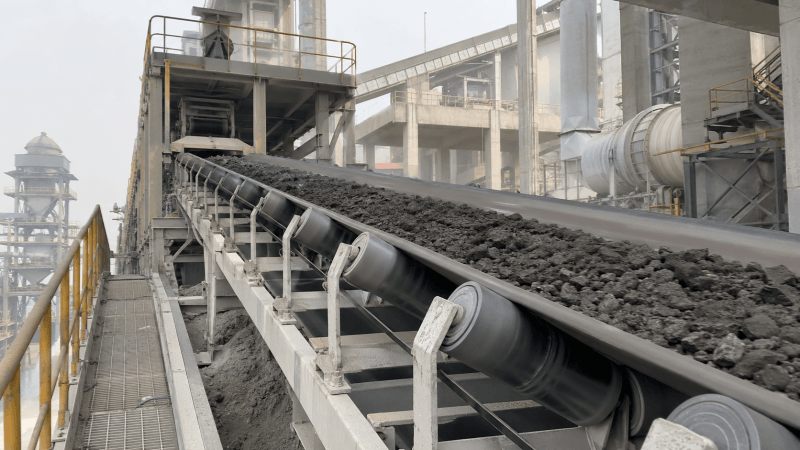

download Download QA StandardsIndustry Applications: Optimized for Harsh Environments
Proven performance in mining, ports, and heavy industry. Our friction rollers provide superior belt tracking where precision and durability are non-negotiable.
Our rollers adapt to your specific industry challenges.
Selection, Installation & Maintenance Guide: Maximizing Service Life
Correct setup and care are essential for long-term stability and peak performance of your conveyor infrastructure. Follow our engineered lifecycle phases to reduce downtime.
Strategic Selection
Match specific belt width requirements with load capacity and environmental factors such as moisture, temperature, and chemical exposure.
Professional Installation
Implement rigorous alignment protocols, mounting torque standards, and calculated spacing norms to prevent uneven wear and structural stress.
Technical Commissioning
Execute rotational testing and correction response audits under operational loads to ensure friction surfaces engage perfectly with the belt.
Preventative Maintenance
Conduct regular acoustic and thermal checks on bearings and seals. Proactive cleaning of the friction surface maintains optimal traction.
Ensure your system runs smoothly with professional guidance from our engineering leads.
Custom Manufacturing Capability: Engineering Solutions for Specific Needs
Supporting drawing-based production and project-specific adaptation to ensure every component integrates seamlessly into your proprietary logistics hardware.
Engineering Customization
Drawing-Based Mfg.
Direct production from your CAD/Technical blueprints.
Precision Sizing
Adjustable diameter and shaft lengths for any frame.
Condition Tuning
Optimization for extreme heat or abrasive environments.
Design Collab
Work directly with our R&D for unique friction solutions.
Factory Strength
Mass Production
Scalable capacity to meet thousands of units per week.
Stable Supply
Vertical integration ensuring raw material availability.
Global Export
Proven logistics handling for international shipments.
Fast Response
Coordination cycles streamlined for tight deadlines.
Connect with our engineering team for your custom project today.
Get Custom Friction Roller Solutions Directly from China Factory
Send your requirements for technical confirmation and a competitive quotation. Our engineers are ready to assist with your specific conveyor challenges.
-
Direct Communication
Speak directly with our technical sales engineers to eliminate middlemen and reduce lead times.
-
Engineering Customization
Custom drawings and material selections tailored for high-friction or extreme load mining environments.
-
Bulk Order Capability
Factory-direct manufacturing pipelines optimized for high-volume logistics and infrastructure projects.
-
Pre-production Review
Every custom roller undergoes a rigorous engineering validation before the production line begins.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
