Diamond Mesh Netting for Mine Roadway & Tunnel Surface Support
Made from high-strength steel wire with a twisted diamond mesh structure, Diamond Mesh Netting helps cover rock surfaces, intercept small loose rocks, adapt to uneven rock walls, and work in complete anchor-mesh support systems.
Simplify your ground reinforcement with our integrated mesh technology.
What Is Diamond Mesh Netting?
A flexible twisted wire mesh used for mine roadway support, tunnel initial support, slope protection, false roof support, and anchor-mesh support systems.
The diamond mesh structure provides exceptional flexibility, allowing it to conform precisely to irregular rock surfaces. This ensures that the primary support elements (bolts) can distribute load effectively across the entire mesh surface.
High-Strength Steel Wire
Manufactured from premium cold-drawn or galvanized steel wire for maximum tensile capacity.
Twisted Diamond Structure
Optimized geometry for load distribution and resistance against puncture from falling rock.
Flexible Surface Protection
Adapts to convex and concave rock walls without losing structural integrity or tension.
Part of Anchor-Mesh Support
Designed to integrate seamlessly with rock bolts, washers, and steel straps.
Position in Anchor-Mesh Support System
Why Diamond Mesh Netting Matters in Rock Surface Support
Understanding the crucial role of diamond mesh in comprehensive surface support systems for optimal safety.
Rock Surface Protection
Provides a continuous protective "skin" over excavated surfaces, preventing early-stage weathering and atmospheric degradation of the rock mass.
Loose Rock Retention
Effectively captures and holds small fragments of loose rock (scaly rock) that fall between primary bolt locations, protecting personnel and equipment.
Surface Deformation Restraint
The high tensile strength of the twisted wire provides passive resistance to initial rock movement, stabilizing the shallow surrounding rock.
Support Safety Improvement
Reduces the risk of roof falls and rib spalling. Essential for long-term safety in high-traffic main haulage roadways and permanent tunnels.

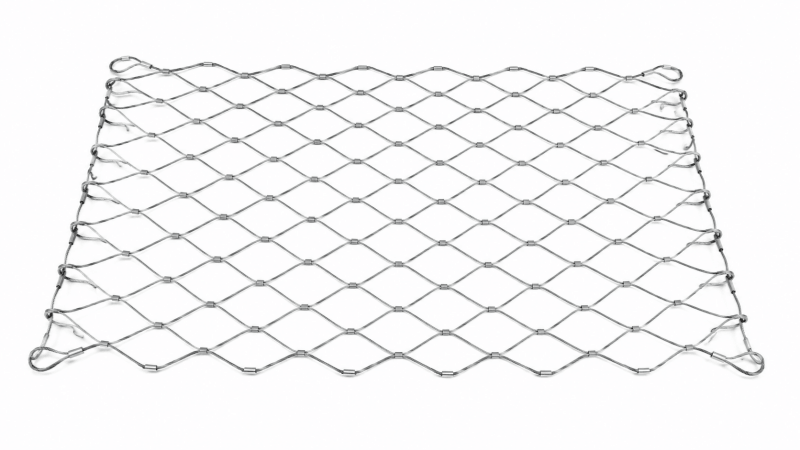

Diamond Mesh Netting Product Range
Flexible twisted wire mesh options for mine roadway support, galvanized corrosion protection, heavy-duty surface support, slope protection, tunnel initial support, and custom project requirements.

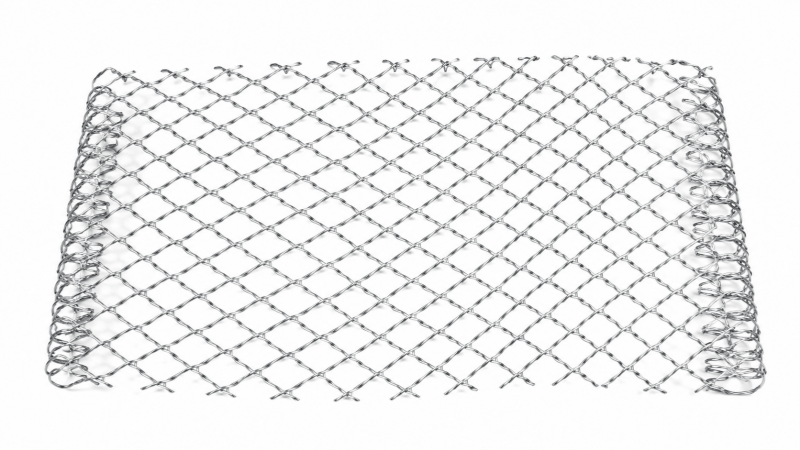

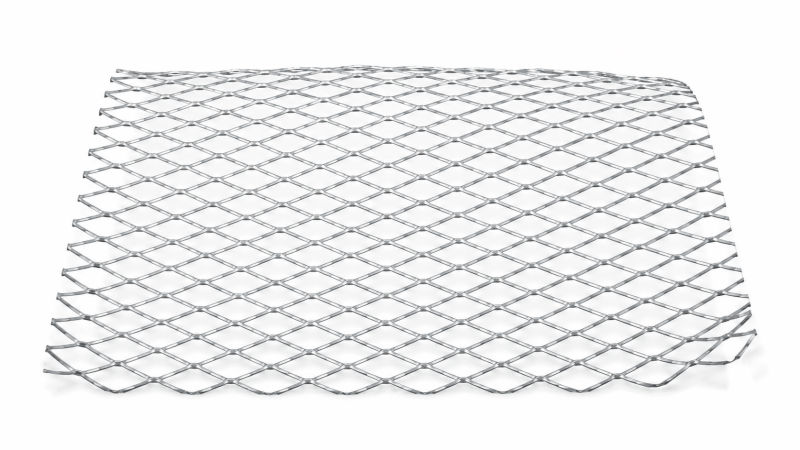

Standard Diamond Mesh
The industry standard for basic surface reinforcement and loose rock containment.
View Specs
Galvanized Diamond Mesh
Enhanced corrosion resistance for humid mine environments and long-term durability.
View Specs

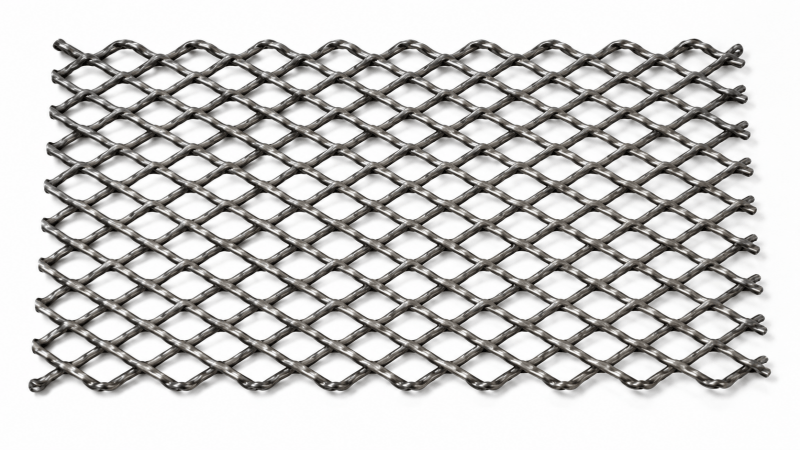

Heavy-Duty Diamond Mesh
Engineered for high-stress zones requiring maximum tensile strength and impact resistance.
View Specs

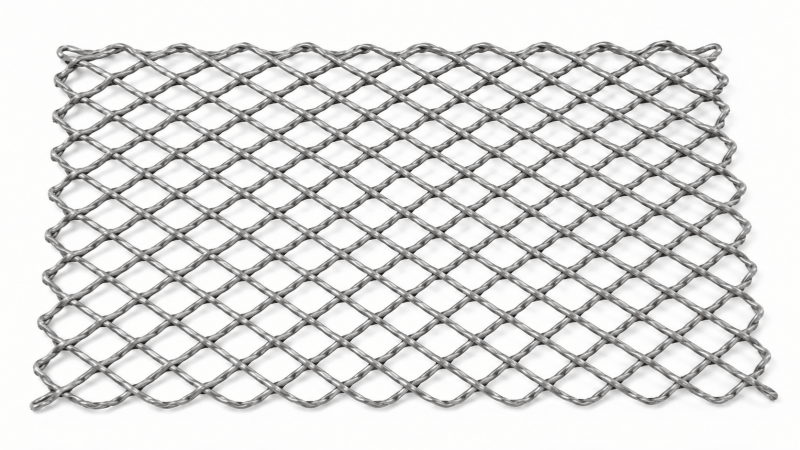

Mine Roadway Diamond Mesh
Specialized weaving patterns designed specifically for roof and rib support in mining operations.
View Specs

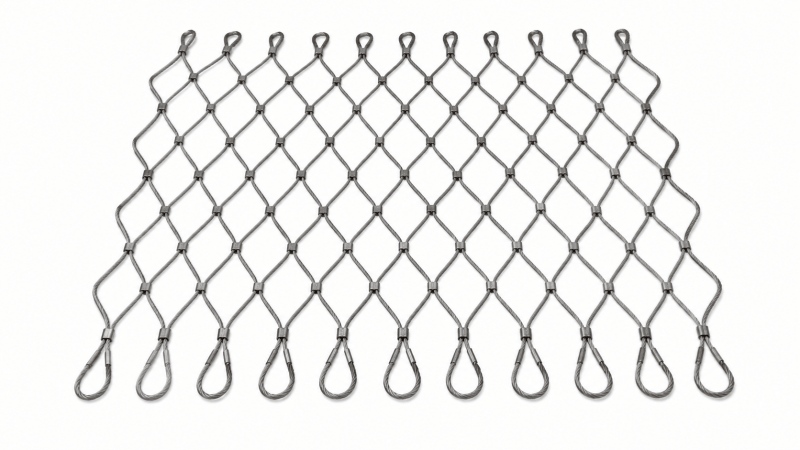

Slope Protection Diamond Mesh
Large-scale mesh sheets optimized for stabilizing open-pit slopes and preventing rockfalls.
View Specs
Custom Diamond Mesh Netting
Tailor-made dimensions, wire diameters, and mesh openings for unique project constraints.
Request CustomHow Diamond Mesh Netting Supports Surrounding Rock
Diamond Mesh Netting supports surrounding rock by covering exposed surfaces, retaining loose blocks, distributing local stress, and adapting to deformation.
Surface Protection
Forms a continuous skin that prevents weathering and keeps loose fragments from falling into active areas.
Stress Distribution
Bridges the gaps between rock bolts, transferring localized pressure across the entire supported surface.
Flexible Deformation
The twisted wire structure allows for movement and energy absorption without catastrophic failure.
Composite Support
Works in tandem with rock bolts and shotcrete to create a unified structural reinforcement system.
Diamond Mesh Netting Technical Specifications
Comprehensive technical parameters and material specifications to guarantee the structural integrity of your support systems.
Wire Diameter
Selected based on the predicted rock pressure and potential impact energy from loose fragments.
Mesh Opening
Determined by the minimum size of rock blocks that need to be safely retained by the netting.
Galvanized Finish
Chosen based on the environment's corrosivity (Electro-galvanized vs Hot-dip galvanized).
| Standard Technical Parameters | |
|---|---|
| Wire Diameter | 2.0 - 5.0 mm |
| Mesh Opening | 40x40 - 100x100 mm |
| Tensile Strength | 300 - 500 MPa |
| Elongation | ≥ 12% |
| Sheet Width | 0.5 - 2.0 m |
| Sheet Length | 1.0 - 10.0 m |
| Surface Treatment | Electro / Hot-dip Galvanized |
Custom Specifications Available
We provide precision manufacturing for non-standard project requirements and specific mining standards.
Complete Diamond Mesh Netting Support System
A professional-grade anchor-mesh support system integrates high-tensile components to ensure structural stability in high-stress environments.
The primary surface containment layer constructed from high-tensile steel wire with a twisted diamond structure.
Precision-engineered clips used to secure adjacent mesh panels, ensuring seamless load transfer across the entire surface.
Specialized hardware that anchors the mesh to the primary support bolts, preventing slippage or deformation.
Deep-insertion support elements that penetrate the rock mass to provide foundational tensile strength.
Surface reinforcement components that distribute bolt pressure and prevent local mesh puncture.
How the Anchor-Mesh Support System Works Together
Drill & Bolt
Lay Mesh
Fix Connectors
Secure Clips
Final Tension

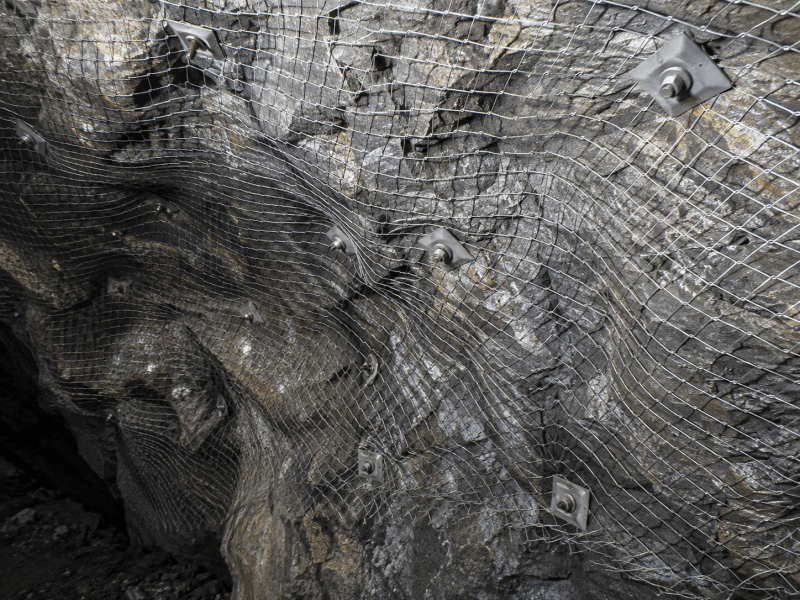

Flexible Twisted Mesh for Deformation Adaptation
Engineered to absorb energy and conform to irregular rock surfaces, preventing brittle failure in high-stress zones.

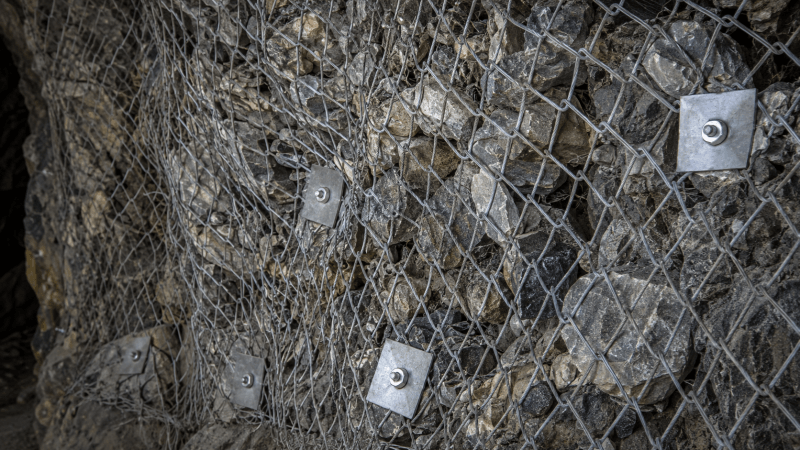

Built for Uneven Rock Faces
Unlike rigid welded wire mesh, our twisted diamond mesh is designed to follow the natural contours of the rock surface. This unique flexibility allows the system to absorb large-scale deformations without structural failure, making it ideal for tectonically active zones or squeezing ground conditions.
The diamond geometry allows for controlled elongation and energy absorption during ground movement.
Knotted joints allow the wires to slide slightly, preventing the brittle snapping common in welded joints.

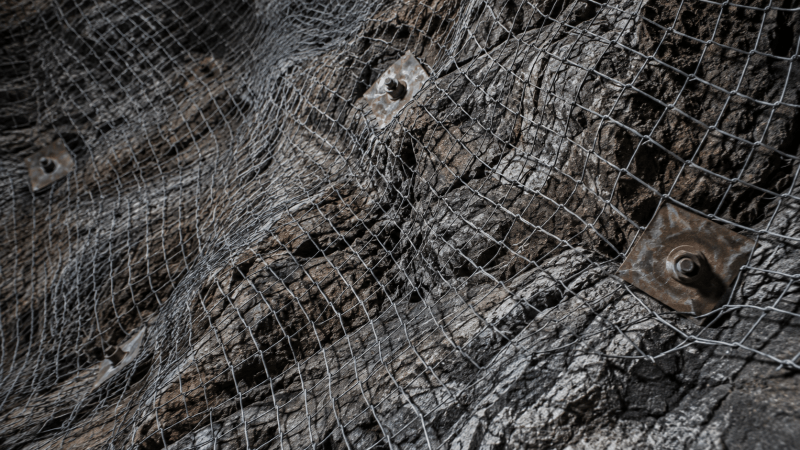

The mesh "hugs" the rock face, eliminating voids where debris could accumulate and create pressure points.
Capable of maintaining integrity even when the rock mass undergoes significant plastic deformation.
- High energy absorption capacity
- Conforms to irregular surfaces
- Durable against seismic shocks
- Easy to handle and install manually
- Prone to joint snapping under stress
- Leaves gaps on uneven rock faces
- Low tolerance for deformation
- Heavier and harder to transport
Works with Rock Bolts, Cable Bolts & Steel Straps
DiamondMesh Pro is engineered to be the core of a composite support strategy, offering seamless integration with all standard underground and surface reinforcement tools.
Directly compatible with split set, expansion, and resin-grouted bolts for immediate skin reinforcement.
Provides the necessary surface coverage to contain loose rock between deep-anchored cable bolt patterns.
Integrates with W-straps or flat straps to provide enhanced linear support across fracture zones.
Accommodates standard and oversized bearing plates to ensure maximum surface contact area.
Composite Support Working Path
Rock Mass Analysis
Internal Reinforcement
Surface Containment
Composite Stability
Why Composite Support Matters
A single support element is rarely enough for challenging ground conditions. Composite support combines the high tensile strength of bolts with the high containment surface of DiamondMesh, creating a unified system that prevents both localized rockfalls and large-scale structural failure.
Standard Installation Process for Diamond Mesh Netting
A practical installation sequence for flexible diamond mesh used in mine roadway, tunnel, and slope protection.
Prepare & Inspect
Clear the work surface of loose debris. Inspect mesh rolls for consistency and verify anchor bolt positioning according to the engineering plan.
Lay Mesh
Unroll the high-tensile mesh across the designated area. Ensure proper orientation to maximize the rhomboid structure's load-bearing efficiency.
Connect Panels
Overlap adjacent mesh panels. Use specialized high-strength clips or tie wires to ensure the connection maintains the strength of the main panel.
Fix with Bolts
Install rock bolts or anchors through the mesh. Apply pressure plates to distribute the clamping force evenly across the wire junctions.
Adjust Position
Tension the mesh to remove sags. Conduct a final inspection of all connection points and plate contacts to ensure structural integrity.
- Maintain a minimum overlap of 100-200mm between vertical and horizontal mesh panels.
- Ensure anchor bolts are perpendicular to the rock surface for maximum retention.
- Use galvanized fasteners to prevent galvanic corrosion at connection points.
- Mesh must be pulled tight to minimize displacement during initial rock movement.
Mesh Connection, Plate Compression & Surface Contact Control
Rigorous quality standards to ensure your support system performs under extreme industrial stress.
Panel Connection
Verification that overlaps meet the engineering width requirements and are secured every 200mm-300mm.
Clip Fastening
Inspection of clip tension to prevent sliding between panels under high dynamic loads.
Continuous Surface
Ensuring the mesh creates a seamless "support envelope" without gaps larger than the mesh aperture.
Plate Compression
Torque checks on anchor nuts to ensure the plate is sufficiently compressing the mesh against the rock.
Rock Surface Contact
The mesh must follow the contours of the rock face to provide immediate active support and prevent rock fall.
Looseness Control
Zero-tolerance for mesh bagging; any sagging areas must be re-anchored or tensioned manually.
Why Choose Diamond Mesh Netting for Mine Support
A comparative analysis of our flexible wire mesh against traditional rigid support solutions.
Excellent Flexibility and Adaptability
The diamond mesh opening and twisted weaving structure provide superior flexibility to fit uneven rock walls and adapt to deformation.

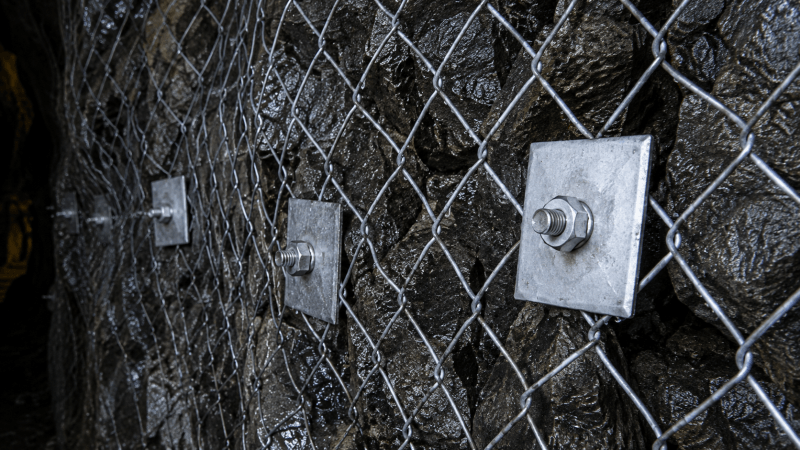

Reliable Rock Surface Protection
Covers supported surfaces to intercept small loose rock blocks between bolts, ensuring continuous protection and safety.

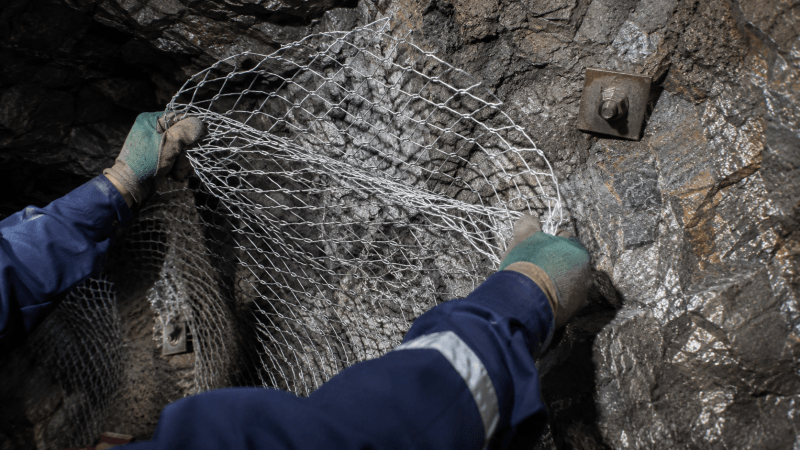

Easy and Efficient Installation
Lightweight and flexible design allows for faster unfolding, laying, and adjustment compared to rigid support materials.

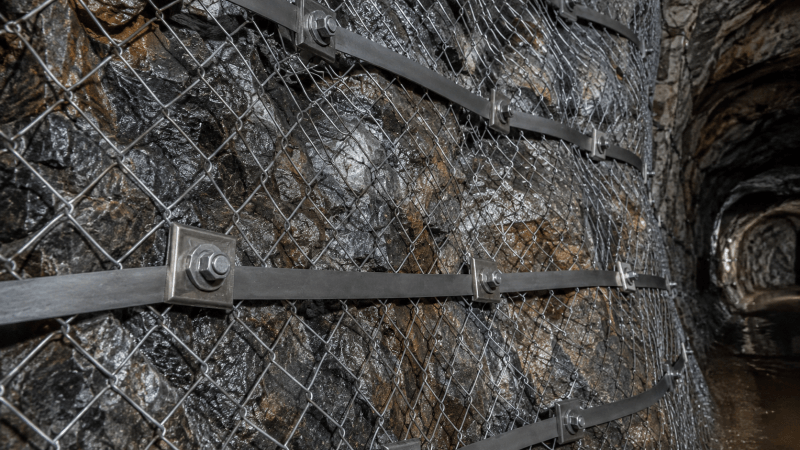

Uniform Stress Distribution
Distributes local rock stress evenly to nearby bolts and steel straps, reducing the risk of localized support failure.
Galvanized Corrosion Protection
Available in electro-galvanized or hot-dip galvanized finishes for long-term durability in humid and corrosive environments.

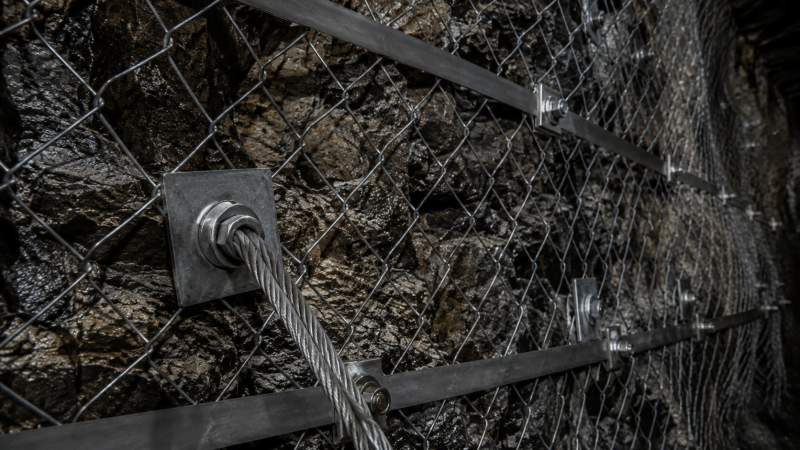

Anchor-Mesh System Compatibility
Designed to work seamlessly with rock bolts, cable bolts, and steel straps as part of a high-performance composite support system.
Where Diamond Mesh Netting Is Used
Engineered for extreme environments, ensuring structural integrity where it matters most.

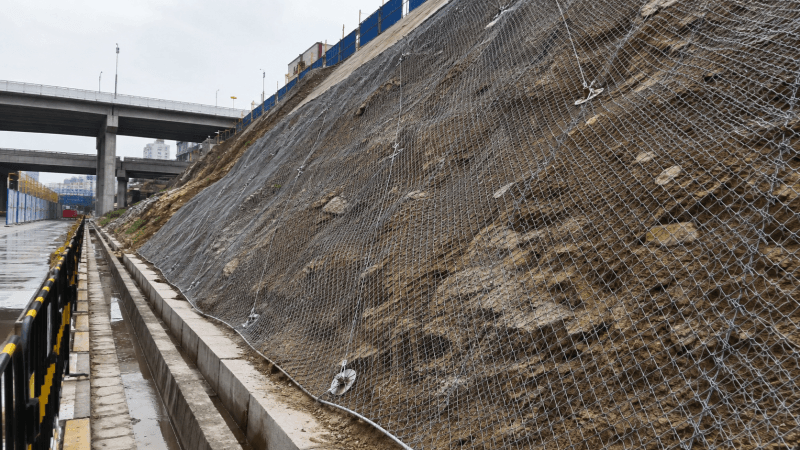

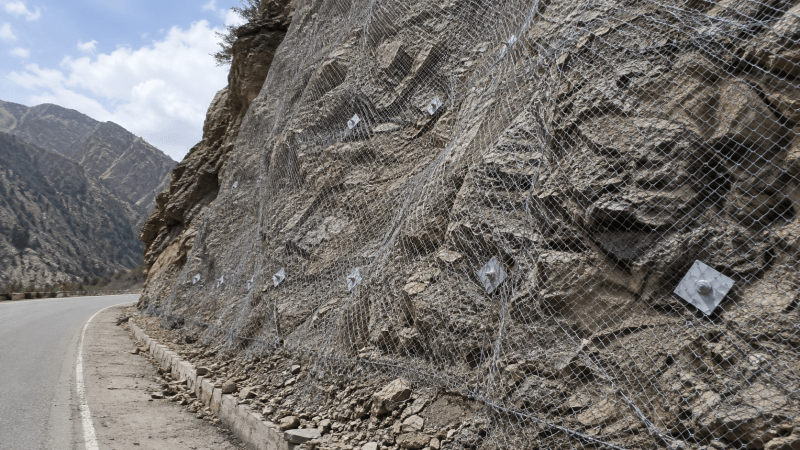

Slope Stabilization
Area: Mountain highways and high-risk rock slopes.
Challenge: Preventing rockfalls on active roadways.
How Mesh Helps: The high-tensile wire prevents initial detachment and guides loose debris safely to the base.

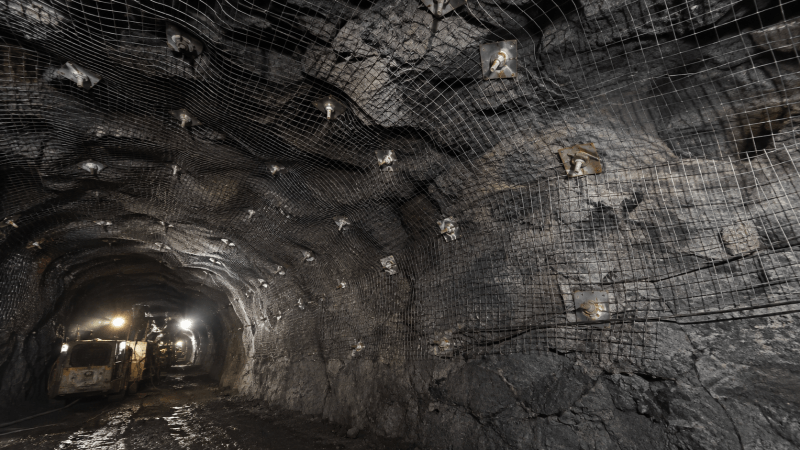

Underground Mining
Area: Main haulage drives and working faces.
Challenge: Managing ground pressure and rock bursts.
How Mesh Helps: Provides immediate surface support and interacts with rock bolts to contain fractured rock masses.

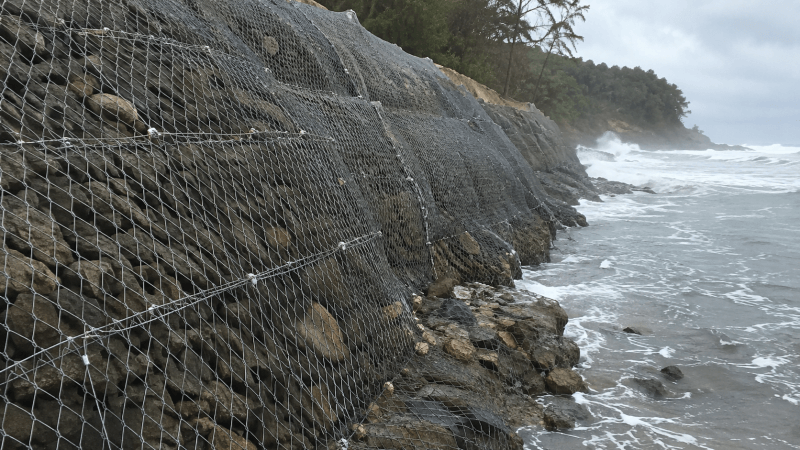

Coastal Protection
Area: Shoreline embankments and gabion structures.
Challenge: High salinity corrosion and hydraulic impact.
How Mesh Helps: Specialized coatings withstand saltwater while maintaining the structural integrity of shoreline reinforcements.

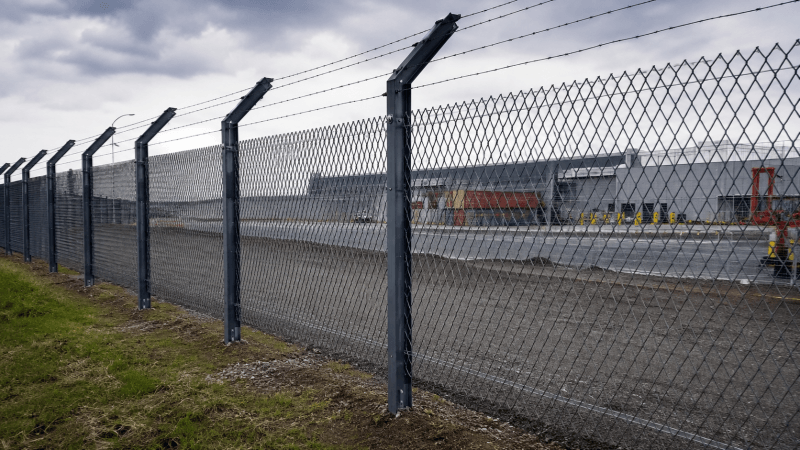

Industrial Security
Area: Logistics hubs and critical infrastructure sites.
Challenge: Unauthorized access and perimeter breaches.
How Mesh Helps: High-strength weave offers superior cut resistance compared to standard chain link fencing.

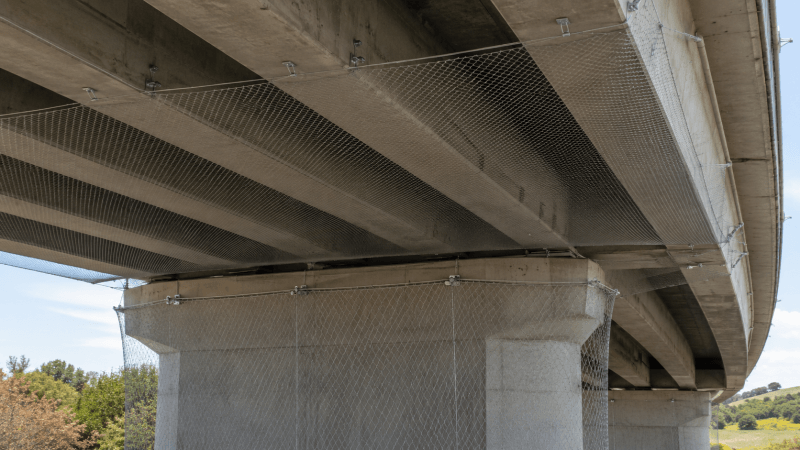

Bridge Engineering
Area: Under-deck debris containment and pylon protection.
Challenge: Catching falling materials during maintenance.
How Mesh Helps: Lightweight yet incredibly strong, it captures heavy objects without adding significant dead weight to the structure.
Civil Engineering Protection
Suitable Area: Civil engineering projects, infrastructure protection, embankment stabilization, and urban construction safety.
Key Challenge: Urban infrastructure and civil engineering sites often require flexible, reliable surface protection to manage loose material and ensure public safety.
How Mesh Helps: Diamond Mesh Netting provides a versatile surface control layer that integrates with civil engineering support designs.
Professional Selection Guide
Choose the right technical parameters for optimal safety and economy.
Wire Diameter
Ranging from 2.0mm to 4.5mm. Thicker wire provides higher tensile strength for deep mining.
Mesh Opening
Typically 50x50mm or 60x60mm. Smaller openings prevent minor rock fragments from falling.
Galvanized Finish
Hot-dip galvanized coating for high-corrosion mine environments or high humidity tunnels.
Application Scenario
Dynamic pressure roadway vs. static slope protection requires different flexibility profiles.
| Project Condition / Requirement | Recommended Selection Direction | Selection Reason |
|---|---|---|
| Deep Coal Mine (>800m) | 4.0mm+ High-Tensile Wire, 50mm Mesh | Resists extreme lateral pressure and potential rock burst energy. |
| High Humidity Tunnel | Hot-Dip Galvanized (>200g/m²) | Prevents rust degradation, maintaining structural strength over 50+ years. |
| Permanent Slope Protection | 3.0mm Galvanized Wire, 60-80mm Mesh | Balanced weight-to-strength ratio for easy installation on steep terrain. |
| Temporary Safety Shielding | 2.5mm Low-Carbon Wire, 50mm Mesh | Prioritizes flexibility and cost-effectiveness for short-term use. |
Get Custom Diamond Mesh Netting Solutions Directly from China Factory
Send us your wire diameter, mesh opening size, sheet width/length, surface treatment (Galvanized / Black), and project quantity. Our engineering team will recommend suitable Diamond Mesh Netting specifications.
-
Factory Direct Supply
Direct communication with a China manufacturer for faster quotation and direct pricing.
-
Custom Specifications
Tailored wire gauge, mesh opening size, sheet dimensions, and edge finishing.
-
Engineering Support
Specialized guidance for mine roadways, tunnel surface protection, slope stabilization, and false roofs.
-
Certified Quality & Testing
Full QA support for wire tensile strength, mesh aperture precision, and galvanization coating thickness.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
