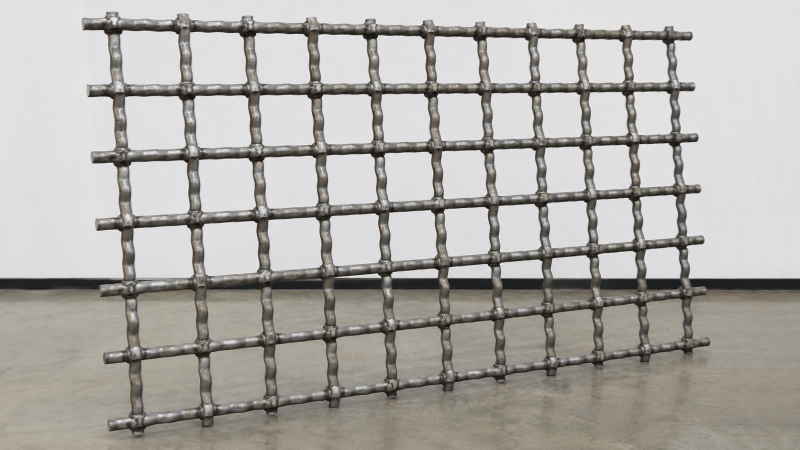

What Is Crimped Welded Mesh?
A high-strength rigid mine support mesh made by pre-crimping steel wires and welding every crossing point for stronger surface control and impact resistance.
High-Strength Crimped & Welded Mesh for Rockburst Mine Support
Crimped Welded Mesh, also called crimped welded wire mesh, is a high-strength support mesh that combines pre-crimping and resistance welding. Before welding, the steel wires are first formed into a crimped profile. After arranging the warp and weft wires, each crossing point is welded to create a rigid and stable mesh panel.
Compared with ordinary woven mesh or standard welded mesh, Crimped Welded Mesh provides stronger cross point stability, higher rigidity and better impact-resistant performance. It is widely used in rockburst roadways, strong dynamic pressure ground, broken surrounding rock, false roof support, tunnel initial support and anchor mesh support systems.
Pre-Crimped Steel Wire
High-strength steel wires are pre-crimped before welding, creating a wave-shaped structure for better positioning and rigidity.
Welded Cross Points
Each crossing point is welded to help reduce wire loosening, weld failure and mesh opening deformation under heavy load.
Strong Rigid Surface Control
The crimped and welded structure provides strong rigid restraint for broken rock and early-stage roadway deformation.
Anchor Mesh System
Works with rock bolts, anchor cables, plates and steel straps to form a complete high-strength support system.
Discover how our crimped welded mesh structure enhances mine safety. Contact us for technical support and custom solutions.
Request Technical SupportWhy Ordinary Mesh Fails in Rockburst, Strong Dynamic Pressure & Broken Ground
Ordinary mesh may not provide enough welded strength, rigid restraint and impact resistance for rockburst roadways, strong dynamic pressure ground and broken surrounding rock.
Wire Loosening Under Impact
Ordinary woven mesh may loosen at intersections when exposed to repeated pressure, vibration or sudden impact load.
Weld Point Failure Risk
Standard welded mesh may face weld point cracking or detachment when the roadway is affected by strong dynamic pressure.
Mesh Tearing in Rockburst Areas
In rockburst-prone areas, weak mesh panels may tear or open under sudden impact, reducing surface protection performance.
Poor Rigid Restraint
Flexible or low-rigidity mesh may not provide enough restraint for broken surrounding rock and early roadway deformation.
Mesh Opening Deformation
When mesh openings deform under load, small rock blocks may pass through the gaps and create safety risks in the roadway.
Unstable Anchor Mesh System
If the mesh cannot distribute stress evenly, local load may concentrate around bolts, cables or fixing points, reducing system stability.
Find the right solution for your mining safety.
Request Technical SupportCrimped + Welded Structure for Stronger Rigid Surface Support
Crimped Welded Mesh combines pre-crimped steel wire and welded cross points to create a stronger, more stable and more impact-resistant rigid support mesh for demanding mine conditions.
The unique combination of pre-crimping and high-strength welding creates a synergistic effect that exceeds the performance of traditional support materials. Our mesh is engineered to dissipate energy across its entire surface, ensuring localized impacts do not lead to catastrophic system failure.
Absorbs sudden kinetic energy through the geometric rigidity of crimped intersections.
Maintains structural integrity during tectonic shifting and heavy machinery vibration.
Prevents fallout of fragmented material through high-rigidity mesh aperture control.
Ordinary Woven Mesh
- Prone to wire loosening
- Low surface rigidity
- High deformation under load
Crimped Woven Mesh
- Better positioning than standard
- No welded reinforcement
- Moderate impact resistance
Crimped Welded Mesh
- Double-lock reinforcement
- Maximum surface rigidity
- Peak rockburst performance
Upgrade your mine support reliability today.
View Support Values6 Types of Crimped Welded Mesh for Different Mine Support Projects
Factory-direct crimped welded mesh options for rockburst roadways, strong dynamic pressure ground, broken surrounding rock, false roof support, tunnel support and project-based anchor mesh systems.
"Different mine support projects require different wire diameter, mesh opening, weld strength, panel size, surface treatment and support capacity. XINYONGDUO can provide standard and customized crimped welded mesh based on roadway condition, rockburst risk, dynamic pressure level, anchor layout and project purchasing requirements."

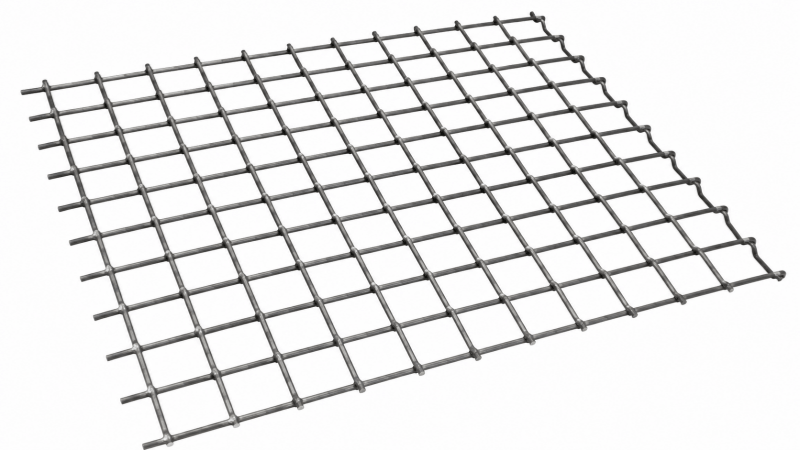

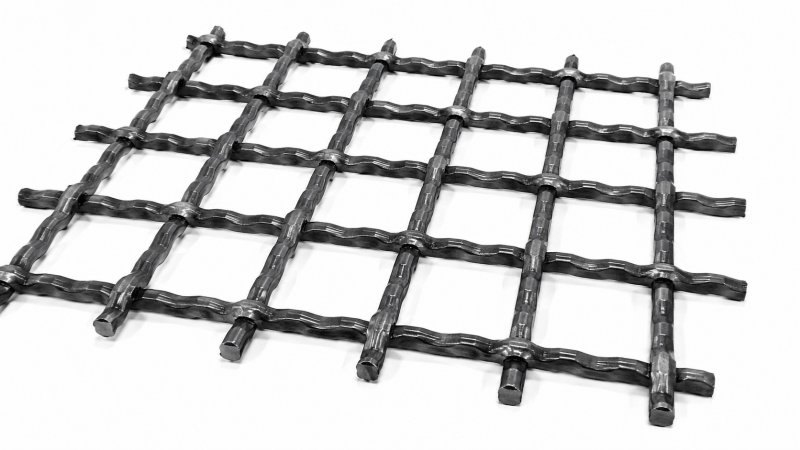

Standard Crimped Welded Mesh
Made from pre-crimped steel wire with welded cross points, suitable for routine mine roadway surface support where stronger mesh stability is required.
Heavy-Duty Crimped Welded Mesh
Designed with stronger wire and welded intersections for higher rigidity, stronger impact resistance and more stable surface support.

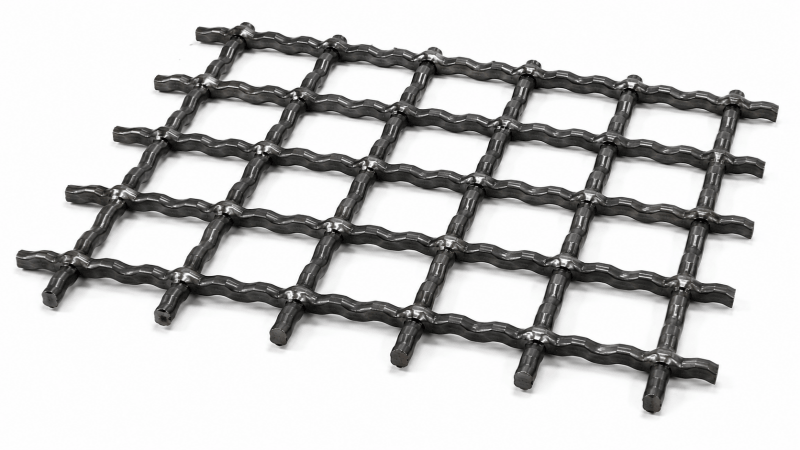

Rockburst Support Mesh
The crimped and welded structure helps the mesh panel resist sudden impact load and reduce tearing or opening risk.

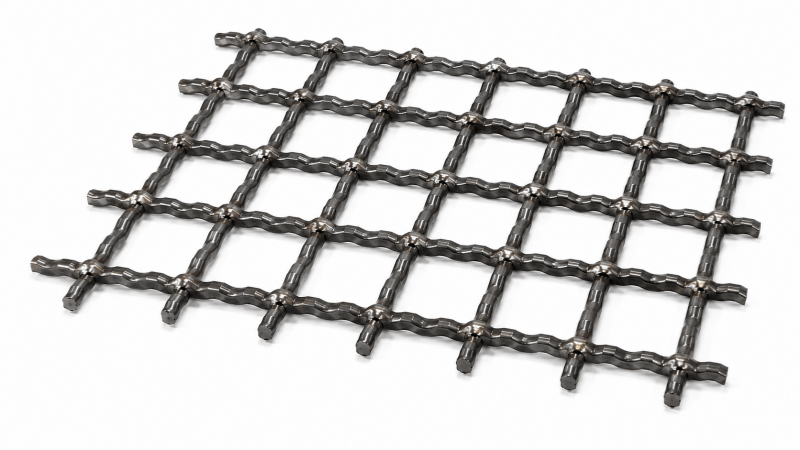

Broken Ground Mesh
Strong rigid mesh panel helps restrain broken rock, control surface deformation and reduce rockfall risk between anchor points.

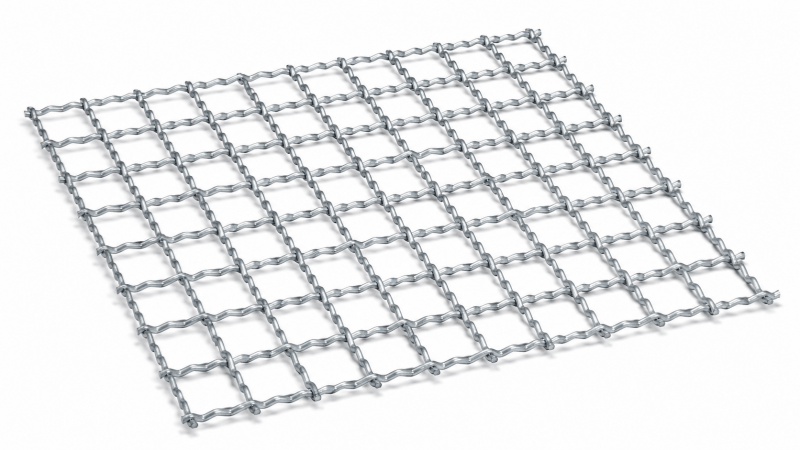

Galvanized Crimped Mesh
Available with electro-galvanized or hot-dip galvanized finish to improve corrosion resistance and service life.

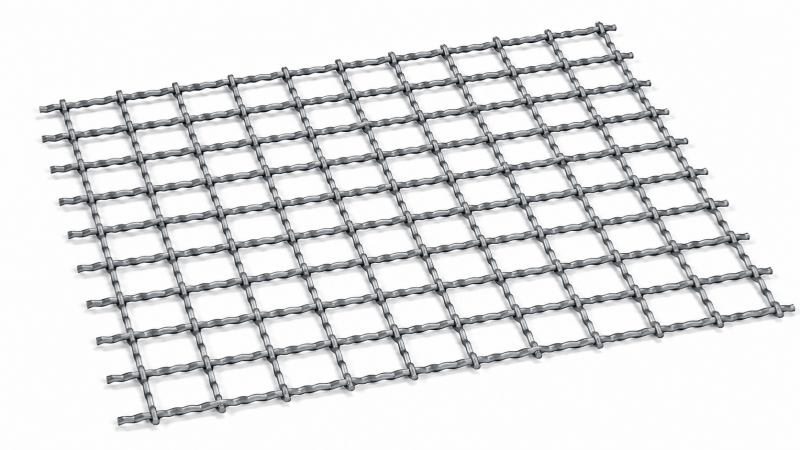

Custom Crimped Welded Mesh
Wire diameter, mesh opening, weld strength, panel width, panel length, tensile strength and surface treatment can be customized.
Not sure which crimped welded mesh type fits your mine support project?
Contact our engineering team for a customized support analysis and material selection guide.
Send InquirySurface Protection, Stress Transfer, Strong Rigid Control & Impact Load Resistance
Crimped Welded Mesh works as a high-strength rigid surface support layer that controls loose rock, transfers load, restrains deformation, resists impact and cooperates with anchor support systems.
"In rockburst roadways, strong dynamic pressure ground and broken surrounding rock, support mesh must provide more than simple surface coverage. Crimped Welded Mesh uses pre-crimped steel wire and welded cross points to create a rigid integrated support surface."
Surface Protection
Prevents small loose rock blocks from falling between anchor points, maintaining immediate face safety.
Stress Transfer
Spreads local load to surrounding support points, preventing localized failure and mesh tearing.
Strong Rigid Control
Restrains broken rock and early roadway surface deformation with high structural stiffness.
Impact Load Resistance
Bearing impact load evenly across the integrated surface during dynamic rockburst events.
System Cooperation
Works seamlessly with rock bolts and cables to form a complete, reinforced supporting structure.
Anchoring Stability
Improves the efficiency of anchor plates by providing a flat, rigid bearing surface against the rock.
Match your support system requirements today.
Technical SupportPre-Crimped Steel Wire, Welded Cross Points & Stable Mesh Panel
The crimped and welded structure creates a stronger rigid mesh panel by combining pre-crimped steel wire positioning with welded cross point reinforcement.
Why Crimped + Welded Structure Creates a Stronger Mesh Panel
Crimped Welded Mesh is not a simple welded mesh. Before welding, high-strength steel wires are first processed into a wave-shaped crimped profile. After the crimped warp and weft wires are arranged, each crossing point is welded by resistance welding.
High-Strength Steel Wire
Base strength foundation using premium raw materials.
Pre-Crimped Steel Wire
Wave profile ensuring mechanical interlocking prior to welding.
Welded Cross Points
Dual-locking structure securing every intersection.
Stable Mesh Panel
Integrated surface resulting in unmatched rigid support.
Better Wire Positioning
Precise spacing maintained by the crimped wave geometry.
Stronger Joint Stability
Cross points resist displacement under extreme tectonic pressure.
Higher Panel Rigidity
Minimized deformation compared to standard woven or welded mesh.
Integrated Load Bearing
Load is distributed evenly across the entire welded panel surface.
Confirm your structural requirements with our engineers.
Technical ConsultationWire Diameter, Mesh Opening, Tensile Strength & Finish
Key technical parameters help buyers select the right crimped welded mesh for rockburst roadways, strong dynamic pressure ground, and anchor mesh support systems.
| Parameter | Standard Range | Unit | Selection Notes |
|---|---|---|---|
| Wire Diameter | 3.0 – 6.5 | mm | Thicker wires are used for heavy-duty floor and roof support. |
| Mesh Opening | 40x40 – 100x100 | mm | Smaller openings prevent smaller rock fragments from falling. |
| Steel Wire Tensile Strength | 350 – 550 | MPa | High tensile strength for dynamic pressure absorption. |
| Weld Point Tensile Strength | ≥ 500 | N | Ensures cross points do not snap under heavy impact. |
| Panel Dimensions | Customizable | m | Standard 1x2m or custom lengths up to 6m for tunnel lining. |
| Surface Treatment | Galvanized / Black | - | HDG recommended for corrosive and humid underground environments. |
Wire Diameter Analysis
Determines the overall weight and static load capacity. Optimal for calculating the safety factor in roof bolting applications.
Mesh Opening Efficiency
Controls the retention of broken rock. Square patterns provide equal bi-directional support across the rock face.
Tensile Force Resistance
Defines the material's ability to undergo plastic deformation during rockburst events without structural failure.
Weld Integrity Standards
Each weld point is ultrasonically tested to ensure minimal fracture risk at high stress concentration areas.
Panel Sizing Adaptability
Modules can be sized for specific shield support equipment or manual installation workflows in narrow veins.
Corrosion Protection
Advanced galvanization processes provide 20+ years of life in the most demanding acidic water conditions.
Need a custom crimped welded mesh specification?
Our manufacturing facility can adjust wire gauges and opening patterns to meet the specific geotechnical requirements of your site.
Request Custom QuoteCrimped Welded Mesh Panel, Connection Clips, Fixing Parts, Rock Bolts & Anchor Cables

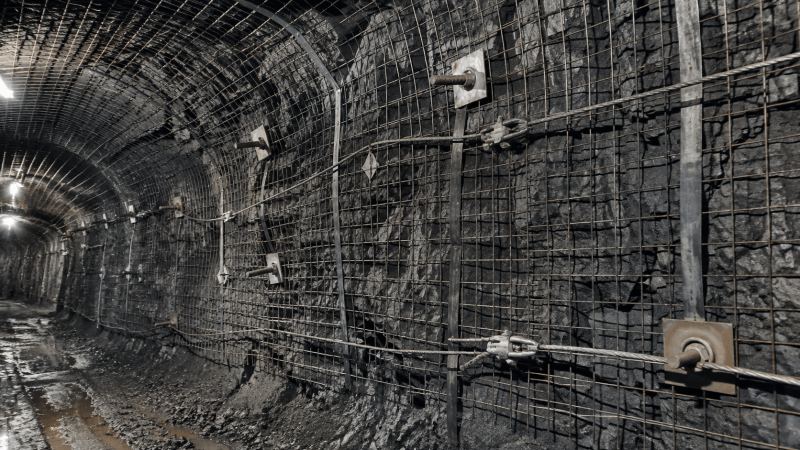

Crimped Welded Mesh works with connection clips, fixing parts, rock bolts and anchor cables to form a complete high-strength anchor mesh support system.
A High-Strength Anchor Mesh Support System
In rockburst, strong dynamic pressure and high-stress mine support, Crimped Welded Mesh is usually installed together with rock bolts, anchor cables, plates, steel straps and connection accessories.
Crimped Welded Mesh Panel
- Rigid Surface Control
- Impact Resistance
- Welded Cross Points
Connection Clips
- Panel Connection
- Continuous Mesh
- Gap Reduction
Fixing Parts
- Mesh Fixing
- Surface Attachment
- Support Stability
Rock Bolts
- Load Transfer
- Bolt Support
- Roadway Stability
Anchor Cables
- Deep Support
- High Load Area
- System Reinforcement
Bearing Plates
- Load Distribution
- Surface Contact
- Secure Attachment
For rockburst and high-stress mine support, crimped welded mesh should be selected together with anchor layout, bolt type, cable support, plate size, overlap width and fixing method.
Request Technical ConsultationNo Wire Loosening, No Weld Failure, Super Impact Resistance & Uniform Load Distribution
Crimped Welded Mesh is designed for high-risk mine support projects where ordinary mesh may fail under rockburst, strong dynamic pressure, broken ground and repeated impact load.
No Wire Loosening
More stable mesh structure under repeated pressure through mechanical crimping locks.
No Weld Failure Risk
Higher joint reliability for high-stress support, reducing critical failure points.
Super Impact Resistance
Better support for rockburst and strong dynamic pressure roadways in deep mining.
Strong Rigid Restraint
Improved surface control in broken ground compared to flexible woven meshes.
Uniform Load Distribution
More stable anchor mesh support system that spreads stress across the entire panel.
Corrosion Protection
Longer service life in harsh underground applications with high-grade galvanized coating.
Technical Performance Comparison
| Performance Metric | Ordinary Woven Mesh | Standard Welded Mesh | Crimped Welded Mesh |
|---|---|---|---|
| Structural Stability | Loose / High Deflection | Rigid / Weld Dependent | Crimped Lock + Welded |
| Rockburst Resistance | Low | Moderate (Weld Risk) | Exceptional |
| Impact Load Handling | Deforms Easily | Brittle Failure | Dynamic Elasticity |
| Installation Ease | Difficult (Flimsy) | Good (Flat) | Excellent (Modular) |
| Surface Control | Poor Concentration | Good Uniformity | Full Surface Restraint |
For rockburst, strong dynamic pressure and broken ground support, buyers should not only compare unit price.
Rockburst Roadways, Strong Dynamic Pressure, Broken Ground, False Roof, Tunnel & Slope Support
Crimped Welded Mesh is used in demanding mine and engineering support projects where welded cross points, strong rigidity and impact-resistant surface control are required.
Rockburst Roadway Support
Engineered to absorb sudden impact loads and mitigate tearing risks in high-stress geological environments.
Strong Dynamic Pressure Support
Maintains integrity under repeated pressure and industrial vibrations with stable mesh panel technology.
Broken Ground Roadway Support
Provides rigid control and comprehensive rockfall protection in weak or fragmented ground conditions.
False Roof Support
Optimized for coal mine working areas to provide superior roof control and ensure maximum operator safety.
Tunnel Initial Support
Restrains surface deformation during the critical initial phases of tunnel boring and infrastructure development.
Slope Protection Support
Interception of falling rock and surface restraint for mountain slopes and open-pit mining operations.
Contact our engineering department for customized support solutions tailored to your geological survey data.
Request Engineering QuoteMesh Preparation, Laying, Connection, Anchor Fixing & Final Adjustment
Proper installation helps crimped welded mesh work together with rock bolts, anchor cables, plates and fixing parts to form a stable anchor mesh support system.
1. Mesh Preparation
Check specs, wire diameter, mesh opening, and weld points.
2. Mesh Laying
Lay against roadway surface, keeping close to the rock.
3. Mesh Connection
Connect adjacent panels via overlap or heavy-duty clips.
4. Anchor Fixing
Fix securely with rock bolts, plates, and anchor cables.
5. Final Adjustment
Adjust loose areas and confirm proper support continuity.
Check Weld Points
Always inspect weld integrity before beginning installation.
Close to Rock Surface
Minimize gaps between mesh and rock for optimal support.
Proper Overlap
Ensure overlap specs are met for panel-to-panel continuity.
Correct Fixing Method
Use designated plates and bolt types for the specific mesh gauge.
Avoid Local Looseness
Tension all panels uniformly to prevent sag or vibration failure.
Support Continuity
Confirm that the entire surface is covered without gaps.
For detailed bolt patterns and tensioning specifications, download our comprehensive installation manual.
Download Technical ManualWire Diameter, Mesh Opening, Tensile Strength & Finish Quality
Industrial manufacturing standards and rigorous quality control testing ensure every crimped welded mesh panel provides exceptional rockburst and dynamic pressure resistance.
Wire Diameter Accuracy
Strict tolerance control on steel wire diameter to guarantee consistent load bearing and panel weight specifications.
Opening Uniformity
Laser-guided positioning ensures precise aperture sizes, critical for uniform rockfall interception.
Tensile Strength Testing
Batch tensile testing confirms the steel wires can absorb massive kinetic energy without sudden fracturing.
Weld Shear Strength
Rigorous shear resistance tests on welded joints ensure cross points remain intact under dynamic ground pressure.
Panel Flatness
Verification of overall panel flatness for seamless overlap and secure connection with anchor plates.
Corrosion Check
Thickness and adhesion testing of the galvanized coating to guarantee long-term rust prevention underground.
Need a custom crimped welded mesh specification or quality certification?
Request Technical StandardsCustom Manufacturing Direct from Factory for Your Mine Support Projects

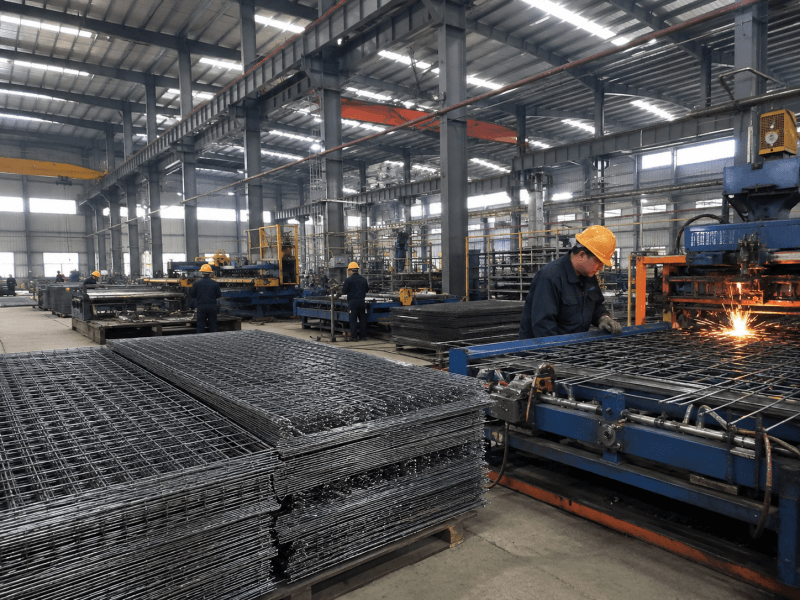

XINYONGDUO provides custom crimped welded mesh manufacturing for mine support projects based on specific technical requirements and bulk supply constraints.
Direct Manufacturing
Control costs and quality through direct factory sourcing with no middle-man interference. We ensure absolute consistency from raw materials to final mesh output.
Technical Matching
Our engineers review your geological survey data to recommend the optimal mesh gauge, aperture, and tensile strength required for your specific site.
Volume Capacity
High-volume production lines ready to supply massive infrastructure and tunneling projects without delaying your construction schedule.
Wire Diameter
Custom gauges from 3mm to 8mm for varying load depths.
Mesh Opening
Variable aperture sizes for specific ground control needs.
Panel Dimensions
Tailored panel lengths for specific roadway widths.
Weld Strength
Reinforced fusion for extreme seismic activity zones.
Surface Treatment
Hot-dip galvanizing, PVC coating, or heavy black finish.
Packing & Supply
Export-grade bundling for high-volume safe logistics.
Project Supply Workflow
Need a custom specification for your upcoming tunnel or mining project?
Request Custom QuoteGet Custom Crimped Welded Mesh Solutions Directly from China Factory
XINYONGDUO supplies factory-direct Crimped Welded Mesh for rockburst roadways, strong dynamic pressure ground, broken surrounding rock, false roof support, and tunnel initial support projects.
-
China Factory Direct Supply
Eliminate middleman costs with direct-from-source pricing and strict quality control.
-
Custom Wire Diameter & Mesh Opening
Project-based wire diameter, mesh size, weld strength, and panel dimension options.
-
Rockburst & Dynamic Support Matching
Reinforced pre-crimped steel wire and welded cross points for high-stress underground support.
-
Technical & Export Support
Comprehensive support for batch inspection, test reports, and global project delivery.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
