A Special Conveyor Roller Designed for Sticky and Wet Material Handling
A comb roller is a specialized conveyor roller designed to reduce material buildup on conveyor belts. Its structure helps break, separate, and release sticky materials such as coal dust, clay, wet sand, and mixed bulk solids during belt operation.
Why Comb Roller is Important
Comb rollers improve conveyor efficiency by reducing material buildup, lowering manual cleaning frequency, and maintaining stable belt tracking in sticky and wet material environments.

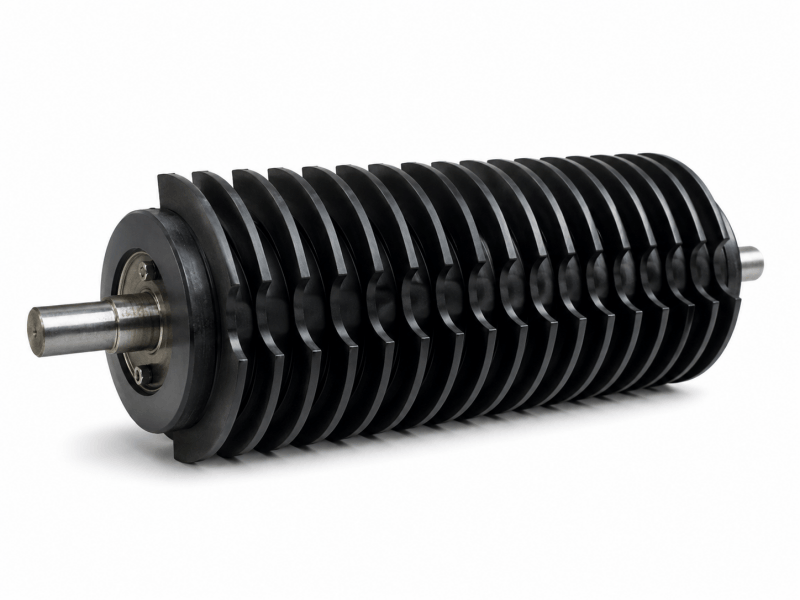

How It Looks & Works
01 Comb-shaped surface design
Breaks and separates sticky material
02 Self-cleaning interaction
Continuously reduces material buildup during operation
03 Belt-friendly contact
Avoids damage while improving cleaning effect
Typical Problems in Sticky Material Conveyor Systems
In coal, clay, wet sand, and mixed bulk material conveying systems, material buildup, belt deviation, and frequent cleaning issues are the most common causes of downtime and maintenance cost increase.
Material Build-Up on Belt Surface
Sticky materials such as coal dust, clay, and wet sand easily accumulate on the conveyor belt surface during operation.
Belt Misalignment & Instability
Uneven material distribution causes belt deviation and unstable running conditions.
Difficult Cleaning & Frequent Downtime
Manual cleaning is required frequently due to continuous material sticking and buildup.
High Maintenance Cost
Wear, cleaning labor, and system downtime significantly increase overall operational cost.
Impact on Conveyor System Performance
These issues reduce conveyor efficiency, increase downtime, and significantly raise maintenance and operational costs in sticky material handling environments.
A Key Component for Stable, Clean, and Efficient Conveyor Operation
Comb rollers play a critical role in improving conveyor belt cleanliness and operational stability, especially in sticky and high-moisture material handling environments.
Belt Cleaning Enhancement
The comb structure helps break and remove sticky materials attached to the belt surface during operation, reducing buildup and improving self-cleaning efficiency.
- Reduces material adhesion
- Improves self-cleaning efficiency
- Lowers manual cleaning frequency
Conveyor Stability Improvement
By reducing uneven material buildup, comb rollers help maintain balanced belt movement and reduce deviation and vibration during operation.
- Improves belt tracking stability
- Reduces vibration and deviation
- Enhances overall conveyor efficiency
Why it is Essential in Sticky Material Systems
In sticky and high-moisture conveying systems, comb rollers are essential for maintaining continuous operation, reducing downtime, and improving overall system efficiency.
Dual-Function Working System: Cleaning + Belt Alignment Support
Comb rollers work through a structural interaction mechanism that simultaneously reduces material adhesion and improves belt tracking stability during continuous conveyor operation.
Sticky Material Removal Mechanism
The comb-shaped structure interacts with the belt surface during rotation, breaking and separating sticky materials before they accumulate on the belt.
Anti-Deviation Alignment Mechanism
Uneven material distribution is corrected through friction-induced adjustment, helping the belt return to the central running position.
Integrated Self-Improving System
By combining material removal and alignment correction, comb rollers ensure cleaner belt surfaces and more stable conveyor operation in continuous working environments.
Comb Roller Options for Sticky Material Handling and Conveyor Stability
We provide comb roller solutions for sticky material cleaning, return belt support, anti-buildup performance, and conveyor stability improvement in mining, coal washing, port, power plant, and bulk material handling systems.

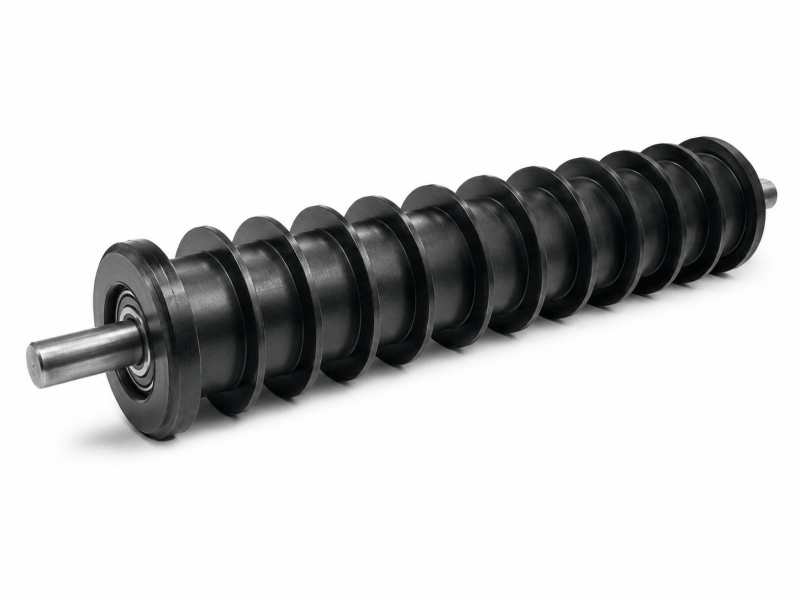

Standard Comb Roller
A general-purpose comb roller designed for reducing sticky material buildup and improving belt cleaning in common conveyor systems.
View Details

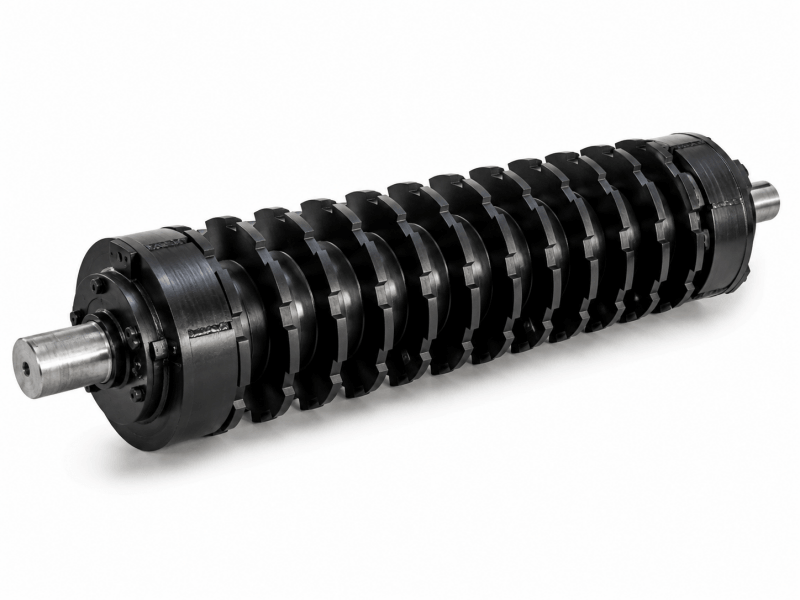

Heavy-Duty Comb Roller
Designed for heavy-load conveyor systems handling coal, ore, wet sand, and high-volume sticky bulk materials.
View Details

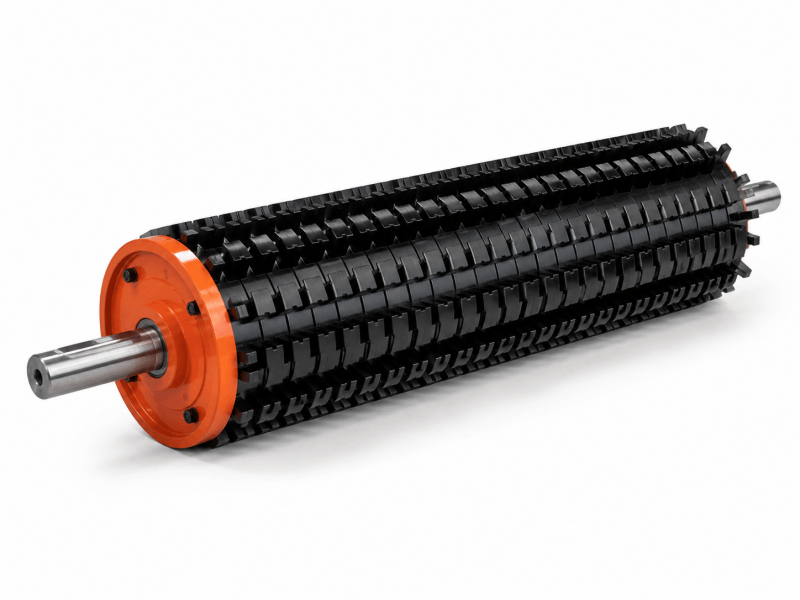

Return Side Comb Roller
Installed on the return side of the belt to reduce material carryback, lower buildup, and support cleaner return operation.
View Details

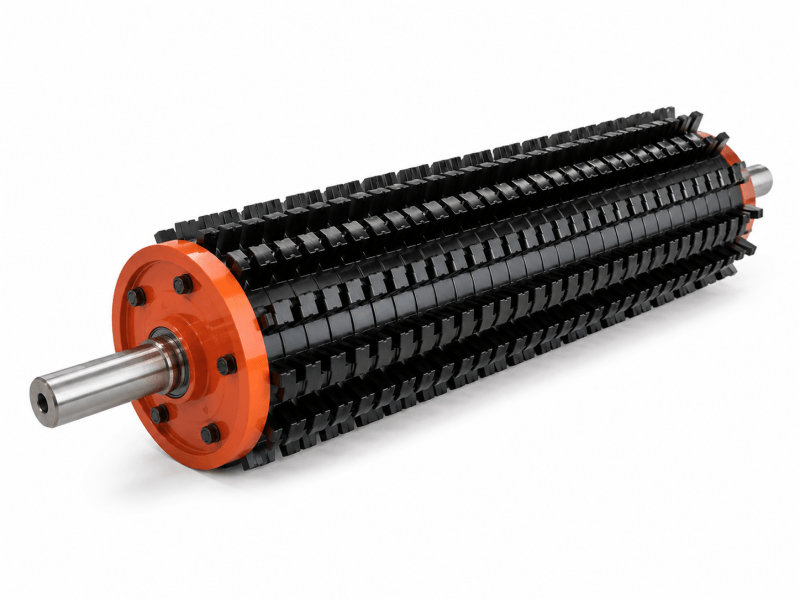

Wet Material Comb Roller
Suitable for wet, muddy, and highly adhesive material conveying systems where normal rollers are prone to material sticking.
View Details

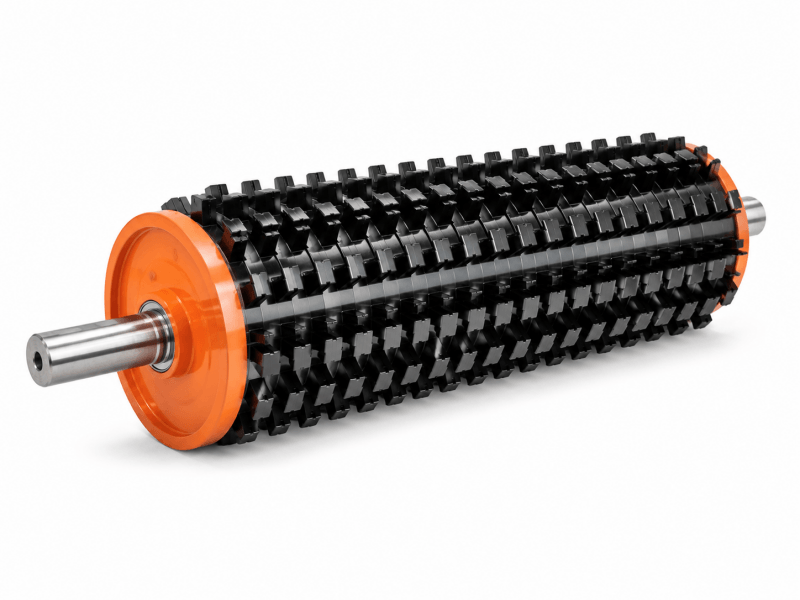

Corrosion-Resistant Comb Roller
Built for humid, corrosive, or outdoor environments with enhanced surface treatment and durable sealing protection.
View Details

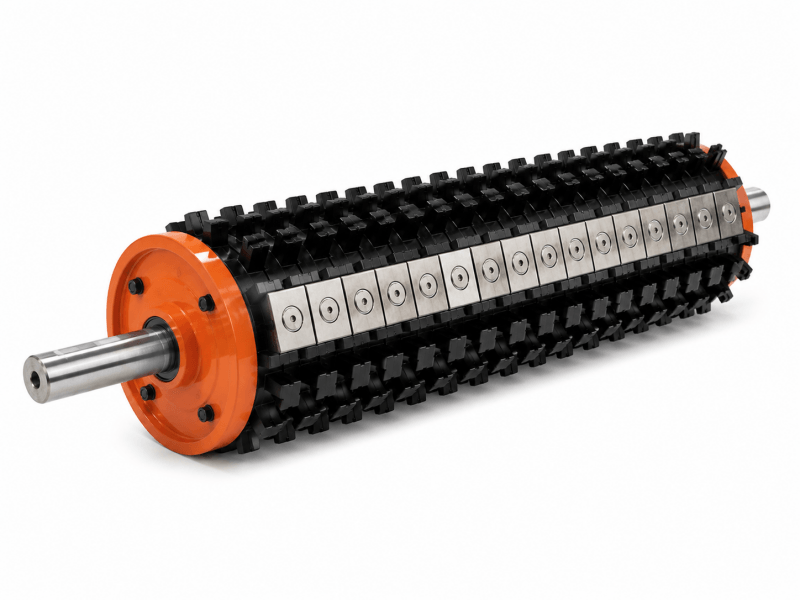

Magnetic Cleaning Comb Roller
Upgraded with a special cleaning module for sticky materials mixed with magnetic particles or iron-rich fine materials.
View DetailsNeed a Different Comb Roller Configuration?
If your conveyor system has special belt width, sticky material characteristics, or working conditions, we support drawing-based customization.

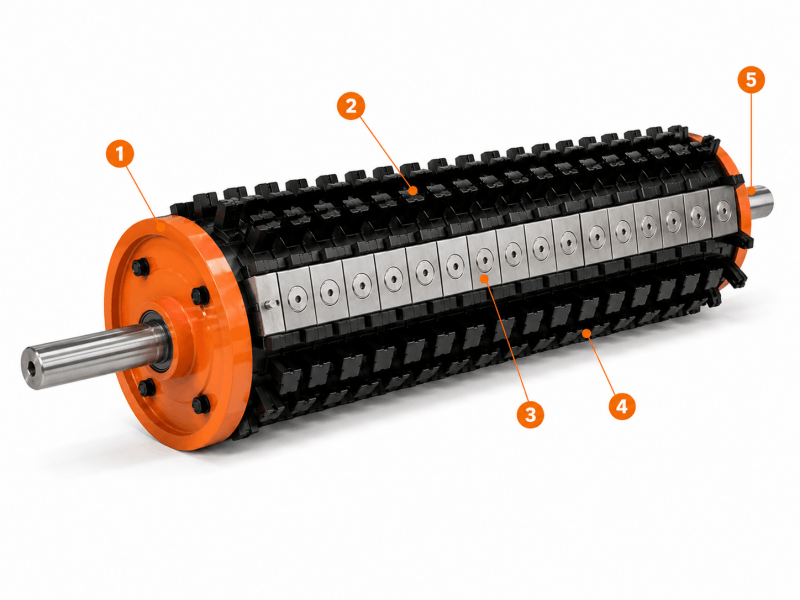

System Structure Overview
The comb roller is composed of multiple coordinated structural components that work together to achieve material separation, anti-sticking performance, and stable conveyor operation.
Roller Shaft Body
Provides the main load-bearing structure for the entire roller system.
Supports structural strength and rotation stabilityComb Rubber Rings
Contact surface that breaks and separates sticky materials during operation.
Anti-sticking / Self-cleaning effectPositioning Spacers
Maintains correct spacing and alignment of comb rings for stable operation.
Structural alignment stabilitySealed Bearing Unit
Ensures smooth rotation and prevents dust or moisture intrusion.
Low resistance / Long service lifeElectromagnetic Cleaning Module
Optional upgrade system for fine particles or magnetic sticky materials.
Enhanced cleaning performanceIntegrated Structural Performance
All components work together to ensure stable rotation, effective material separation, and long-term anti-sticking performance in harsh conveyor environments.
Multi-Dimensional Classification System for Comb Roller Selection
Comb rollers can be selected based on installation position, structural design, material configuration, and functional requirements to match different sticky material conveying systems.
Defines where comb rollers are installed in the conveyor system for optimal cleaning and stability performance.
Different structural designs determine cleaning efficiency and anti-sticking performance.
Material selection affects durability, wear resistance, and working life.
Different functional designs are used for specific sticky material and conveyor conditions.
Need Help Choosing the Right Comb Roller?
Provide belt width, material type, and installation position for expert recommendation.
Key Specifications for Comb Roller Selection and Conveyor Matching
These technical parameters define how comb rollers match different conveyor belt widths, load conditions, and sticky material environments to ensure stable operation.
Belt Width Range
Determines compatibility with different conveyor systems.
Roller Diameter
Affects load capacity and belt support stability.
Roller Length
Ensures full belt surface support.
Bearing Type
Affects rotation stability and service life.
Rotation Resistance
Improves energy efficiency and smooth operation.
Load Capacity
Determines suitability for mining and bulk systems.
Engineering Selection Guidance
Proper selection of belt width, roller size, bearing type, and load capacity ensures long-term stable operation.
Core Components That Define Comb Roller Performance and Service Life
The durability of comb rollers depends on material selection, friction ring design, bearing quality, and sealing structure under harsh working environments.
- Carbon Steel Tube (Standard)
- High Strength Steel (Reinforced)
- Wear Resistant Alloy Steel (Heavy Duty)
Provides structural strength and impact resistance.
Mining / Coal / Aggregate Transport- Rubber Composite Rings (Standard)
- Wear-resistant Rubber (Upgraded)
- High Elastic Anti-Sticking Material
Enhances anti-sticking and self-cleaning performance.
Sticky / Wet / Muddy Material Handling- Standard Deep Groove Bearing
- Heavy-Duty Industrial Bearing
- Low-Noise High-Speed Bearing
Ensures smooth rotation and reduces resistance.
Continuous Operation Systems- Labyrinth Seal (Dust-Proof Standard)
- Multi-Layer Sealing Structure
- Waterproof & Dust-Resistant Seal
Prevents dust, water, and slurry intrusion.
Mining / Outdoor / High MoistureSystem Integration for Long Service Life
Material, bearing, and sealing configuration must be matched correctly to ensure stable operation.
Standardized Manufacturing Process for Comb Roller Production
Each comb roller is manufactured through a controlled engineering process covering material selection, machining, assembly, testing, and inspection to ensure stable performance.
Raw Material Selection
High-strength steel tube, rubber rings, and bearing components selected for durability.
Cutting & Tube Preparation
Precision cutting and tube processing ensure dimensional accuracy and structural integrity.
Shaft Machining
Shafts are machined to ensure proper fit and long-term rotation stability.
Component Assembly
Rubber comb rings, positioning spacers, and bearing units installed in engineering sequence.
Performance Testing
Rotation stability, vibration levels, and balance performance are rigorously tested.
Final Inspection
Appearance, labeling, and packaging checked before secure shipment prep.
Engineered for Stable Mass Production
A standardized manufacturing flow ensures consistent quality, stable performance, and reliable delivery for projects.
Comprehensive Testing System for Stable Comb Roller Performance
Each comb roller is strictly tested before shipment to ensure dimensional accuracy, rotation stability, balance performance, and overall product reliability.
Dimensional Accuracy Test
Check roller diameter, length, shaft size, and assembly tolerance.
Rotation Performance Test
Verify smooth rotation and low resistance performance under load.
Dynamic Balance Test
Test vibration level during high-speed rotation to ensure stability.
Anti-Sticking Test
Simulate sticky material conditions to evaluate cleaning performance.
Final Inspection
Check appearance, labeling, sealing condition, and packaging quality.
Engineered Quality Control System
A strict multi-stage testing system ensures every comb roller meets performance and stability requirements.
Widely Used in Sticky Material and Heavy-Duty Conveyor Systems
Comb rollers are designed for industries where conveyor systems handle sticky, wet, abrasive, or high-volume bulk materials under continuous operating conditions.

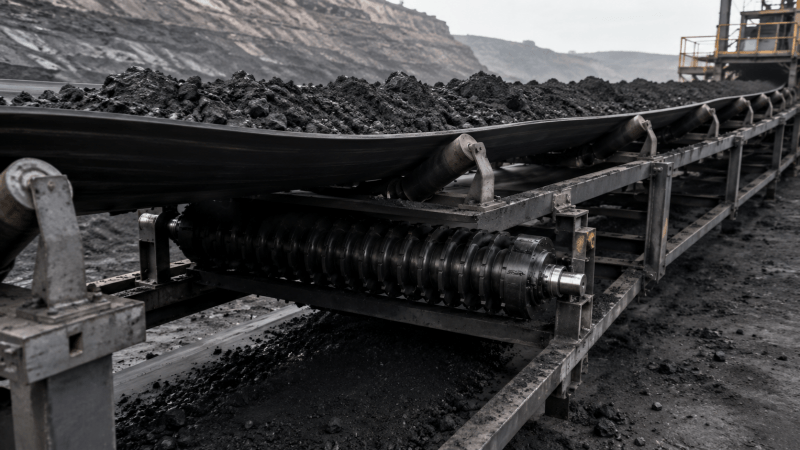

Mining Industry
Used in ore, coal, and underground or open-pit conveyor systems with heavy load and high dust conditions.

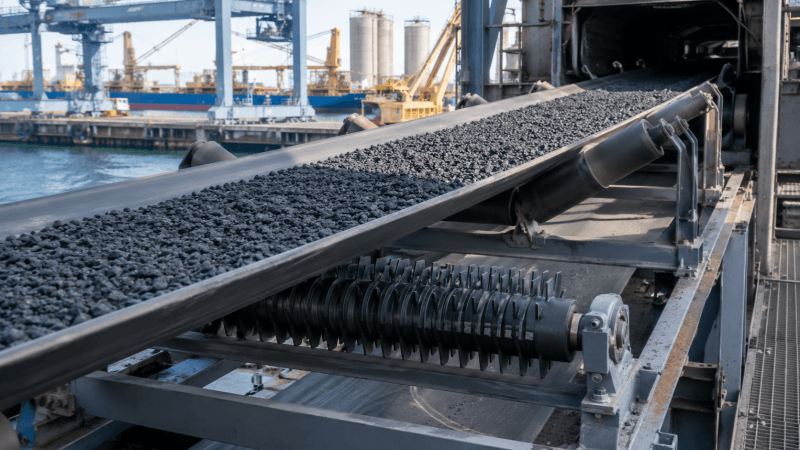

Port & Terminal
Bulk material handling systems for loading and unloading operations in ports and terminals.

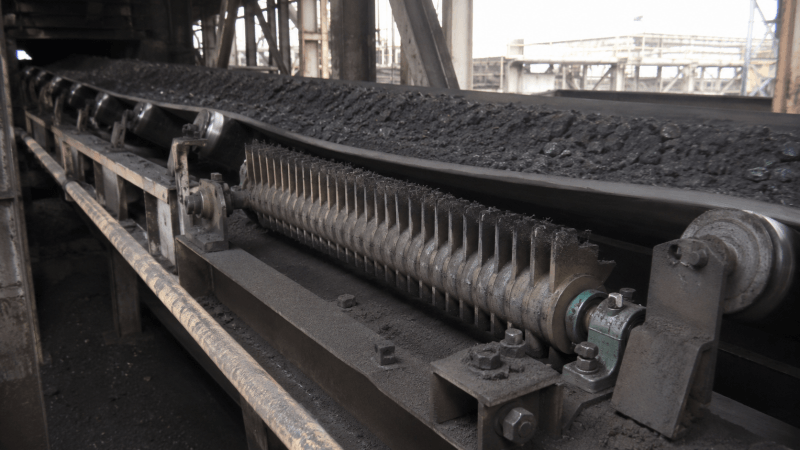

Power Plant
Coal conveying systems for boiler feeding and fuel transportation in high dust environments.
Coking Industry
High-temperature and sticky material conveying environments in coke production systems.

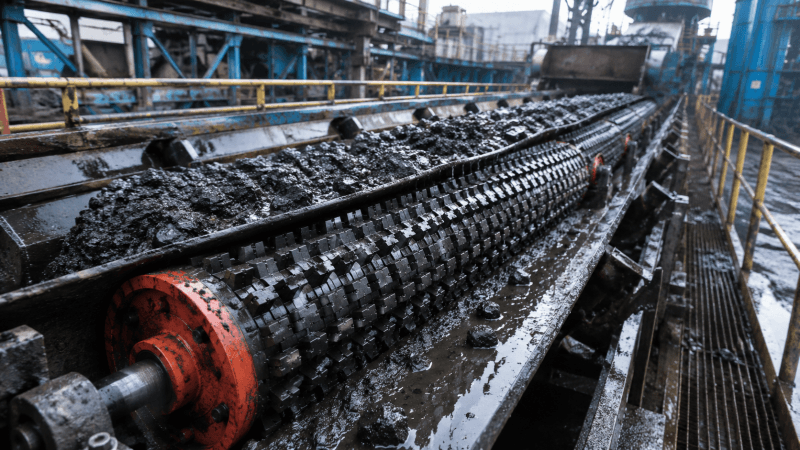

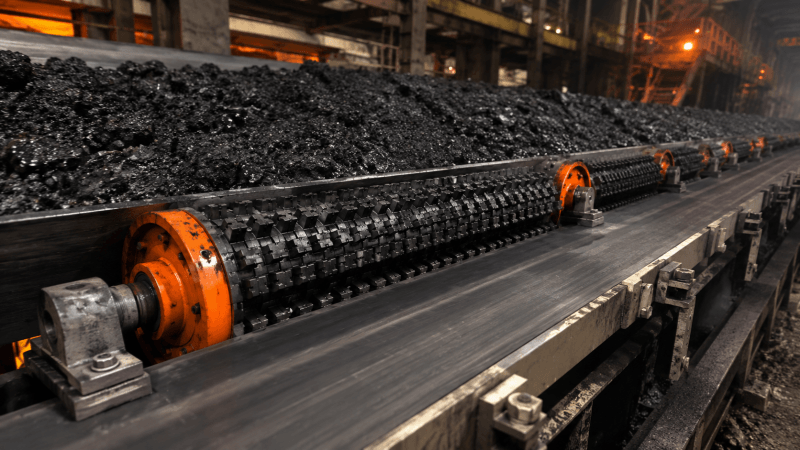

Coal Washing Plant
Wet coal and slurry conveying systems with strong adhesion and high moisture content.

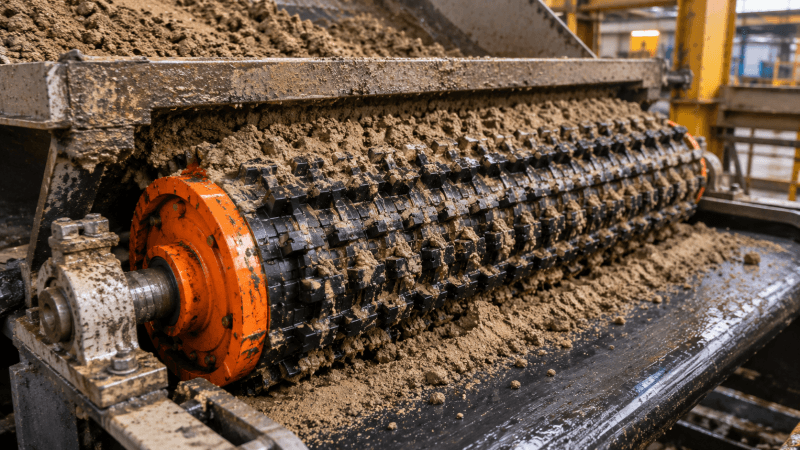

Bulk Sticky Materials
General industrial applications involving clay, sand, fertilizer, and mixed bulk materials.
Cross-Industry Conveyor Solution
Comb rollers provide stable performance across multiple industries where reliability is required.
Complete Guidance for Comb Roller Selection, Installation & Maintenance
Proper selection, correct installation, accurate commissioning, and regular maintenance ensure stable performance and long service life.
Selection
Match belt width, material type, moisture level, and load condition.
Select roller type based on conveyor system and sticky material characteristics.
Installation
Ensure correct alignment, spacing, and structural fixation.
Install comb rollers according to conveyor frame design and operating direction.
Commissioning
Check rotation, alignment response, and belt behavior.
Run system at low speed to verify performance before full operation.
Maintenance
Regular inspection of bearings, seals, and comb rings for wear.
Clean buildup, replace worn parts, and check rotation condition.
Full Lifecycle Performance Assurance
Correct selection, proper installation, and regular maintenance ensure long-term stable operation.
Get Custom Comb Roller Solutions Directly from China Factory
Send your conveyor belt width, material type, or drawings. Our engineering team will provide suitable comb roller solutions designed to optimize your sticky material handling.
-
China Factory Direct Supply
Faster response and clearer technical confirmation directly with our manufacturing engineers.
-
Custom Conveyor Support
Tailor-made structural solutions designed for your specific conveyor frame dimensions.
-
Bulk Manufacturing Capacity
Stable production and reliable delivery lines built for large industrial and mining projects.
-
Engineering Selection Assistance
Load capacity and material analysis to help avoid wrong selection and system mismatch.
Request Direct Factory Quotation
Connect directly with our engineering team to get custom-designed solutions that minimize downtime and cut procurement costs.
